HTC-PC-170A Power Clamp Meter 1000A
Click To Zoom
HTC-PC-170A Power Clamp Meter 1000A
HTC-PC-170A Power Clamp Meter 1000A
The HTC-PC-170A is a 1000A AC current clamp meter. It measures voltage, frequency, power factor, and active power. It has a large LCD display with backlight for easy reading.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 7,475.00
(GST inclusive price) i₹7,475.00
( - 0% OFF )
Description

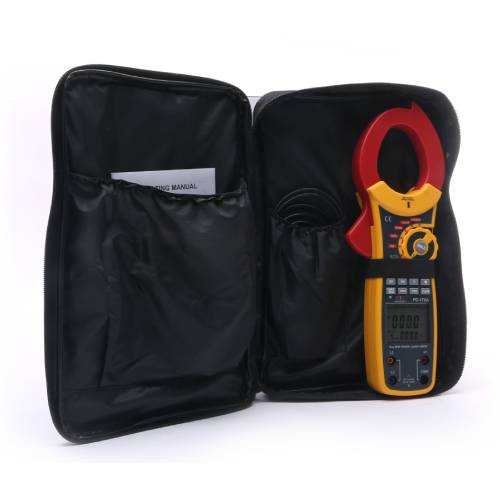

What's in the box?
|
Rating & Reviews
Rating
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 100V | 0.1V | 50Hz-200Hz: ±1.2% of rdg + 5 digits |
| 400V | ||
| 750V | ||
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 40A | 0.1V | 50Hz-60Hz: ±2% of rdg + 5 digits |
| 100A | ||
| 400A | ||
| 1000A | 1A | |
| POWER FACTOR | ||
| Range | Resolution | Accuracy |
| 0.3 – 1 | 0.001 | ±0.022% of rdg |
| PHASE ANGLE | ||
| Range | Resolution | Accuracy |
| 0˚- 90˚ | 1˚ | ±2% of rdg |
| ACTIVE ENERGY | ||
| Range | Resolution | Accuracy |
| 1-9999kWh | 0.001kWh | ±3% of rdg + 2 digits |
| ACTIVE POWER | ||||||
| Current/Voltage | Voltages Range | Accuracy | Resolution | |||
| Range | 40A | 100V | 400V | 750V | ±3% of rdg + 5 digits | <10000KW: 0.01KW 100kW: 0.1KW |
| 100A | 4.00KW | 16.00KW | 30.00KW | |||
| 400A | 10.00KW | 40.00KW | 75.00KW | |||
| 1000A | 40.00KW | 160.0KW | 300.0KW | |||
| 100.0KW | 400.0KW | 750.0KW | ||||
| APPARENT POWER | ||||||
| Current/Voltage | Voltages Range | Accuracy | Resolution | |||
| Range | 40A | 100V | 400V | 750V | ±3% of rdg + 5 digits | <10000KW: 0.01KKVAr 100kW: 0.1KVAr |
| 100A | 4.00KVA | 16.00KVA | 30.00KVA | |||
| 400A | 10.00KVA | 40.00KVA | 75.00KVA | |||
| 1000A | 40.00KVA | 160.0KVA | 300.0KVA | |||
| 100.0KVA | 400.0KVA | 750.0KVA | ||||
| REACTIVE POWER | ||||||
| Current/Voltage | Voltages Range | Accuracy | Resolution | |||
| Range | 40A | 100V | 400V | 750V | ±3% of rdg + 5 digits | <10000KW: 0.01KKVAr 100kW: 0.1KVAr |
| 100A | 4.00KVAr | 16.00KVAr | 30.00KVAr | |||
| 400A | 10.00KVAr | 40.00KVAr | 75.00KVAr | |||
| 1000A | 40.00KVAr | 160.0KVAr | 300.0KVAr | |||
| 100.0KVAr | 400.0KVAr | 750.0KVAr | ||||
| Dimension | ||||||
| 295(H) x 100(W) x 46(D)mm | ||||||
