Lutron FR-5120 Fruit Hardness Tester

Click To Zoom

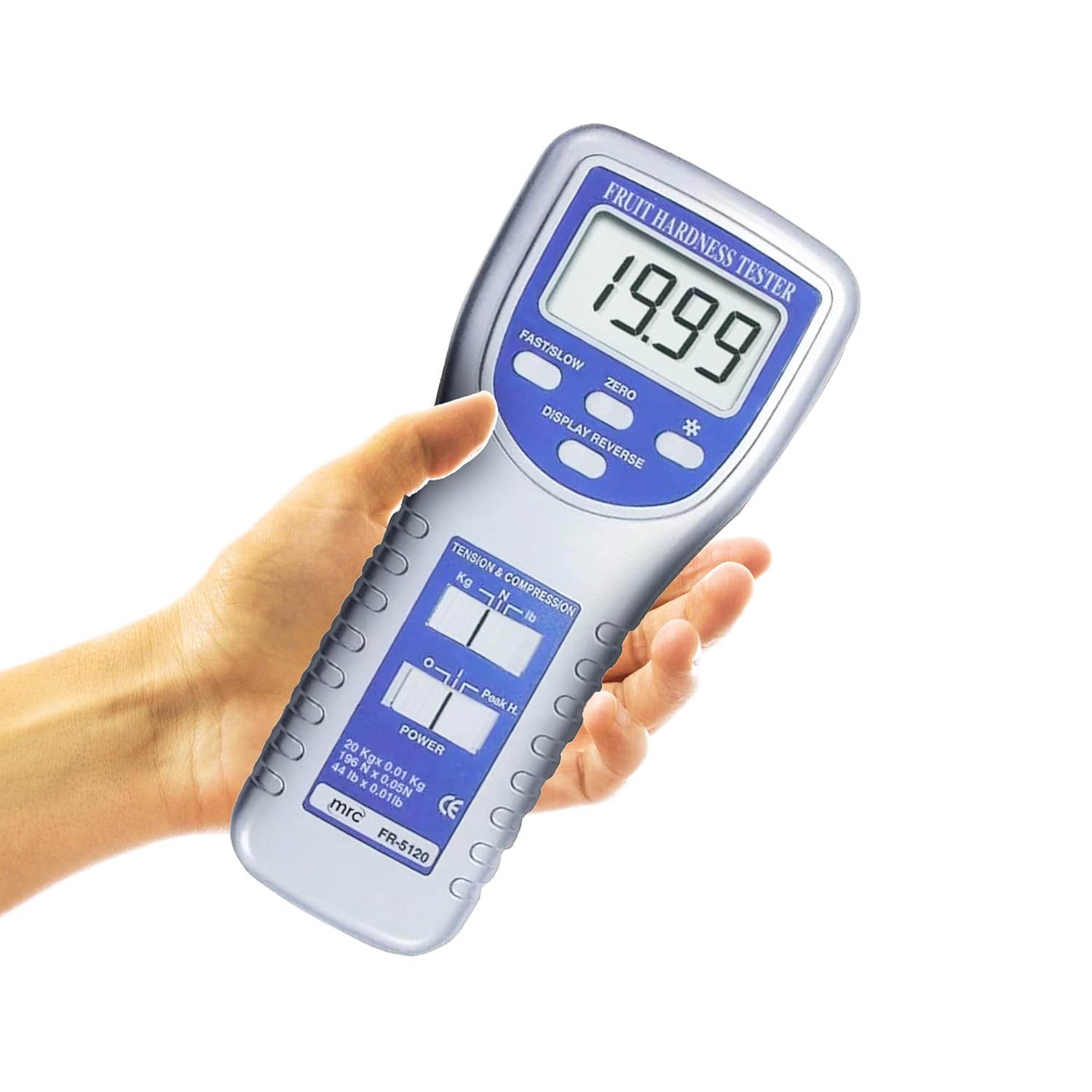

Lutron FR-5120 Fruit Hardness Tester

Lutron FR-5120 Fruit Hardness Tester

(Based On 10 Reviews)

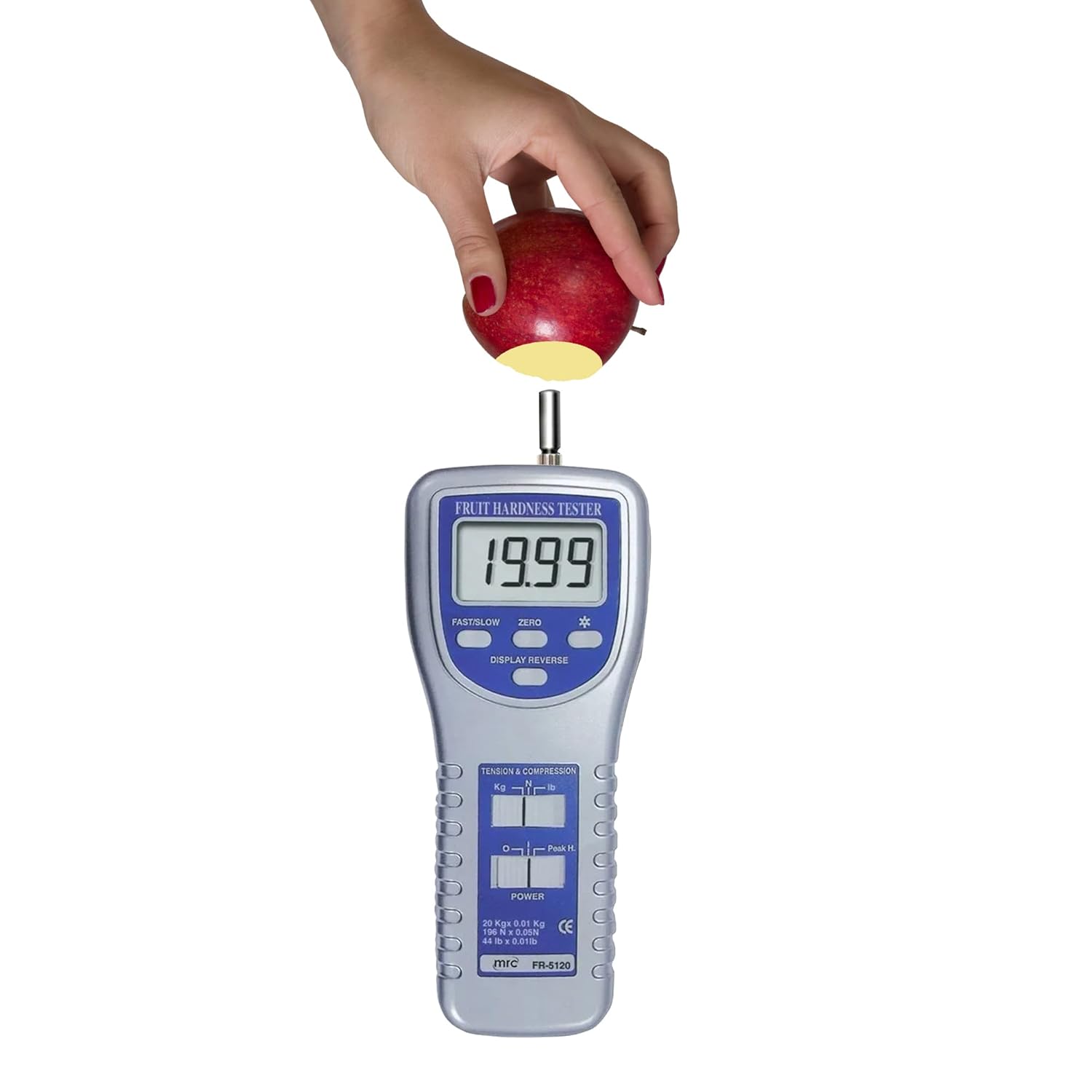

The FR-5120 Precision Fruit Sclerometer is designed to measure the hardness of various fruits, making it an essential tool for fruit quality assessment and agricultural research.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments Details

SECURE Payments

₹ 24,072.00

(GST inclusive price) i
  • Base Value: ₹ 20400
  • GST: (18) % ₹ 3672
  • Total Value ₹ 24072

₹24,072.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key features



  •  Wide Measurement Range: Measures hardness up to 20 Kg with a resolution of 0.01 Kg, suitable for a variety of fruits.
  •  Multiple Units of Measurement: Displays readings in Kg, LB, and Newton, providing flexibility in different measurement standards.
  •  Digital Display with Peak Hold: Features a large LCD display with backlight and a peak hold function to capture the maximum load.
  •  User-Friendly Design: Includes a zero button for normal and peak hold operations, and a fast/slow response time push button for adaptable measurements.

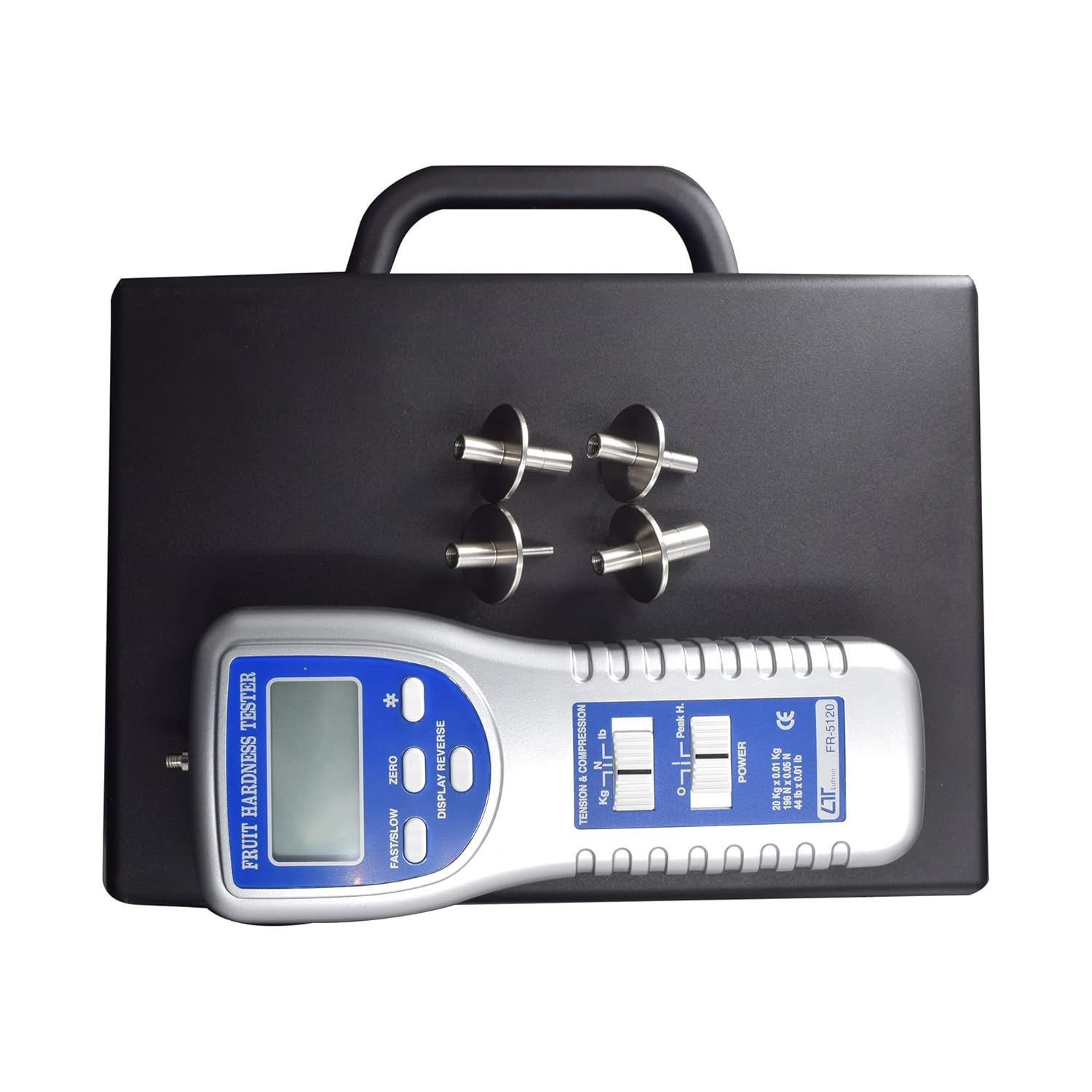

  •  Complete Set with Multiple Tips: Comes with four different penetrometer tips (3 mm, 6 mm, 8 mm, 11 mm) and a hard carrying case for comprehensive testing capabilities.

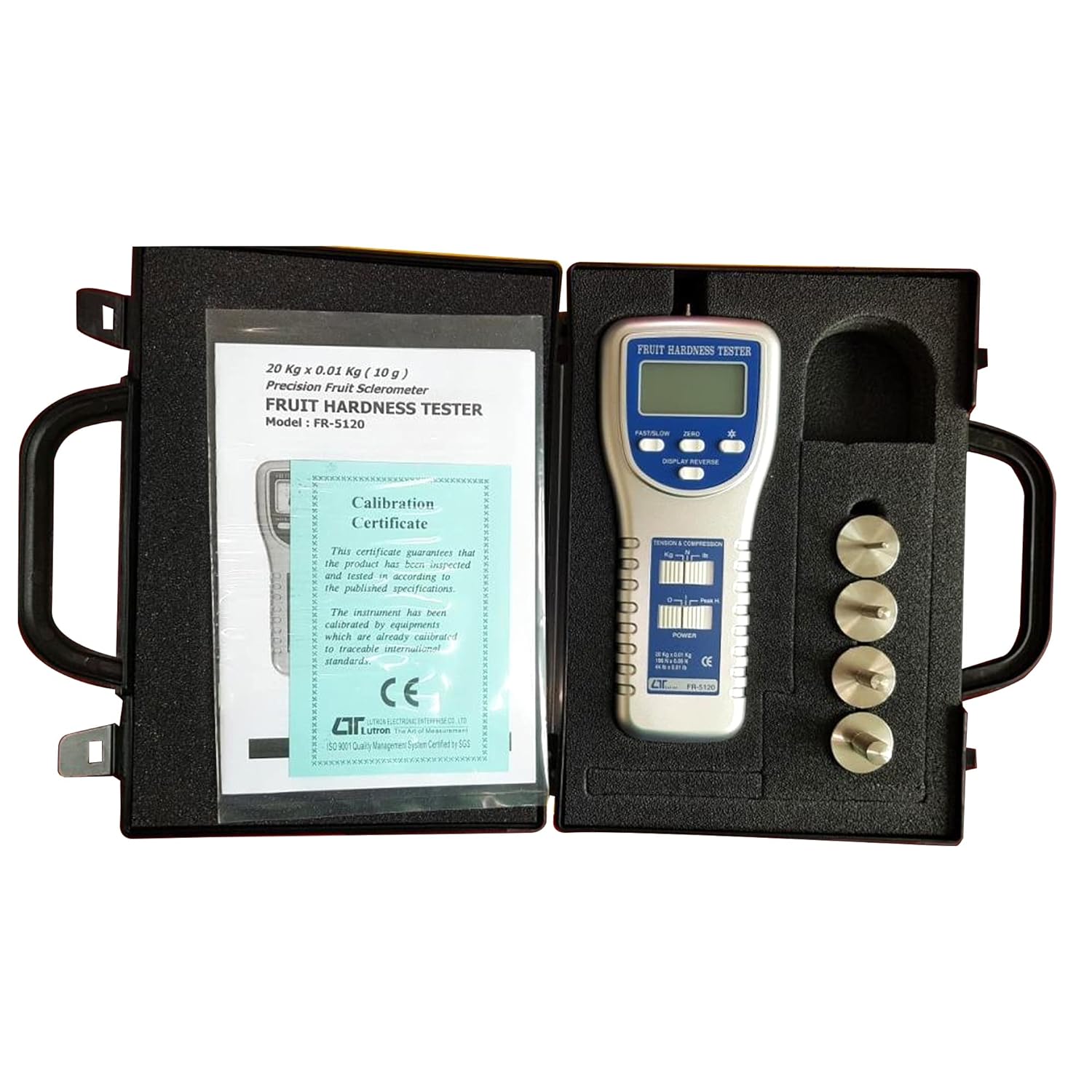

What's in the box?

  • Instruction Manual (1 PC)
  •  11 mm Penetrometer Tip (FRTP-11) (1 PC)
  •  8 mm Penetrometer Tip (FRTP-8) (1 PC)
  •  6 mm Penetrometer Tip (FRTP-6) (1 PC)
  •  3 mm Penetrometer Tip (FRTP-3) (1 PC)
  •  Hard Carrying Case (1 PC)























Optional Accessories:

  • Test Stand (FS-1001)
  •  RS232 Cable (UPCB-01)
  •  USB Cable (USB-01)
  •  SD Card Data Recorder (DL-9602SD)
  •  Data Logging Software (SW-U801-WIN)

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

Technical Specifications:






   Principal:

  • The hardness of Fruit can express by the unit area ( S ) could undertake the
    pressure of dynamometer ( N) , their specific value is just as the hardness ( P ).
  • P= N / S
  • P = Hardness value of fruit ( Kg/cm^2 )
  • N = Pressure of dynamometer ( N, Kg, LB ) S = Area of pressure ( m^2, cm^2 )


   Display:

  • LCD ( Liquid crystal display ).
    5 digits, 16 mm ( 0.63" ) digit size. Back light.



   Model:

  • FR-5120


   Measurement Range:

  • 0 to 20 Kg


   Resolution:

  • 0.01 Kg


   Peak hold:

  • Will freeze the display value of the Peak load ( Max. load ).



   Measure Capacity:

  • 20.00 Kg/44.10 LB/196.10 Newton.



   Units:

  • Kg, LB, Newton


   Accuracy:

  • ± (0.5% + 2 digits) at 23 ± 5℃


   Update time:

  • Fast Approx. 0.2 second. Slow Approx. 0.6 second.


  Over range Indicator:

  • Display show " - - - - " when in over range status.


  Overload Capacity:

  • Max. 30 kg.


 Transducer:

  • 0°C to 50°C ( 32°F to 122°F ).



 Measurement Modes:

  • Normal force, Peak hold


 Display:

  • 5 digits, 16 mm LCD with backlight, positive or reverse direction


 Tip Sizes:

  • 3 mm, 6 mm, 8 mm, 11 mm


 Data Output:

  • RS-232 serial interface, optional USB interface


 Power Supply:

  • 6 x 1.5V AA (UM-3) batteries or DC 9V adapter


 Power Consumption:

  • Approx. DC 28 mA


 Dimensions:

  • 215 x 90 x 45 mm (8.5 x 3.5 x 1.8 inches)


 Weight:

  • 650 g (1.43 lb) with batteries
