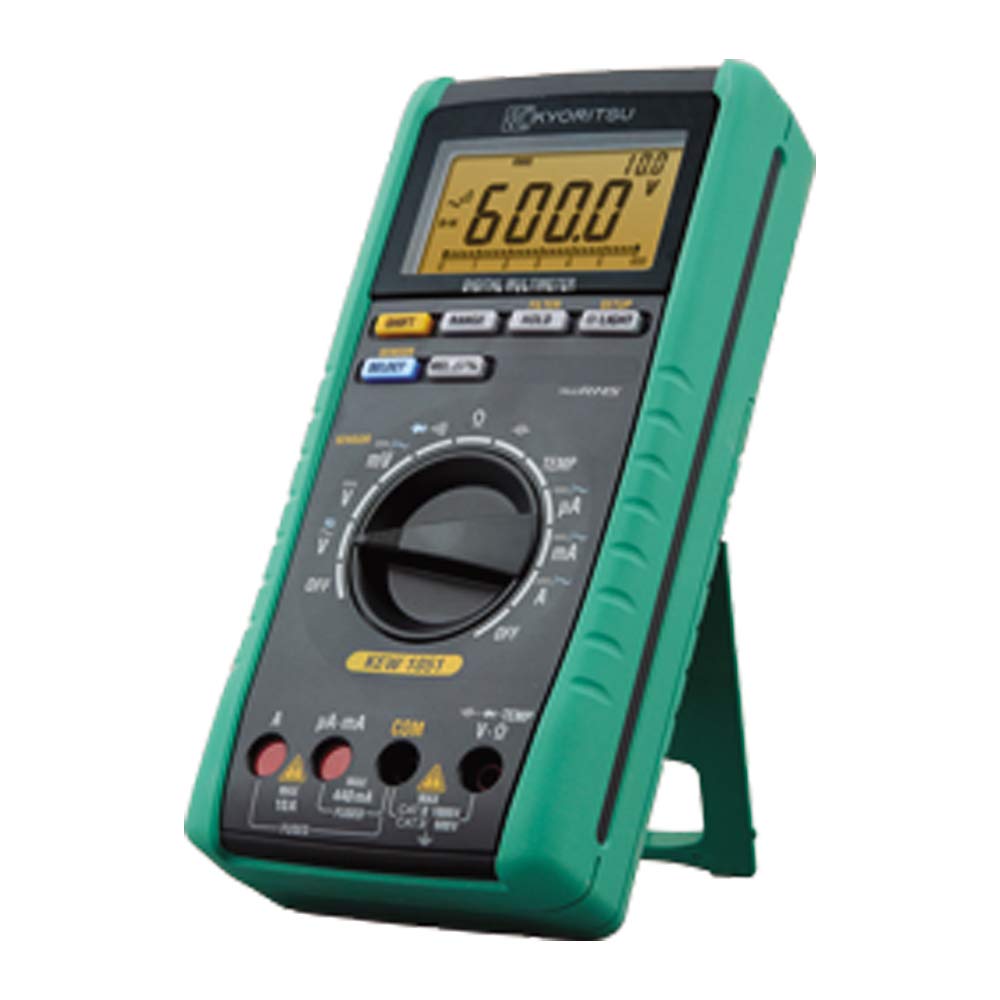

KYORITSU 1051 DIGITAL MULTIMETER
Click To Zoom
KYORITSU 1051 DIGITAL MULTIMETER
KYORITSU 1051 DIGITAL MULTIMETER
The KEW 1051 is a digital multimeter used for measuring various electrical parameters such as voltage, current, resistance, and capacitance. It features a large display with 6,000 counts, true RMS measurements.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 35,310.00
(GST inclusive price) i₹35,310.00
( - 0% OFF )
Description
What's in the box
|
Rating & Reviews
Rating
Product Specifications
| Detection mode | Ture RMS |
| DC V | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V]) ±0.09%rdg±2dgt (Basic accuracy) |
| AC V | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy) |
| DC A | 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.2%rdg±2dgt (Basic accuracy) |
| AC A | 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.75%rdg±5dgt (Basic accuracy) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±0.4%rdg±1dgt (Basic accuracy) |
| Continuity buzzer | 600.0Ω (The buzzer turns on at resistances lower than 50±30Ω) |
| Diode test | 2.000V ±1%rdg±2dgt Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current) |
| Capacitance | 10.00/100.0nF/1.000/10.00/100.0/1000µF ±2%rdg±5dgt (Basic accuracy) |
| Frequency | 10.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz ±0.02%rdg±1dgt (Basic accuracy) |
| Temperature | -50 - 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe) |
| Other functions | Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H) Zero Adjustment (Capacitor, Resistance), LCD backlight |
| Applicable standards | IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61326-1 (EMC) |
| Display | 6,000 counts |
| Power source | R6 (1.5V)×4 (Auto power off: Approx. 20 minutes) |
| Dimension | 192(L)×90(W)×49(D) mm |
| Weight | Approx. 570g (including batteries and blank cover) |
