KYORITSU 2117R Digital Clamp Meter
Click To Zoom
KYORITSU 2117R Digital Clamp Meter
KYORITSU 2117R Digital Clamp Meter
The KEW 2117R is a digital clamp meter designed to measure AC current, voltage, resistance, and continuity. It features a 1000A AC current range and a 33mm jaw opening. 2
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 10,925.00
(GST inclusive price) i₹10,925.00
( - 0% OFF )
Description

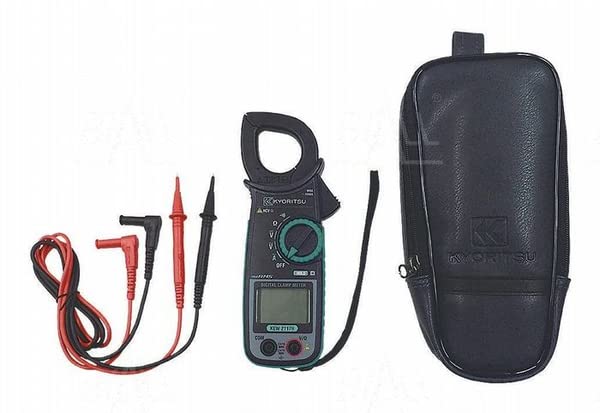

What's in the box
|
Rating & Reviews
Rating
Product Specifications
| AC A | 60.00/600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 - 65Hz] ±2.0%rdg±5dgt [40Hz - 1kHz] |
| AC V | 60.00/600.0V (Auto-ranging) ±1.0%rdg±2dgt [45 - 65Hz] (600V) ±1.5%rdg±4dgt [40Hz - 1kHz] (60/600V) |
| DC V | 60.00/600.0V (Auto-ranging) ±1.0%rdg±3dgt (60V) ±1.2%rdg±3dgt (600V) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging) ±1.0%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6/60/600kΩ) |
| Continuity buzzer | 600Ω(Buzzer sounds below 90Ω) |
| Conductor size | φ33mm max. |
| Applicable standards | IEC 61010-1 CAT IV 300V / CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS) |
| Power source | R03/LR03 (AAA) (1.5V) × 2 |
| Continuous measuring time | Approx.170 hours (When R3 is used)(NCV_LED:off) (Auto power save : Approx. 10 minutes) |
| Dimension | 204(L) × 81(W) × 36(D)mm |
| Weight | Approx. 220g (including batteries) |
