Metravi 275HP1 With FRP Rod Kit Non-contact High Voltage Detector (Electroscope) up to 275kV
.webp "Metravi 275HP1 With FRP Rod Kit Non-contact High Voltage Detector (Electroscope) up to 275kV")
.webp "Metravi 275HP1 With FRP Rod Kit Non-contact High Voltage Detector (Electroscope) up to 275kV")
Click To Zoom
Metravi 275HP1 With FRP Rod Kit Non-contact High Voltage Detector (Electroscope) up to 275kV
Metravi 275HP1 With FRP Rod Kit Non-contact High Voltage Detector (Electroscope) up to 275kV
It is used for high voltage line inspection on field, identification of voltage level of high voltage systems, inspection of high voltage line faults, repairing neon lamp, induced voltage for high voltage sodium lamp inspections, inspection of residual high voltage or induced voltage and so on. It also proves to be necessary instrument for Railways and Power System Line maintenance.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 19,307.00
(GST inclusive price) i₹25,988.00
( - 26% OFF )
Description

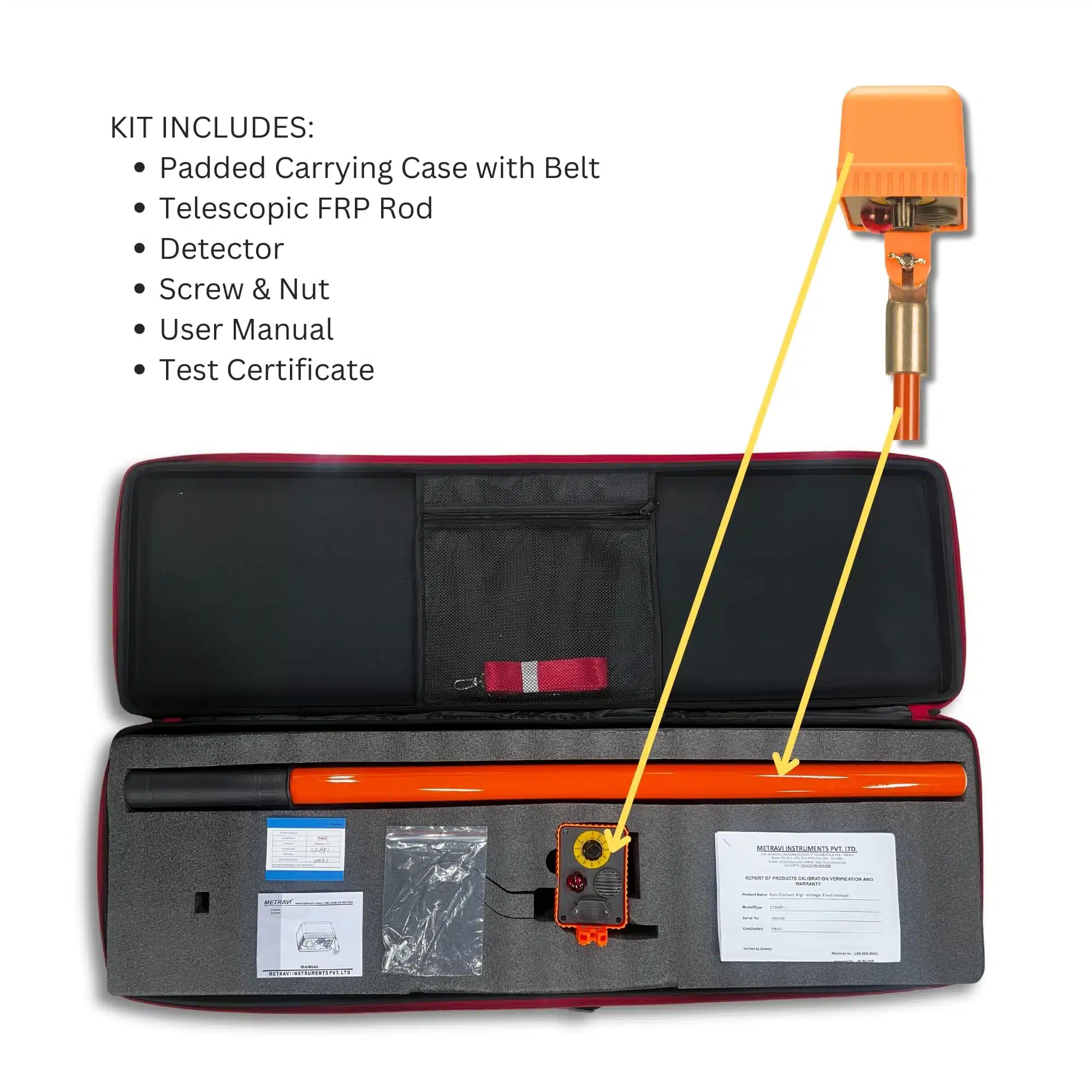

What's in the box?
|
Rating & Reviews
Rating
| TECHNICAL SPECIFICATIONS | |
| Parameter | Specifications |
| Functions | For high voltage line inspections on field, identification of high voltage systems and voltage levels, inspections of high voltage line faults, repairs of neon lamps, high voltage sodium lamp inspections and induced voltage |
| Power Supply | Zn-Mn dry battery 6F22,9V |
| Voltage Level | 9 Gears |
| Electricity Testing Level | 110V-500KV(optional) |
| Electricity Testing Indication | Red double-flash LED indicator |
| Bee-bee-bee" buzzing sound audible indicator | |
| Self-Inspection Function | Set the rotary switch to "TEST" gear, the indication turn on, the buzzer make out "Bee--" sound |
| Battery Voltage Low Indication | When the detector battery voltage is lower than 7.2V±0.1V, the LCD indicator flashes slowly, reminding to replace the battery |
| Protection Level | IP65 |
| Instrument Weight | Instrument: 520g; Package and insulation rod total weight: 4.6KG |
| Instrument Size | 135mm x 115mm x 85mm |
| Insulation Rod Length** | Max 438mm, Contraction state: 1000mm; Stretched state: 4500mm (**Optional Accessory) |
| Insulation Test | The insulation rod stretched to both ends: AC 220 kV/RMS Host, detector: AC3700V/RMS (between exposed metal and plastic shell) |
| Working Temperature | -10°C~40°C; Below 80%rh |
| Storage Temperature | 10°C~60°C; Below 70%rh |
