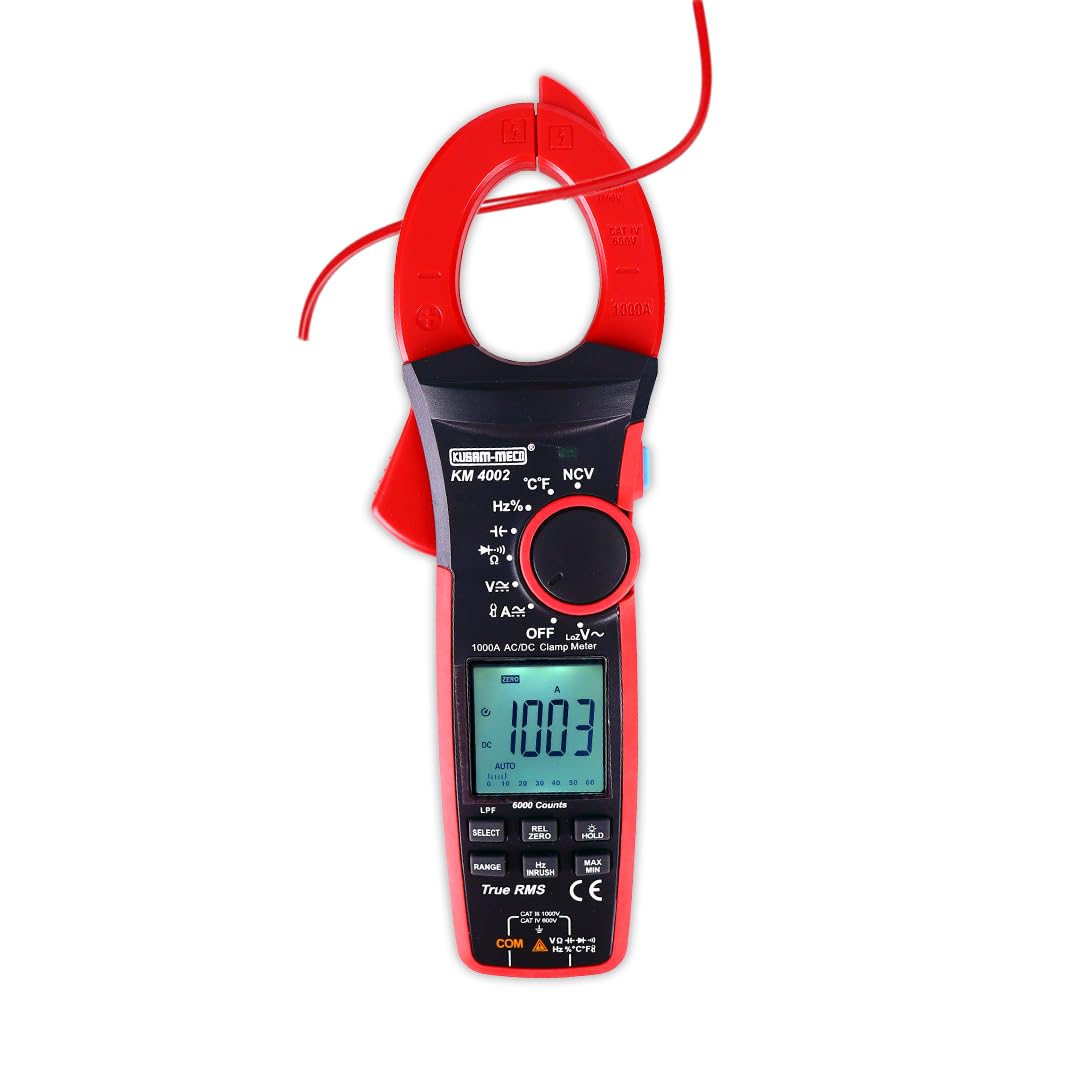

Kusam Meco KM 4002 1000A AC/DC TRUE RMS DIGITAL CLAMP METER
Click To Zoom
Kusam Meco KM 4002 1000A AC/DC TRUE RMS DIGITAL CLAMP METER
Kusam Meco KM 4002 1000A AC/DC TRUE RMS DIGITAL CLAMP METER

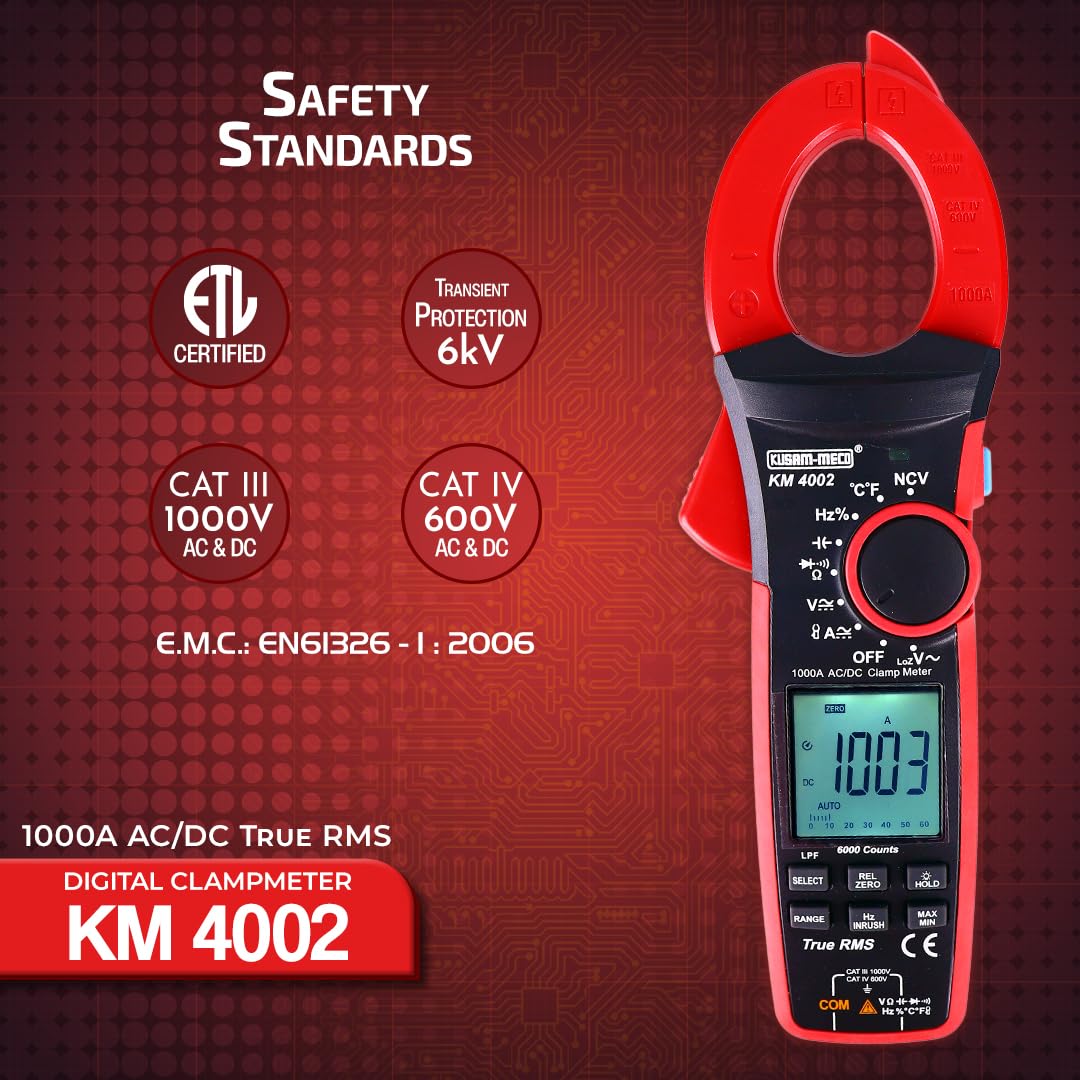

KM-4002-1000A True RMS Digital Clamp Meter are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating and certified by CE/ETL. KM-4002 come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. The KM-4002 also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
B2B INVOICES
₹ 14,500.00
(GST inclusive price) i₹23,500.00
( - 22% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Power | 1.5V battery x 3 |
| Display | 43mm x 45mm |
| Weight | 420gms Approx. |
| Dimension (W x H x D) | 272mm x 81mm x 43.5mm |

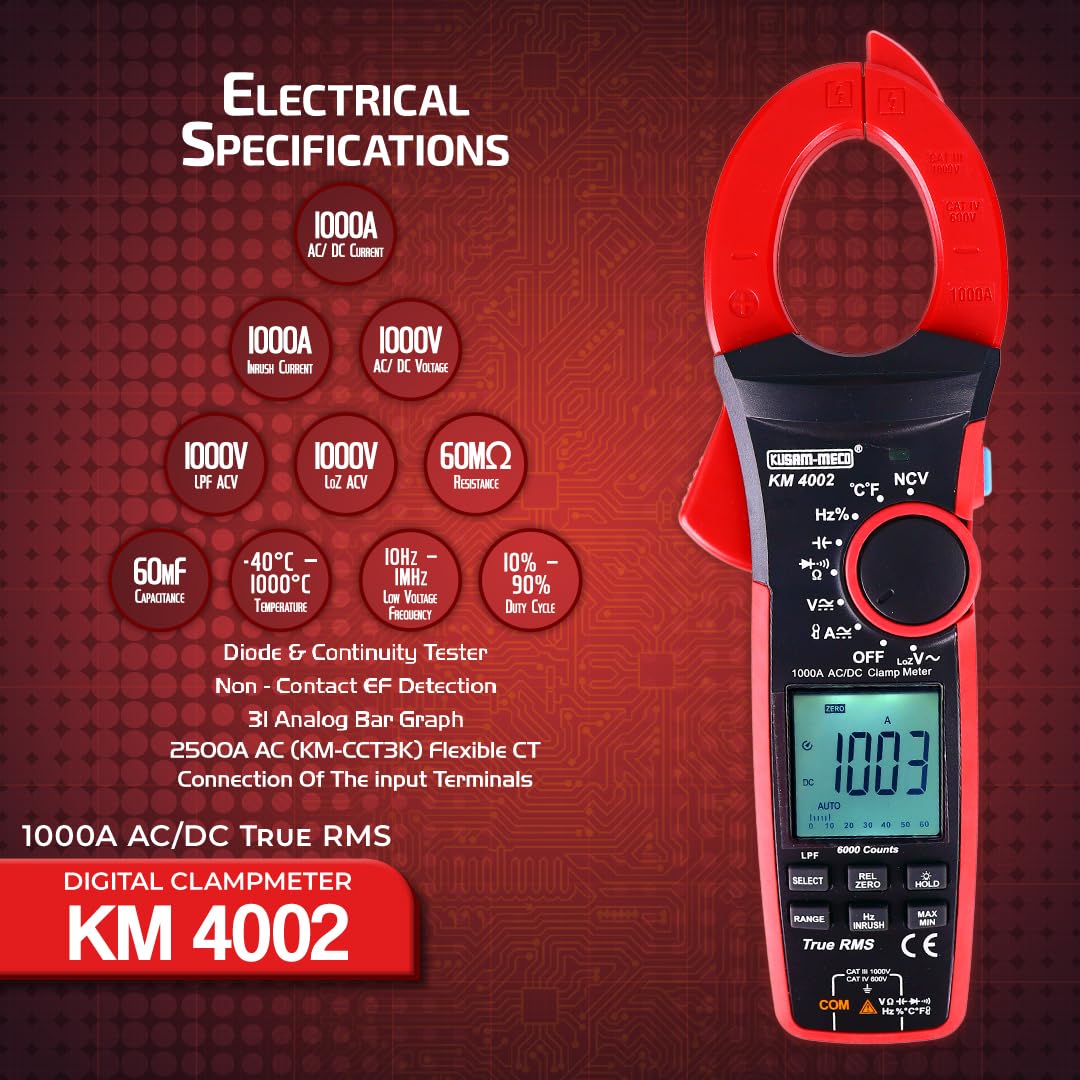

| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| AC current (A) ( 40Hz~400Hz) | 1000A | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) |
| Inrush current (A) | 1000A | ±(10%+10) |
| AC Voltage (V)( 40Hz~400Hz) | 1000V | ±(1.2%+3) |
| DC Voltage (V) | 1000V | ±(0.5%+5) |
| Low pass filter (LPF ACV) | 1000V | ±(2%+5) |
| LoZ ACV | 1000V | ±(2%+5) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Temperature | -40℃~1000℃ | ±(1%+2) |
| -40℃~1832°F | ±(1%+4) | |
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Duty cycle(%) | 10%~90% | ±(2.6%+7) |
