Kusam Meco KM 2732 600A AC/DC TRMS Digital Clamp meter
Click To Zoom

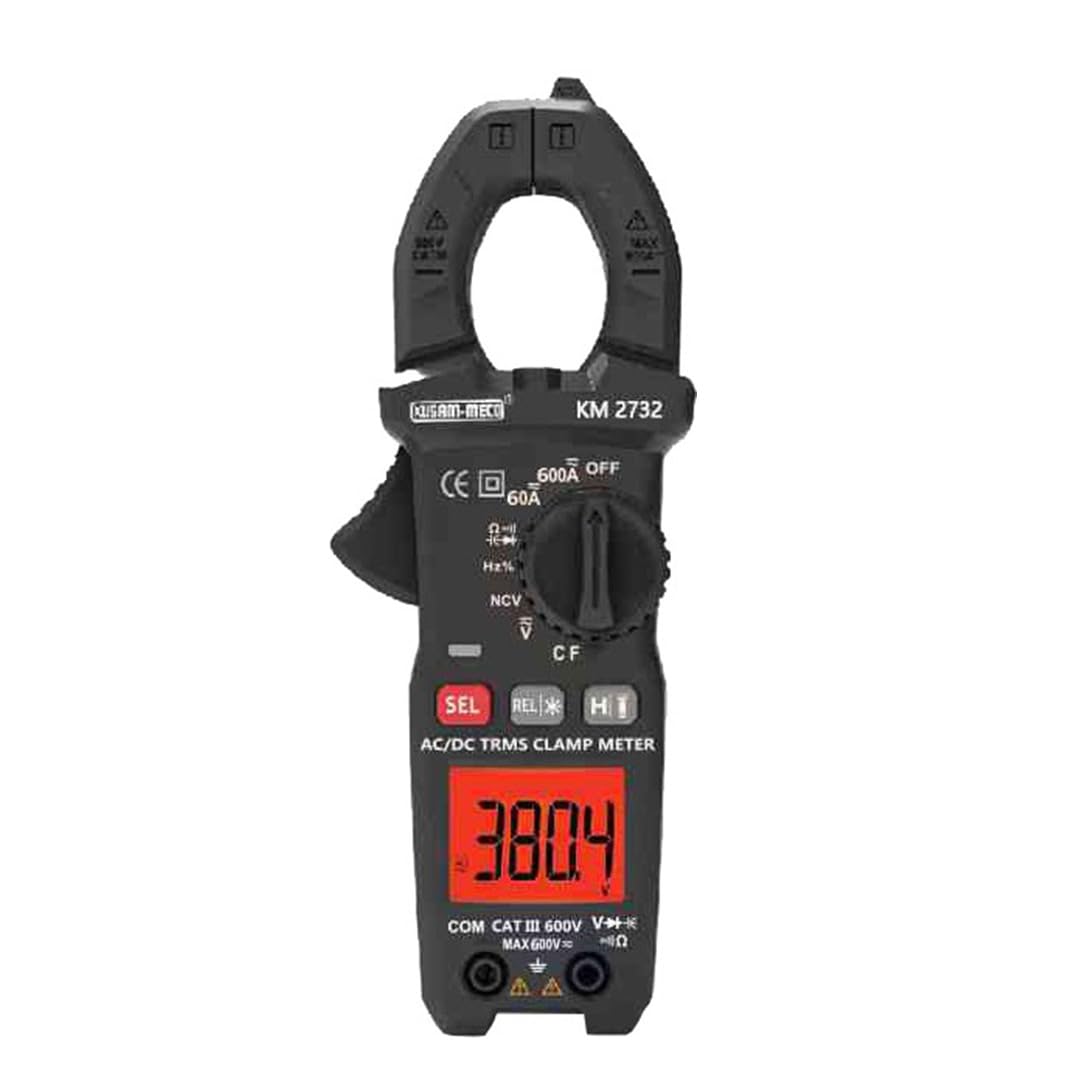

Kusam Meco KM 2732 600A AC/DC TRMS Digital Clamp meter
Kusam Meco KM 2732 600A AC/DC TRMS Digital Clamp meter
The Kusam-Meco KM 2732 is a compact, True RMS digital clamp meter designed for accurate AC/DC electrical measurements.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
B2B INVOICES
₹ 3,260.00
(GST inclusive price) i₹5,370.00
( - 28% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
• Automatic selection of measuring function & range.
• Full range overload protection
• The maximum allowable voltage between the measuring terminal & the ground is 600VDC or 600VAC
• Working height : Max 2000m
• Display : 3-5/6 Digit 6000 Counts Backlight LCD display
• Jaw Opening : Max. 26mm
• Polarity Indication : Automatic indicator "-" indicates negative polarity.
• Hyperview display : 'OL' or '-OL'.
• Sampling time : about 3 times / second
• Unit display : with function, unit display of electricity.
• Operating temperature : 0 °C ~ 40 °C
• Storage temperature : -10 °C ~ 50 °C
• Auto power off : After 15 minutes.
• Power : 1.5V AAA x 2 battery.
• Dimension : Approx.185(L) x 71(W) x 35(H)mm.
• Weight : Approx. 200 gm (Including battery)
• ACCESSORIES : Test leads (pair), User's manual, Battery, Bead type Thermocouple upto 250°C & Carrying case .
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 600 mV | 0.1 mV | ±(1.0% rdg + 2 dgts) |
| 6 V | 0.001 V | ±(0.8% rdg + 3 dgts) |
| 60 V | 0.01 V | |
| 600 V | 1 V | |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 6 V | 0.001 V | ±(0.8% rdg + 3 dgts) |
| 60 V | 0.01 V | |
| 600 V | 1 V | |
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 60 V | 0.01 V | ± (3.0% rdg + 6 dgts) |
| 600 V | 1 V | |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 60 V | 0.01 V | ± (2.5% rdg + 8 dgts) |
| 600 V | 1 V | |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 600 Ω | 0.1 Ω | ±(0.8 %rdg + 3 dgts) |
| 6 KΩ | 0.001 kΩ | |
| 60 KΩ | 0.01 kΩ | |
| 600 KΩ | 0.1 kΩ | |
| 6 MΩ | 0.001MΩ | ±(1.2 %rdg + 3 dgts) |
| 60 MΩ | 0.01 MΩ | |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 6 nF | 0.001 nF | ±(4.5%rdg + 5 dgts) |
| 600 nF | 0.01 nF | |
| 6 mF | 0.1 nF | |
| 60 mF | 1 nF | |
| 600 mF | 10 nF | |
| 6 mF | 1 μF | |
| 60 mF | 10 μF | |
| FREQUENCY | ||
| Frequency Measurement With Pliers (through A) | ||
| Range | Resolution | Accuracy |
| 99.99Hz | 0.01Hz | ± (1.5% rdg + 5 dgts) |
| 999.9Hz | 0.1kHz | |
| >1kHz | 0.001kHz | Only reference |
| FREQUENCY | ||
| Through the V Gear | ||
| Range | Resolution | Accuracy |
| 99.99Hz | 0.01Hz | ± (1.5% rdg + 5 dgts) |
| 999.9Hz | 0.1kHz | |
| >1kHz | 0.001kHz | Only reference |
| FREQUENCY | ||
| Passing the Hz% Switch | ||
| Range | Resolution | Accuracy |
| 9.999Hz | 0.001Hz | ± (0.5% rdg + 2dgts) |
| 99.99Hz | 0.01Hz | |
| 999.9Hz | 0.1Hz | |
| 9.999kHz | 0.001kHz | |
| 99.99kHz | 0.01kHz | |
| 999.9kHz | 0.1kHz | |
| 9.999MHz | 0.001MHz | |
| TEMPRATURE | ||
| Range | Resolution | Accuracy |
| -50 ~ 1300°C | 1°C | ± (2.0% rdg + 2 °C ) |
| -58 ~ 2372°F | 1°F | ± (1.0% rdg + 3dgts) |
