FLUKE 301A SLIM & COMPACT DIGITAL CLAMP METER
Click To Zoom
FLUKE 301A SLIM & COMPACT DIGITAL CLAMP METER
FLUKE 301A SLIM & COMPACT DIGITAL CLAMP METER

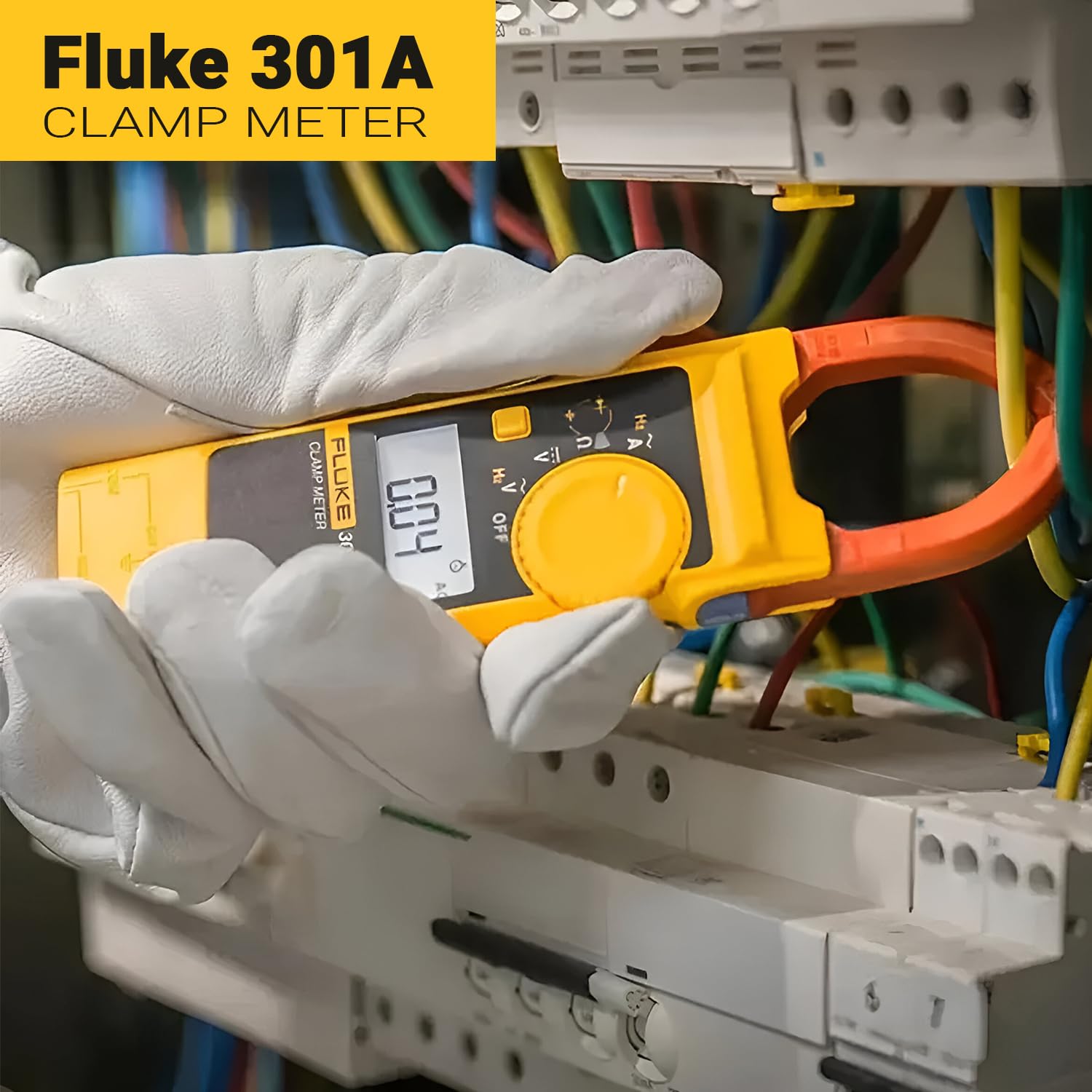

The Fluke 301A Clamp Meter has a lightweight and compact body, which allows you to carry it around in your pocket. The slim and thin jaw can easily clamp onto tightly packed wires. The Fluke 301A tests current, voltage, resistance, continuity, frequency (voltage and current), capacitance, and diode, etc.. You can handle more testing needs with it.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 5,749.00
(GST inclusive price) i₹8,775.00
( - 0% OFF )
Description

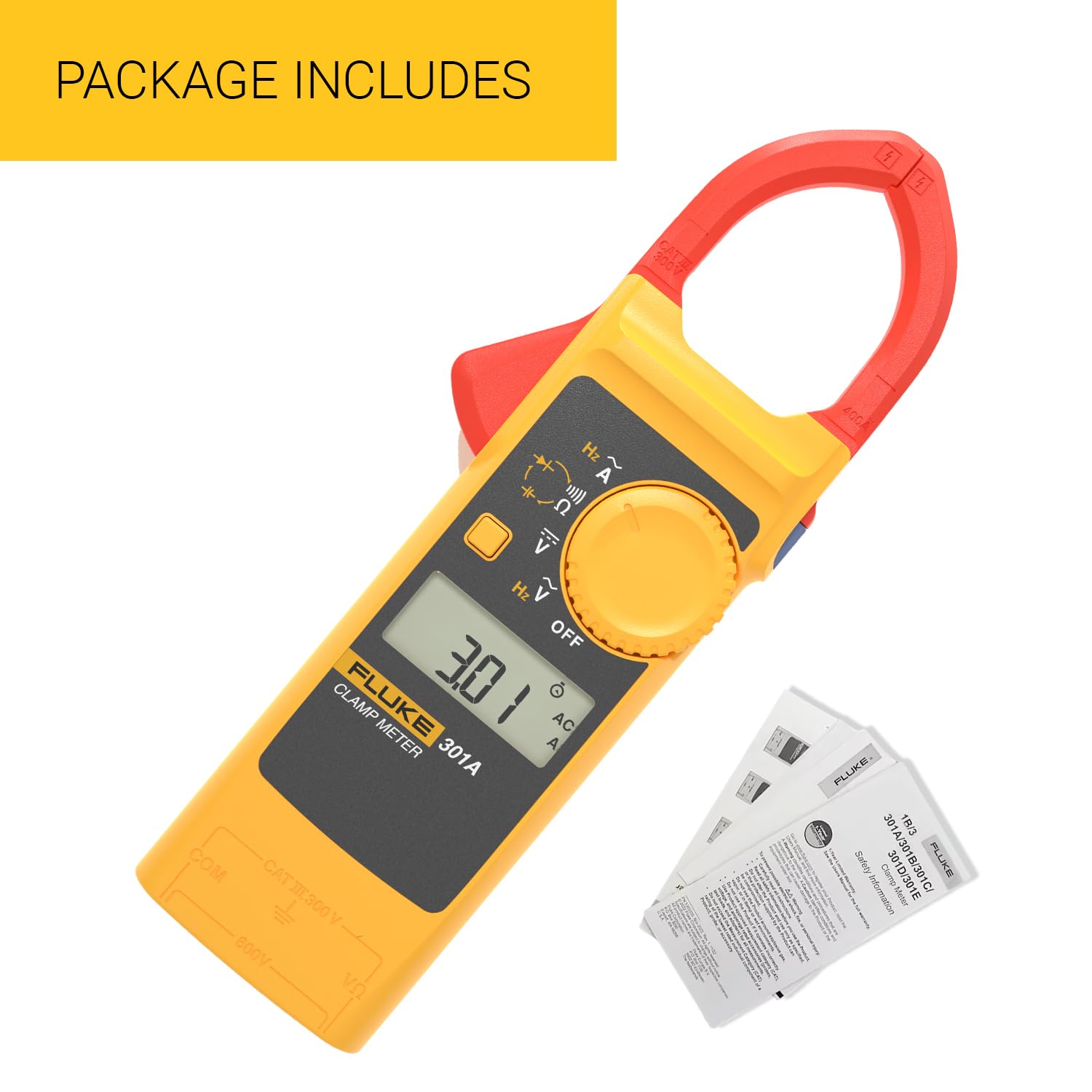

What's in the box?
|
Rating & Reviews
Rating
| General | |
| Maximum Voltage between any Terminal and Earth Ground | 300 V |
| Maximum Differential Voltage between V/Ω and COM Terminals | 600 V |
| Display (LCD) | 6000 counts, updates 3 times per second |
| Battery Type | 2 AAA, IEC LR03 |
| Battery Life | 500 hours minimum |
| Auto Power Off Time | 20 minutes |
| Temperature | Operating: -10 °C to 50 °C； |
| Storage: -30 °C to 60 °C | |
| Relative Humidity | Operating Humidity: Non condensing (<10°C); ≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C; ≤ 45 % RH at 40 °C to 50 °C; |
| Altitude | Operating: 2000 m; Storage: 12000 m |
| Temperature Coefficient | 0.1 x (specified accuracy) /°C (<18 °C or>28 °C) |

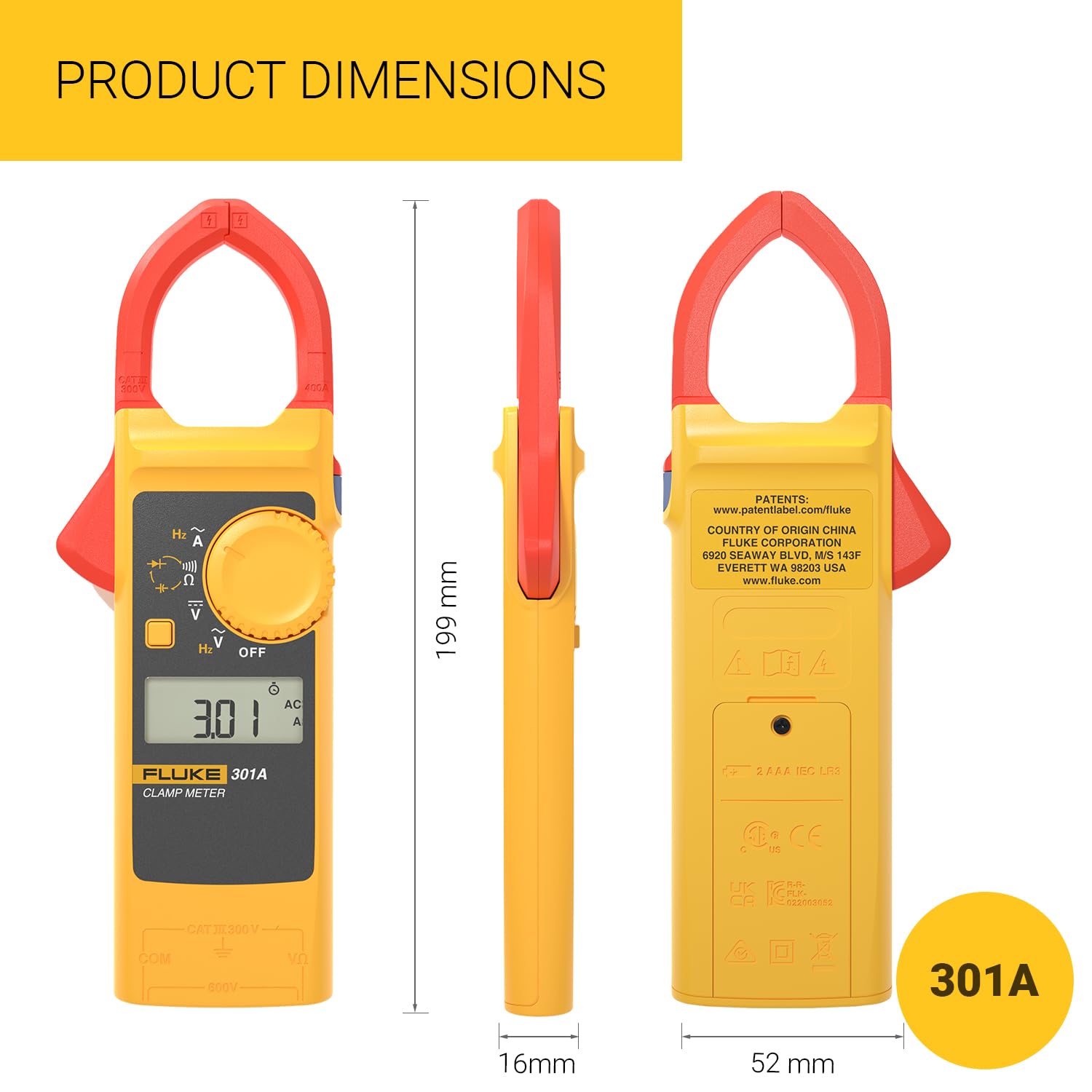

| Dimensions (H x W x L) | 190 mm x 52 mm x 16 mm |
| Weight | 132 g |
| Jaw Opening | 34 mm |
| Ingress Protection Rating | IP30 |
| Safety | IEC 61010--1, IEC61010-2-032 CAT III 300 V, Pollution Degree 2 |
| Electromagnetic Environment | IEC 61326--1: Portable |
| Technical | ||
| AC Current (45 to 400 Hz) | Range | 40.00 A |
| Resolution | 0.01 A | |
| Accuracy | 2 % + 10 | |
| AC Voltage (45 to 400 Hz) | Range | 600.0 V |
| Resolution | 0.1 V | |
| Accuracy | 1.5% + 5 | |
| DC Voltage | Range | 600.0 V |
| Resolution | 0.1 V | |
| Accuracy | 1% + 5 | |
| Resistance | Range | 600.0 Ω 6.000 kΩ 60.00 kΩ |
| Accuracy | 1% + 5 | |
| Voltage Frequency | Range | 9.999 Hz 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz |
| Accuracy | 0.1% + 3 | |
| Current Frequency | Range | 45.0 to 400.0 Hz |
| Accuracy | 0.1% + 3 | |
| Capacitance | Range | 9.999 uF |
| Accuracy | 2 % + 5 | |
| Diode | Range | 3.000 V |
| Accuracy | 10% | |
| T-rms Value | - | |
| Continuity | ● | |
| Hold | ● | |
| Backlight | - | |
| Safety rating | CAT III 300V | |
| Weight | 132 g | |
| Size | 190 mm x 52 mm x 16 mm | |
| Jaw Opening | 34 mm | |
| Clamp Arm Size | 10 mm X 10 mm | |
| Battery | (2) AAA Batteries | |
| Warranty | 1 year | |
