Metravi DT-115 Digital TRMS AC Clamp Meter

Click To Zoom

Metravi DT-115 Digital TRMS AC Clamp Meter

Metravi DT-115 Digital TRMS AC Clamp Meter

(Based On 10 Reviews)

5999 Count, 5 digits, LCD backlight, T-RMS, auto-ranging, NCV, flashlight, relative measurement, 600 A AC current, AC (750 V)/DC (1000 V) voltage, resistance, capacitance, frequency, temperature, diode, and continuity on a 6-digit display. Square Wave CAT-IV 600V Output

Request Callback

Order In Bulk

Generate Quote

₹ 2,633.00

(GST inclusive price) i
  • Base Value: ₹ 2231.4
  • GST: (18) % ₹ 401.6
  • Total Value ₹ 2633

₹2,633.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • AC 600A of current (NO DC current), 750V of AC or 1000V of DC voltage.
  • Use a flashlight to get about in the dark. Measurement in Relation. Data Hold: 3 5/6 Digit, Backlight LCD, 6000 Count. T-RMS. Auto-Dialing. NCV.
  • Accuracy: ± (0.8%+3), Resistance: 0-600/6K/60K/600K/6M/40MΩ. Accuracy: ± (3.5%+20) in capacitance, 60nF/600nF/6uF/60uF/600uF/6mF/30mF. Accuracy: ±
  • (0.1%+3), Frequency: 0-10/100/1K/10K/100K/1M/10MHz. -20°C to 1000°C in temperature; ± (1.0%+5) in accuracy. Test for continuity and diodes.
  • THIS IS NOT A METER FOR DC CLAMPS. ORDER DT-725 FOR AC/DC PLEASE.
  • Size : 176×67×33mm (L×W×H);
  • Weight : About 300g (including 1.5V battery)

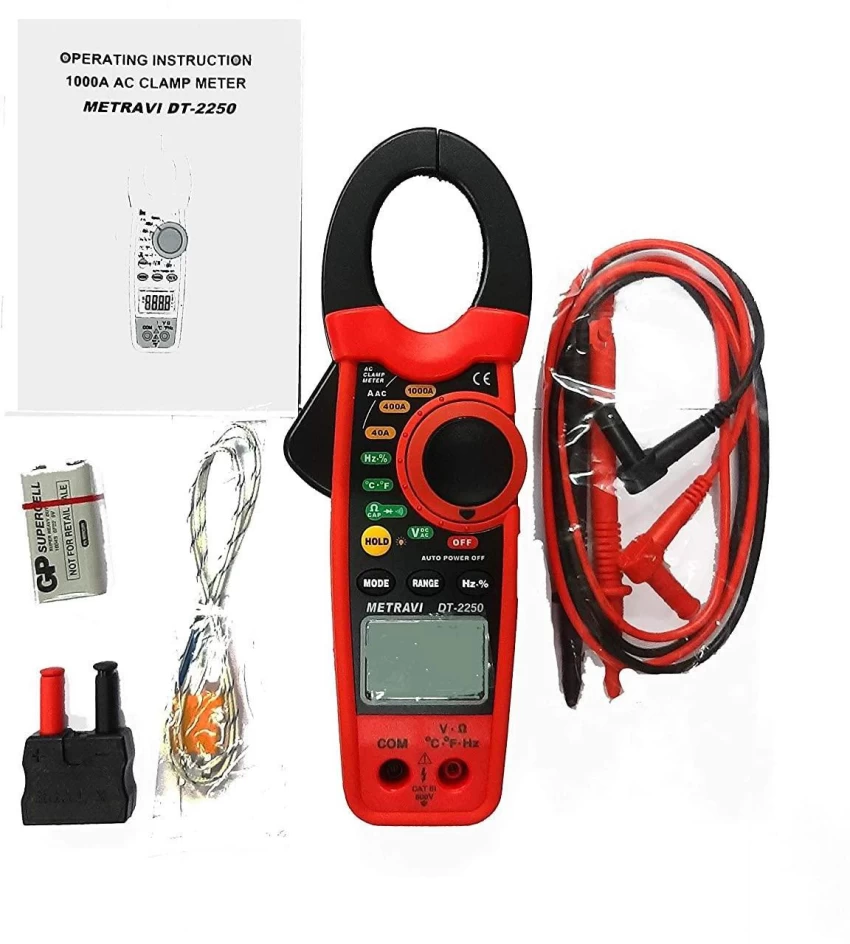

What's in the box?

  • One instruction manual
  • One certificate
  • One leather case
  • One outer packaging box
  • One pair of test leads
  • One type K thermocouple TP01
  • Temperature probe
  • Two AAA1.5V batteries

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

General Specification
DisplayBacklit liquid crystal display (LCD)
Maximum Display5999 (3 5/6) bit automatic polarity display
Measurement Methoddouble integral A/D conversion
Sampling Rateabout 3 times per second
Over-Range DisplayThe highest position shows “OL”;
Low Voltage Display“+ - ”symbol appears
Working Environment (0~40)°C, Relative humidity <80%
PowerAAA 1.5V battery
Size176×67×33mm (L×W×H)
Weight About 300g (including 1.5V battery)



Technical Specification
FunctionRangeAccuracyResolution
DC Voltage (DCV)6V± (0.5%+3)0.001V
60V0.01V
600V0.1V
1000V± (0.8%+10)1V
AC Voltage (ACV) (T-RMS)6V± (0.8%+3)0.001V
60V0.01V
600V0.1V
750V± (1.2%+10)1V
AC Current (ACA) (T-RMS)6A± (2%+30)0.001A
60A0.01A
600A0.1A
Resistance600 W± (0.8%+5)0.1W
6k W± (0.8%+3 )1W
60k W10W
600k W100W
6M W1k W
40M W± (2.5%+3)10k W
Capacitance60nF± (3.5%+20)10pF
600nF100pF
6uF1nF
60uF10nF
600uF100nF
6mF± (5%+3)1uF
30mF10uF
Frequency Measurement10Hz± (0.1%+3)0.01Hz
100Hz0.1Hz
1kHz1Hz
10kHz10Hz
100kHz100Hz
1MHz1kHz
10MHz10kHz
Temperature Measurement (°C / °F)(-20-1000)°C ± (1.0%+5) < 400°C;
± (1.5%+15 ) ≥ 400°C		1°C
(0-1832)°F± (0.75%+5) < 750°F;
± (1.5%+15 ) ≥ 750°F 		1°F
