Metravi CFL-01 Cable Fault Locator with Pipe and Cable Tracer

Click To Zoom

Metravi CFL-01 Cable Fault Locator with Pipe and Cable Tracer

Metravi CFL-01 Cable Fault Locator with Pipe and Cable Tracer

(Based On 10 Reviews)

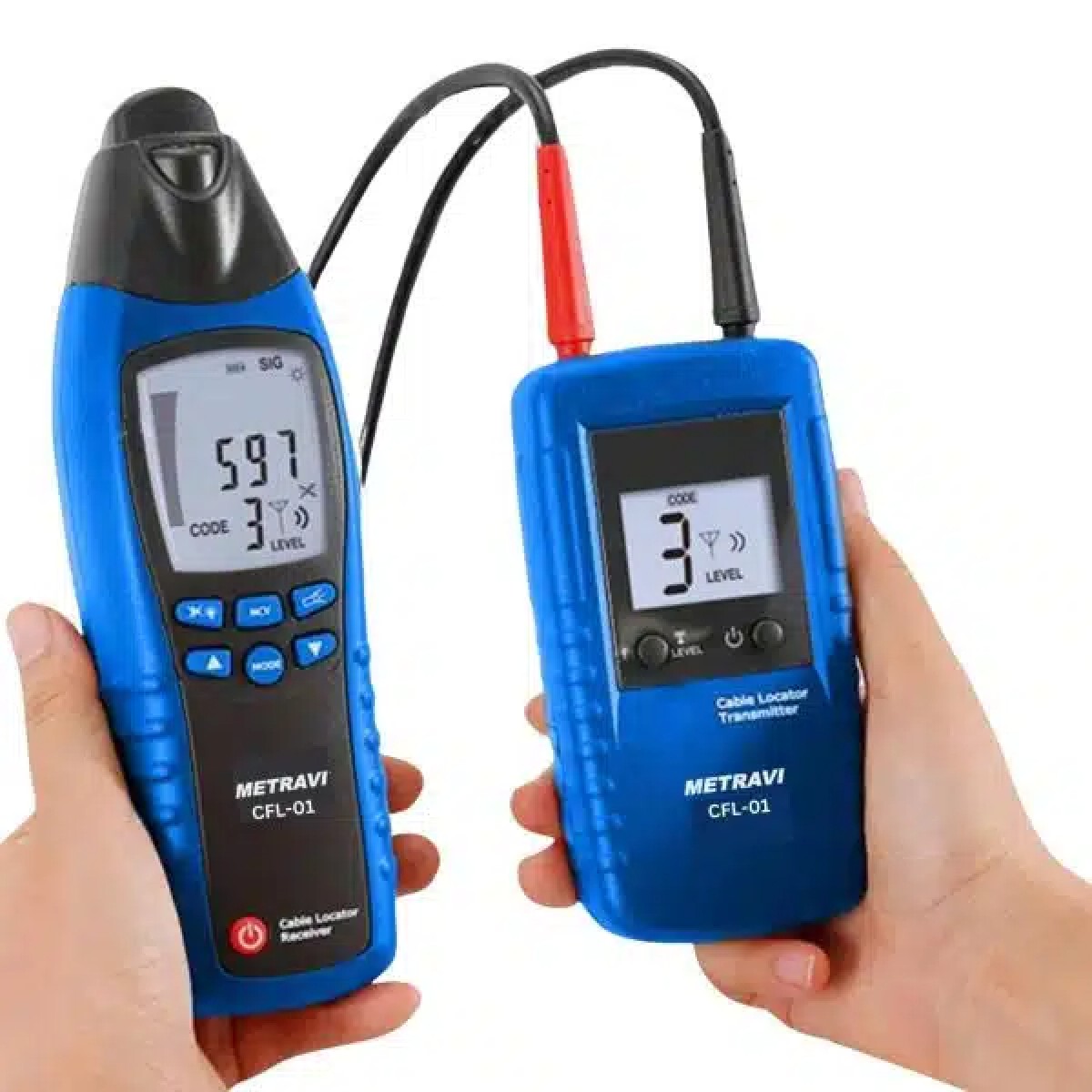

Metravi CFL-01 Digital Cable and Cable Fault Locator features a Transmitter and Receiver, which are portable measuring instruments and can be used to detect or trace conductors and find short faults in them. It serves as a Cable and Pipe Tracer too.

Request Callback

Order In Bulk

Generate Quote

₹ 26,848.00

(GST inclusive price) i
  • Base Value: ₹ 22752.5
  • GST: (18) % ₹ 4095.5
  • Total Value ₹ 26848

₹26,848.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Consists of a transmitter and a receiver
  • Used to detect or trace conductors and to find short faults in them.
  • The signal generated by the transmitter is made to a modulated current, generating an electromagnetic field around a conductor. This electro field induces a voltage within the receiving coil. The induced voltage is amplified, decoded, and converted to the original signal by the received and finally displayed on screen.
  • It is used for finding  conductors  in  walls, conductor interruptions, short-circuits in conductors
  • Conductor tracing in the soil
  • Detecting fuses and assigning current circuits
  • Tracing sockets and distribution sockets having accidentally been covered by plastering
  • Detecting interruptions and short-circuits in floor heating
  • Tracing metallic water and heating piping
  • All application areas (both, voltage-free and live) are performed without using any additional instruments
  • Transmitter display indicates the transmission level, the transmission code, as well as the foreign voltage
  • Receiver display indicates the reception level, the transmission code, as well as the mains voltage detection
  • Automatic and manual sensitivity adjustment
  • Acoustic reception signal may be switched off
  • Auto-Power-Off function
  • Backlit LCD
  • Additional lighting function when working under bad lighting conditions
  • Additional transmitters are available to extend or distinguish several signals
  • The built-in fuses protect the instrument against overload or faults.

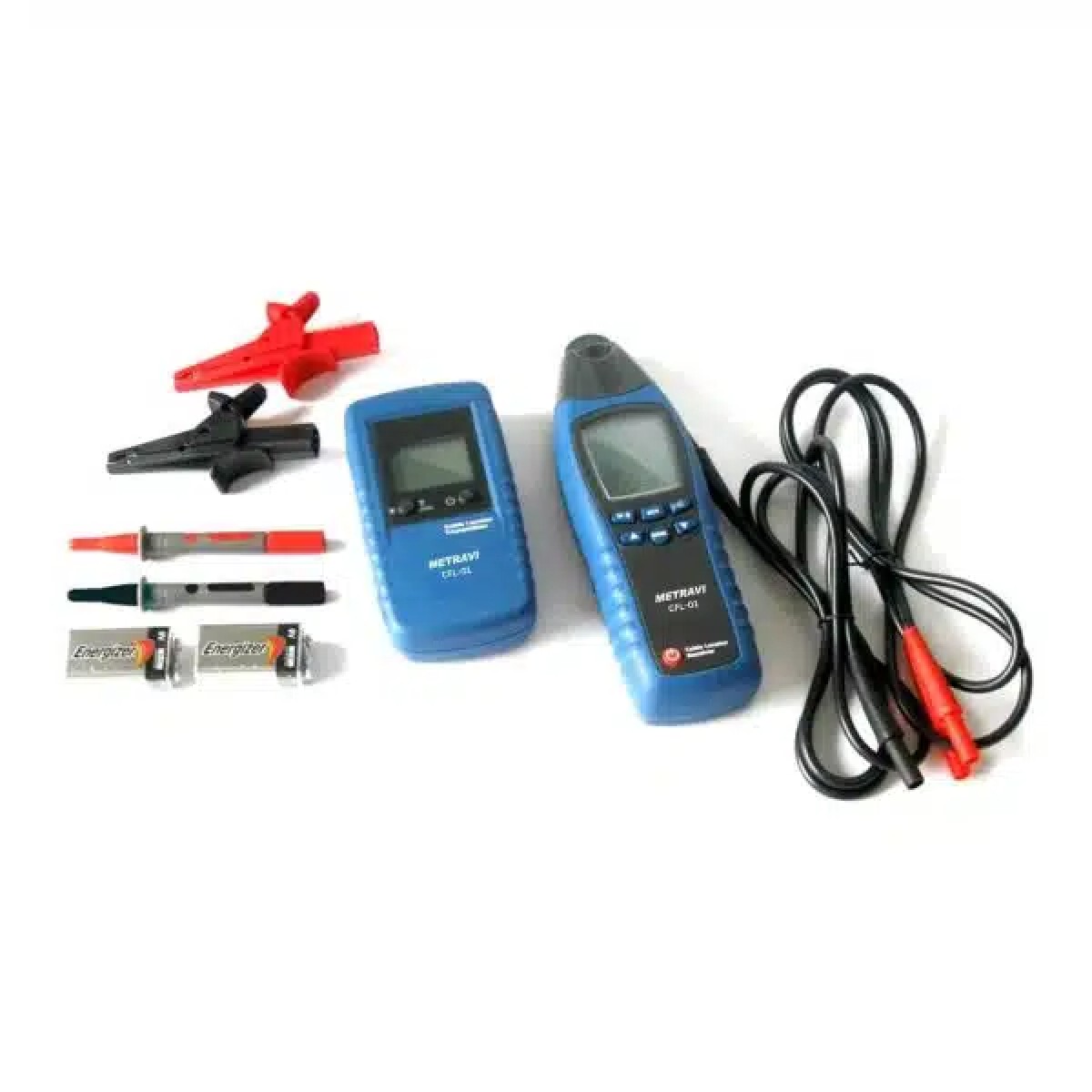

What's in the box?

  • Cable Fault Locator with Pipe and Cable Tracer

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

Technical Specification
TRANSMITTER
Output signal125kHz
External voltage detection range12 to 400V
Frequency range0 to 60Hz
DisplayLCD
External Voltage Detectionmax 400V DC/AC
Over Voltage CategoryCAT III 300V
Pollution degree 2
Auto Power OffApprox. 1 Hour (No Operation Condition
Power Supply9V battery, NEDA 1604, IE6F22
Power ConsumptionMax. 18mA
FustF0.5A 500V, 6.3 x 32mm
Temperature Range (Work)0 to 40 Degrees C Max 80%RH (Non Condensing)
Temperature Range (Storage-20 to 60 Degree C Max 80%RH (Non Condensing)
Height above MSLup to 2000m
Dimensions130 x 69 x 32 mm
Weightapprox. 130g.



RECEIVER
Tracing DepthThe tracing depth depends on medium and application
Cable Locator Modeapprox. 0... 2m. (single pole application) approx. 0... 0.5m (double pole application)
Voltage detectionapprox. 0... 0.4m
DisplayLCD with functions and bar graph
Power SupplyOne 9V battery, NEDA 1604, IE6F22
Power Consumptionapprox. 23mA (without backlit or lamp)
approx. 35mA (with backlit)
max. 40mA (Backlit and Lamp)
Auto Power Offapprox. 5 minutes (No operation condition)
Temperature Range (Work)0 to 40 Degree C Max 80%RH (Non Condensing)
Temperature Range (Storage-20 to 60 Degree C Max 80%RH (Non Condensing)
Height above MSLup to 2000m
Dimensions192 x 61 x 37 mm
Weightapprox 180g.
