Metravi DT-1250 Digital AC Clamp Meter
Click To Zoom
Metravi DT-1250 Digital AC Clamp Meter
Metravi DT-1250 Digital AC Clamp Meter
The Metravi DT-1250 is a digital multimeter designed for electrical testing. It measures voltage, current, and resistance, featuring a large display for easy readings. It's suitable for various applications, including household repairs and professional electrical work, offering accuracy and reliability.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 3,109.00
(GST inclusive price) i₹4,185.00
( - 26% OFF )
Description

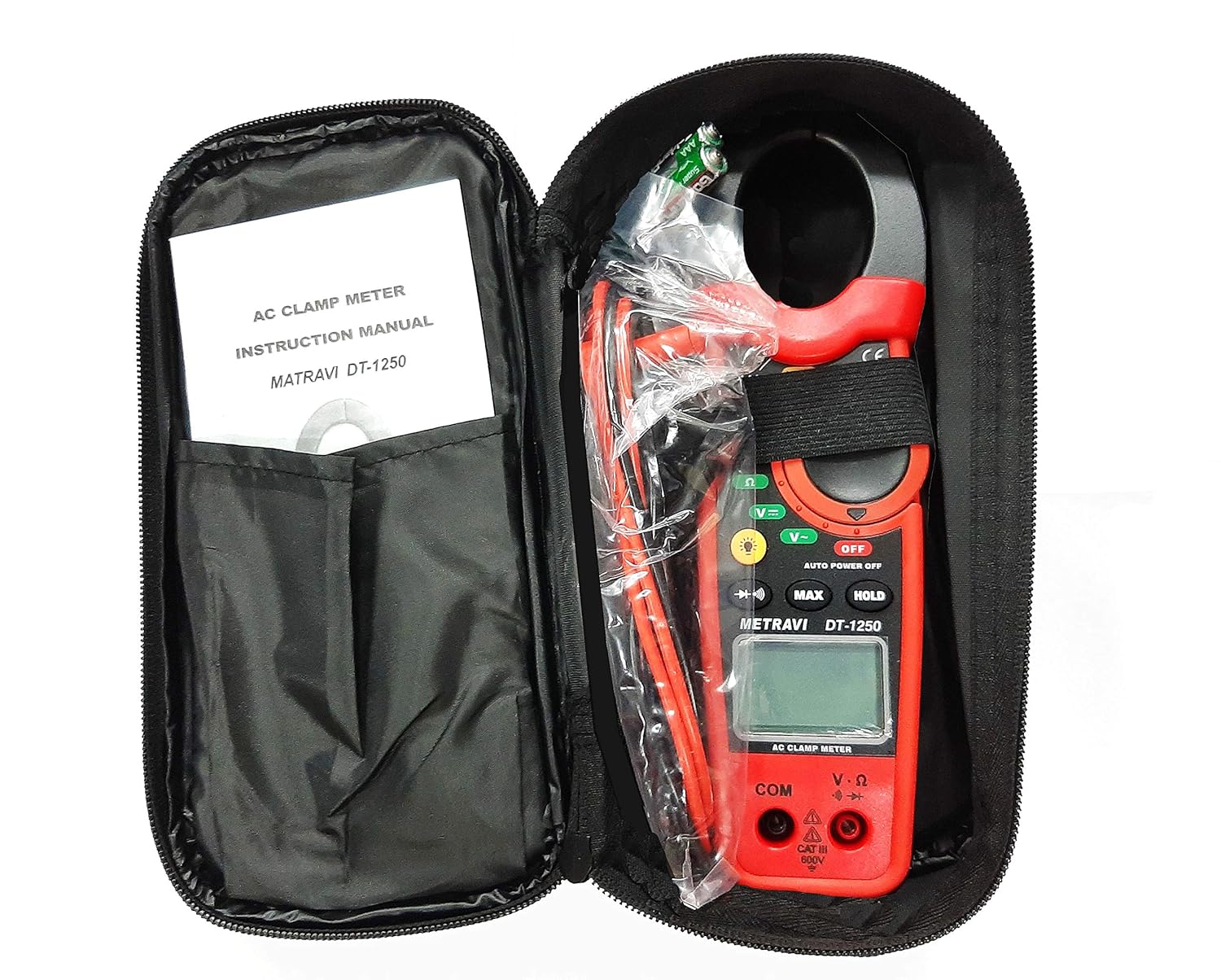

What's in the box?
|
Rating & Reviews
Rating
General Specification | |
Clamp size | 30mm Opening approx. |
Diode Test | Test current of 0.3mA typical |
Continuity Check | Threshold <1202; Test current < 1mA |
Low Battery Indication | "BAT" is displayed |
Overrange Indication | "OL" is displayed |
Measurements Rate | 2 per second, nominal |
Input Impedance | 7.8 ΜΩ (VDC and VAC) |
Display | 3-1/2 digits (2000 counts) |
AC Current bandwidth | 50/60Hz (AAC) |
AC Voltage bandwidth | 50/60Hz (VAC) |
Operating Temperature | 14 to 122°F (-10 to 50°C) |
Storage Temperature | -22 to 140°F (-30 to 60°C) |
Relative Humidity | Up to 85% |
Altitude | Operating: 3000m |
Over voltage | Category III 600V |
Battery | Two 1.5V "AAA" Batteries |
Auto Power OFF | Approx. 15 minutes |
Dimensions/Weight | 229 x 80 x 49 mm/303g |
Technical Specification | ||
Function | Range & Resolution | Accuracy (% of reading ± no. of dgts) |
AC Current | 20.00 AAC | ± (2.5% + 10) |
200.0 AAC | ± (2.5% + 10) | |
1000 AAC | ± (3.0% + 8) | |
DC Voltage | 200.0 mVDC | ± (0.8% + 5) |
2.000 VDC | ± (1.2% + 3) | |
20.00 VDC | ||
200.0 VDC | ||
600 VDC | ± (1.5%+3) | |
AC Voltage | 200.0 mVAC | ± (1.5% +30) |
2.000 VAC | ± (1.5% + 3) | |
20.00 VAC | ||
200.0 VAC | ||
600 VAC | ± (2.0% + 4) | |
Resistance | 200.0 ΚΩ | ± (1.0% + 4) |
2.000 ΜΩ | ± (1.5% + 2) | |
20.00 ΜΩ | ||
200.0 ΚΩ | ||
2.000 ΜΩ | ± (2.0% + 3) | |
20.00 ΜΩ | ± (3.0% + 5) | |
