MEXTECH CM801E ( 2000 µm ) DIGITAL COATING THICKNESS METER

Click To Zoom

MEXTECH CM801E ( 2000 µm ) DIGITAL COATING THICKNESS METER

MEXTECH CM801E ( 2000 µm ) DIGITAL COATING THICKNESS METER

(Based On 10 Reviews)

The Fe function measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelai n enamel, copper, zinc, aluminum, chrome etc.) on magnetic Materials (e.g. Iron, nickel etc.). Often used to measure t he thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, som e alloy tile, paper etc. The NF function measure the thickness of non-magnetic coatings on non-magnetic metals. It is use d on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 13,000.00

(GST inclusive price) i
  • Base Value: ₹ 11016.9
  • GST: (18) % ₹ 1983.1
  • Total Value ₹ 13000

₹18,490.00

( - 30% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key Features



  • Min.Radius Work piece:
  • FeType:convex1.5mm/concave25mm
  • NFType:convex3mm/concave50mm
  • Operating Temperature & Humidity: 0°C to 50°C, ≤80%RH
  • Calibration: Self Calibration
  • Auto Power Off
  • Battery Indicator: Low Battery Indication
  • Power Supply: 2x1.5 AAA
  • Buttons: 4 Buttons
  • Display Size: 42 X 12 mm
  • Weight: 200gm Excluding batteries
  • Dimension: 115 x 57 x 26 mm

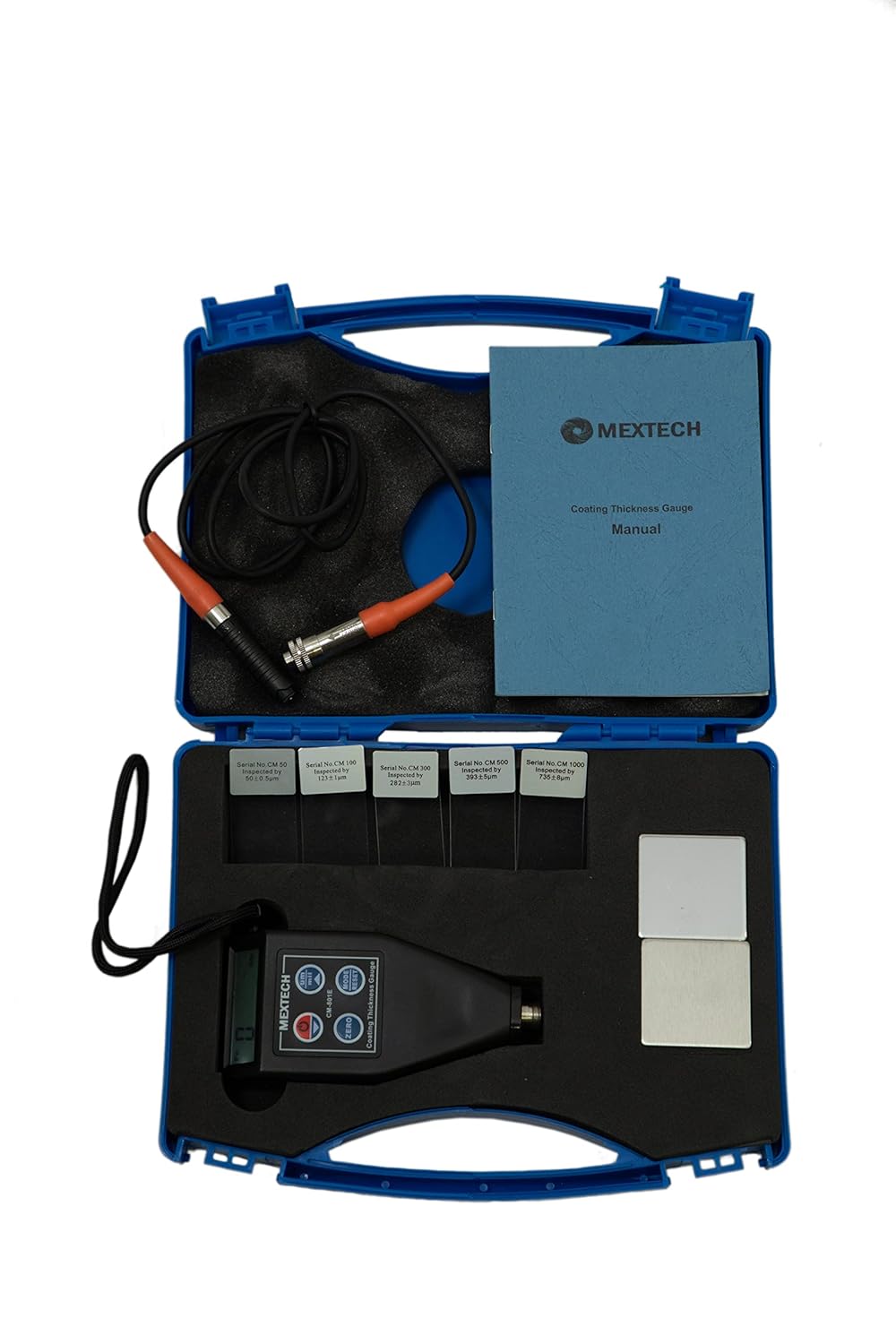

What's in the box?

  • Operational Manual
  • Calibration Foil
  •  Carrying case
  • Substrate block

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

SPECIFICATION:
Display4 Digit Display (10mm LCD)
Measuring Range0~2000μm/0~53mil
Accuracy±2~3%n or ±2.5µm or 0.1mil (Whichever is the greater)
Resolution0.1 um (0~99.9um), 1 um (over 100um)
Operating PrincipleMagnetic Induction (F)
Min. Measuring Area6 mm
Min. Sample Thickness0.3mm
