Kusam Meco KM 088 Trms Power Clamp-On Meter
Click To Zoom
Kusam Meco KM 088 Trms Power Clamp-On Meter
Kusam Meco KM 088 Trms Power Clamp-On Meter

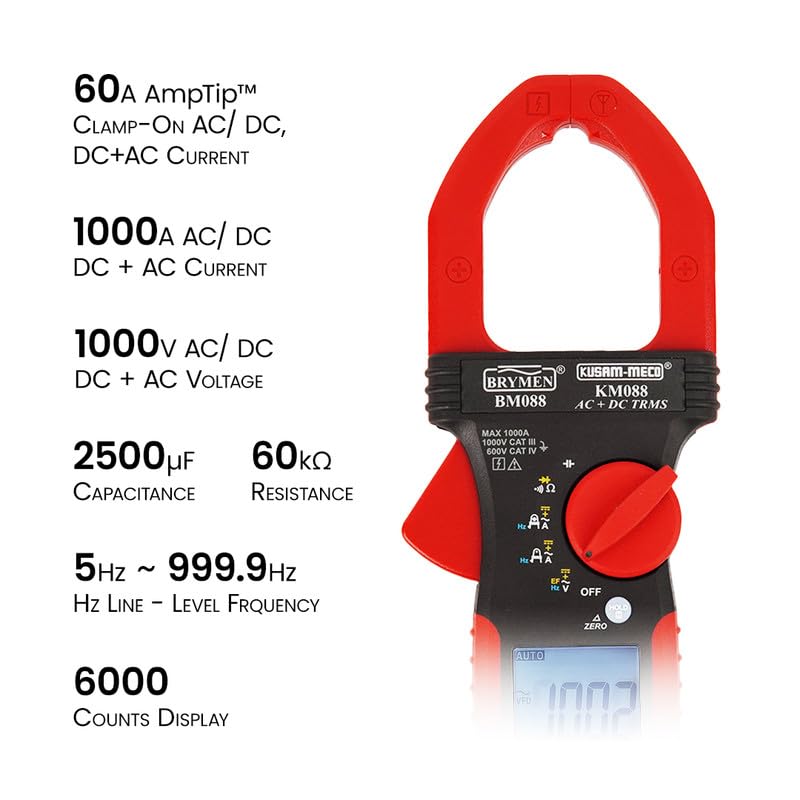

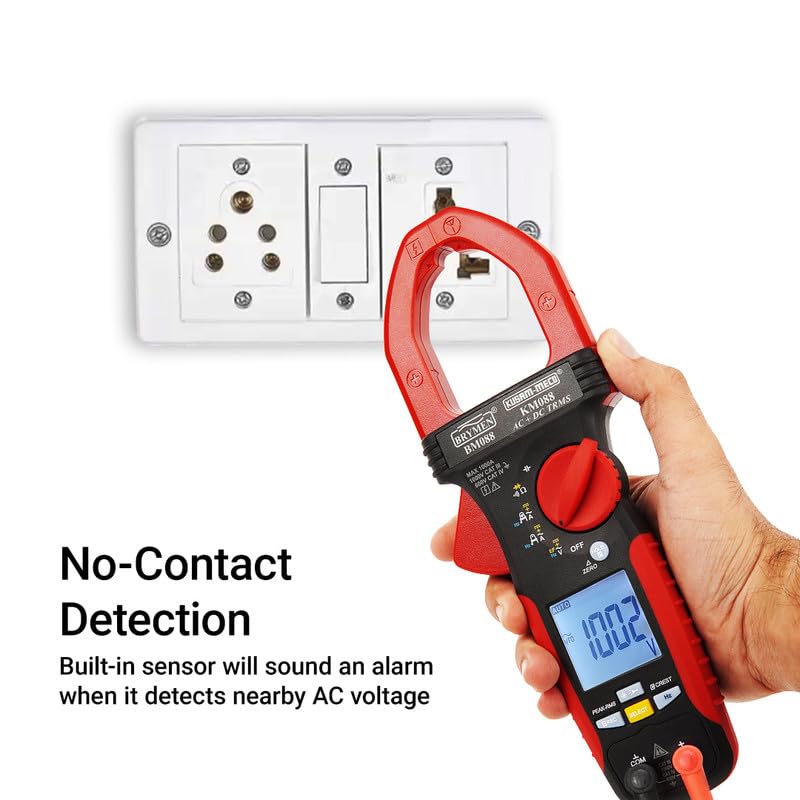

Kusam-Meco KM 088 is a True RMS digital clamp meter designed for precise AC/DC current and voltage measurements. It features a 6000-count display, 51mm jaw opening, and VFD-V & Hz functions, making it ideal for testing variable frequency drives. Additional features include non-contact voltage (NCV) detection, peak hold, and auto-ranging, ensuring reliable performance in various electrical applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 16,449.00
(GST inclusive price) i₹21,500.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
• Sensing : AC;True RMS

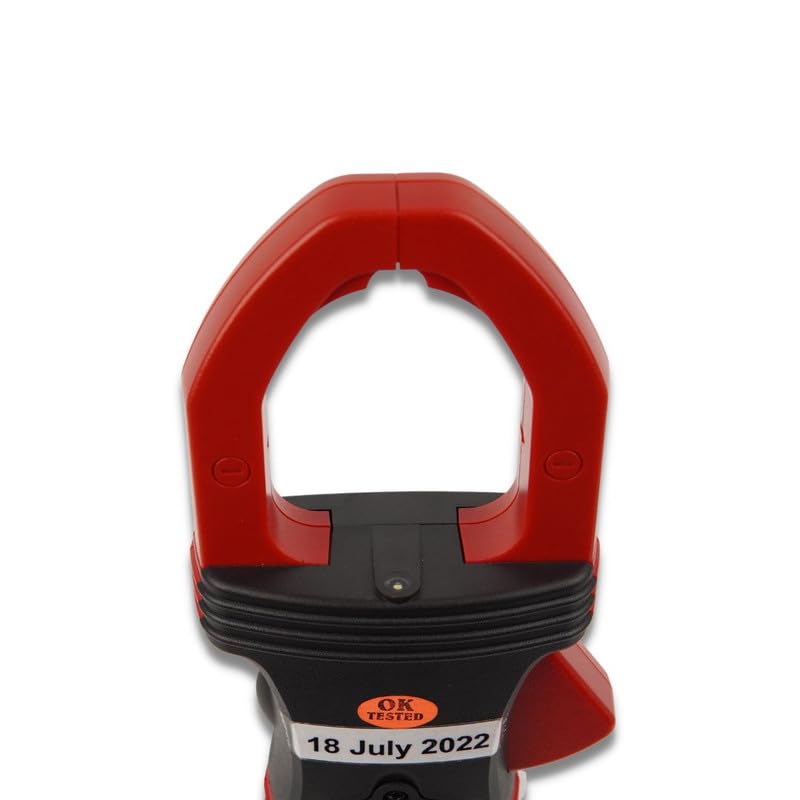

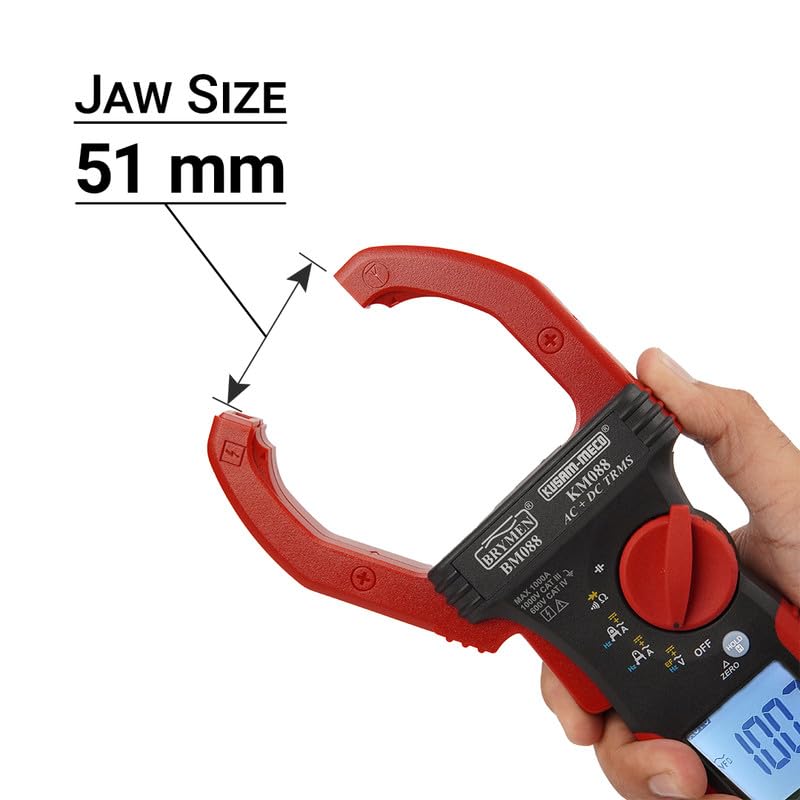

• Jaws Opening size & conductor diameter : 51mm Max.
• Display : 3-5/6 digits 6000 counts
• Update Rate : 5 per second nominal
• Polarity : Automatic
• Operating Temperature : -10 ºC to 50 ºC
• Relative Humidity : Non condensing ( <10ºC) Maximum 90%R.H. at 10-30°C decreasing linearly to 75% R.H. at 30-40°C & 45% R.H. at 40-50°C
• Altitude : Operating below 2000m, Storage below 12000m
• Storage Temperature : -20 °C ~ 60 °C, <80% R.H. (with battery removed)
• Temperature Coefficient : Nominal 10.0 x (specified accuracy) / °C @ (-10 °C- 18 °C or 28 °C - 50 °C), or otherwise specified
• Power Supply : Standard 1.5V AA Battery X 2
• Power Consumption : typical 13 mA for Current Functions
• Low Battery:
Below approx. 2.85V for Capacitance & Hz
Below approx. 2.5V for other functions
• APO timing : Idle for 32 minutes
• APO Consumption : typical 5µA
• Dimension : 258(L) x 94(W) x 44(H)mm
• Weight: : approx 392 gms..

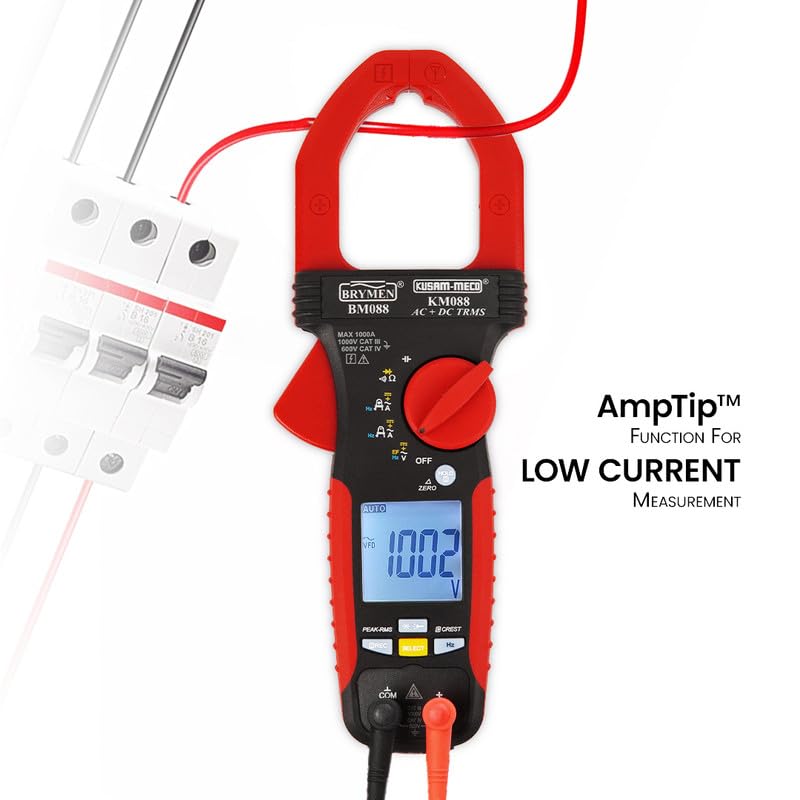

| AmpTip Clamp-on AC Current : | ||
| Range | Resolution | Accuracy |
| 40Hz ~ 100Hz | ||
| 00.00A~20.00A | 10 mA | ±(1.5%rdg+5dgts) |
| 20.00A~60.00A | 10 mA | ±(3.0%rdg+5dgts) |
| 100Hz ~ 400Hz | ||
| 00.00A~20.00A | 10 mA | ±(2.0%rdg+5dgts) |
| 20.00A~60.00A | 10 mA | ±(3.0%rdg + 5dgts) |
| AmpTip Clamp-on DC+AC Current : | ||
| Range | Resolution | Accuracy |
| DC, 40Hz ~ 100Hz | ||
| 00.00A~20.00A | 10 mA | ±(2.0%rdg + 7dgts) |
| 20.00A~60.00A | 10 mA | ±(3.0%rdg + 7dgts) |
| 100Hz ~ 400Hz | ||
| 00.00A~20.00A | 10 mA | ±(2.2%rdg + 7dgts) |
| 20.00A~60.00A | 10 mA | ±(3.0%rdg + 7dgts) |
| AmpTip Clamp-on DC Current : | ||
| Range | Resolution | Accuracy |
| 00.00A~20.00A | 10 mA | ±(1.5%rdg+5dgts) |
| 20.00A~60.00A | 10 mA | ±(3.0%rdg+5dgts) |
| REGULAR CLAMP-ON DC CURRENT | ||
| Range | Resolution | Accuracy |
| 60.00 A | 0.01 A | ±(1.8%rdg + 5dgts) |
| 600.0 A | 0.1 A | |
| 1000 A | 1 A | |
| REGULAR CLAMP-ON AC CURRENT | ||
| Range | Resolution | Accuracy |
| 40Hz ~ 100Hz | ||
| 60.00 A | 0.01 A | ±(1.8%rdg + 5dgts) |
| 600.0 A | 0.1 A | |
| 1000 A | 1 A | |
| 100Hz ~ 400Hz | ||
| 60.00 A | 0.01 A | ±(2.2%rdg + 5dgts) |
| 600.0 A | 0.1 A | |
| 1000 A | 1 A | |
| REGULAR CLAMP-ON DC + AC CURRENT | ||
| Range | Resolution | Accuracy |
| DC, 40Hz ~ 100Hz | ||
| 60.00 A | 0.01 A | ±(2.2%rdg + 7dgts) |
| 600.0 A | 0.1 A | |
| 1000 A | 1 A | |
| 100Hz ~ 400Hz | ||
| 60.00 A | 0.01 A | ±(2.5%rdg + 7dgts) |
| 600.0 A | 0.1 A | |
| 1000 A | 1 A | |
| DC + AC VOLTAGE (with Digital Low-pass Filter) | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 600.0 A | 0.1 A | ±(1.0%rdg + 7dgts) |
| 1000 A | 1 A | |
| DC, 40Hz ~ 200Hz | ||
| 600.0 A | 0.1 A | ±(1.8%rdg + 7dgts) |
| 1000 A | 1 A | |
| 200Hz ~ 400Hz | ||
| 600.0 A | 0.1 A | ±(12%rdg + 7dgts) |
| 1000 A | 1 A | |
| AC VOLTAGE (with Digital Low-Pass Filter) | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 600.0 A | 0.1 A | ±(0.8%rdg + 5dgts) |
| 1000 A | 1 A | |
| 20Hz ~ 200Hz | ||
| 600.0 A | 0.1 A | ±(1.5%rdg + 5dgts) |
| 1000 A | 1 A | |
| 200Hz ~ 400Hz | ||
| 600.0 A | 0.1 A | ±(10%rdg + 5dgts) |
| 1000 A | 1 A | |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 600.0 A | 0.1 A | ±(0.8%rdg + 5dgts) |
| 1000 A | 1 A | |
| RESISTANCE (OHMS) | ||
| Range | Resolution | Accuracy |
| 600.0 Ω | 0.1 Ω | ±(1.0%rdg + 5dgts) |
| 6.000 kΩ | 1 Ω | |
| 60.00 kΩ | 10 Ω | |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 200.0μF | 0.1 μF | ±(2.0%rdg + 4dgts) |
| 2500μF | 1 μF | |
| ~Hz LINE LEVEL FREQUENCY | ||
| Function | Sensitivity (Sine RMS) | Range |
| 600 V | 50 V | 5.00Hz~999.9Hz |
| 1000 V | ||
| 60 A (AmpTip) | 20 A | 40.00Hz~400.0Hz |
| 60 A | 20 A | 40.00Hz~400.0Hz |
| 600 A | ||
| 1000A | ||
