Kusam Meco KM 887 True Rms Digital Insulation Multimeter
Click To Zoom

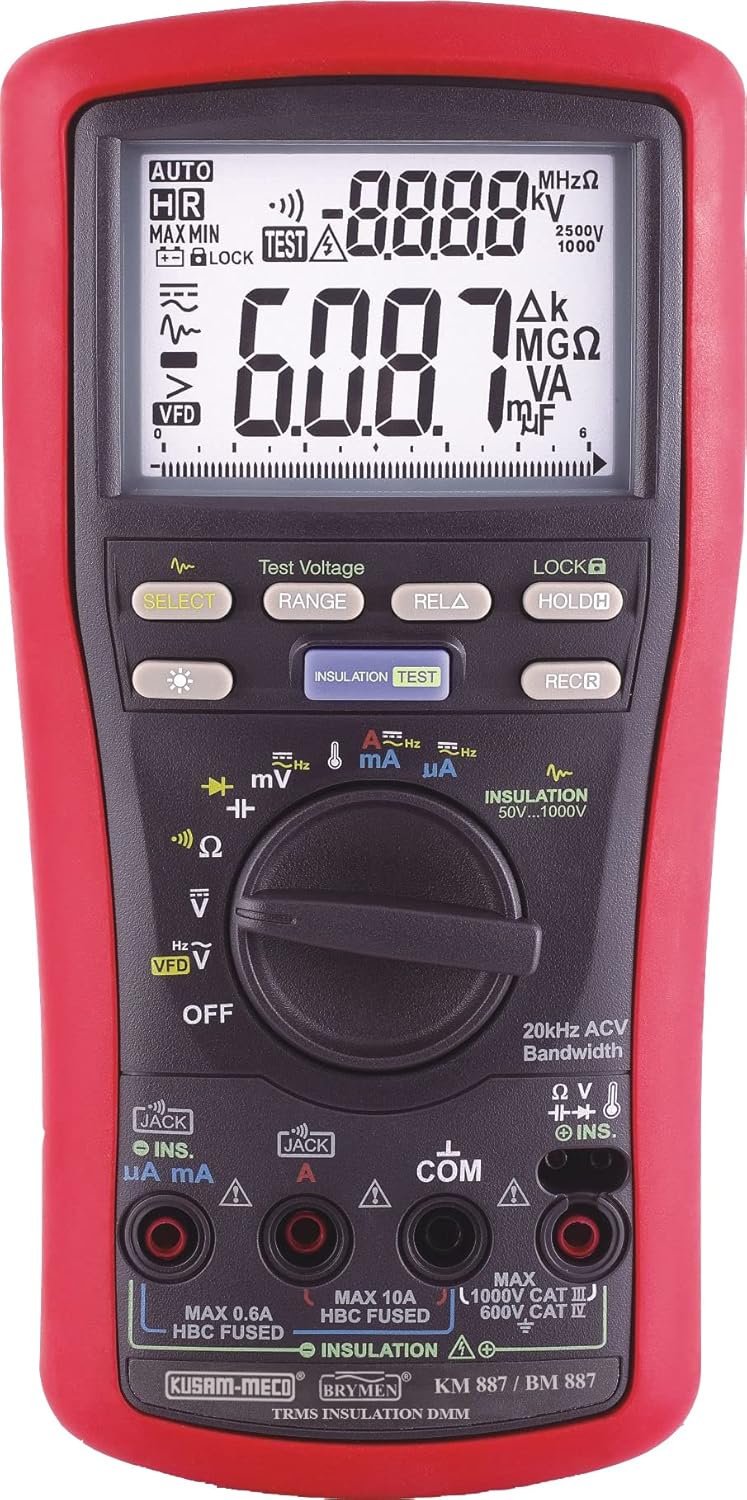

Kusam Meco KM 887 True Rms Digital Insulation Multimeter
Kusam Meco KM 887 True Rms Digital Insulation Multimeter
The Kusam Meco KM 887 is a high-precision True RMS Digital Insulation Multimeter designed for professionals requiring accurate and reliable electrical measurements.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 28,899.00
(GST inclusive price) i₹37,500.00
( - 23% OFF )
Description
OPTIONAL ACCESSORIES
What's in the box?
|
Rating & Reviews
Rating
• Sensing : AC, True RMS
• Display : 3-5/6 digits 6000 Counts Backlight LCD Display.
• Update Rate : 5 per second nominal
• 61 Segments Analog Bar Graph : 40 per second max.
• Operating Temperature : -10ºC ~ 50ºC
• Relative Humidity : Maximum relative humidity 90% for temperature up to 28ºC decreasing linearly to 50% relative humidity at 50ºC.
• Pollution degree : 2
• IP Rating : IP40
• Storage Temperature : -20 °C ~ 60 °C, < 80% R.H. (with battery removed)
• Altitude : Operating below 2000m
• Temperature Coefficient : Nominal 0.1 x (specified accuracy) / °C @(-10ºC~18ºC or 28ºC~50ºC), or otherwise specified.
• Low Battery: approx. 4.6V
• APO Timing: Idle for 20 minutes
• APO Consumption: 20 µA typical
• Auto Power Off.
• Polarity : Automatic
• Power Supply: Four Alkaline AA batteries
• Power Consumption: 6.5mA typical except the followings : VFD ACV +Hz : 8mA
• Insulation Resistance @ 1mA Test Current :
50V output Voltage : 25mA, 100V output Voltage : 45mA
250V output Voltage : 85mA, 500V output Voltage : 170mA
1000V output Voltage : 440mA
Tester can perform at least 950 Insulation Tests with new alkaline batteries at room temperature.
These are standard tests of 1000V into 1M ω with a duty cycle of 5 seconds on and 25 seconds off.
• Dimension: 208(L) X 103(W) X 64.5(H) mm with holster
• Weight: 635 gm with holster.
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 60.00 mV | 0.01 mV | ±(0.7%rdg + 4dgts) |
| 600.0 mV | 0.1 mV | |
| 6.000 V | 1 mV | |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | |
| 1000 V | 1 V | |
| 40Hz ~ 1kHz | ||
| 60.00 mV | 0.01 mV | ±(1.3%rdg + 4dgts) |
| 600.0 mV | 0.1 mV | |
| 6.000 V | 1 mV | |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | |
| 1000 V | 1 V | ±(2%rdg + 4dgts) |
| 1kHz ~ 5kHz | ||
| 60.00 mV | 0.01 mV | ±(2%rdg + 4dgts) |
| 600.0 mV | 0.1 mV | |
| 6.000 V | 1 mV | |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | |
| 1000 V | 1 V | Unspecified |
| 5kHz ~ 20kHz | ||
| 60.00 mV | 0.01 mV | Unspecified |
| 600.0 mV | 0.1 mV | ±(2%rdg + 20dgts) |
| 6.000 V | 1 mV | |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | Unspecified |
| 1000 V | 1 V | Unspecified |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 60.00 mV | 0.01 mV | ±(0.2%rdg + 3dgts) |
| 600.0 mV | 0.1 mV | ±(0.1%rdg + 2dgts) |
| 6.000 V | 1 mV | |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | ±(0.2%rdg + 3dgts) |
| 1000 V | 1 V | |
| VFD AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 10Hz ~ 45Hz | ||
| 600.0 V | 100 mV | ±(4%rdg + 5dgts) |
| 45Hz ~ 200Hz | ||
| 600.0 V | 100 mV | ±(2.5%rdg + 5dgts) |
| 200Hz ~ 440Hz | ||
| 600.0 V | 100 mV | ±(9.0%rdg + 5dgts) |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 60.00Ω | 0.01 Ω | ±(0.5%rdg + 5dgts) |
| 600.0 Ω | 100 mΩ | ±(0.2rdg + 3dgts) |
| 6.000 kΩ | 1 Ω | ±(0.2%rdg + 2dgts) |
| 60.00 kΩ | 10 Ω | |
| 600.0 kΩ | 100 Ω | ±(0.3%rdg + 2dgts) |
| 6.000 MΩ | 1 kΩ | ±(1%rdg + 3dgts) |
| 60.00 MΩ | 10 kΩ | ±(1.5%rdg + 6dgts) |
| DC CURRENT | |||
| Range | Resolution | Accuracy | Burden Voltage |
| 600.0 μA | 0.1 μA | ±(0.2%rdg + 4dgts) | 0.2mV / mA |
| 6000 μA | 1 μA | ±(0.2%rdg + 2dgts) | |
| 60.00 mA | 0.01 mA | ±(0.2%rdg + 4dgts) | 3mV / mA |
| 600.0 mA | 0.1 mA | ±(0.3%rdg + 3dgts) | |
| 6.000 A | 0.001 A | ±(0.5%rdg + 4dgts) | 30mV / A |
| 10.00 A | 0.01 A | ±(0.7%rdg + 2dgts) | |
| AC CURRENT | |||
| Range | Resolution | Accuracy | Burden Voltage |
| 50Hz ~ 60Hz | |||
| 600.0 μA | 0.1 μA | ±(1%rdg + 3dgts) | 0.2mV / mA |
| 6000 μA | 1 μA | ||
| 60.00 mA | 0.01 mA | 3mV / mA | |
| 600.0 mA | 0.1 mA | ||
| 6.000 A | 0.001 A | 30mV / A | |
| 10.00 A | 0.01 A | ||
| 40Hz ~ 3kHz | |||
| 600.0 μA | 0.1 μA | ±(2%rdg + 3dgts) | 0.2mV / mA |
| 6000 μA | 1 μA | ||
| 60.00 mA | 0.01 mA | 3mV / mA | |
| 600.0 mA | 0.1 mA | ||
| 6.000 A | 0.001 A | 30mV / A | |
| 10.00 A | 0.01 A | ||
| 1kHz ~ 5kHz | |||
| 600.0 μA | 0.1 μA | ±(2%rdg + 5dgts) | 0.2mV / mA |
| 6000 μA | 1 μA | ||
| 60.00 mA | 0.01 mA | 3mV / mA | |
| 600.0 mA | 0.1 mA | ||
| 6.000 A | 0.001 A | Unspecified | 30mV / A |
| 10.00 A | 0.01 A | ||
| ~ Hz Line Level Frequency | ||
| Function Range | Sensitivity (sine Rms) | Range |
| 60 mV | 4 mV | 6Hz ~ 50kHz |
| 600 mV | 40 mV | 10Hz ~ 100kHz |
| 6 V | 0.4 V | 10Hz ~ 50kHz |
| 60 V | 4 V | |
| 600 V | 40 V | 10Hz ~ 30kHz |
| 1000 V | 400 V | 10Hz ~ 5kHz |
| VFD 600 V | 40 V | 10Hz ~ 440Hz |
| 600 μA | 40 mA | 10Hz ~ 5kHz |
| 6000 μA | 400 mA | |
| 60 mA | 4 mA | |
| 600 mA | 40 mA | |
| 6 A | 0.6 A | 10Hz ~ 3kHz |
| 10 A | 6 A | |
| INSULATION RESISTANCE | |||
| Test Voltage | Range | Test Current | Accuracy |
| 50 V | 3.000MΩ, 30.00MΩ, 55.0MΩ | 1mA @50kΩ | ±(1.5%rdg + 5dgts) |
| 100 V | 3.000MΩ, 30.00MΩ, 110.0MΩ | 1mA @100kΩ | |
| 250 V | 3.000MΩ, 30.00MΩ, 275.0MΩ | 1mA @250kΩ | |
| 500 V | 3.000MΩ, 30.00MΩ, 300.0MΩ,550.0MΩ | 1mA @500kΩ | |
| 1000 V | 3.000MΩ, 30.00MΩ, 300.0MΩ | 1mA @1MΩ | ±(1.5%rdg + 5dgts) |
| 3000MΩ | ±(2.0%rdg + 5dgts) | ||
| 25.0GΩ | ±(10%rdg + 5dgts) | ||
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 2.000 μF | 0.001 nF | ±(1.5%rdg + 5dgts) |
| 20.00 μF | 0.01 nF | |
| 200.0 μF | 0.1 nF | |
| 2000 μF | 1 μF | |
| 20.00 mF | 0.01 mF | ±(5%rdg + 5dgts) |
| TEMPERATURE | |
| Range | Accuracy |
| -40.0ºC ~ 0.0ºC | 1% + 2 C |
| 0.0ºC ~50.0ºC | 2.2 C |
| 50.0ºC ~ 537.0ºC | 1% + 2 C |
| -40.0ºF ~ 32.0ºF | 1% + 3.6 F |
| 32.0ºF ~ 122.0ºF | 4 F |
| 122.0ºF ~ 999.0ºF | 1% + 3.6 F |
