Kusma Meco KM 2719 DIGITS AC TRMS DIGITAL CLAMPMETER
Click To Zoom
Kusma Meco KM 2719 DIGITS AC TRMS DIGITAL CLAMPMETER
Kusma Meco KM 2719 DIGITS AC TRMS DIGITAL CLAMPMETER

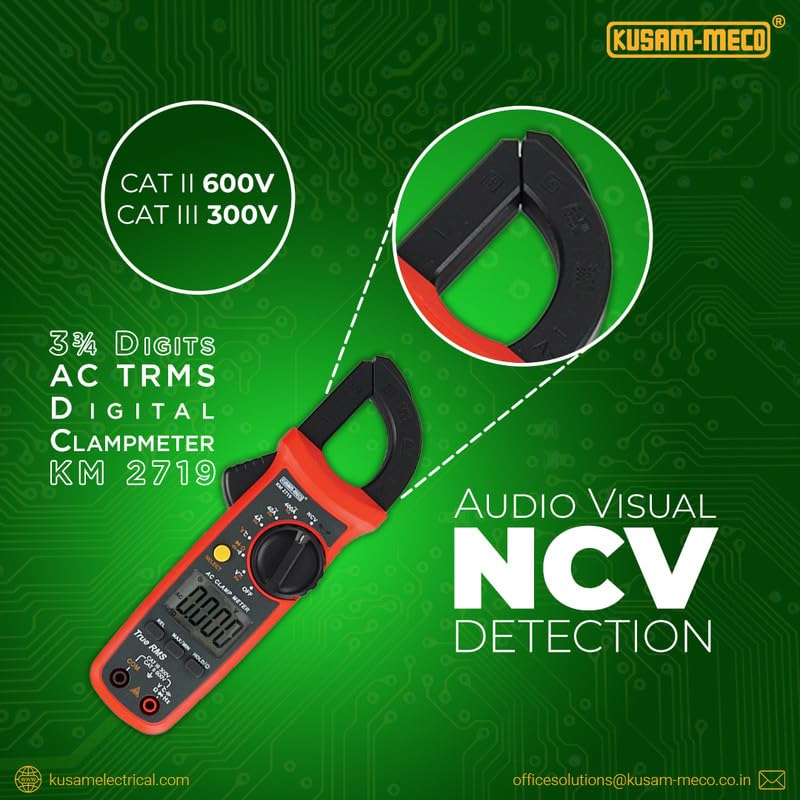

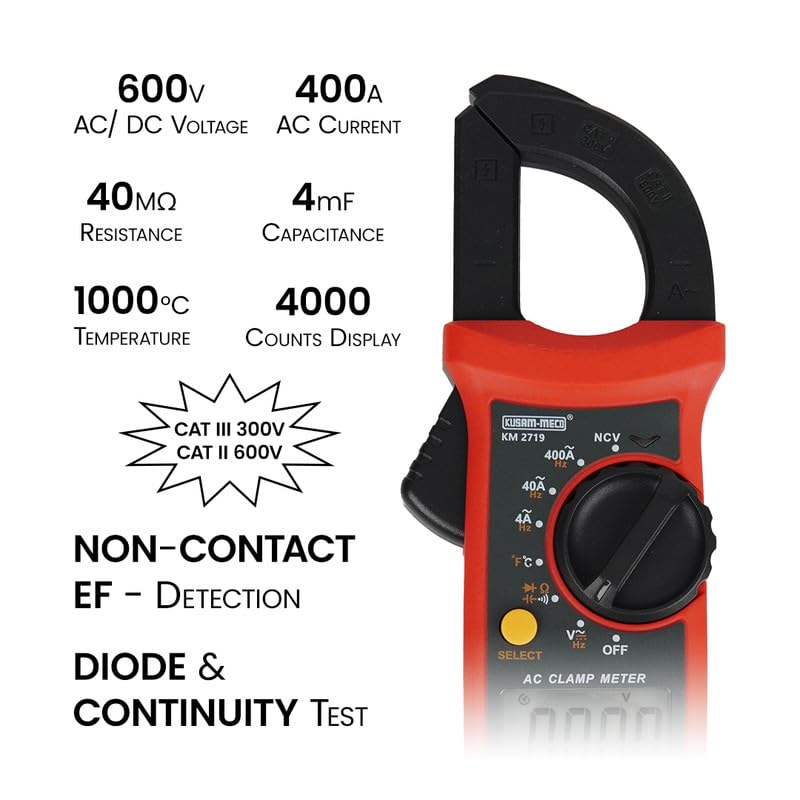

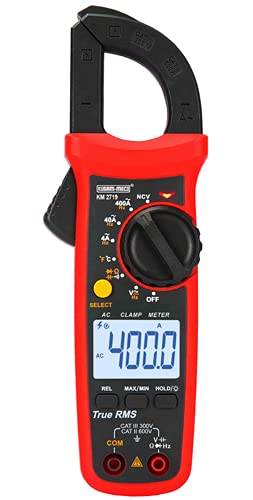

The Kusam Meco KM 2719 is a 400A AC True RMS Digital Clampmeter. It features a 3¾ digit, 4000-count backlit LCD, audio-visual NCV detection, and a 28mm jaw opening. It also measures voltage, resistance, capacitance, frequency, duty cycle, continuity, and diode.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 3,399.00
(GST inclusive price) i₹4,400.00
( - 23% OFF )
Description

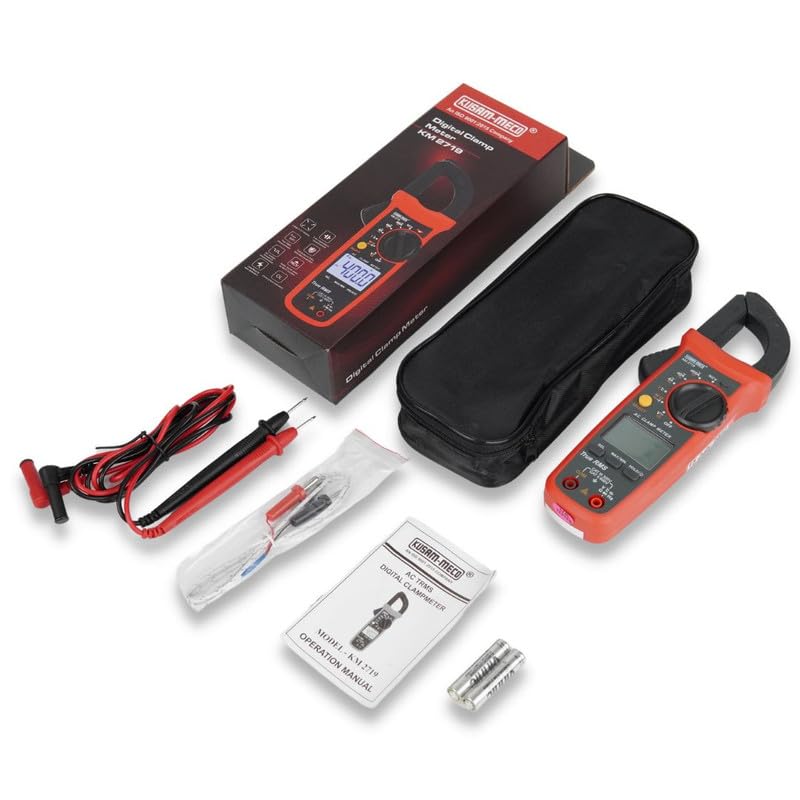

What's in the box?
|
Rating & Reviews
Rating
• Display: 3¾ Digits 4000 Counts LCD Backlight display
• Display : 3-5/6 digits 6000 counts liquid crystal LCD display

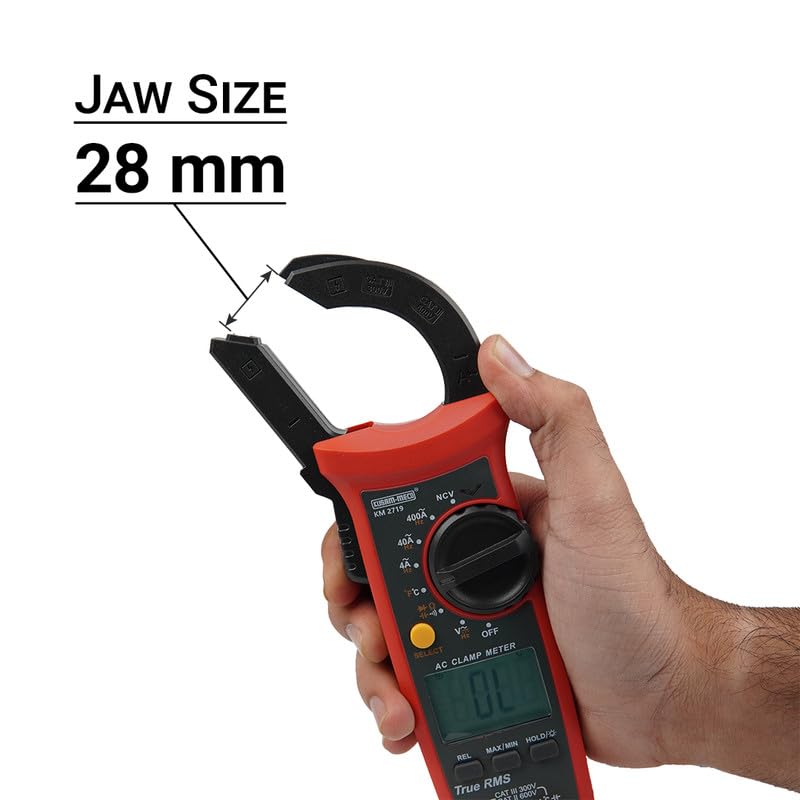

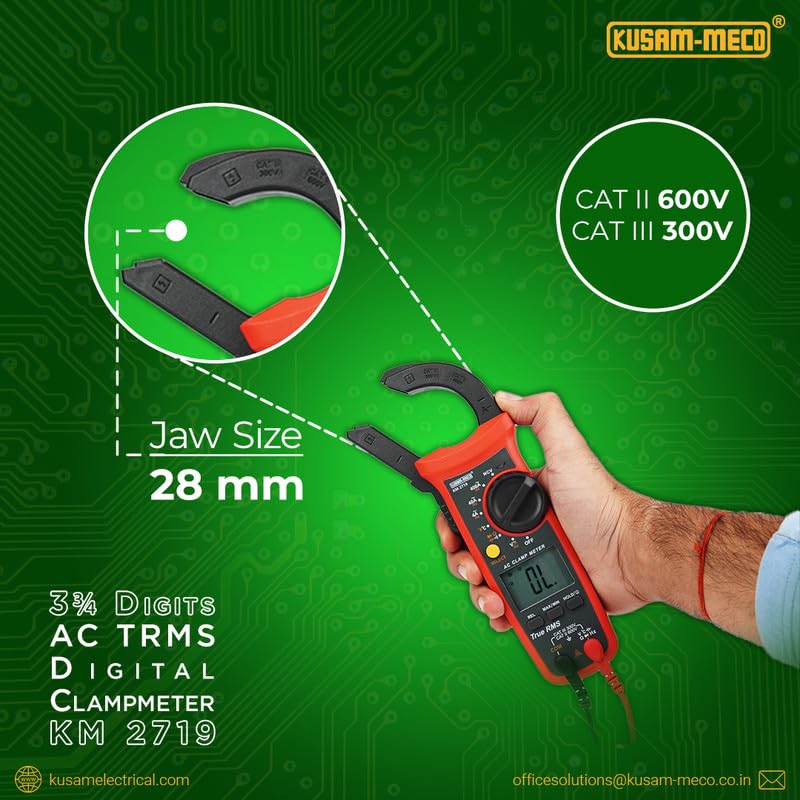

• The maximum size of jaw opening : 28mm in diameter
• Polarity display: Auto
• Low battery indication : The “ ” symbol is displayed.
• Low battery shutdown prompt: The “Lo.bt” interface appears on the LCD and lasts for about 10s, the buzzer beeps three times, and the meter automatically shuts down.
• Operating temperature and humidity : 0°C~30°C (≤80%RH), 30°C~40°C (≤75%RH), 40°C~50°C (≤45%RH)
• Storage temperature and humidity:20°C~60°C (≤80%RH)
• Power Supply : AAA battery 1.5V×2
• Dimensions : Approx. 215mm × 63.5mm × 36mm
• Weight: Approx. 248g (including batteries)
• Dimension : Approx.142(L)mm x 70(W)mm x 32(H)mm
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 4.000A | 0.001A | ±(4%rdg+10dgts) |
| 40.00A | 0.01A | ±(2%rdg+10dgts) |
| 400.0A | 0.1A | |
| Current frequency monitoring: 50Hz~100Hz | 0.1Hz | ±(1.0%rdg+5dgts) |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 4.000 V | 0.001 V | ±(1.0%rdg+5dgts) |
| 40.00 V | 0.01 V | ±(0.8%rdg+5dgts) |
| 400.0 V | 0.1 V | |
| 600 V | 1 V | |
| Voltage frequency monitoring: 10Hz~10kHz | 0.01Hz~ 0.01kHz | ±(1.0%rdg+5dgts) |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400.0 mV | 0.1 mV | ±(0.7%rdg + 3dgts) |
| 4.000 V | 0.001 V | ±(0.5%rdg + 2dgts) |
| 40.00 V | 0.01 V | ±(0.7%rdg + 3dgts) |
| 400.0 V | 0.1 V | |
| 600 V | 1 V | |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 400.0 Ω | 0.1 Ω | ±(1.0%rdg+2dgts) |
| 4.000 kΩ | 0.001 kΩ | ±(0.8%rdg+2dgts) |
| 40.00 kΩ | 0.01 kΩ | |
| 400.0 kΩ | 0.1 kΩ | |
| 4.000 MΩ | 0.001 MΩ | ±(2.0%rdg+5dgts) |
| 40.00 MΩ | 0.01 MΩ | |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 4.000 nF | 0.001 nF | ±(4.0%rdg+10dgts) |
| 40.00 nF | 0.01 nF | |
| 400.0 nF | 0.1 nF | |
| 4.000 mF | 0.001 mF | ±(4.0%rdg+5dgts) |
| 40.00 mF | 0.01 mF | |
| 400.0 mF | 0.1 mF | |
| 4.000 mF | 0.001 mF | ±(10%) |
| 0.01 mF | ||
