Fluke 319 Clamp Meter
.v3.jpg "Fluke 319 Clamp Meter")
.jpg "Fluke 319 Clamp Meter")
.jpg "Fluke 319 Clamp Meter")
Click To Zoom
Fluke 319 Clamp Meter
Fluke 319 Clamp Meter
The Fluke 319 is designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily. These small and rugged clamp meters are ideally suited for current measurements up to 1000 A in tight cable compartments. The Fluke 319 also offers AC/DC current measurements and has a higher resolution for loads below 40 A. In addition to a compact package with a strong feature set, the Fluke 319 also equip with In-rush current and Frequency functions for testing motors, lighting, etc.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 31,800.00
(GST inclusive price) i₹43,080.00
( - 26% OFF )
Description
When it comes to electrical testing and measurement, accuracy, dependability, and safety are paramount. Tools that provide reliable readings even in complex contexts are essential for professionals and technicians. The Fluke 319 Clamp Meter is one of the most complicated and reliable devices in this class. This instrument, built by Fluke Corporation, a world leader in electronic test equipment, is designed to operate exceptionally well, especially in challenging industrial and commercial settings.
Everything you need to know about the Fluke 319 Clamp Meter is covered in this blog, including its definition, how and where to use it, why professionals choose it, how to use it successfully, and a final summary to help you decide if it's the best option for your needs.
The Fluke 319 Clamp Meter is an AC/DC voltage, resistance, and continuity digital handheld test tool that doesn't touch electrical conductors to provide measurements. In contrast to a standard multimeter, which requires removing wires to measure current, the Fluke 319 uses a clamp that lets you take readings safely and efficiently by simply clamping the meter onto a conductor.
This instrument is the product of Fluke's highly acclaimed clamp meter series — respected globally for its precision design, robust build, and uncompromising safety. The Fluke 319 is small and light yet capable of delivering precise measurements in harsh industrial environments.
It features True RMS (Root Mean Square) technology, providing precise measurements for both linear and non-linear loads. It comes in handy where the electrical signals are less than purely sinusoidal — such as in newer HVAC applications, drives, or power supplies.
Many different businesses use the Fluke 319 Clamp Meter. It may be used indoors or out thanks to its sturdy construction and safety features. Here are a few typical uses:
• Industrial Plants: For keeping an eye on power distribution panels, drives, and motors.
• Maintaining appropriate current flow: in lighting networks and HVAC systems in workplaces.
• Residential Applications: diagnosing circuit breakers and wiring in homes.httpshttps://www.insuzo.com/blog/16/fluke-clamp-meter://www.insuzo.com/blog/16/fluke-clamp-meter
• Electrical contractors: For prompt voltage and current inspections at construction sites.
• Maintenance Teams: Perfect for preventive inspections and regular checkups.
Selecting the Fluke 319 Clamp Meter offers several apparent benefits. Let's discuss why this product is so widely used among electricians and engineers:
1. Large Measurement Range - It can measure up to 1000A AC/DC, from small circuits to large industrial motors.
2. True RMS Accuracy - In contrast to average-responding meters, the Fluke 319 provides precise measurements for distorted waveforms, which is critical for newer electronic devices.
3. Compact and Ergonomic Design - Its compact, lightweight build is easy to handle in tight spaces — a definite plus for control cabinet technicians.
4. Intuitive Interface - Large backlit LCD, auto-ranging, and data hold functions enhance usability, even in low-light applications.
5. Tough and Reliable - Fluke is renowned for its rugged design — the meter will survive harsh industrial environments, ensuring it remains a lasting investment.
6. Accuracy at Low Current Measurements - A feature exclusive to this model, the Fluke 319 offers 0.01A resolution for low-current measurements, providing accurate diagnostics for control circuits.
7. Safety and Conformity - With a CAT III 600V safety rating, the meter protects users taking high-energy measurements.
8. Automatic Power Down - The meter will automatically shut off after a period of inactivity, helping conserve battery life—a nice touch for field applications.
The Fluke Clamp Meter is easy to use. Use these easy steps to ensure precise and secure measurements:
Step 1: Get Ready
• Make sure new batteries are inserted in the gadget.
• Rotate the switch to the required measurement function (e.g., resistance, voltage, AC, DC).
• Before beginning, make sure the meter reads zero.
Step 2: Current Measurement
• Clamp jaws should be opened and positioned around a single conductor, not the entire cable.
• Make sure the conductor is in the middle of the jaws.
• Straight from the digital display, read the current.
Step 3: Voltage Measurement

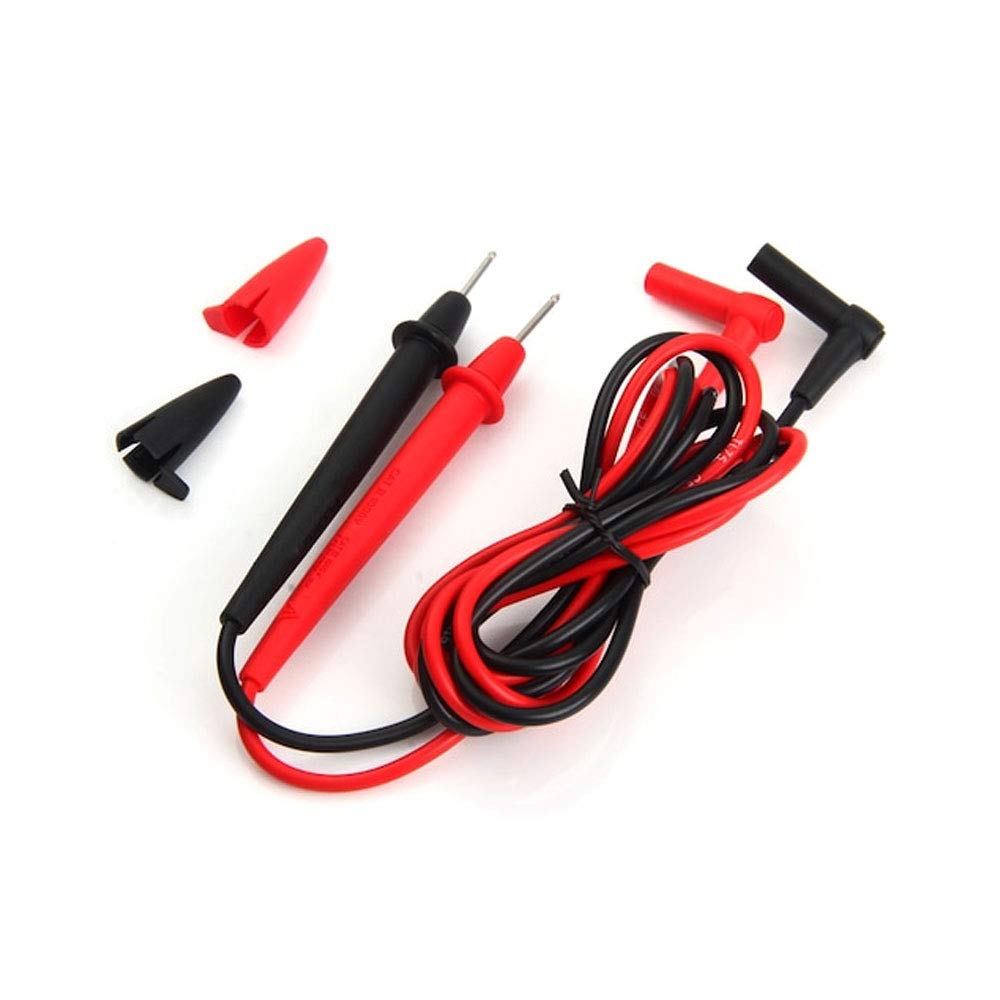

• Attach the colour red testing lead to the VΩ terminal, then the black test lead to the COM terminal.
• To measure circuit points, touch the leads.
• The voltage value is shown in real time on the display.
Step 4: Assessing Continuity or Resistance
• Select the resistance (Ω) setting by turning the dial.
• Attach the test leads across the circuit or component.
• Listen for the continuity beep or read the resistance value.
Step 5: Max/Min and Data Hold
• To freeze the screen, press the HOLD button.
• To record fluctuating signals for examination, use the MAX/MIN mode.
Step 6: Shut the Meter Off
• After use, always flip the dial to OFF.
• Additionally, if the meter is left idle, it will automatically shut off.
When it comes to the Fluke 319 Clamp Meter, you need more than just the device; you also need a reliable partner. Here's why professionals in various industries chose us as their go-to supplier for Fluke products:
• 100% genuine and authorized products
We exclusively sell genuine, factory-sealed Fluke multimeters received straight from approved distributors. You receive the entire manufacturer's guarantee, safety assurance, and product dependability with no compromises.
• Expert Product Guidance
Are you unsure which Fluke model is best suited for your needs? Our professional team provides tailored recommendations based on your specific sector, including electrical, HVAC, automotive, and industrial maintenance.
• Competitive pricing without hidden costs
We offer open, affordable pricing on all Fluke models, with no hidden discounts or markups. Additionally, we offer exceptional discounts for large orders and repeat customers.
1. What does the Fluke 319 Clamp Meter measure?
The Fluke 319 Clamp Meter measures AC/DC, voltage, resistance, and continuity without wire removal. It's perfect for electricians and engineers who need fast, accurate current readings in commercial and industrial applications.
2. What is the maximum current the Fluke 319 can measure?
The Fluke 319 can test up to 1000 Amperes (AC/DC), so it will work on low-current control system circuits and high-current industrial systems.
3. Is it possible to use the Fluke 319 to test voltage?
Yes. The Fluke 319 will test AC and DC voltage up to 600V using test leads, and measure current using the clamp.
4. Is the Fluke 319 safety rated?
The meter is further equipped with a CAT III 600V safety rating, meaning it is approved for installation on fixed apparatus such as distribution panels and industrial apparatus to protect users from transient voltage.
The Fluke 319 Clamp Meter is a sophisticated electrical testing tool known for its precision, dependability, and safety, making it highly suitable for professionals in challenging industrial and commercial settings. Unlike traditional multimeters that require wire removal for current measurements, the Fluke 319 utilises a clamp mechanism that allows for safe, non-intrusive readings. It measures AC/DC voltage, resistance, and continuity, featuring True RMS technology that ensures accurate measurements even in non-linear signal environments, such as those found in modern HVAC systems.
The Fluke 319's application range is extensive, including industrial plants for monitoring power distribution, residential settings for diagnosing electrical issues, and construction sites for quick inspections by electrical contractors. Its compact, ergonomic design makes it easy to handle, especially in tight spaces. Key benefits include an extensive measurement range of up to 1000A AC/DC, accuracy for distorted waveforms, an intuitive interface with a backlit display, durability for harsh environments, and a CAT III 600V safety rating, ensuring user protection during high-energy measurements.
To operate the Fluke 319, users follow straightforward steps: preparing the device, measuring current, assessing voltage, checking continuity or resistance, using the max/min and data hold functions, and shutting it off after use. The meter also features an automatic power-off option to conserve battery life.
When considering a purchase, Insuzo is highlighted as a trusted supplier of genuine Fluke products, offering expert guidance and competitive pricing without hidden costs. Overall, the Fluke 319 Clamp Meter's robust features and user-friendly design make it an exceptional choice for a wide range of electrical measurement tasks.
We at Insuzo guarantee that you will receive the highest quality air velocity meter available online at the most competitive pricing, along with excellent customer service. We have other testing and measuring equipment as well like - fluke temperature gun, metravi elcb tester, multimeter and clamp meter etc. Buy it now to see the difference!

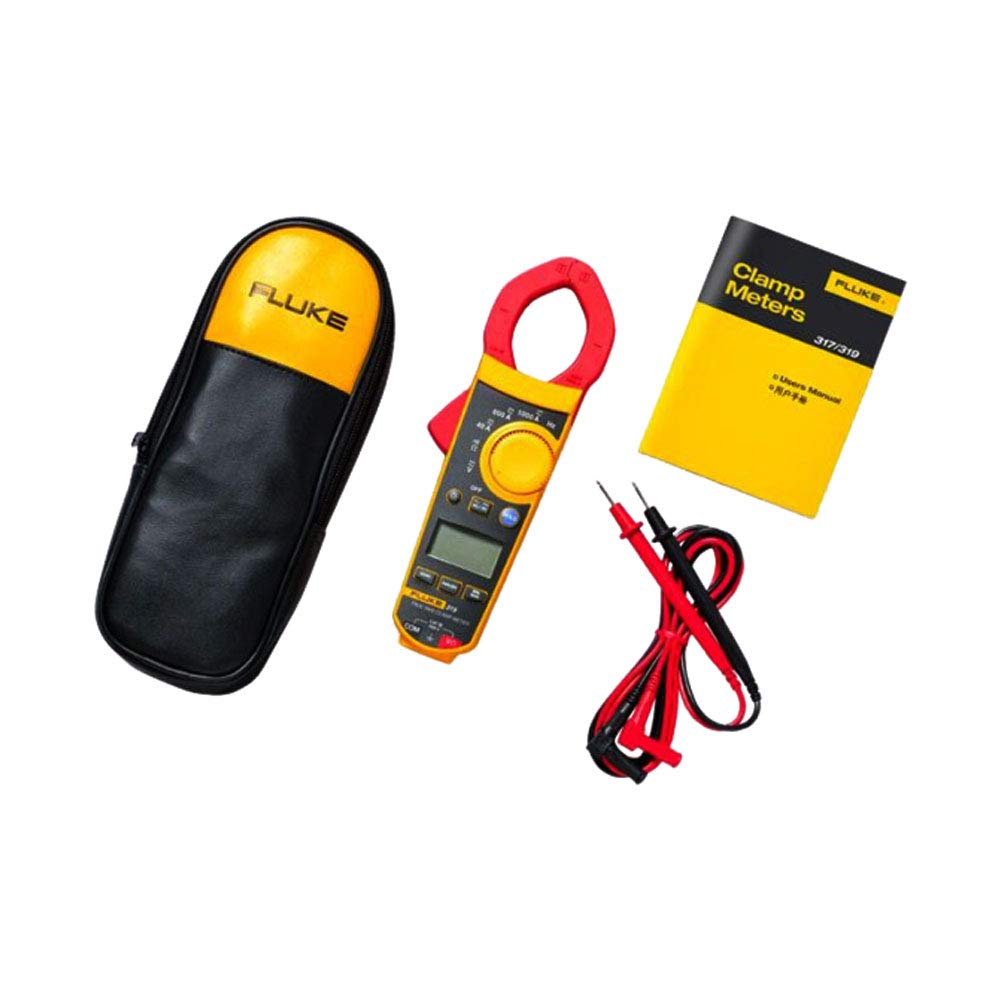

What's in the box of fluke 319 clamp meter?
|
Rating & Reviews
Rating
| General specifications | |
| Digital display | 6000 count resolution |
| Low battery Indication | Displays a signal when the batteries are below their required voltage |
| Power source | Three AAA IEC LR03 batteries |
| Clamp opening size | 1.45 in (37 mm) |
| Jaw diameter | 1.45 in (37 mm) |
| Dimensions (L x W x H) | 9.21 in x 2.95 in x 1.37 in |
| (234.0 mm x 75.0 mm x 34.8 mm) | |
| Weight | Approximately 13.5 oz (384 g) (batteries included) |
| Auto range | Available in Ohms |
| Safety | CE |
| EN/IEC 61010-1 and IEC 61010-2-032 | |
| Measurement Category: 600V CAT III | |
| Electrical specifications | ||
| Current AC | Range | 40.00 A, 600.0 A, 1000 A |
| Resolution | 0.01 A, 0.1 A, 1 A | |
| Accuracy | 1.6% ±6 digit (50-60 Hz) {40 A} | |
| 2.5% ±8 digit (60-500 Hz) {40 A} | ||
| 1.5% ±5 digit (50-60 Hz) {600/1000 A} | ||
| 2.5% ±5 digit (60-500 Hz) {600/1000 A} | ||
| Crest Factor add 2% into spec for CF > 2 | 3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A | |
| AC response | rms | |
| Current DC | Range | 40.00 A, 600.0 A, 1000 A |
| Resolution | 0.01 A, 0.1 A, 1 A | |
| Accuracy | 1.6% ±6 digit (40 A) | |
| 1.5% ±5 digit (600/1000 A) | ||
| Voltage AC | Range | 600.0 V |
| Resolution | 0.1 V | |
| Accuracy | 1.5% ±5 digit (20-500Hz) | |
| AC response | rms | |
| Voltage DC | Range | 600.0 V |
| Resolution | 0.1 V | |
| Accuracy | 1% ±4 digit | |
| Resistance | Range | 400.0 Ω |
| 4000 Ω | ||
| Resolution | 0.1 Ω | |
| 1 Ω | ||
| Accuracy | 1% ±5 digit | |
| Continuity | ≤ 30 Ω | |
| Inrush | Integration time | 100 ms |
| Frequency | Range | 5.0 - 500.0 Hz |
| Accuracy | 0.5% ±5 digit | |
| Trigger Level | 10 - 100 Hz ≥ 5 A, 5 - 10 Hz, 100 - 500 Hz ≥ 10 A | |
| The accuracy specifications apply at 73 °F ±41 °F (23 °C ±5 °C) Below 64 °F and above 82 °F (18 °C and above 28 °C) accuracy degrades at (0.1) times specification per °C. True rms for ac V and ac A accuracy is specified from 5% to 100% of range. | ||
| Environmental specifications | |
| Operating temperature | 14°F to 122°F (-10 °C to 50 °C) |
| Storage temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
| Operating humidity | Non-condensing (< 50 °F) (< 10 °C) |
| 90% RH (50 °F to 86 °F) (10 °C to 30 °C) | |
| 75% RH (86 °F to 104 °F) (30 °C to 40 °C) | |
| 45% RH (104 °F to 122 °F) (40 °C to 50 °C) | |
| (Without condensation) | |
| Operating altitude | 1 mile (2000 meters) above mean sea level |
| Storage altitude | 7 miles (12,000 meters) above mean sea level |
| IP Rating | IP40 |
| Vibration requirements | Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis |
| Drop test requirements | 3 ft (1 m) drop test, six sides, oak floor |
| EMI, RFI, EMC | Instrument unspecified for use in EMC field ≥ 0.1 V/m |
| Temperature coefficients | 0.1x (specified accuracy)/ °C |
| (<64 °F or > 82° F) | |
| (<18 °C or > 28 °C) | |
