Kusum Meco-KM 276 HD33KV HIGH VOLTAGE DETECTOR

Kusum Meco-KM 276 HD33KV HIGH VOLTAGE DETECTOR
Kusum Meco-KM 276 HD33KV HIGH VOLTAGE DETECTOR
Kusum Meco-KM 276 HD33KV HIGH VOLTAGE DETECTOR
Kusum Meco-KM 276 HD33KV HIGH VOLTAGE DETECTOR

Click To Zoom

Kusum Meco-KM 276 HD33KV HIGH VOLTAGE DETECTOR

Kusum Meco-KM 276 HD33KV HIGH VOLTAGE DETECTOR

(Based On 10 Reviews)

The equipment, whether in stretched state is available for voltage detection in high-tension circuits (3.3kV, 6.6kV, 24KV & 33kV) whether the wires involved are naked or insulated. Low Voltage Detection: The equipment can be used for voltage detection in low-tension circuits (80V ~ 600V) by holding the nameplate portion of the detecting head.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 21,600.00

(GST inclusive price) i
  • Base Value: ₹ 18305.1
  • GST: (18) % ₹ 3294.9
  • Total Value ₹ 21600

₹35,560.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

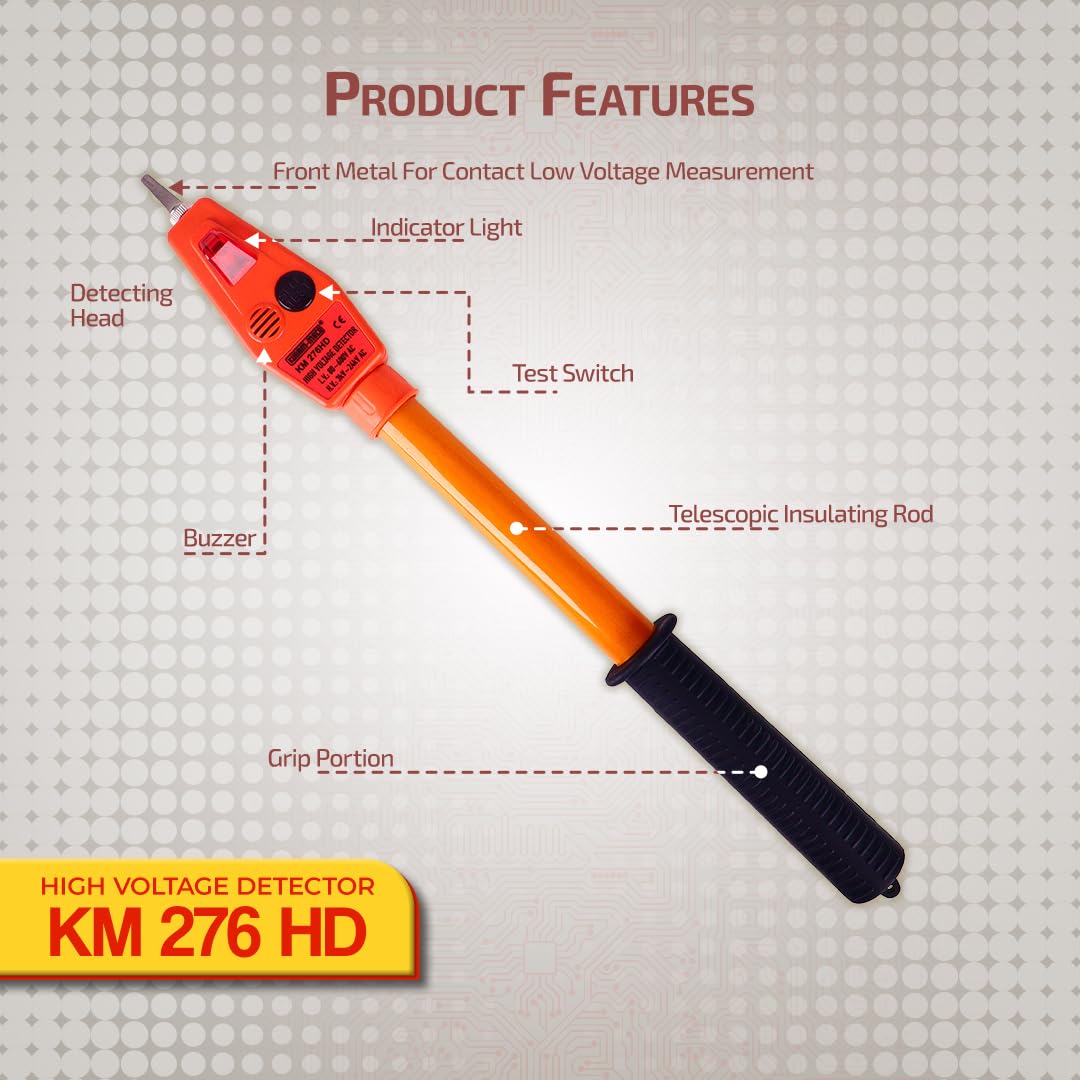

  • Telescopic, Compact, light-weight and handy.
  • High-voltage detection: The equipment, when in stretched state is available for voltage detection in high-tension circuits (3.3kV, 6.6kV & 24KV) whether the wires involved are naked or insulated.
  • Low Voltage detection: The equipment can be used for voltage detection in low-tension circuits (80V ~ 600V) by holding the nameplate portion of the detecting head. Before-use, check can easily be done by plugging in an AC 100V plug socket, without using a tester.
  • Easy to recognize indication: Intermittent lighting in red of a high intensity light-emitting diode and intermittent audible sound of an electronic buzzer are readily recognizable in full daylight, noisy location.
  • Water proof: The detecting head, being tightly enclosed, is free from any trouble due to dust, dirt, water.

What's in the box ?

  • Instruction manual
  • Carrying Case.

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specification

General Specification

Dimension

354 mm - 1005 mm

Frequency

50 Hz / 60Hz

Power Source

Battery

Voltage

H.V.: 3kV to 33kV AC, L.V.: 80V to 600V AC

Battery Life

3 button-cells LR44 (1.5V)

Battery Type

3 button-cells LR44 (1.5V)

Operating Temperature

-10°C to +50°C

Type of Product

High Voltage Detector

Model No

276 HD 33KV

Weight (g)

210 g

Insulation Resistance

more than 2000MW @1KV

Operating Voltage Range

H.V.: 3kV ~ 24kV AC, L.V: 80V ~ 600V AC
