Fluke T6-1000 PRO Electrical Tester
Fluke T6-1000 PRO Electrical Tester

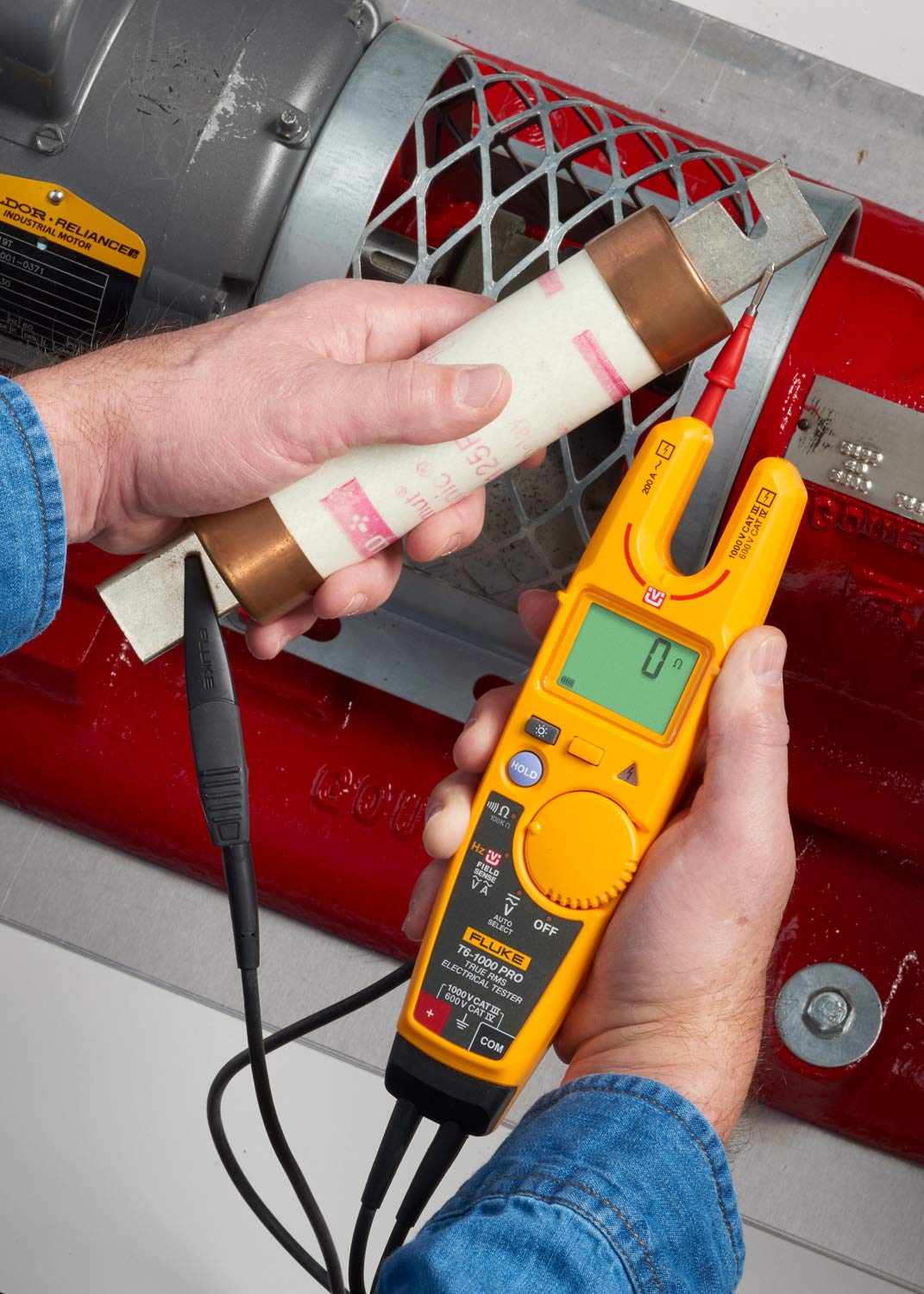

The T6-1000 PRO Electrical Tester measures voltage up to 1000 V ac and current up to 200 A ac, all through the open fork and without test lead contact to live voltage. Connect the black lead to ground with the included heavy-duty alligator clip, slide the wire into the open fork and see both voltage and current at the same time. Even with gloves on. It will change how you do your job.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 26,900.00
(GST inclusive price) i₹36,442.00
( - 26% OFF )
Description
The T6-1000 PRO Electrical Tester measures voltage up to 1000 V ac and current up to 200 A ac, all through the open fork and without test lead contact to live voltage. Connect the black lead to ground with the included heavy-duty alligator clip, slide the wire into the open fork and see both voltage and current at the same time. On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A and 1000 V ac. Even with gloves on. It will change how you do your job.
What's in the box
|
Rating & Reviews
Rating
| Function | ||
| FieldSense ac voltage | Requires test leads | No |
| Range | 1000 V | |
| Resolution | 1 V | |
| Accuracy | ±(3 % + 3 counts) 45 Hz - 66 Hz[1] [2] | |
| FieldSense ac current | Requires test leads | No |
| Range | 200.0 A | |
| Resolution | 0.1 A | |
| Accuracy | ±(3 % + 3 counts) 45 Hz - 66 Hz | |
| FieldSense frequency (Hz) | Requires test leads | No |
| Range | 45 Hz – 66 Hz | |
| Resolution | 1 Hz | |
| Accuracy | ±(1 % + 2 counts) | |
| Volts ac | Requires test leads | Yes |
| Range | 1000 V | |
| Resolution | 1 V | |
| Accuracy | ±(1.5 % + 2 counts) 45 Hz - 66 Hz | |
| Volts dc | Requires test leads | Yes |
| Range | 1000 V | |
| Resolution | 1 V | |
| Accuracy | ±(1 % + 2 counts) | |
| Resistance | Requires test leads (all ranges) | Yes |
| Range | 2000 Ω | |
| Resolution | 1 Ω | |
| Range | 20.00 kΩ | |
| Resolution | 0.01 kΩ | |
| Range | 100.0 kΩ | |
| Resolution | 0.1 kΩ | |
| Accuracy (all ranges) | ±(1 % + 2 counts) | |
Accuracy[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC conversions are ac-coupled, RMS responding.
Accuracy[2]: FieldSense specified from 16V to 1000V.
| General Specifications | |
| Calibration | 1-year calibration cycle |
| Dimensions | 61 mm x 259 mm x 43 mm |
| Weight | 0.35 kg (0.78 lb) |
| Fork opening | 17.8 mm (0.7”) |
| Temperature Operating: Storage: | -10 °C to +50 °C (14 °F to 122 °F) -30 °C to +60 °C (-22 °F to +140 °F) |
| Altitude Operating: Storage: | 2,000 m (6,562 feet) 10,000 m (32,808 feet) |
| Relative Humidity | 0 % to 90 %, 5 °C to 30 °C (41 °F to 86 °F) 0 % to 75 %, 30°C to 40 °C (86 °F to 104 °F) 0 % to 45 %, 40°C to 50 °C (104 °F to 122 °F) |
| Battery Type: Life: | 2x AA (IEC LR6) 360 hour continuous, typical is 200 hour using the FieldSense function |
| Temperature coefficient | 0.1 x (specified accuracy) / °C for <18°C or >28 °C (< 64.4 °F or > 82.4 °F) |
| Safety General: Measurement T6-1000 PRO: | IEC 61010-1: Pollution Degree 2 IEC 61010-2-032: CAT IV 600 V / CAT III 1000 V |
| Electromagnetic Compatibility | IEC/EN 61326-1: Portable |
