Fluke 3000 FC HVAC System
Fluke 3000 FC HVAC System
The Fluke FC Wireless HVAC System lets you work on electrical panels faster, safer, easier with remote current and temperature modules.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 61,850.00
(GST inclusive price) i₹83,858.00
( - 26% OFF )
Description

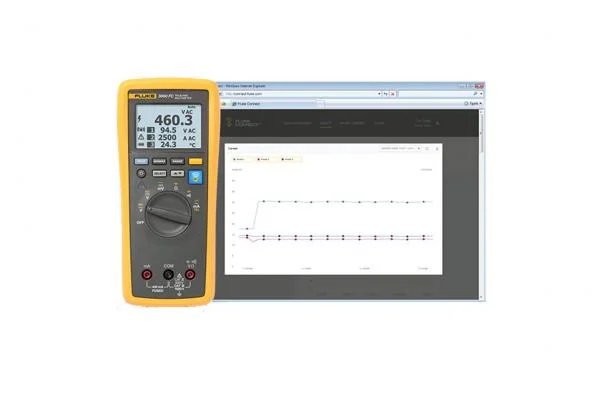

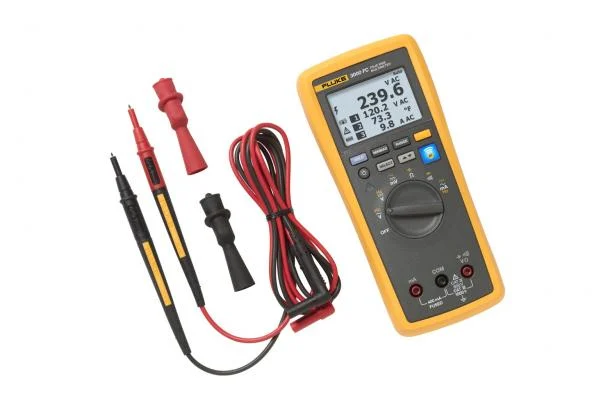

The Fluke 3000 FC Series Wireless Multimeter with the Fluke Connect® app has all the essentials for convenient test and measurement troubleshooting:

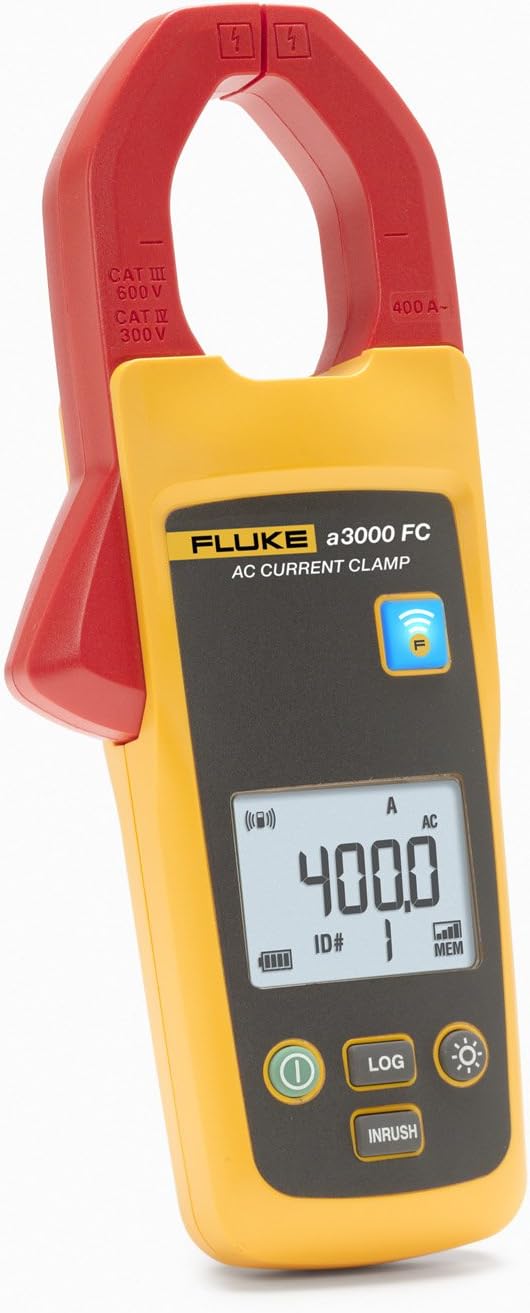

The Fluke a3000 FC Wireless AC Current Clamp Module has all the essentials for convenient test and measurement troubleshooting:

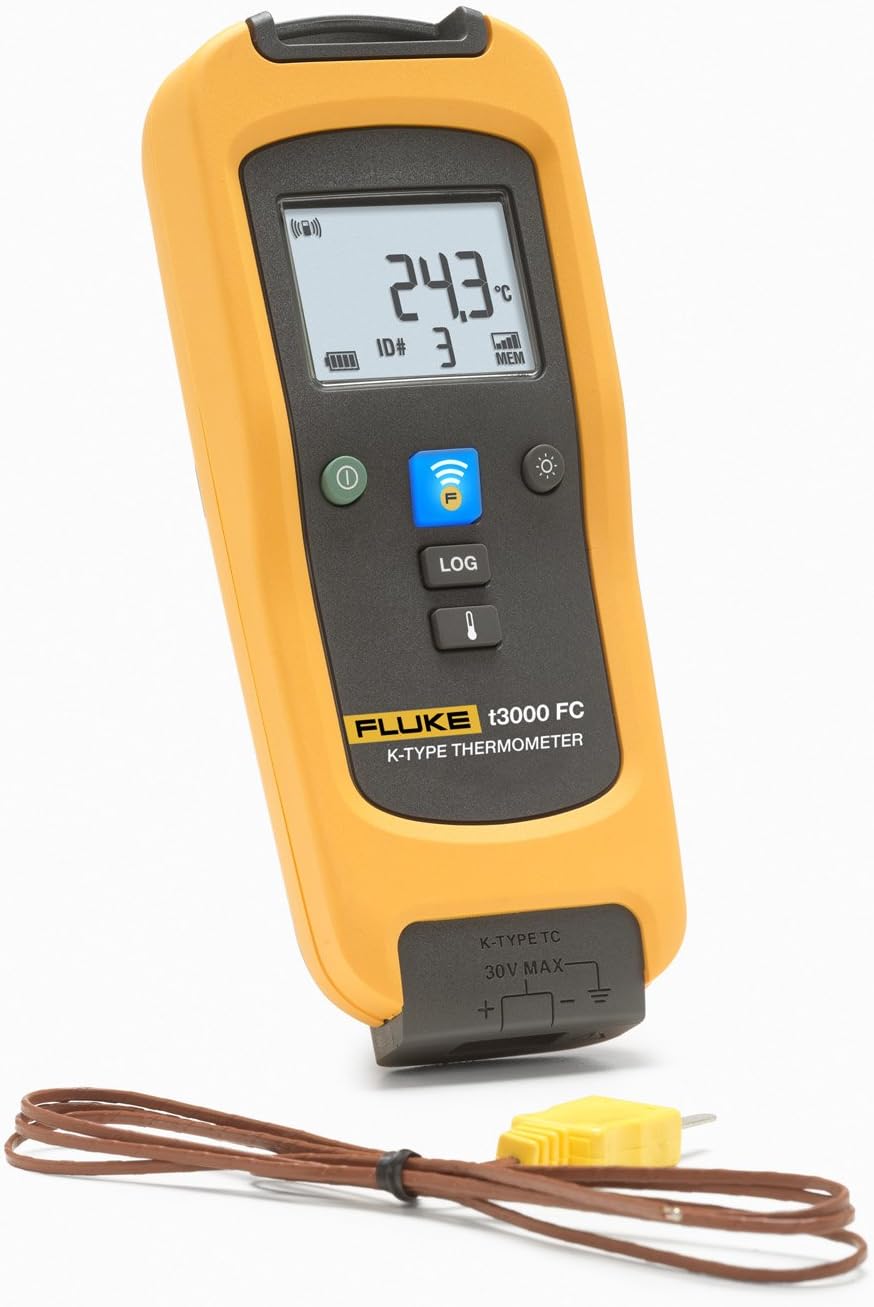

With the Fluke t3000 FC Wireless K-Type Temperature Module you can:

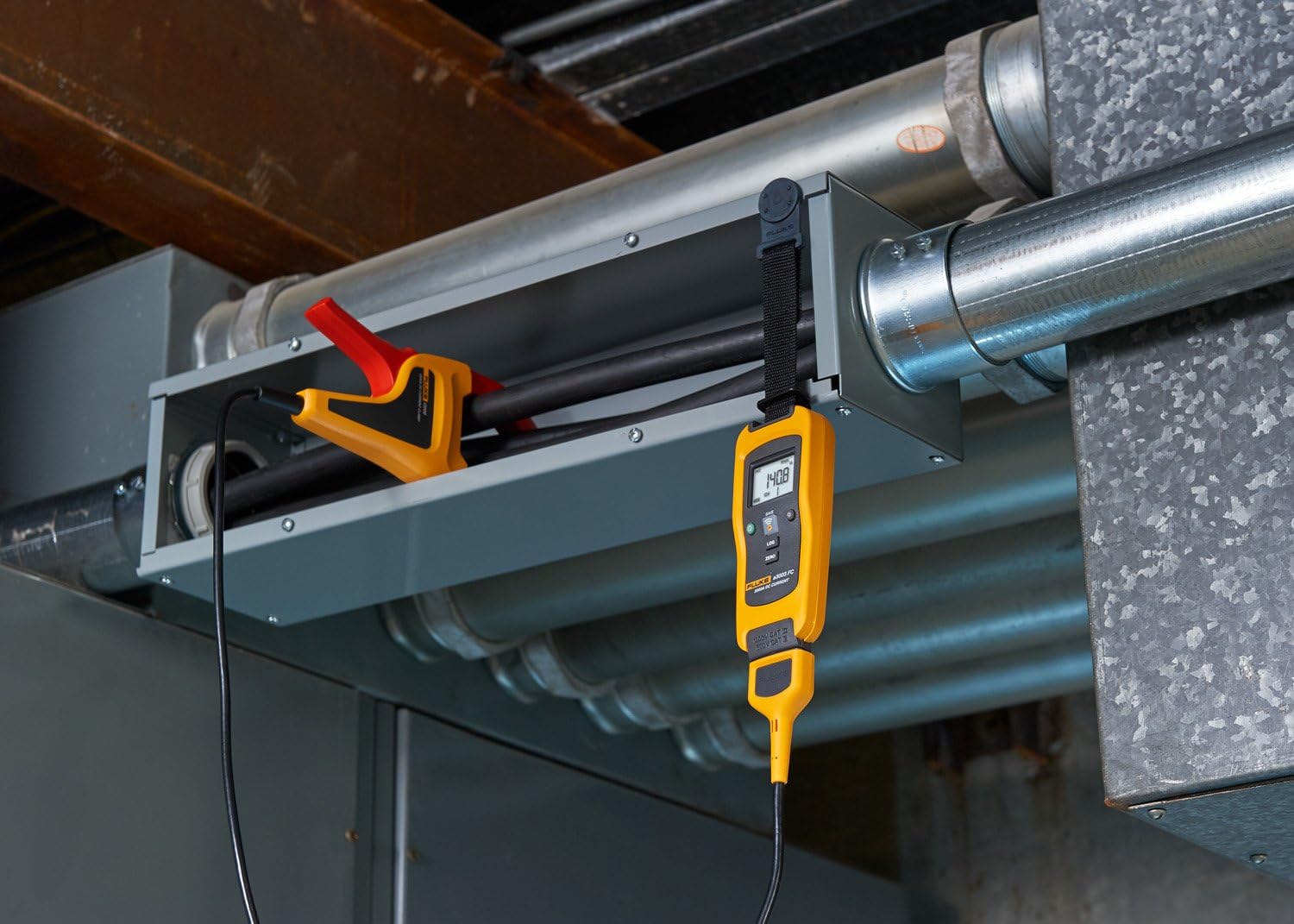

Connect your FC AC Wireless Current Clamp Module to your test point, and view the results up to 20 meters away on the FC Wireless Digital Multimeter. Plus, you can connect the t3000 FC Wireless K-Type wireless temperature module and view remote temperature measurements.
You’ll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems, as a stand-alone measurement tool or combine with other Fluke Connect™ modules as a system for multiple measurements.
From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the Fluke Connect remote modules captures up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.
Now you can take readings on moving machinery, with only the measurement module in harm’s way.
What's in the box?
|
Rating & Reviews
Rating
* For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. Accuracy specifications take the form of ±([% of Reading ] + [Number of least significant digits]).
| Detailed Specifications | |||||
| AC Voltage | |||||
| Range ¹ / Resolution | 600.0 mV / 0.1 mV 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V | ||||
| Accuracy 2 3 4 | 45 Hz to 500 Hz | 1.0% + 3 | |||
| 500 Hz to 1 kHz | 2.0% + 3 | ||||
| 1. All AC voltage ranges are specified from 1% of range to 100% of range. 2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3. For non-sinusoidal waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3. 4. Do not exceed 107 V-Hz. | |||||
| DC Voltage, Continuity, Resistance, Diode Test and Capacitance | |||||
| Function | |||||
| mV | Range / Resolution | 600.0 mV / 0.1 mV | |||
| Accuracy | 0.09% + 2 | ||||
| V | Range / Resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V | |||
| Accuracy | 0.09% + 2 0.15% + 2 | ||||
| ))) | Range / Resolution | 600 Ω / 1 Ω | |||
| Accuracy | Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer. | ||||
| Ω | Range / Resolution | 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 60.00 kΩ / 0.1 kΩ 600.0 kΩ / 0.001 MΩ 50.00 MΩ / 0.01 MΩ | |||
| Accuracy | 0.5% + 2 0.5% + 1 1.5% + 3 | ||||
| Diode test | Range / Resolution | 2.000 V / 0.001 V | |||
| Accuracy | 1% + 2 | ||||
| µF | Range / Resolution | 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF1 / 1 μF | |||
| Accuracy | 1.2% + 2 10% typical | ||||
| 1 In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2. | |||||
| AC and DC Current | |||||
| Function | |||||
| mA AC (45 Hz to 1 kHz) | Range 1 / Resolution | 60.00 mA / 0.01 mA 400.0 mA 3/ 0.1 mA | |||
| Accuracy | 1.5% + 3 | ||||
| mA DC 2 | Range 1 / Resolution | 60.00 mA / 0.01 mA 400.0 mA 3/ 0.1 mA | |||
| Accuracy | 0.5% + 3 | ||||
| 1. All AC current ranges are specified from 5% of range to 100% of range. 2. Input burden voltage (typical): 400 mA input 2 mV/mA. 3. 400.0 mA accuracy specified up to 600 mA overload. | |||||
| Frequency | |||||
| Range / Resolution | 99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 kHz 99.99 kHz / 0.01 kHz | ||||
| Accuracy 1 | 0.1% + 1 | ||||
| 1 Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps. | |||||
| Input Characteristics | |||||
| Function | Overload protection | Input impedance (nominal) | Common mode rejection ratio (1 kΩ unbalance) | Normal mode rejection | |
 | 1100 Vrms | > 10 MΩ < 100 pF | > 120 dB at DC, 50 Hz or 60 Hz | > 60 dB at 50 Hz or 60 Hz | |
 | 1100 Vrms | > 10 MΩ < 100 pF | > 60 dB, DC to 60 Hz | > 60 dB at 50 Hz or 60 Hz | |
 | 1100 Vrms | > 10 MΩ < 100 pF | > 120 dB at DC, 50 Hz or 60 Hz | > 60 dB at 50 Hz or 60 Hz | |
| Open circuit test voltage | Full scale voltage | Typical short circuit current | |||
| To 6 MΩ | 50 MΩ | Typical short circuit current | |||
 | 1100 Vrms | < 2.7 VDC | < 0.7 VDC | < 0.9 VDC | < 350 mA |
 | 1100 Vrms | < 2.7 VDC | 2.000 VDC | < 1.1 mA | |
| mA Function | |||||
| Overload protection | Fused, 44/100 A, 1000 V FAST Fuse | ||||
| Overload | 600 mA overload for 2 minutes maximum, 10 minutes rest minimum | ||||
| MIN/MAX Recording Accuracy | |||||
| DC functions | The specified accuracy of the measurement function ±12 counts for changes > 350 mS in duration. | ||||
| AC functions | The specified accuracy of the measurement function ±40 counts for changes > 900 mS in duration. | ||||
| General Specifications | |||||
| Maximum voltage between any terminal and earth ground | 1000 VDC or AC rms | ||||
| Ω fuse protection from A inputs | 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only | ||||
| Display (LCD) | Update rate | 4/sec | |||
| Volts, amps, ohms | 6000 counts | ||||
| Frequency | 10,000 counts | ||||
| Capacitance | 1,000 counts | ||||
| Battery type | Three AA Alkaline batteries, NEDA 15A IEC LR6 | ||||
| Battery life | 250 hours minimum | ||||
| RF communications | 2.4 GHZ ISM Band | ||||
| RF communication range | Open air, unobstructed | Up to 20 m | |||
| Obstructed, sheetrock wall | Up to 6.5 m | ||||
| Obstructed, concrete wall, or steel electrical enclosure | Up to 3.5 m | ||||
| Temperature | Operating | -10°C to 50°C | |||
| Storage | -40°C to 60°C | ||||
| Temperature coefficient | 0.1 x (specified accuracy) / °C (< 18°C or > 28°C) | ||||
| Relative humidity | 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C) | ||||
| Altitude | Operating | 2,000 m | |||
| Storage | 12,000 m | ||||
| Electromagnetic compatibility EMI, RFI, EMC, RF | EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE | ||||
| Safety compliance | ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1:2010 | ||||
| Certifications | CSA, FCC, CE | ||||
| Ingress Protection (IP) rating | IP54 | ||||
| Pollution Degree | 2 | ||||
| Size (H x W x L) | 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) | ||||
| Weight | 340 g (12 oz) | ||||
| Warranty | Three years | ||||
| Not compatible with Fluke CNX test tools | |||||
| Specifications | ||
| Range | 0.5 A to 400.0 A | |
| Resolution | 0.1 A | |
| Accuracy | 400.0 A: 2% ±5 digits (10 Hz to 100 Hz) 2.5% ±5 digits (100 Hz to 500 Hz) | |
| Inrush | Max displayed reading | 999.9A |
| Crest factor (50 Hz / 60 Hz) | 3 at 500 A 2.5 at 600 A 1.42 at 1000 A add 2% for C.F. > 2 | |
| LCD w/ backlight | 3½ digits | |
| Log rate/interval | 1 sec minimum/adjustable by PC | |
| Battery type | 2 AA, NEDA 15 A, IEC LR6 | |
| Battery life | 400 hours | |
| Memory | Record up to 65,000 readings | |
| RF communications | 2.4 GHZ ISM Band | |
| RF communication range | Open air, unobstructed | Up to 20 m |
| Obstructed, sheetrock wall | Up to 6.5 m | |
| Obstructed, concrete wall or steel electrical enclosure | Up to 3.5 m | |
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -40°C to +60°C | |
| Temperature coefficient | Add 0.1 x (specified accuracy) / °C (< 18°C or > 28°C) | |
| Operating humidity | 90% at 35°C 75% at 40°C 45% at 50°C | |
| Altitude | Operating | 2,000 m |
| Storage | 12,000 m | |
| EMC | EN 61326-1:2006 | |
| Safety compliance | IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2 | |
| Safety rating | CAT III 600 V | |
| Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE | |
| Ingress Protection (IP) rating | IP30 | |
| Pollution Degree | 2 | |
| Jaw opening | 34 mm (1.33 in) | |
| Size (H x W x D) | 20.3 x 7.49 x 3.55 cm (8 x 2.95 x 1.4 in) | |
| Weight | .22 kg (8 oz) | |
| Warranty | Three years | |
| Not compatible with Fluke CNX test tools | ||
| General Specifications | ||
| Range K-Type | -200°C to 1372°C | |
| Resolution | 0.1°C | |
| Accuracy | ±[0.5% + 0.3°C] counts | |
| Input terminals | K-type mini | |
| LCD w/backlight | 3 ½ digits | |
| Log rate/interval | 1 sec minimum/adjustable by PC | |
| Battery type | 2 AA, NEDA 15 A, IEC LR6 | |
| Battery life | 400 hours | |
| Memory | Record up to 65,000 readings | |
| RF communications | 2.4 GHZ ISM Band | |
| RF communication range | Open air, unobstructed | Up to 20 m |
| Obstructed, sheetrock wall | Up to 6.5 m | |
| Obstructed, concrete wall or steel electrical enclosure | Up to 3.5 m | |
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -40°C to +60°C | |
| Temperature coefficient | 0.01% of reading +0.03°C per°C | |
| Temperature scale | ITS-90 | |
| Operating humidity | 90% at 35°C, 75% at 40°C, 45% at 50°C | |
| Altitude | Operating | 2,000 m |
| Storage | 12,000 m | |
| EMC | EN 61326-1:2006 | |
| Safety compliance | IEC 61010-1, CAT I, 3rd edition Pollution Degree 2 | |
| Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE | |
| Ingress Protection (IP) rating | IP42 | |
| Pollution Degree | 2 | |
| Size (H x W x D) | 16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in) | |
| Weight | .22 kg (8 oz) | |
| Warranty | Three years | |
| Not compatible with Fluke CNX test tools | ||
