LUTRON AM-4221 CUP ANEMOMETER
Click To Zoom
LUTRON AM-4221 CUP ANEMOMETER
LUTRON AM-4221 CUP ANEMOMETER

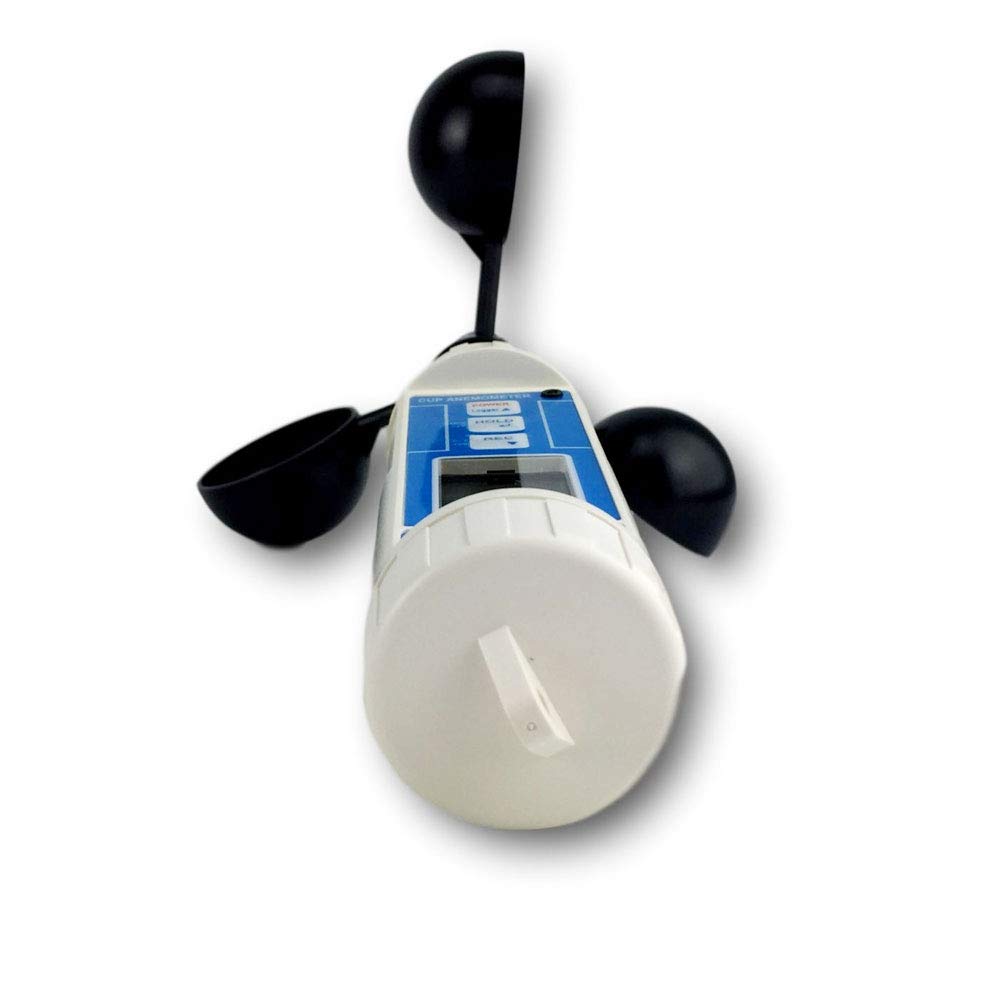

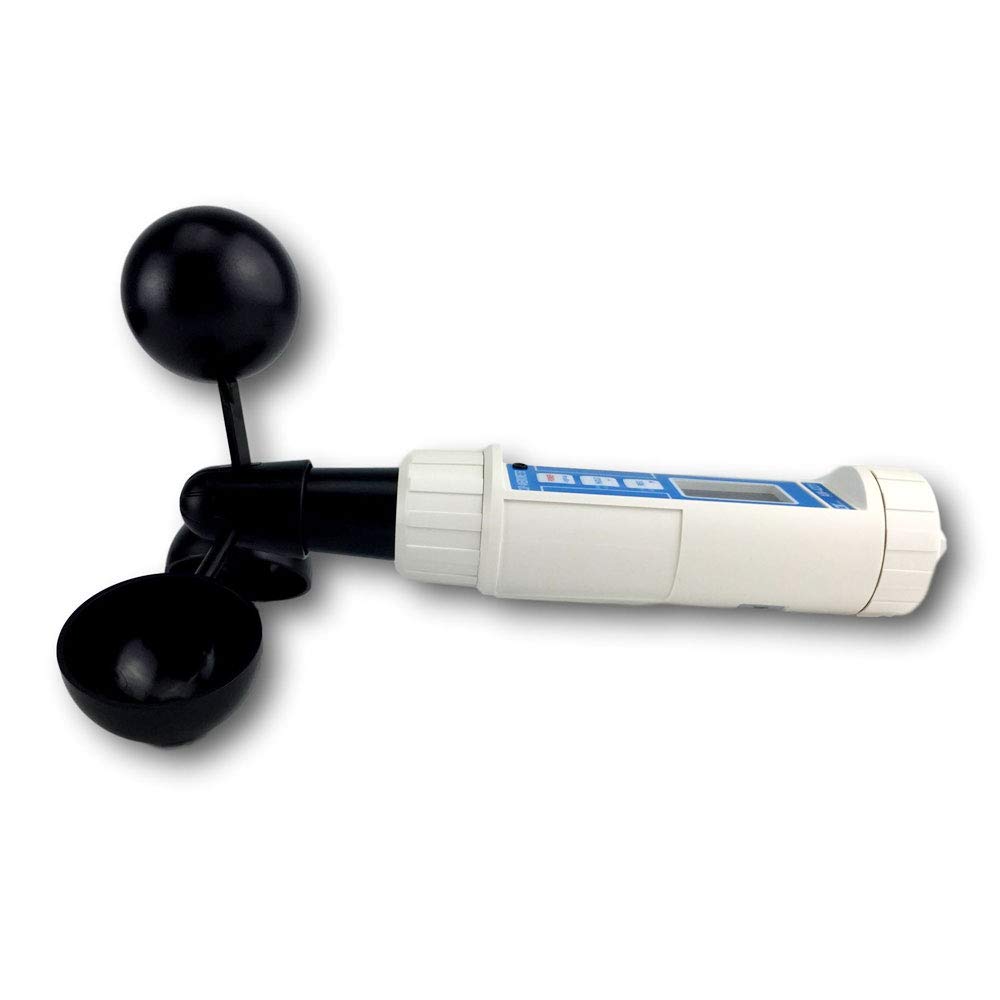

The Lutron AM-4221 is a heavy-duty wind gauge. Its cup design ensures reliable wind speed readings and it measures air temperature too. It displays readings in multiple units and features data recording, min/max memory, and a water-resistant build for outdoor use.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 9,500.00
(GST inclusive price) i₹13,600.00
( - 30% OFF )
Description

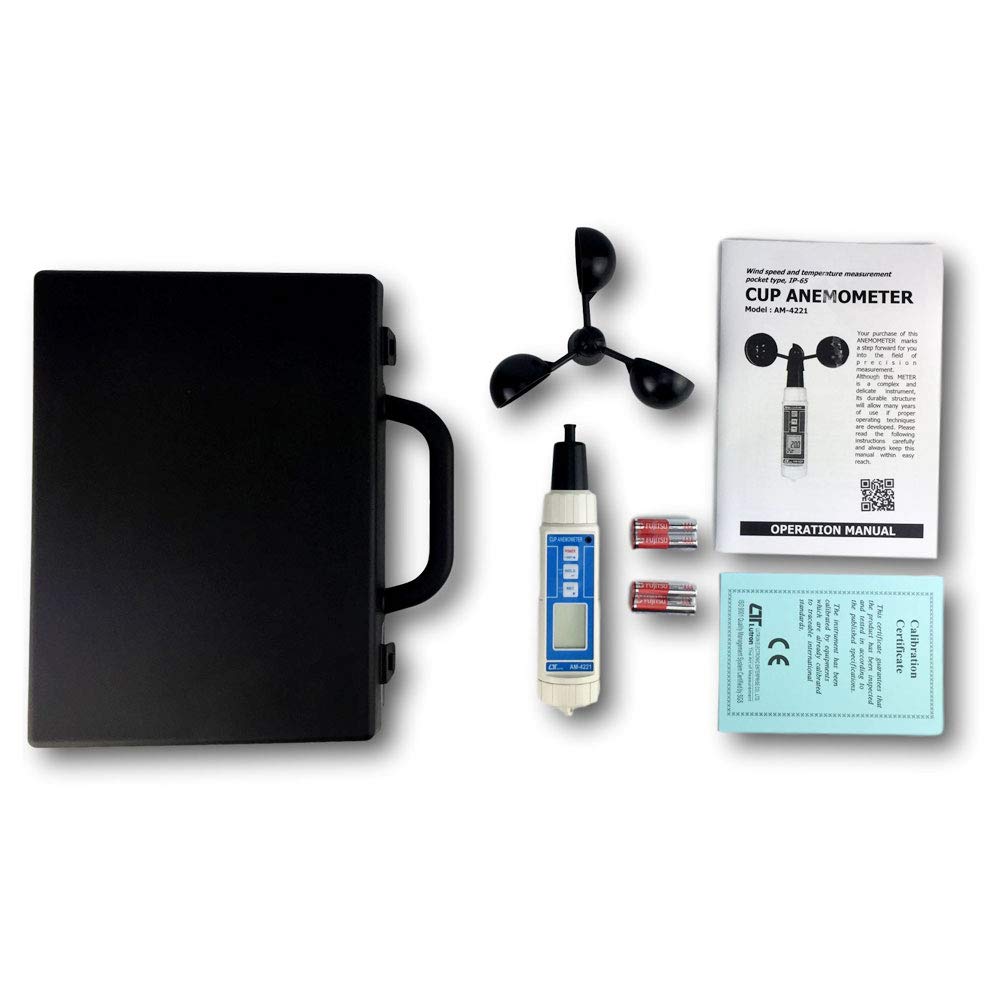

What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| General Specifications | |
| Display | LCD size : 28 mm x 19 mm |
| Measurement Unit | m/S (meters per second) Km/h ( kilometers per hour ) Knot ( nautical miles per hour ) M ft/min ( feet per minute ) mile/h ( miles per hour ) |
| Temp. unit | ℃ ,℉ |
| Circuit | Custom one-chip of microprocessor LSI circuit. |
| Temp. Sensor | Thermister |
| Data Logger | Max. can save 100 point data with recall. Manual, push the data logger button once will save data one time |

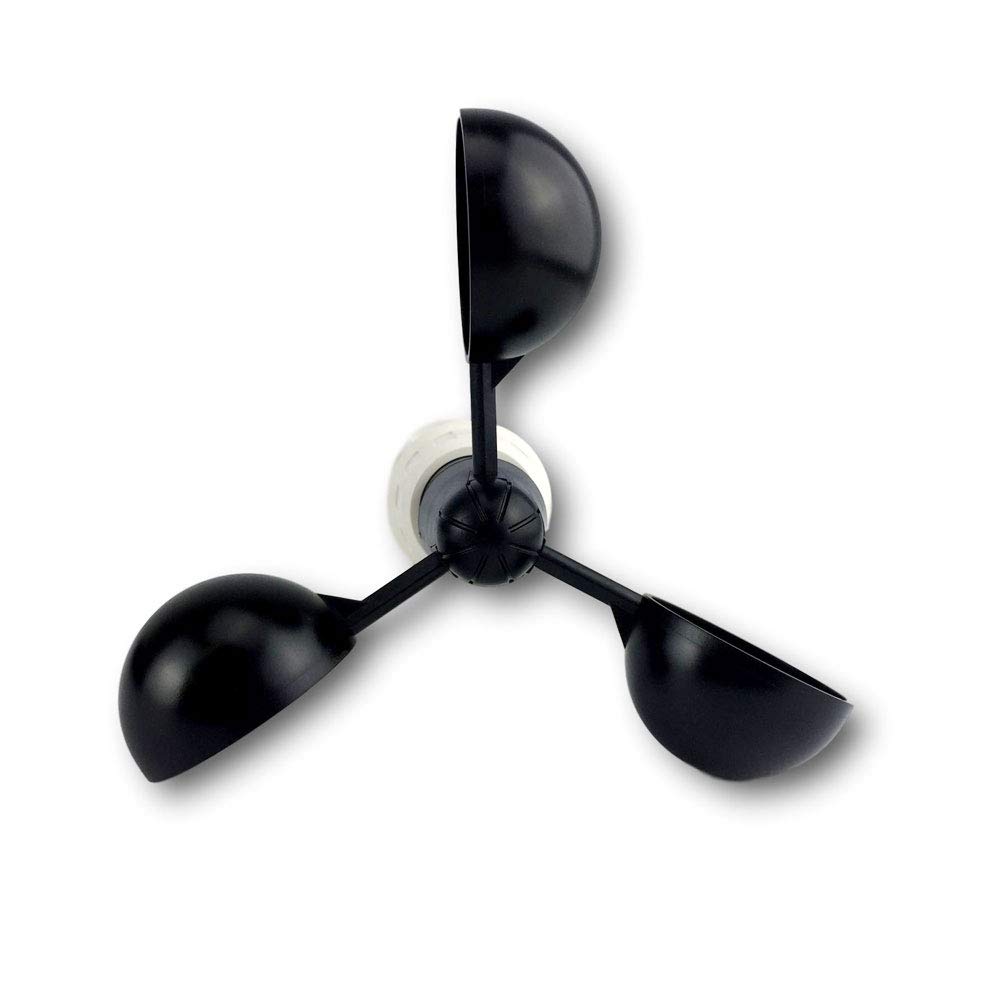

| Sensor Structure | Cup van probe with low friction ball bearing design. |
| Data Hold | Freeze the display reading. |
| Memory Recall | Maximum & Minimum value. |
| Sampling Time of display | Approx. 1 second |
| Power off | Auto shut off saves battery life or manual off by push button. |
| Operating Temperature | 0 to 50 ℃. |
| Operating Humidity | Less than 80% R.H. |

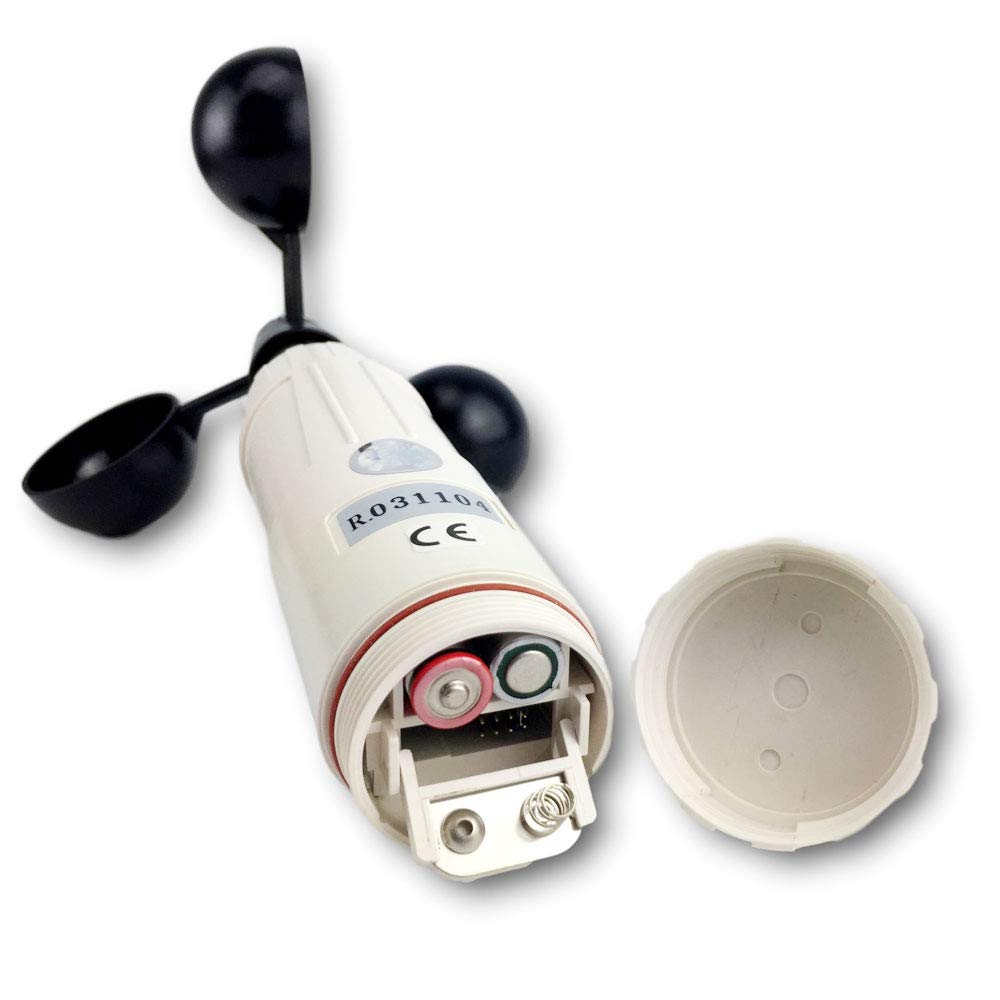

| Power Supply | DC 1.5 V battery ( UM4/AAA ) x 4 PCs, |
| Power Current | Approx. DC 6.8 mA |
| Weight | 181 g/ 0.4 LB. @ Battery is included |
| Dimension | Main instrument : 190 x 40 x 32 mm (7.5" x 1.6" x 1.3") |
Cup vane ( 3 cups with arm ) : 135 mm dia. | |
| Electrical Specifications (23± 5 ) ℃ | |||
| Wind speed | |||
| Measurement | Range | Resolution | Accuracy |
| m/S | 0.9 - 35.0 m/S | 0.1 m/S | ± ( 2%+0.2 m/S) |
| Km/h | 2.5 - 126.0 Km/h | 0.1 Km/h | ± ( 2%+0.2 m/S) |
| Knot | 1.4 - 68.0 Knots | 0.1 Knots | ± ( 2%+0.4 Knots) |
| Ft/min | 144 - 6895 Ft/min | 1 Ft/min | ± ( 2%+40 Ft/min) |
| Mile/h | 1.6 - 78.2 Mile/h | 0.1 Mile/h | ± ( 2%+40 Ft/min) |
| Temperature | |
| Measuring Rang | 0 ℃ to 50 ℃ /32 ℉ to 122 ℉ |
| Resolution | 0.1 ℃ /0.1 ℉ |
| Accuracy | ± 0.8 ℃ /1.5 ℉ |
