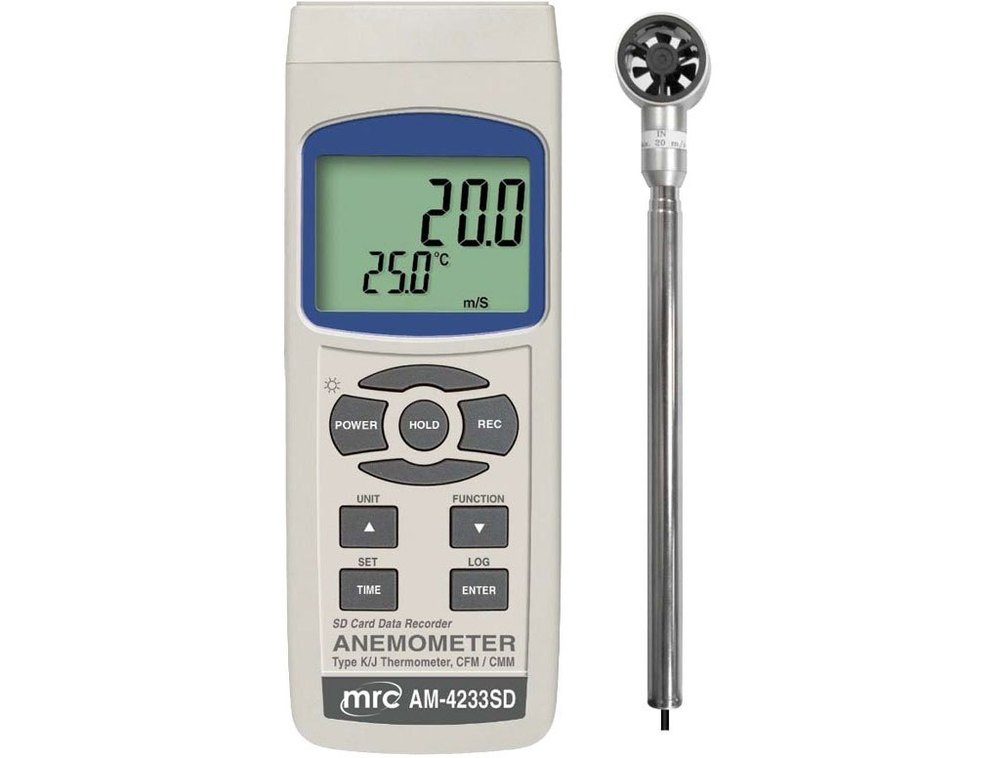

LUTRON AM-4233SD ANEMOMETER

LUTRON AM-4233SD ANEMOMETER
LUTRON AM-4233SD ANEMOMETER
LUTRON AM-4233SD ANEMOMETER

Click To Zoom

LUTRON AM-4233SD ANEMOMETER

LUTRON AM-4233SD ANEMOMETER

(Based On 10 Reviews)

Lutron AM-4233SD measures air flow, temperature, and humidity with SD card data logging. Ideal for HVAC, ventilation, and environmental monitoring. Features mini vane probe, telescopic extension, and type K/J thermocouple compatibility.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 16,000.00

(GST inclusive price) i
  • Base Value: ₹ 13559.3
  • GST: (18) % ₹ 2440.7
  • Total Value ₹ 16000

₹22,500.00

( - 29% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features



  • Mini vane with 35mm Dia., lowfriction ball bearing mounted wheel design provides high accuracy at high and low air velocity.
  • Telescope probe, extension length 620 mm max.
  • Replacement anemometer van set.
  • Air velocity: m/s, Ft/min, Km/h, Knot, Mile/h,
  • Air flow (CFM, CMM) measurement.
  • Air temperature (°C, °F)
  • Air Temp. used thermistor sensor, fast response time.
  • Fast humidity measuring response time.
  • Type K, Type J thermocouple thermometer.
  • Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds.
  • Manual datalogger is available (set the sampling time to 0), during execute the manual datalogger function, it can set the different position (location) No. (position 1 to position 99).
  • Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/ hour/minute/second) to the Excel directly, then user can make the further data or graphic analysis by themselves.
  • SD card capacity: 1 GB to 16 GB.
  • LCD with green light backlight, easy reading.
  • Can default auto power off or manual power off.
  • Data hold, record max. and min. reading.
  • Microcomputer circuit, high accuracy.
  • Power by UM3/AA (1.5V) x 6 batteries or DC 9V adapter.
  • RS232/USB PC COMPUTER interface.
  • Separate probe, easy for operation.
  • Applications: Environmental testing, HVAC, Air conveyors, Flow hoods, Clean rooms, Air velocity, Air balancing, Fans/motors/blowers, Furnace velocity, Refrigerated case, Paint spray booths. measurements


What's in the box?

  • Manual
  • Anemometer probe.
  • Soft carrying case (CA-05B)

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL SPECIFICATIONS
Display

LCD size : 52 mm x 38 mm

LCD with green backlight ( ON/OFF ).

CircuitCustom one-chip of microprocessor LSI circuit.
Datalogger Sampling Time Setting rangeAuto1 second to 3600 seconds @ Sampling time can set to 1 second,but memory data may loss
Manual

Push the data logger button once will save data one time.

@ Set the sampling time to 0 second.

@ Manual mode, can also select the 1 to 99 position ( Location ) no.

Memory Card

SD memory card. 1 GB to 16 GB.

* It recommend use memory card ≦ 4 GB

Advanced setting

* Set clock time ( Year/Month/Date, Hour/Minute/ Second )

* Set sampling time

* Auto power OFF management

* Set beep Sound ON/OFF

* Decimal point of SD card setting

* SD memory card Format

* Set thermometer type to Type K or Type J

* Set temperature unit to  ℃ or  ℉

* Set air flow type ( CFM/USA, CMM/EURO )

* Set air flow area dimension

Temperature CompensationAutomatic temp. compensation for the Anemometer function and the type K/J thermometer.
Data HoldFreeze the display reading.
Memory RecallMaximum & Minimum value.
Sampling Time of DisplayApprox. 1 second.
Data Output

RS 232/USB PC computer interface.

* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.

* Connect the optional USB cable USB-01 will get the USB plug.

Operating Temperature0 to 50 ℃.
Operating HumidityLess than 80% R.H.
Power Supply* AAlkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
* ADC 9V adapter input. ( AC/DC power adapter is optional ).
Power CurrentNormal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 30 mA
When SD card save the data and LCD Backlight is OFF) : Approx. DC 50 mA.
Weight347 g/ 0.76 LB. * Meter only
DimensionMain instrument : 177.5 x 68 x 45 mm ( 7.0 x 2.7 x 1.8 inch )
Anemometer sensor probe : Round, 35 mm Dia .
Optional Accessories

SD Card 1 - 16G

Replacement anemometer van set.

Type K thermocouple probes.

AC to DC 9V adapter.

USB cable, USB-01.

RS232 cable, UPCB-02.

Data Acquisition software, SW-U801-WIN.

Excel Data Acquisition software, SW-E802



ELECTRICAL SPECIFICATIONS (23± 5 ℃ )

Anemometer ( Air velocity )
MeasurementRangeResolutionAccuracy
m/S0.4 to 20.0 m/s0.1 m/s

± ( 5% + a ) reading



or



± ( 1% + a ) full scale

Km/h1.4 to 72.0 km/h 0.1 Km/h
FPM78-3940 ft/min1 Ft/min
mph1.0 to 44.7 mph0.1 mph
Knot0.8 to 38.8 knot0.1 knot
@ a = 0.1 m/s, 0.3 km/h, 0.2 mile/h, 0.2 knot, 20 ft/min

Note :

m/S (meters per second)                                            mph ( miles per hour )

Km/h ( kilometers per hour )                                    Knot ( nautical miles per hour )

FPM ( feet per minute )



Air temperature
Measuring RangeResolutionAccuracy
0  ℃ to 50 ℃ /32 ℉ to 122 ℉0.1 ℃ /0.1 ℉± 0.8 ℃ /1.5 ℉





Air flow
MeasurementRangeResolutionArea
CMM ( m^3/min. ) 0 to 54,000 CMM0.001 to 1 CMM0.001 to 30.000 m^2
CFM ( ft^3/min. )0 to 1,907,000 CFM0.001 to 100 CFM0.01 to 322.93 ft^2





Type K/J thermometer
Sensor TypeRangeResolutionAccuracy

Type K



0.1 ℃-50.0 to 1300.0 ℃± ( 0.4 % + 0.5 ℃ )
-50.1 to -100.0 ℃± ( 0.4 % + 1 ℃ )
0.1 ℉-58.0 to 2372.0 ℉± ( 0.4 % + 1 ℉ )
-58.1 to -148.0 ℉± ( 0.4 % + 1.8 ℉ )
Type J0.1 ℃-50.0 to 1200.0 ℃± ( 0.4 % + 0.5 ℃ )
-50.1 to -100.0 ℃± ( 0.4 % + 1 ℃ )
0.1 ℉-58.0 to 2192.0 ℉± ( 0.4 % + 1 ℉ )
-58.1 to -148.0 ℉± ( 0.4 % + 1.8 ℉ )
