LUTRON AM -4247 SD ANEMOMETER
Click To Zoom
LUTRON AM -4247 SD ANEMOMETER
LUTRON AM -4247 SD ANEMOMETER

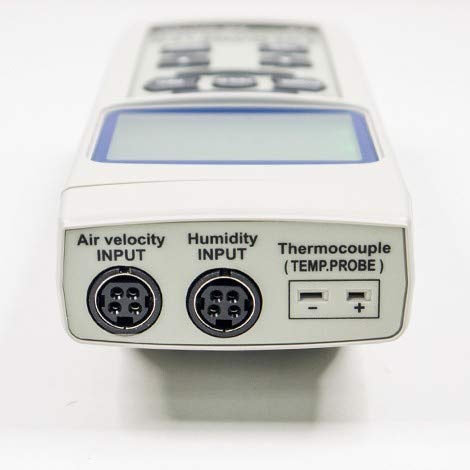

Lutron AM-4247SD is a comprehensive anemometer with SD card data logging. Measures air velocity, flow, humidity, temperature, and dew point. Includes type K/J thermocouple for wider temperature range. Ideal for HVAC, ventilation, and environmental monitoring.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 20,000.00
(GST inclusive price) i₹28,000.00
( - 29% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| GENERAL SPECIFICATIONS | ||
Circuit | Custom microprocessor LSI circuit. | |
Display | LCD size : 52 mm x 38 mm LCD with green backlight ( ON/OFF ). | |
Function | Anemometer ( Air velocity, Air flow ). | |
Humidity/Temp. meter. | ||
Type J/K thermometer. | ||
Measurement | Air velocity : | |
Unit | m/S (meters per second) Km/h ( kilometers per hour ) Ft/min ( FPM, feet per minute ) Knots ( nautical miles per hour ) Mile/h ( mph, miles per hour ) Air temperature :℃℉, Air flow : CMM, CFM. | |
Humidity/Temp. : %RH/℃ ℉ or . Dew point ( Humidity ) : ℃ ℉ or . Wet bulb ( Humidity ) : ℃ ℉ or . | ||
Type K/ Type J thermometer : ℃℉, | ||
Datalogger Sampling Time Setting range | Auto | 1, 2, 5, 10, 30, 60, 120, 300, |
600, 1800 3600 second. | ||
@Sampling time can set to 1 second, but memory data may loss. | ||
Manual | Push the data logger button once will save data one time. @Set the sampling time to 0 second. @Manual mode, can also select the 1 to 99 position ( Location ) no. | |
Memory Card | SD memory card. 1 GB to 16 GB. | |
Advanced setting | Set clock time ( Year/Month/Date,Hour/Minute/ Second ) Decimal point of SD card setting Auto power OFF management Set beep Sound ON/OFF Set thermometer type to Type K or Type J Set temperature unit to ℃ ℉ or Set sampling time SD memory card Format | |
Temperature Compensation | Automatic temp. compensation for the type K/J thermometer. | |
Data Hold | Freeze the display reading. | |
Memory Recall | Maximum & Minimum value. | |
Sampling Time of Display | Approx. 1 second. | |
Data Output | RS 232/USB PC computer interface. *Connect the optional RS232 cable UPCB-02 will get the RS232 plug. *Connect the optional USB cable USB-01 will get the USB plug. | |
Operating Temperature | 0 to 50 ℃. *meter only | |
Operating Humidity | Less than 85% R.H. | |
Power Supply * Battery | * AAlkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent. | |
Power Supply * ACV | * ADC 9V adapter input. ( AC/DC power adapter is optional ). | |
Power Current | Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 15 mA. | |
When SD card save the data and LCD Backlight is OFF) : Approx. DC 36 mA. | ||
Weight | 347 g/ 0.76 LB. * Meter only | |

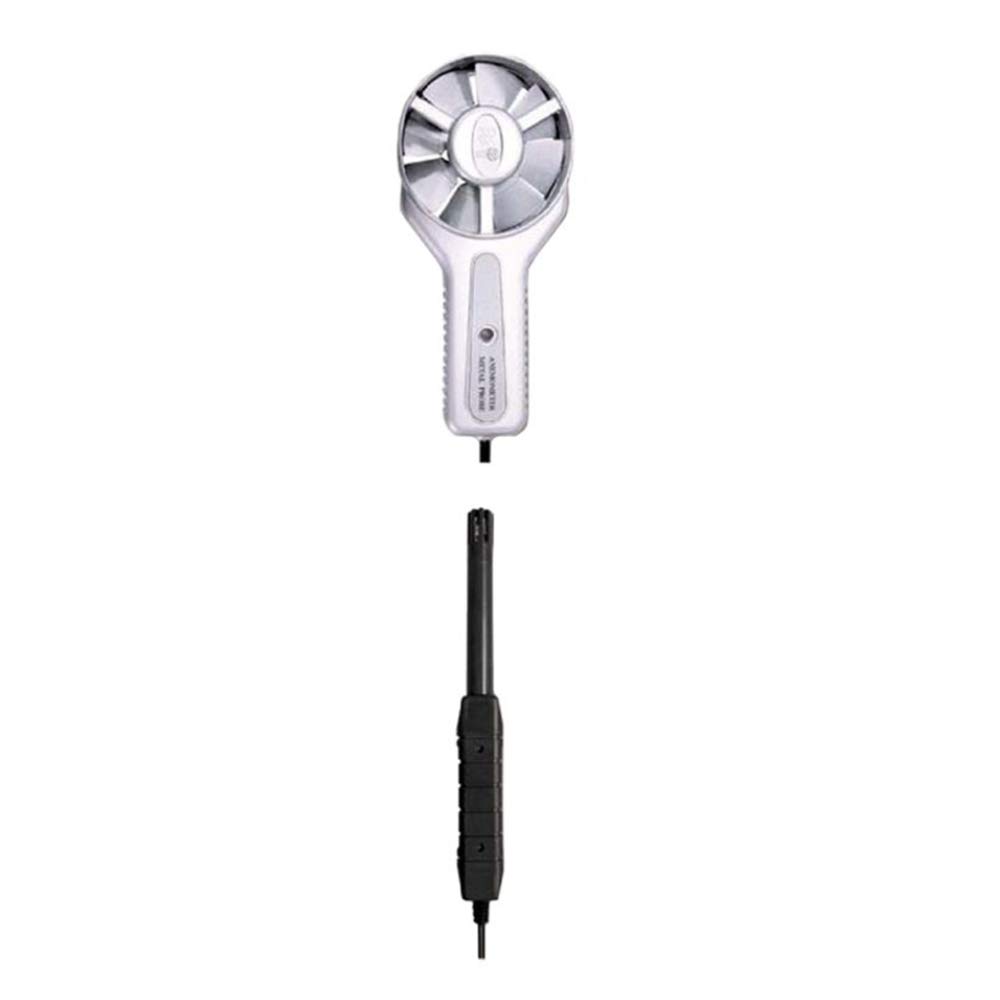

Dimension | Main instrument : 182 x 73 x 47.5 mm ( 7.1 x 2.9 x 1.9 inch ) Anemometer sensor head : Round, 72 mm Dia. Humidity Probe : 197 mm ( 7.8 inch ) in length. | |
| Optional Accessories | SD Card ( 4 G ) Type K thermocouple probe. AC to DC 9V adapter. USB cable, USB-01. RS232 cable, UPCB-02. Data Acquisition software,SW-U801-WIN. Excel Data Acquisition software,SW-E802. | |
ELECTRICAL SPECIFICATIONS (23± 5 ℃ )
| Air velocity | |||
Measurement | Range | Resolution | Accuracy |
m/S | 0.4 - 35.0 m/s | 0.1 m/S | ± ( 2%+0.2 m/S) |
Km/h | 1.4 - 126.0 km/h | 0.1 Km/h | ± ( 2%+0.8 Km/h) |
mph ( Mile/h ) | 0.9 - 78.3 mph | 0.1 mph | ± ( 2%+0.4 mph) |
Knots | 0.8 - 68.0 knots | 0.1 Knots | ± ( 2%+0.4 Knots) |
FPM ( Ft/min ) | 79 - 6890 ft/min | 1 FPM | ± ( 2%+40 FPM) |
| Air temperature | ||
| Measuring Range | Resolution | Accuracy |
| 0 ℃ to 80 ℃ /32 ℉ to 176 ℉ | 0.1 ℃ /0.1 ℉ | 0.8 ℃ /1.5 ℉ ( < 60 ℃ ) |
| Air flow | |||
| Measurement | Range | Resolution | Area |
| CMM ( m^3/min. ) | 0 to 63,000 CMM | 0.001 to 1 CMM | 0.001 to 30.000 m^2 |
| CFM ( ft^3/min. ) | 0 to 2,224,900 CFM | 0.001 to 100 CFM | 0.01 to 322.93 ft^2 |
| Humidity/ Temperature | |||
| Range | Resolution | Accuracy | |
| Humidity | 5 % to 95 % R.H. | 0.1 % R.H. | ≧ 70% RH ± (3% reading + 1% RH). < 70% RH : ± 3% RH. |
| Temperature | 0 ℃ to 50 ℃ /32 ℉ to 122 ℉ | 0.1 degree | ± 0.8 ℃ . ± 1.5 ℉ . |
| Dew point | ||
| Range | Resolution | |
| ℃ | -25.3 ℃ to 48.9 ℃ | 0.1 ℃ |
| ℉ | -13.5 ℉ to 120.1 ℉ . | 0.1 ℉. |
Remark : * Dew Point display value is calculated from the Humidity/Temp. measurement automatically. * The Dew Point accuracy is sum accuracy value of Humidity & Temperature measurement. | ||
| Wet bulb ( Humidity ) | ||
| Range | Resolution | |
| ℃ | -21.6 ℃ to 50.0 ℃ | 0.1 ℃ |
| ℉ | -6.9 ℉ to 122.0 ℉ . | 0.1 ℉. |
Remark : * Wet bulb display value is calculated from the Humidity/Temp. measurement automatically. * The Welt bulb accuracy is sum accuracy value of Humidity & Temperature measurement. | ||
| Type K/J thermometer | |||
| Sensor Type | Resolution | Range | Accuracy |
| Type K | 0.1 ℃ | -50.0 to 1300.0 ℃ | ± ( 0.4 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ | ± ( 0.4 % + 1 ℃ ) | ||
| 0.1 ℉ | -58.0 to 2372.0 ℉ | ± ( 0.4 % + 1 ℉ ) | |
| -58.1 to -148.0 ℉ | ± ( 0.4 % + 1.8 ℉ ) | ||
| Type J | 0.1 ℃ | -50.0 to 1200.0 ℃ | ± ( 0.4 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ | ± ( 0.4 % + 1 ℃ ) | ||
| 0.1 ℉ | -58.0 to 2192.0 ℉ | ± ( 0.4 % + 1 ℉ ) | |
| -58.1 to -148.0 ℉ | ± ( 0.4 % + 1.8 ℉ ) | ||
