LUTRON LM-8010 Anemometer ( CMM, CFM ) Humidity meter, Light meter Type K Thermometer

Click To Zoom

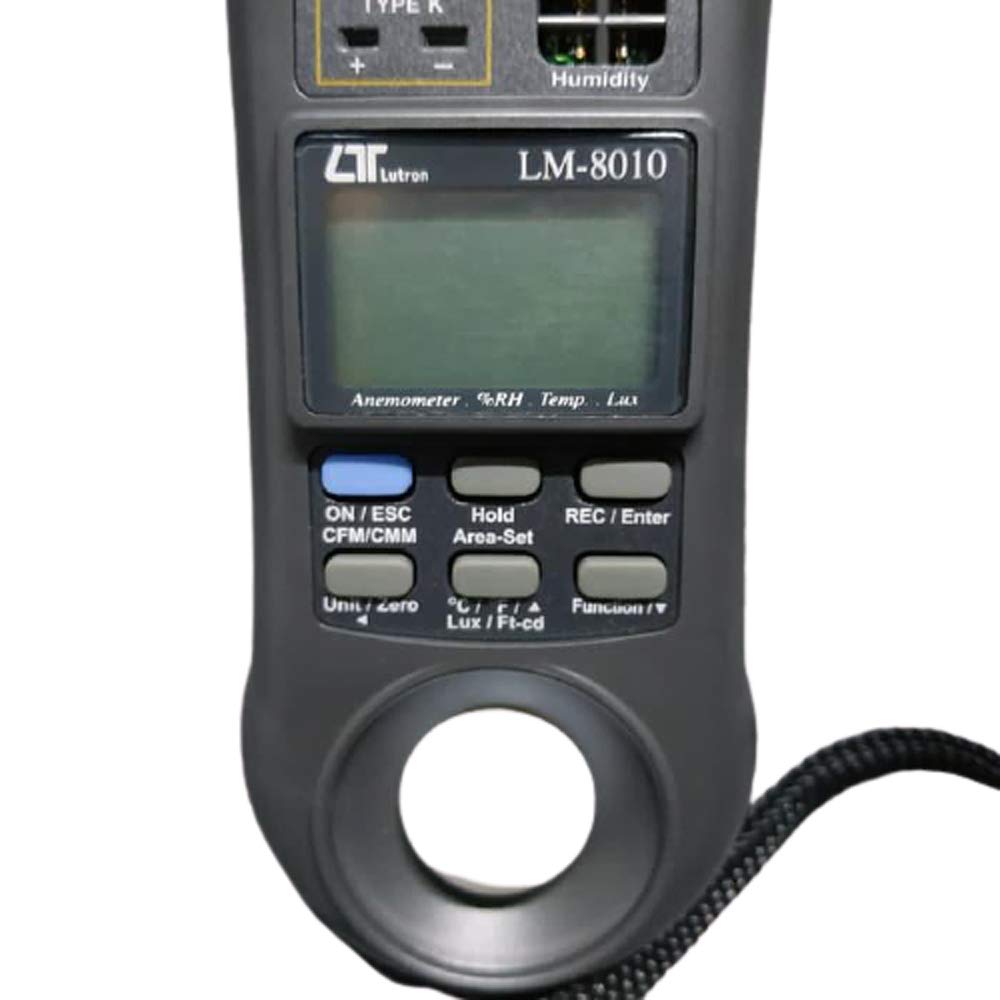

LUTRON LM-8010 Anemometer ( CMM, CFM ) Humidity meter, Light meter Type K Thermometer

LUTRON LM-8010 Anemometer ( CMM, CFM ) Humidity meter, Light meter Type K Thermometer

(Based On 10 Reviews)

The LM-8010 Digital Anemometer provides accurate and reliable measurements of air velocity, humidity, temperature, light, and airflow, making it an essential tool for various industrial, environmental, and HVAC applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments Details

SECURE Payments

₹ 5,830.00

(GST inclusive price) i
  • Base Value: ₹ 4940.7
  • GST: (18) % ₹ 889.3
  • Total Value ₹ 5830

₹5,830.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features



  • 5-in-1 Multi-Function Capability: Combines an anemometer, hygrometer, thermometer, light meter, and airflow meter into a single instrument, offering versatility for different measurement needs.
  • High Accuracy and Resolution: Features high accuracy and resolution for all functions, ensuring precise and repeatable measurements. The air velocity measurement range is up to 30 m/s with an accuracy of ±3% for velocities up to 20 m/s.
  • User-Friendly Design: Equipped with a large LCD display for easy reading, wristlet design for extra protection, and lightweight, compact case for one-hand operation. The low-friction ball bearing mounted wheel design provides high accuracy at both high and low air velocities.
  • Advanced Connectivity: Includes a standard type K thermocouple input jack suitable for all kinds of type K probes, enhancing flexibility for temperature measurements.
  • Durable and Portable: Constructed with a strong, lightweight ABS plastic housing, making it easy to carry and durable for long-lasting use.
  • Optional Accessories:
  1. Carrying case (CA-52A, CA-06)
  2. Type K Temperature Probes (TP-01, TP-02A, TP-03, TP-04)




What's in the box?

  • Manual
  • Wristlet

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

General Specifications:



  • Power Supply: DC 9V battery (006P, MN1604, PP3 or equivalent)
  • Power Consumption: Approx. DC 6.2 mA
  • Operating Environment:
  1. Temperature: 0 to 50℃ (32 to 122℉)
  2. Humidity: Less than 80% RH
  • Dimensions: 156 x 60 x 33 mm (6.14 x 2.36 x 1.29 inches)
  • Weight: 160 g (battery included)



Technical Specifications:



  • Display:
  1. Type: LCD, 8 mm digits
  2. Multi-function display showing various parameters simultaneously



Measurement Functions:



Air Velocity:

  • Range:
  1. m/s: 0.4 to 30.0 m/s
  2. km/h: 1.4 to 108.0 km/h
  3. ft/min: 80 to 5910 ft/min
  4. knots: 0.8 to 58.3 knots
  5. MPH: 0.9 to 67.0 mile/h
  • Resolution:
  1.  m/s: 0.1 m/s
  2. km/h: 0.1 km/h
  3.  ft/min: 1 ft/min
  4. knots: 0.1 knots
  5. MPH: 0.1 MPH
  • Accuracy:
  1. Up to 20 m/s: ±3% F.S.
  2. Above 20 m/s: ±4% F.S.



Temperature:

  • Range:  ℃: 0 to 50℃  ,℉: 32 to 122℉
  • Resolution: 0.1℃
  • Accuracy:  ±1.2℃, ±2.5℉



Humidity:

  • Range: 10 to 95 %RH
  • Resolution: 0.1 %RH
  • Accuracy: ±4 %RH (< 70% RH),  ±(4% reading + 1.2 %RH) (≥ 70% RH)



Light:

  • Range:
  1. Lux: 0 to 20,000 Lux
  2. Foot-candle: 0 to 2,000 Ft-cd
  • Resolution:
  1. Lux: 1 Lux (0 to 2,200 Lux), 10 Lux (1,800 to 20,000 Lux)
  2. Ft-cd: 0.1 Ft-cd (0 to 204.0 Ft-cd), 1 Ft-cd (170 to 2,000 Ft-cd)
  • Accuracy:
  1. ±5% reading ± 8 digits



Air Flow:

  • Range:
  1. CMM: 0.001 to 54,000 CMM
  2. CFM: 0.001 to 1,908,400 CFM
  • Resolution:
  1. CMM: 0.001 to 1
  2. CFM: 0.001 to 100
