LUTRON VB-8200 VIBRATION METER

Click To Zoom

LUTRON VB-8200 VIBRATION METER

LUTRON VB-8200 VIBRATION METER

(Based On 10 Reviews)

The VB-8200 Vibration Meter provides accurate and reliable measurements of velocity and acceleration, making it an essential tool for industrial vibration monitoring and control.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments Details

SECURE Payments

₹ 29,170.00

(GST inclusive price) i
  • Base Value: ₹ 24720.3
  • GST: (18) % ₹ 4449.7
  • Total Value ₹ 29170

₹29,170.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features



  • Comprehensive Vibration Measurement: Measures both velocity and acceleration, offering RMS and peak value readings to ensure precise monitoring of industrial machinery vibrations.
  • Wide Frequency Range: Operates within a frequency range of 10 Hz to 1 kHz, with sensitivity meeting ISO 2954 standards, providing reliable performance for industrial applications.
  • User-Friendly Interface: Features a large LCD display with data hold, maximum and minimum value memory functions, and auto shut off to save battery life.
  • Advanced Data Output: Equipped with an RS-232 computer interface for easy data transfer and optional data acquisition software for comprehensive data logging and analysis.

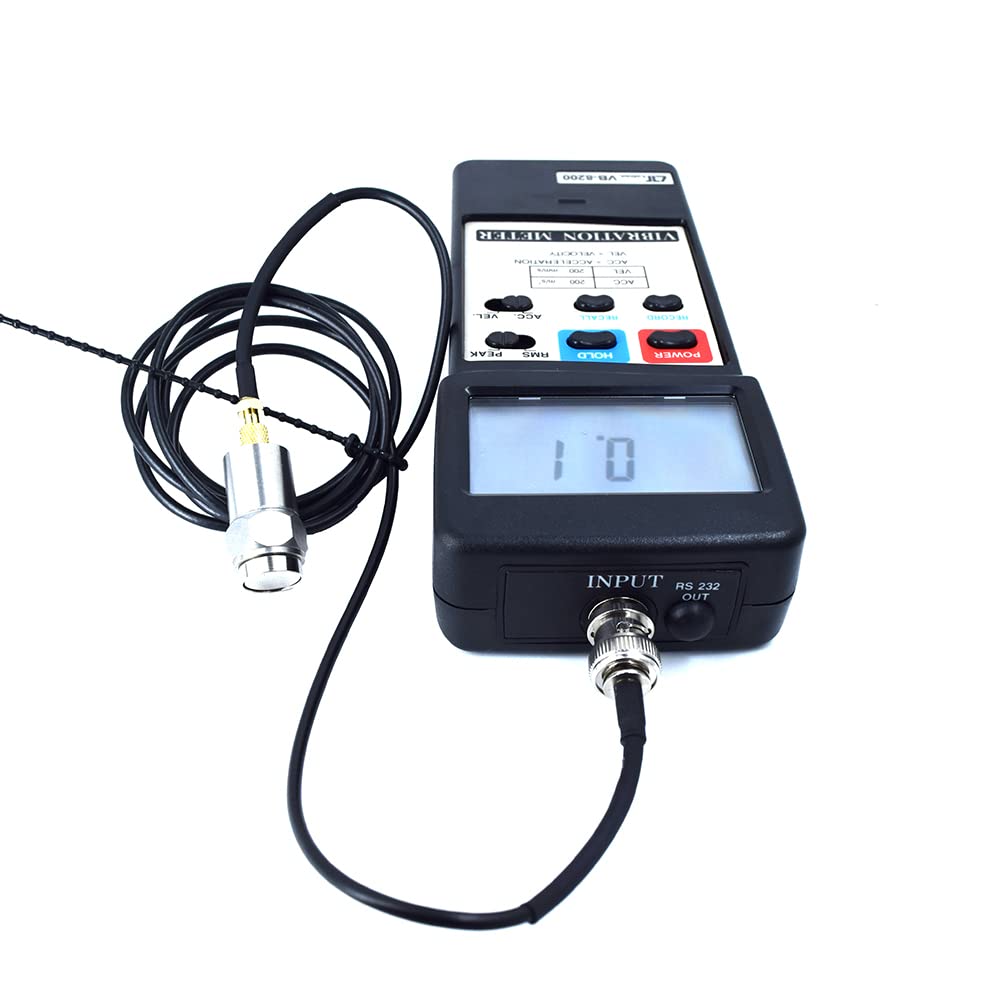

  • Durable Design: Constructed with a heavy-duty and compact housing case, and includes a separate vibration probe with a magnetic base for easy operation.
  • Microprocessor Circuit: Ensures high accuracy and provides special functions and features.

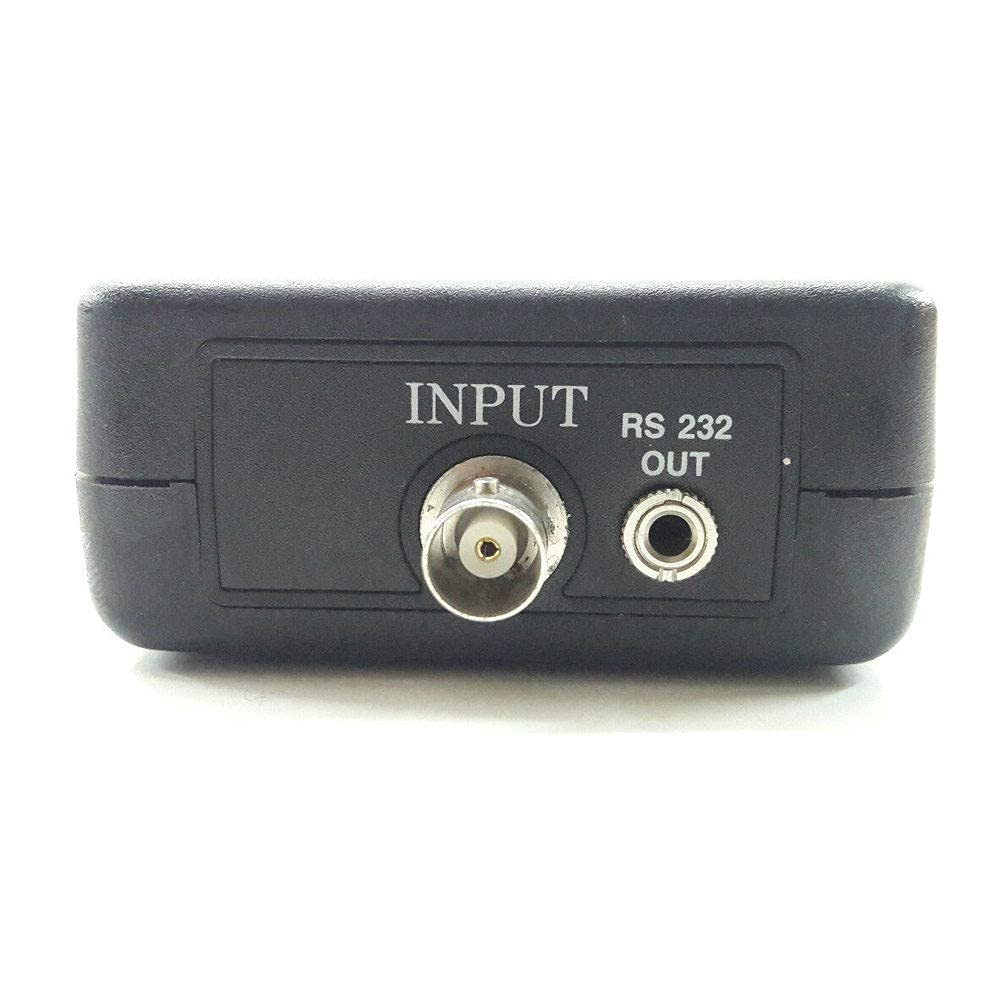

  • RS-232 Computer Interface: Allows for easy data transfer and integration with other systems.
  • Auto Shut Off: Saves battery life with automatic power off or manual power off by push button.
  • Optional Accessories:
  1. Data Acquisition Software (SW-U801-WIN)
  2. RS232 Cable (UPCB-01)
  3. USB Cable (USB-01)






What's in the box?

  • Manual
  •  Vibration Sensor
  • Magnetic Base

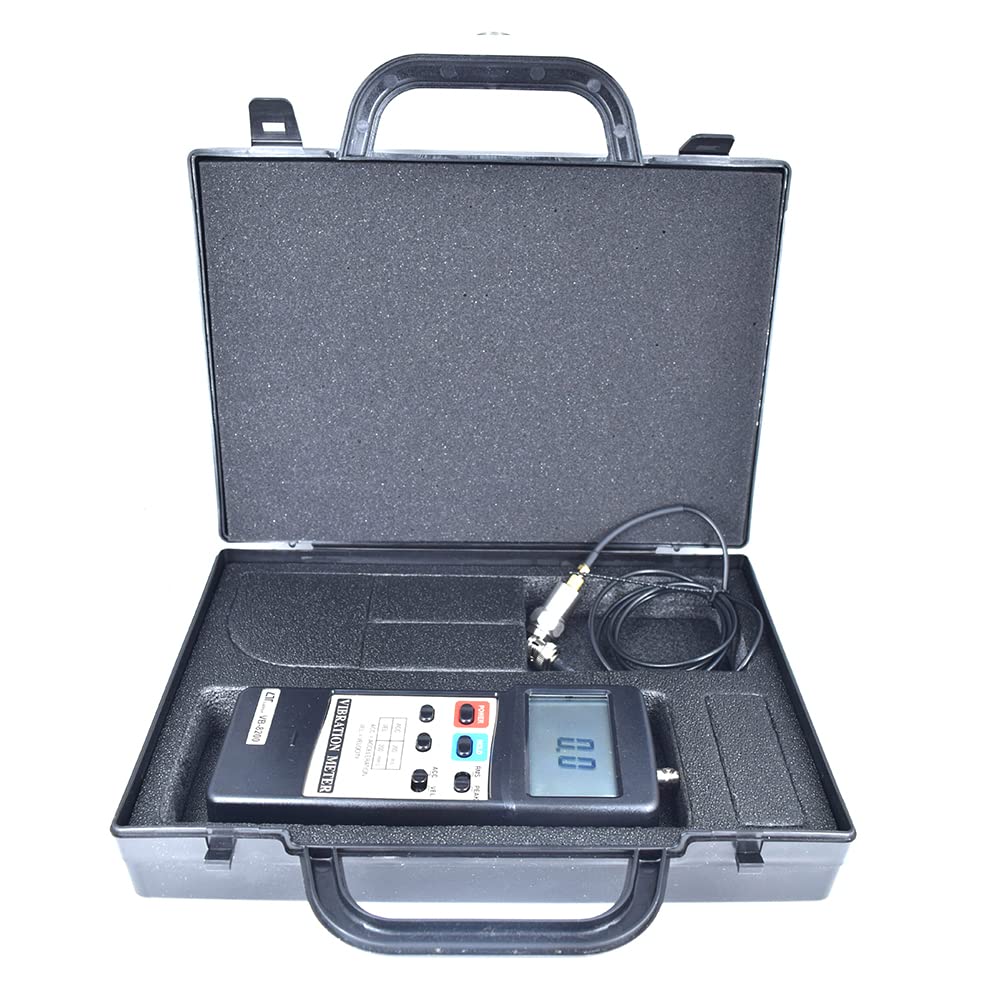

  • Carrying Case

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

Technical Specifications:



Display:

  1. Size: 61 mm x 34 mm super large LCD display
  2. Digit Size: 15 mm (0.6")



Measurement Functions:



Velocity:

  • Range: 0.5 to 199.9 mm/s
  • Accuracy: ±(5% reading + 2d) @ 160 Hz, 80 Hz, 23 ± 5℃



Acceleration:

  • Range: 0.5 to 199.9 m/s²
  • Accuracy: ±(5% reading + 2d) @ 160 Hz, 80 Hz, 23 ± 5℃



Frequency

  • Range: 10 Hz to 1 kHz



Data Functions:

  • Data Hold: Freezes the desired reading
  • Peak Hold: Measures the peak value
  • Memory: Records maximum and minimum values



Sampling Time: Approx. 1 second



Power Supply:

  • Alkaline or heavy duty type DC 9V battery (006P, MN1604, PP3 or equivalent)
  • Power Consumption: Approx. DC 6 mA



Operating Environment:

  • Temperature: 0 to 50℃ (32 to 122℉)
  • Humidity: Less than 80% RH



Dimensions:

  • Meter: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inches)
  • Vibration Sensor Probe: Round 19 mm Dia. x 21 mm



Weight:

  • Meter: 230 g (0.50 lb)
  • Probe: 38 g (0.09 lb)
