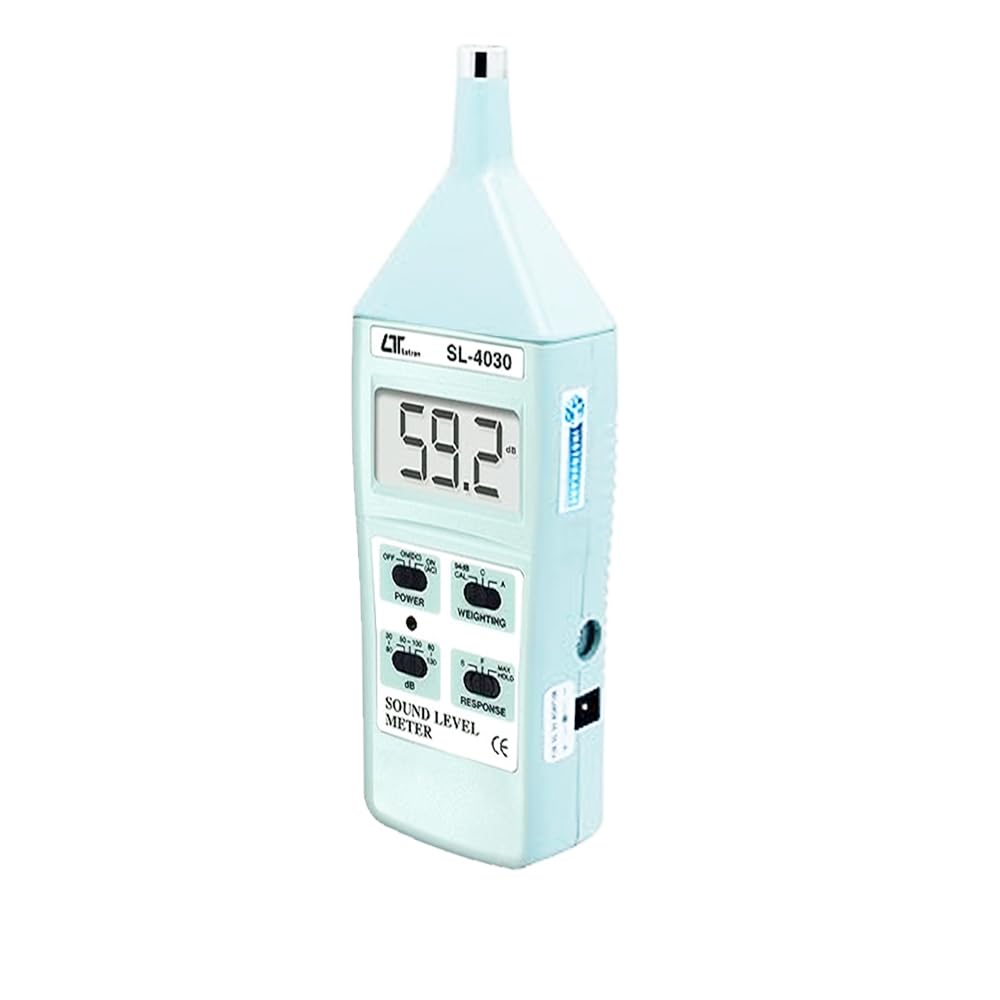

Lutron SL-4030 Sound Meter
Click To Zoom
Lutron SL-4030 Sound Meter
Lutron SL-4030 Sound Meter
The SL-4030 Sound Level Meter provides accurate and reliable measurements of sound pressure levels, making it an essential tool for various industrial, environmental, and occupational applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 5,600.00
(GST inclusive price) i₹8,000.00
( - 30% OFF )
Description
1. Wide Measuring Range: Offers three ranges (30 to 80 dB, 50 to 100 dB, 80 to 130 dB), providing versatility for different sound environments.
2. High Accuracy and Resolution: Features a high resolution of 0.1 dB and meets IEC 61672 Class 2 standards, ensuring precise and repeatable measurements.
3. Time and Frequency Weighting: Equipped with A & C weighting networks and Fast/Slow time weighting modes, conforming to IEC 61672 Class 2 standards.
4. User-Friendly Design: Equipped with a large LCD display for easy reading, data hold function, max hold function, and low battery indicator, ensuring convenience and efficiency during operation.
5. Durable and Portable: Constructed with a robust ABS plastic housing and a pocket-size design, making it easy to carry and durable for long-lasting use.
What's in the box?
|
Optional Accessories:
- 94 dB Sound Calibrator (SC-941)
- 94 dB/114 dB Sound Calibrator (SC-942)
- AC to DC 9V Adapter
- Wind Shield Ball (SB-01)
Rating & Reviews
Rating
Product Specifications
Technical Specifications:
- Display:
- Type: Large LCD with bargraph indicator
- Size: 49 x 25.5 mm
- Digit Size: 21.7 x 8.8 mm
- Measurement Functions:
- Ranges:
- 30 to 80 dB
- 50 to 100 dB
- 80 to 130 dB
- Resolution: 0.1 dB
- Accuracy: Meets IEC 61672 Class 2 standards
- Frequency Weighting: A & C
- Time Weighting: Fast (t = 200 ms), Slow (t = 500 ms)
- Microphone Type: Electric condenser microphone, 12.7 mm dia. (0.5 inch)
- General Specifications:
- Data Hold: Freezes the display reading
- Max Hold: Stores the maximum value
- AC/DC Output:
- AC Output: 0.5 Vrms corresponding to each range step
- DC Output: 0.3 to 1.3 VDC, 10 mV per dB, output impedance 600 ohm
- Output Terminal: 3.5 mm dia. phone output terminal
- Power Supply: 006P DC 9V battery or DC 9V adapter
- Power Consumption: Approx. DC 10 mA
- Operating Temperature: 0 to 50℃
- Operating Humidity: Less than 80% RH
- Dimensions: 200 x 69 x 28 mm (7.9 x 2.7 x 1.4 inches)
- Weight: 213 g (0.5 lb)
Advanced Features:
- Microprocessor Circuit: Ensures high accuracy and reliability with special functions.
- Large LCD Display: Provides clear read-out even in bright ambient light conditions.
- Durable Housing: Constructed with strong, lightweight ABS plastic for long-lasting use.
- Comprehensive Outputs: AC and DC outputs for system expansion and connection with analyzers, level recorders, and tape recorders.
- Condenser Microphone: Provides high accuracy and long-term stability.
Applications:
- Environmental Monitoring: Measure sound levels for environmental noise studies.
- Occupational Health: Monitor workplace noise to ensure compliance with safety standards.
- Industrial Maintenance: Assess sound levels in various industrial settings.
Invest in the SL-4030 Sound Level Meter for precise and reliable sound level measurements,
ensuring high performance and versatility in various industrial, environmental, and occupational applications.
| SPECIFICATIONS | |
| Circuit | / |
| Display | LCD size : 49 mm x 25.5 mm, Digit size : 21.7 mm x 8.8 mm. |
| Measurement Range | A Weighting- 3 ranges, 30 to 130 dB. C Weighting- 3 ranges, 30 to 130 dB. |
| Resolution | / |
| Function | dB (A & C weighting), Time weighting (Fast, Slow), Max. hold, AC output, DC output. |
| Accuracy | Frequency weighting meet IEC 61672 class 2, calibrating input signal on 94 dB ( 31.5 Hz to 8 kHz), the accuracy of frequency weighting is specified as following: 31.5 Hz - ± 3.5 dB, 63 Hz - ± 2.5 dB, 125 Hz - ± 2.0 dB 250 Hz - ± 1.9 dB, 500 Hz - ± 1.9 dB, 1 kHz - ± 1.4 dB 2 kHz - ± 2.6 dB, 4 kHz - ± 3.6 dB, 8 kHz - ± 5.6 dB |
| Frequency Weighting Network | / |
| Data hold | / |
| Peak hold | / |
| Time weighting | / |
| Range selector | 3 ranges ( 30 to 80 dB, 50 to 100 dB, 80 to 130 dB ). * 50 dB on each step, * with over / under range indicating. |
| Frequency | 31.5 to 8,000 Hz. |
| Microphone type | Electric condenser microphone. |
| Microphone size | Out size, 12.7 mm Dia. ( 0.5 inch). |
| Calibration VR | / |
| Calibrator | B & K (Bruel & kjaer), Multifuction Acoustic Calibrator 4226. |
| Datalogger Sampling Time Setting range | / |
| Memory Card | / |
| Advanced setting | / |
| Over Indication | / |
| Data Hold | / |
| Memory Recall | / |
| Sampling Time of Display | / |
| Data Output | / |
| AC output | / |
| Power off | / |
| Operating Temperature | 0 to 50 ℃. |
| Operating Humidity | Less than 80% R.H. |
| Power Supply | 006P DC 9V battery (heavy duty type) or DC 9V adapter input. |
| Power Current | / |
