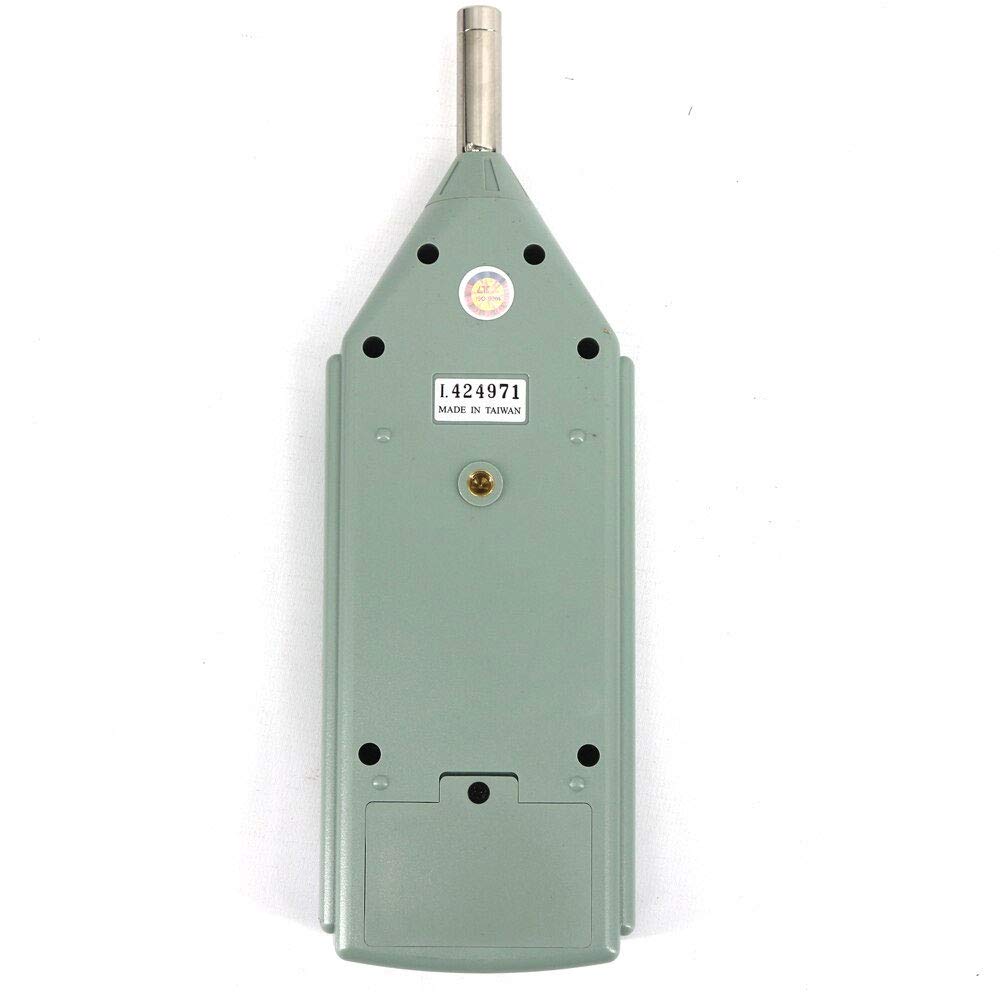

Lutron SL-4022 Sound Meter
.jpg "Lutron SL-4022 Sound Meter")
.jpg "Lutron SL-4022 Sound Meter")
.jpg "Lutron SL-4022 Sound Meter")
Click To Zoom
Lutron SL-4022 Sound Meter
Lutron SL-4022 Sound Meter
The SL-4022 Sound Level Meter provides accurate and reliable measurements of sound pressure levels, making it an essential tool for various industrial, environmental, and HVAC applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 12,350.00
(GST inclusive price) i₹12,350.00
( - 0% OFF )
Description
1. Frequency and Time Weighting: Meets IEC 61672 Class 1 standards, providing high accuracy and reliability for both A and C frequency weighting networks and FAST/SLOW dynamic characteristic modes.
2. High Accuracy and Resolution: Features high accuracy (e.g., ±1.1 dB at 1 kHz) and resolution (0.1 dB), ensuring precise and repeatable measurements across a wide range of frequencies.
3. User-Friendly Design: Equipped with a large LCD display for easy reading, user-friendly controls including max hold function, and a warning indicator for over and under load conditions.
4. Durable and Portable: Constructed with a strong, lightweight ABS plastic housing case, making it easy to carry and durable for long-lasting use.
5. Advanced Connectivity: Includes an AC output for system expansion, allowing connection with analyzers, level recorders, or tape recorders.
What's in the box?
|
Optional Accessories:
- 94 dB Sound Calibrator, model: SC-941
- 94/114 dB Sound Calibrator, model: SC-942
- Wind Shield Ball, model: SB-01
Rating & Reviews
Rating
Product Specifications
Technical Specifications:
- Display:
- Type: LCD (Liquid Crystal Display)
- Size: 18 mm (0.7") digits, 3 1/2 digits
- Measurement Functions:
- Sound Pressure Level (SPL):
- Range: 30-70 dB, 60-100 dB, 90-130 dB (3 ranges)
- Resolution: 0.1 dB
- Accuracy:
- Frequency weighting meets IEC 61672 Class 1 standards, with calibrating input signal on 94 dB
- 31.5 Hz: ±2.0 dB, 63 Hz: ±1.5 dB, 125 Hz: ±1.5 dB, 250 Hz: ±1.4 dB, 500 Hz: ±1.4 dB, 1 kHz: ±1.1 dB, 2 kHz: ±1.6 dB, 4 kHz: ±1.6 dB, 8 kHz: +2.1 dB to -3.1 dB
- Frequency Characteristics:
- A weighting: Simulates human ear response, ideal for environmental sound level measurement
- C weighting: Near "FLAT" response, suitable for checking machinery noise and sound pressure levels
- Frequency range: 31.5 Hz to 16 kHz
- Functions:
- Max hold function for storing the maximum value on display
- Max hold reset switch
- AC output for system expansion
- Low battery indicator
- Calibration:
- Built-in external calibration VR, easy to calibrate at 94 dB level using a screwdriver
- Internal oscillation system with 1 kHz sine wave generator
- Output Terminal: 3.5 mm diameter phone output terminal
- Operating Environment:
- Temperature: 0 to 50℃ (32 to 122℉)
- Humidity: Less than 80% RH
- Power Supply:
- DC 9V batteries (006P, MN1604, PP3 or equivalent) x 2 PCs, heavy duty or alkaline type
- Power Consumption: Approx. DC 17 mA
- Dimensions:
- 260 x 87 x 36 mm (10.2 x 3.4 x 1.4 inches)
- Weight: 450 g (0.99 lb)

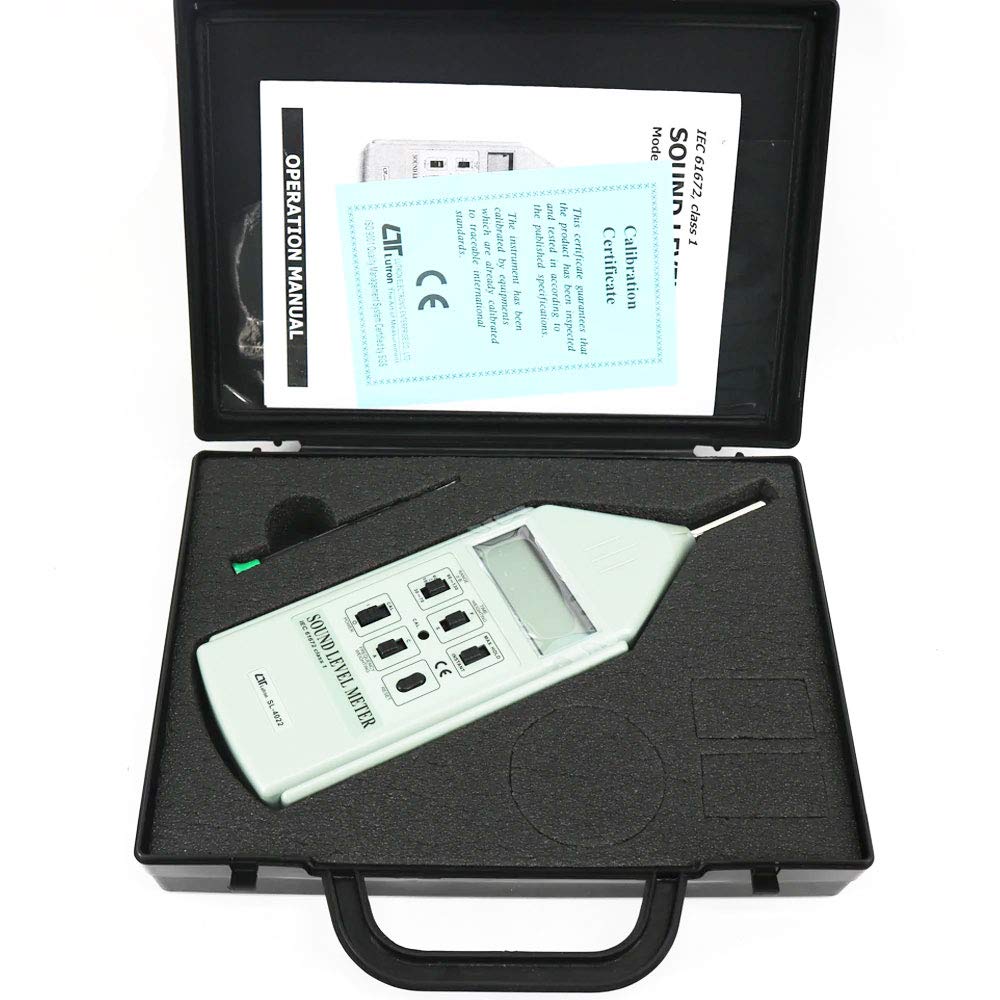

Accessories Included:
- Instruction Manual: 1 PC
- Calibration Screwdriver: 1 PC
- Carrying Case: 1 PC
Optional Accessories:
- 94 dB Sound Calibrator, model: SC-941
- 94/114 dB Sound Calibrator, model: SC-942
- Wind Shield Ball, model: SB-01
Advanced Features:
- Max Hold Function: Stores the maximum value on display for easy reference.
- Warning Indicator: Alerts for over and under load conditions.
- Durable Components: Includes a strong, lightweight ABS plastic housing case.
- Calibration Function: Easy calibration via built-in external calibration VR.
- AC Output: Allows connection with analyzers, level recorders, or tape recorders.
Applications:
- Environmental Monitoring: Measure sound levels in various settings.
- Industrial Maintenance: Monitor noise levels in industrial applications.
- HVAC Systems: Check sound levels in heating and cooling systems.
Invest in the SL-4022 Sound Level Meter for precise and reliable sound level measurements,
ensuring high performance and versatility in various industrial, environmental, and HVAC applications.
| SPECIFICATIONS | |
| Circuit | / |
| Display | 1 8 mm (0.7") LCD (Liquid Crystal Display), 3 1/2 digits. |
| Measurement Range | 3 ranges ( 30 - 70 dB, 60 - 100 dB, 90 - 130 dB ), |
| Resolution | 0.1 dB. |
| Function | / |
| Accuracy | Frequency weighting meet IEC 61672 Class 1, calibrating input signal on 94 dB the accuracy of frequency weighting is specified as following: 31.5 Hz : ± 2.0 dB, 63 Hz : ± 1.5 dB, 125 Hz : ± 1.5 dB, 250 Hz : ± 1.4 dB, 500 Hz : ± 1.4 dB, 1 KHz : ± 1.1 dB, 2 KHz : ± 1.6 dB, 4 KHz : ± 1.6 dB, 8 KHz : + 2.1 dB to -3.1 dB, |
| Frequency Weighting Network | Characteristics of A & C. A weighting - The characteristic is simulated as "Human Ear Listing" response. Typical, if making the environmental sound level measurement, always select to A weighting. C weighting - The characteristic is near the "FLAT" response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure level of the tested equipment. |
| Data hold | / |
| Peak hold | / |
| Time weighting | / |
| Range selector | 30 to 70 dB, 60 to 100 dB, 90 to 130 dB, 40 dB on each step, with over & under range indicating. |
| Frequency | 31.5 Hz to 16 KHz. * Accuracy is tested within 31.5 Hz to 8 KHz. |
| Microphone type | Electric condenser microphone. |
| Microphone size | 1/2 inch standard size. |
| Calibration VR | / |
| Calibrator | B & K (Bruel & kjaer), multi-fuction acoustic calibrator, model : 4226. |
| Datalogger Sampling Time Setting range | / |
| Memory Card | / |
| Advanced setting | / |
| Over Indication | / |
| Data Hold | / |
| Memory Recall | / |
| Sampling Time of Display | / |
| Data Output | / |
| AC output | / |
| Power off | / |
| Operating Temperature | 0℃ to 50℃ ( 32℉ to 122℉ ). |
| Operating Humidity | Less than 80% RH. |
| Power Supply | DC 9V battery x 2 PCs, 006P, MN1604 ( PP3 ) or equivalent, heavy duty or alkaline type. |
| Power Current | / |
| Weight | 450 g/0.99 LB |
| Dimension | 260 x 87 x 36 mm ( 10.2 x 3.4 x 1.4 inch ). |
