Lutron PH-230SD PH Meter

Click To Zoom

Lutron PH-230SD PH Meter

Lutron PH-230SD PH Meter

(Based On 10 Reviews)

The PH-230SD pH Meter offers accurate and reliable measurements with advanced features and real-time data logging, making it an essential tool for various applications in laboratories, aquariums, food processing, and more.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 10,500.00

(GST inclusive price) i
  • Base Value: ₹ 8898.3
  • GST: (18) % ₹ 1601.7
  • Total Value ₹ 10500

₹15,000.00

( - 30% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key features



  •  Multi-Function Measurement: Measures pH and mV (ORP), providing comprehensive testing capabilities for various applications.
  •  Real-Time Data Logging: Features an SD card memory card datalogger with built-in clock and calendar, allowing for real-time data recording with adjustable sampling times from 1 second to 8 hours, 59 minutes, and 59 seconds.
  •  Automatic and Manual Temperature Compensation: Offers both automatic and manual temperature compensation options, ensuring accurate readings under varying conditions.
  •  Auto Calibration: Supports auto calibration for pH 4, pH 7, and pH 10, ensuring precise measurements.

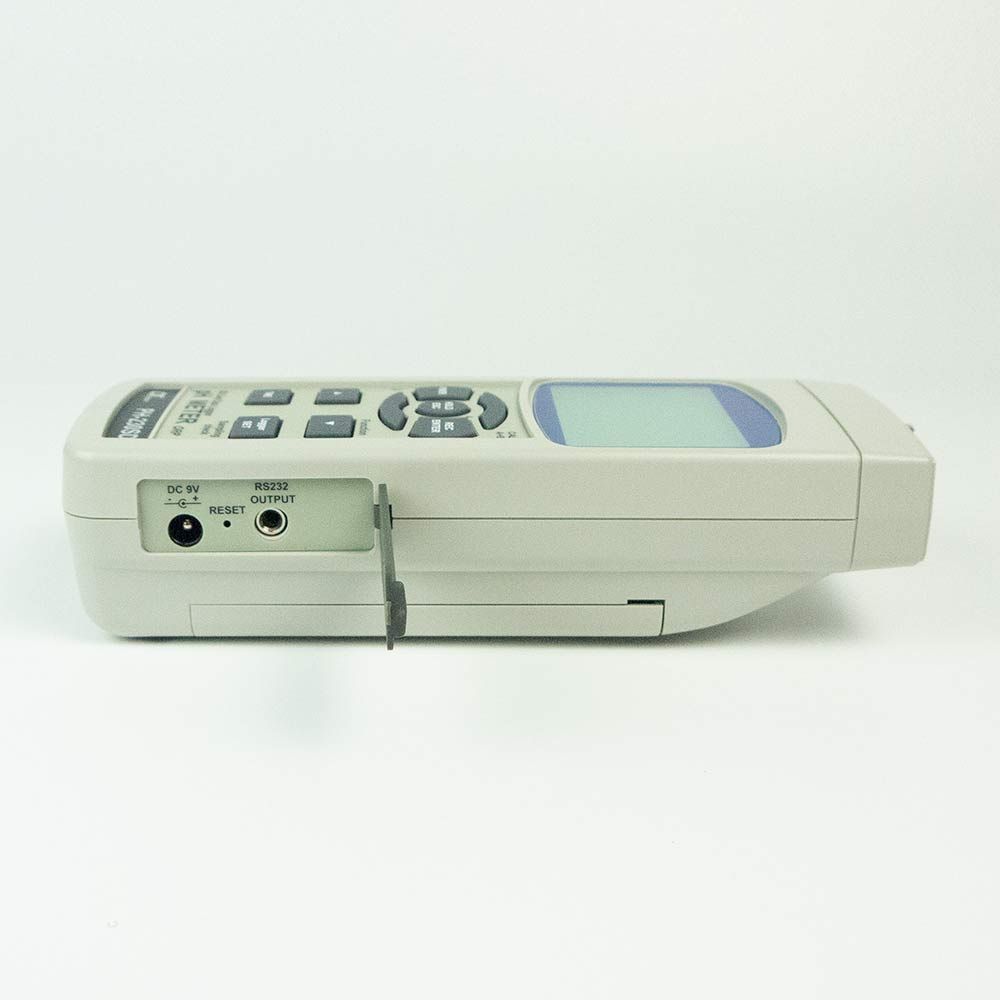

  •  RS232/USB Interface: Equipped with an RS232/USB interface for easy data transfer to a computer, facilitating further analysis and record-keeping.



What's in the box?

  •  Instruction Manual















Optional Accessories:

  •  pH Electrodes: PE-03, PE-11, PE-01, PE-02, PE-07, PE-06HD, PE-04HD, PE-05T, PE-03K7
  •  Temperature Probe: TP-07 for ATC
  •  Buffer Solutions: PH-07, PH-04
  •  ORP Electrode: ORP-14
  •  Carrying Cases: CA-05A (soft), CA-06 (hard)
  •  SD Memory Cards: 1 GB, 2 GB
  •  AC to DC 9V Adapter
  •  USB Cable: USB-01
  •  RS232 Cable: UPCB-02
  •  Data Acquisition Software: SW-U801-WIN

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specifications:





 Measurement Range:

  •    pH: 0 to 14.00 pH
  •    mV: ± 1999 mV

 Resolution:

  •    pH: 0.01 pH
  •    mV: 1 mV

 Accuracy:

  •    pH: ± 0.02 pH + 2d
  •    mV: ± 0.5% + 2d


 Display: LCD, size 52 mm x 38 mm, with green backlight (ON/OFF)


 Input Impedance: 10^12 ohms


 Temperature Compensation:

  •    Manual: 0 to 100℃, adjusted by push button on front panel
  •    Automatic: With optional temperature probe (TP-07), 0 to 65℃


 Calibration: Auto calibration for pH 7, pH 4, and pH 10, with other calibration points near these values available

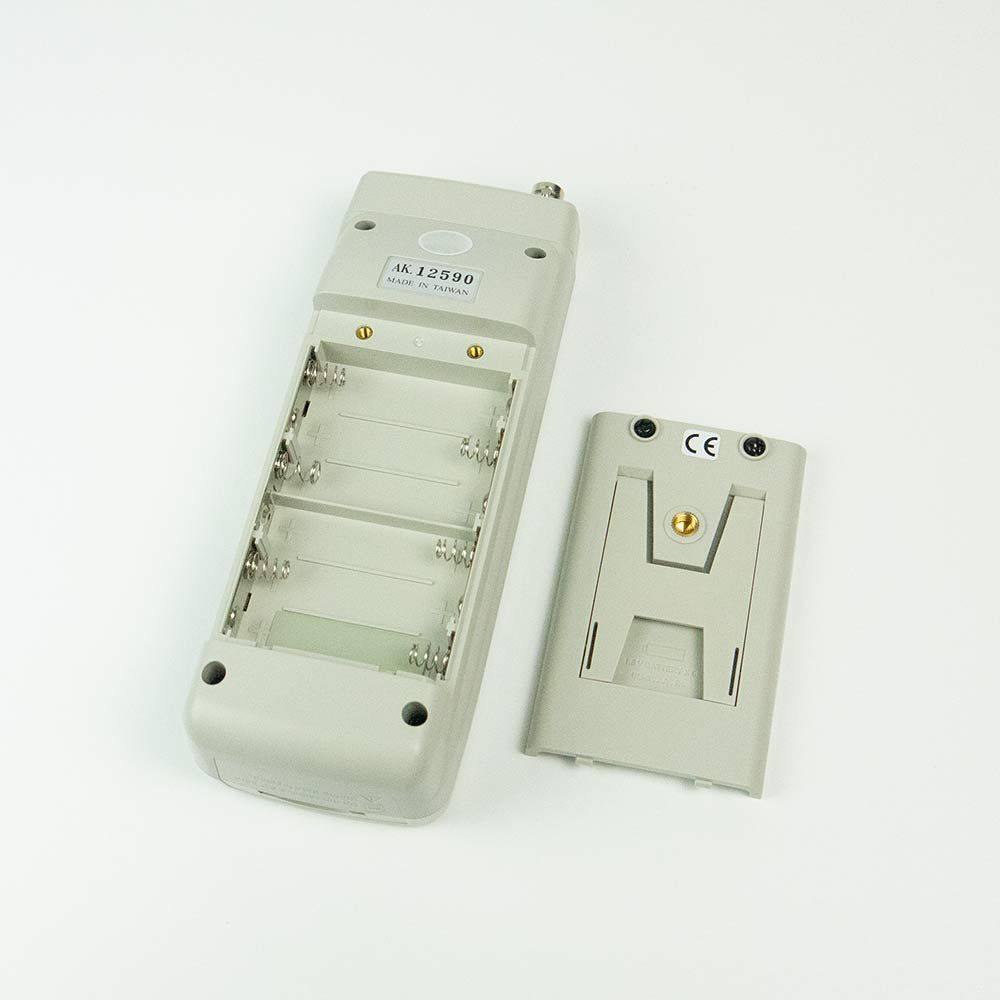

 Power Supply: UM3/AA (1.5V) x 6 batteries or DC 9V adapter


 Power Consumption:

  •    Normal operation (without SD card save data and LCD Backlight is OFF): Approx. DC 14 mA
  •    When SD card save the data and LCD Backlight is OFF: Approx. DC 37 mA
  •    If LCD backlight is on, the power consumption will increase by approx. 12 mA


 Dimensions: 177 x 68 x 45 mm (7.0 x 2.7 x 1.9 inches)


 Weight: 489 g (1.08 lb)


 Data Hold: Freeze the display reading.


 Memory Recall: Maximum & Minimum value.


 pH Calibration: pH7, pH4, and pH10, 3 points calibration ensure the best linearity and accuracy.




Data Logging Specifications:

 Sampling Time:

  •    Auto: 1 second to 8 hours, 59 minutes, and 59 seconds
  •    Manual: Push the data logger button once to save data one time

 Memory Capacity: 1 GB to 16 GB SD card
