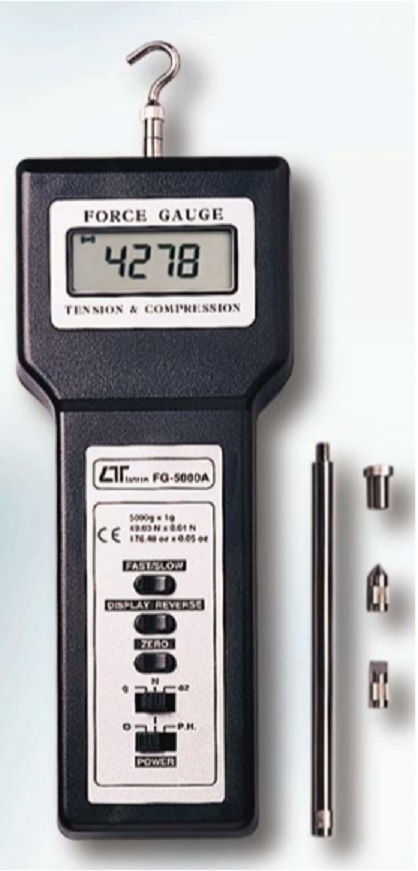

Lutron FG-5000A Force Gauge

Click To Zoom

Lutron FG-5000A Force Gauge

Lutron FG-5000A Force Gauge

(Based On 10 Reviews)

The FG-5000A Force Gauge offers accurate and reliable force measurements with a compact and durable design, making it an essential tool for various applications in material testing, quality control, and industrial environments.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments Details

SECURE Payments

₹ 18,267.00

(GST inclusive price) i
  • Base Value: ₹ 15480.5
  • GST: (18) % ₹ 2786.5
  • Total Value ₹ 18267

₹18,267.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key features



  •  Wide Capacity and High Resolution: Provides a maximum capacity of 5000 grams with high resolution and repeatability, ensuring precise measurements.
  •  Multi-Unit Display: Offers the ability to display measurements in grams, Newtons, and ounces, enhancing versatility for different applications.
  •  Tension and Compression Capability: Capable of measuring both tension and compression (push and pull) forces, making it suitable for a wide range of tests.
  •  Peak Hold Function: Features a peak hold function that can capture and display the maximum load during tension or compression measurements.
  •  User-Friendly Design: Includes a zero button, full capacity zero (tare) control, fast/slow response time selection, and positive or reverse display direction options for ease of use.





What's in the box?

  • Operating Manual
  •  Flat-head Adapter
  •  Hook Adapter
  •  Cone-head Adapter
  •  Chisel-head Adapter
  •  120 mm Extension Rod
  •  Carrying Case

























Optional Accessories:

  • Test Stand (Model: FS-1001)
  •  RS-232 Computer Interface
  •  Wedge Grip (Model: WG-01)
  •  Software for Data Logging & Recorder (Model: SW-U101-WIN)

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

Technical Specifications:





 Display:

  • LCD (Liquid Crystal Display), 5 digits, 10 mm (0.4") digit size, with positive or reverse direction selection


 Measurement:

 Capacity:

  • 5000 g / 176.40 oz / 49.03 Newton


 Resolution:

  • 1 g / 0.05 oz / 0.01 Newton


 Min. Display:

  • 3 g / 0.10 oz / 0.03 Newton


  Accuracy:

  • ± (0.4% + 1 d) within 23 ± 5℃



 Functionality:

 Tension & Compression:

  • Measures both push and pull forces


 Peak Hold:

  • Captures and displays the maximum load


 Zero/Tare Control:

  • Allows for full capacity zeroing


 Measure Capacity:

  • 5000 g/176.40 oz/49.03 Newton.


 Response Time:

  • Fast (approx. 0.2 second) / Slow (approx. 0.6 second)


 Over Range Indicator:

  • Displays '----' when in over-range status


 Overload Capacity:

  • Max. 7 kg


 Power Supply:

  • 6 x 1.5V AA (UM-3) batteries or DC 9V adapter (not included)


 Power Consumption:

  • Approx. DC 24 mA


 Operating Temperature:

  • 0 to 50℃ (32 to 122℉)


 Operating Humidity:

  • Less than 80% RH


 Dimensions:

  • 227 x 83 x 39 mm (8.9 x 3.3 x 1.5 inches)


 Weight:

  • 551 g (1.2 lb) including batteries


 Mounting:

  • Mounting holes provided for easy stand mounting
