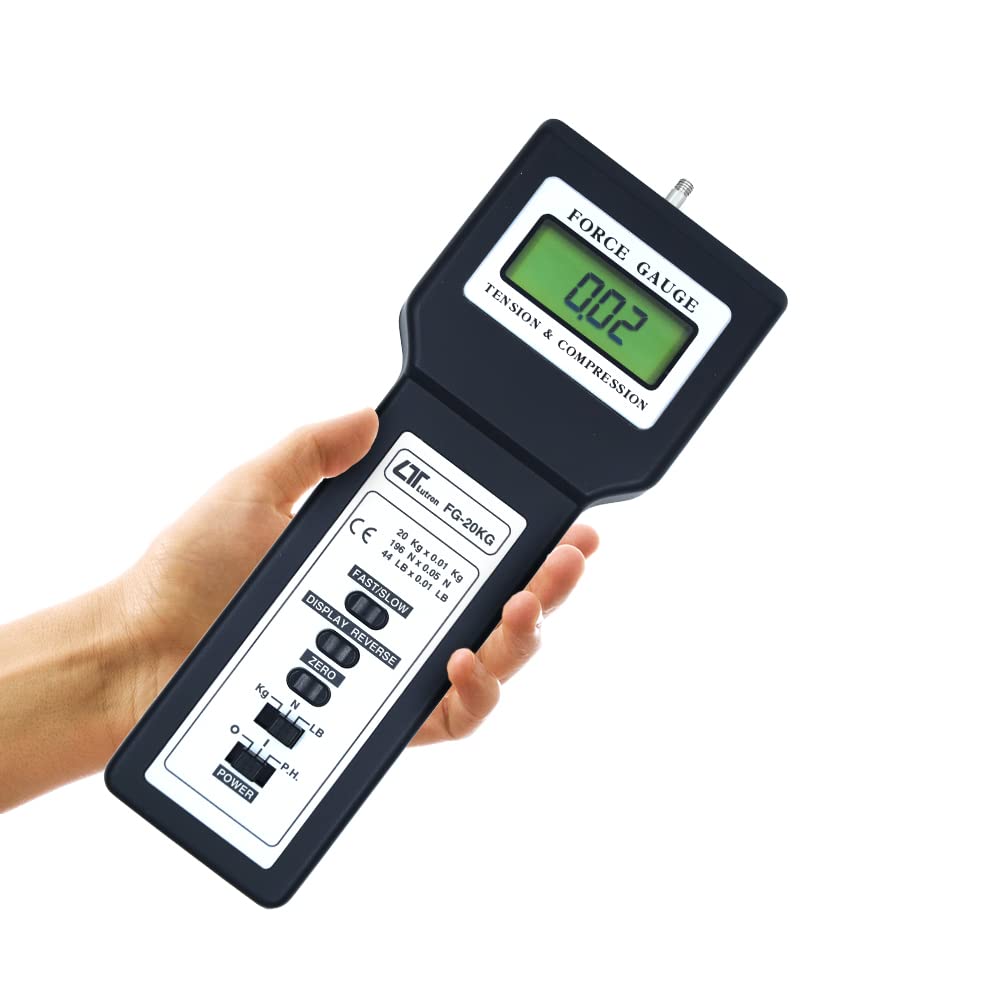

Lutron FG-20KG Force Gauge

Lutron FG-20KG Force Gauge
Lutron FG-20KG Force Gauge
Lutron FG-20KG Force Gauge
Lutron FG-20KG Force Gauge
Lutron FG-20KG Force Gauge
Lutron FG-20KG Force Gauge
Lutron FG-20KG Force Gauge
Lutron FG-20KG Force Gauge
Lutron FG-20KG Force Gauge
Lutron FG-20KG Force Gauge

Click To Zoom

Lutron FG-20KG Force Gauge

Lutron FG-20KG Force Gauge

(Based On 10 Reviews)

The FG-20KG Force Gauge provides accurate and reliable measurements of tension and compression forces, making it an essential tool for various industrial applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 20,532.00

(GST inclusive price) i
  • Base Value: ₹ 17400
  • GST: (18) % ₹ 3132
  • Total Value ₹ 20532

₹20,532.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key features



  •  Dual Measurement Capability: Measures both tension and compression forces, offering versatility for different testing needs.
  •  High Accuracy and Resolution: Features a wide capacity of 20 kg with high resolution (0.01 kg) and high accuracy (±0.5% + 2d), ensuring precise and repeatable measurements.
  •  Multiple Display Units: Allows selection of three display units - kilograms (Kg), pounds (LB), and Newtons (N), providing flexibility for various applications.
  •  Peak Hold Function: Captures and holds the peak load (maximum load) value on the display, useful for recording maximum force readings.
  •  User-Friendly Design: Equipped with a large LCD display, positive or reverse display direction, zero/tare function, and fast/slow response time settings for convenient operation.
  • Microprocessor Circuit: Ensures high accuracy and reliability with exclusive load cell transducer.
  •  Low Power Consumption: Provides long battery life with built-in low battery indicator.
  •  Full Line of Accessories: Includes various adapters and carrying case for comprehensive testing needs.
  •  RS-232 Interface: Optional RS-232 interface for computer connectivity and data logging.

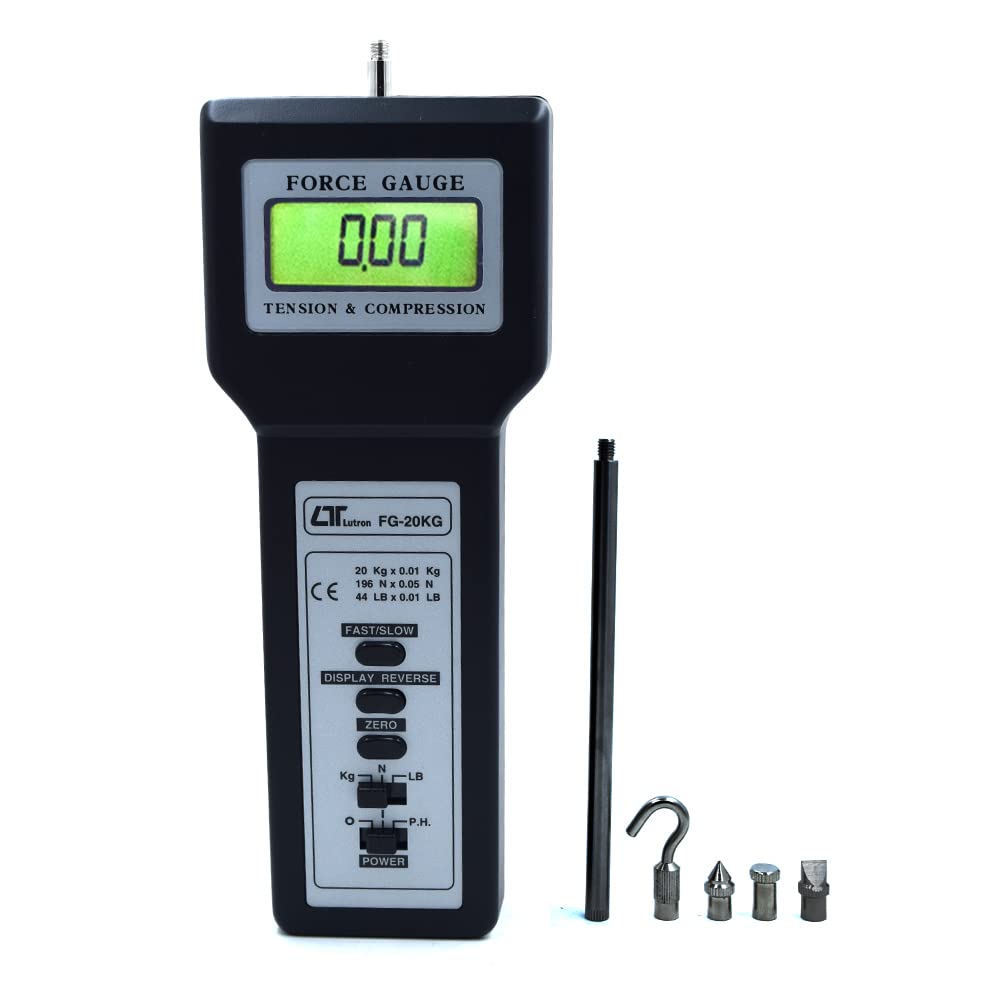

What's in the box?

  •  Operating Manual: 1 PC
  •  Flat-head Adapter: 1 PC
  •  Hook Adapter: 1 PC
  •  Cone Head Adapter: 1 PC
  •  Chisel Head Adapter: 1 PC
  •  120 mm Extension Rod: 1 PC
  •  Carrying Case: 1 PC

























Optional Accessories:

  •  Test Stand (Model: FS-1001)
  •  Wedge Grip (Model: WG-01)
  •  RS-232 Computer Interface (optional)
  •  Data Logging Software (SW-U101-WIN)

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specifications:



 Display:

  •    Type: LCD (Liquid Crystal Display)
  •    Digits: 5 digits, 10 mm (0.4 inch) digit size
  •    Display Direction: Positive or reverse, selectable via front panel button



 Measurement Functions:

  •    Tension and Compression (Push & Pull)
  •    Peak Hold (Max. load)
  •     Zero function for both normal and peak hold operation



 Measurement Range and Resolution:

   Capacity:

  • 20.00 Kg / 44.10 LB / 196.10 Newton


  Resolution:

  • 0.01 Kg / 0.01 LB / 0.05 Newton


  Minimum Display:

  • 0.01 Kg / 0.01 LB / 0.05 Newton


  Accuracy:

  • ±(0.5% + 2d), within 23 ± 5℃


 Update Time:

  •    Fast: Approx. 0.2 second
  •    Slow: Approx. 0.6 second


 Over Range Indicator:

  • Displays "----" when in over-range status


 Overload Capacity:

  • Max. 30 kg


 Power Supply:

  •    6 x 1.5V AA (UM-3) size batteries or DC 9V adapter (not included)


 Power Consumption:

  • Approx. DC 12 mA


 Operating Environment:

  •    Temperature: 0 to 50℃ (32 to 122℉)
  •    Humidity: Less than 80% RH


 Dimensions:

  • 227 x 83 x 39 mm (8.9 x 3.3 x 1.5 inches)


 Weight:

  • 430 g (0.95 lb, including batteries)


 Mounting:

  • Mounting holes on the back case for easy stand mounting
