Lutron FG-5020 Force Gauge

Lutron FG-5020 Force Gauge
Lutron FG-5020 Force Gauge
Lutron FG-5020 Force Gauge
Lutron FG-5020 Force Gauge
Lutron FG-5020 Force Gauge
Lutron FG-5020 Force Gauge

Click To Zoom

Lutron FG-5020 Force Gauge

Lutron FG-5020 Force Gauge

(Based On 10 Reviews)

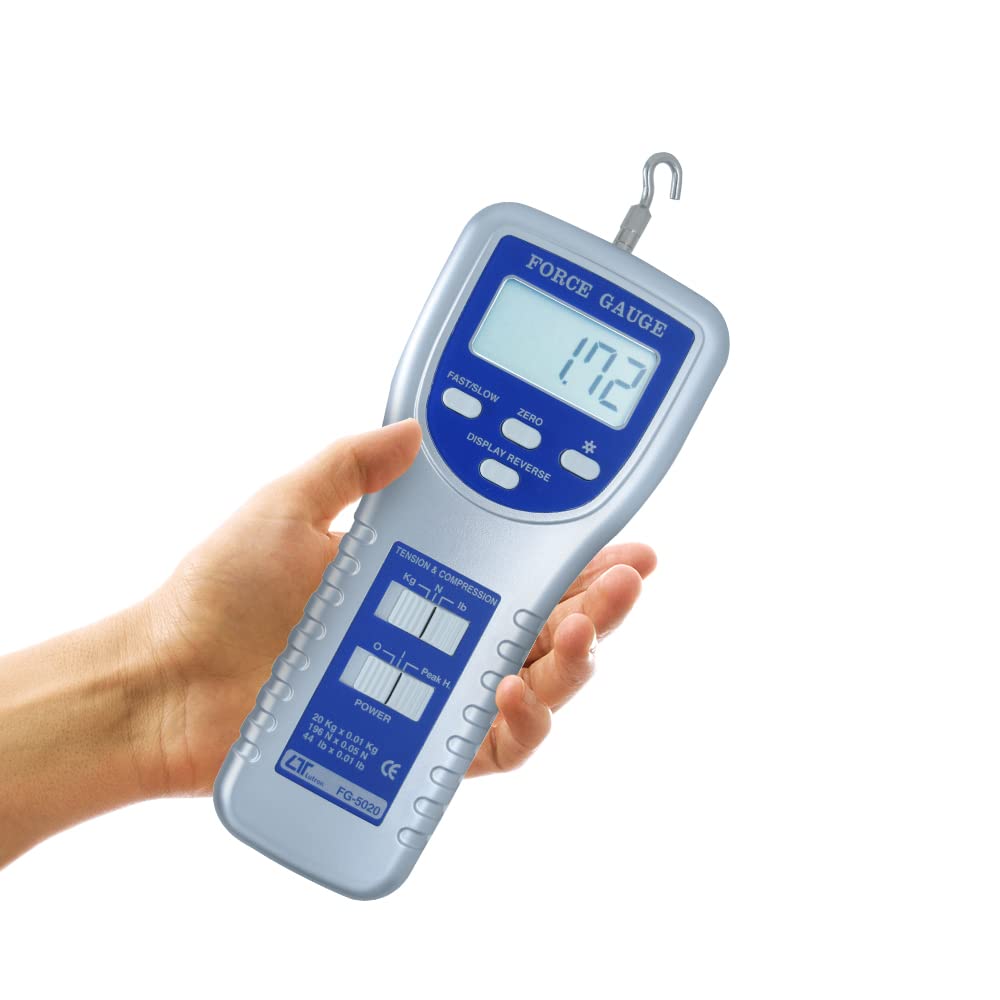

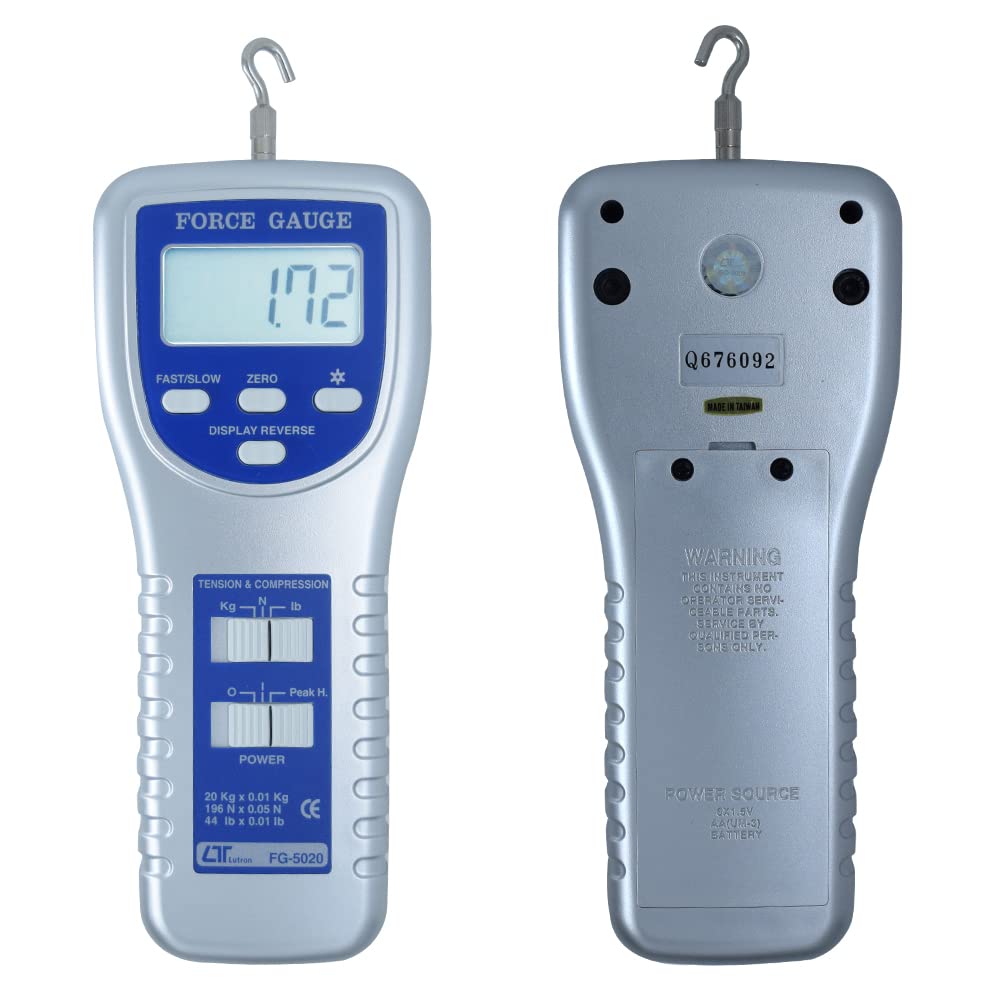

The FG-5020 Force Gauge provides accurate and reliable measurements for tension and compression forces, making it an essential tool for various industrial and laboratory applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 21,736.00

(GST inclusive price) i
  • Base Value: ₹ 18420.3
  • GST: (18) % ₹ 3315.7
  • Total Value ₹ 21736

₹21,736.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key features



  •  High Precision Measurement: Supports a wide capacity of 20 Kg with high resolution and accuracy, measuring in Kg, LB, and Newton units.
  •  Versatile Functionality: Capable of both tension and compression measurements, with peak hold (max load), zero, and positive/reverse display functions.
  •  Large Backlit Display: Features a large 5-digit LCD with backlight for easy readability in various lighting conditions.
  •  RS-232 Computer Interface: Provides data output through an RS-232 serial interface, enhancing connectivity and data logging capabilities.
  •  Comprehensive Accessories: Includes a full line of accessories and optional test stands, making it suitable for handheld and stand-mounted applications
  •  Microprocessor Circuit: Ensures high accuracy and reliability with special functions and features.
  •  Low Power Consumption: Provides long battery life with a built-in low battery indicator.
  •  Overload Protection: Protects the device from damage due to excessive force.





What's in the box?

  • Flat-head Adapter: 1 PC
  •  Hook Adapter: 1 PC
  •  Cone Head Adapter: 1 PC
  •  Chisel Head Adapter: 1 PC
  •  120 mm Extension Rod: 1 PC
  •  Carrying Case: 1 PC
  •  Instruction Manual: 1 PC





















Optional Accessories:

  • Test Stand (Model: FS-1001)
  •  Wedge Grip (Model: WG-01)
  •  RS232 Cable (Model: UPCB-01)
  •  USB Cable (Model: USB-01)
  •  Data Logging Software (Model: SW-U801-WIN)

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specifications:






 Display:

  •    Type: 5 digits LCD with backlight
  •    Digit Size: 16 mm (0.63")
  •    Update Time: Fast approx. 0.2 second, Slow approx. 0.6 second


 Measurement Range and Resolution:

  •    Capacity: 20.00 Kg / 44.10 LB / 196.10 Newton
  •    Resolution: 0.01 Kg / 0.01 LB / 0.05 Newton
  •    Min. Display: 0.02 Kg / 0.07 LB / 0.3 Newton


 Update time:

  • Fast Approx. 0.2 second. Slow Approx. 0.6 second.


 Over range Indicator:

  • Display show " - - - - " when in over range status.


 Accuracy:

  •    ± (0.5% + 2 digits), within 23 ± 5℃








 Functions:

  •    Tension and compression measurement
  •    Peak hold (max load)
  •    Zero button for normal and peak hold operation
  •    Positive/reverse display direction
  •    Full capacity zero (tare) control
  •    Fast/slow response time selection



 Overload Protection:

  •    Max. 30 Kg
  •    Over range indicator



 Power Supply:

  •    6 x 1.5V AA (UM-3) batteries
  •    DC 9V adapter (not included)



 Power Consumption:

  •    Approx. DC 28 mA



 Transducer:

  • Exclusive load cell.



 Operating Environment:

  •    Temperature: 0 to 50℃ (32 to 122℉)
  •    Humidity: Less than 80% RH



 Dimensions and Weight:

  •    Size: 215 x 90 x 45 mm (8.5 x 3.5 x 1.8 inches)
  •    Weight: 650 g (1.43 lb) with batteries
