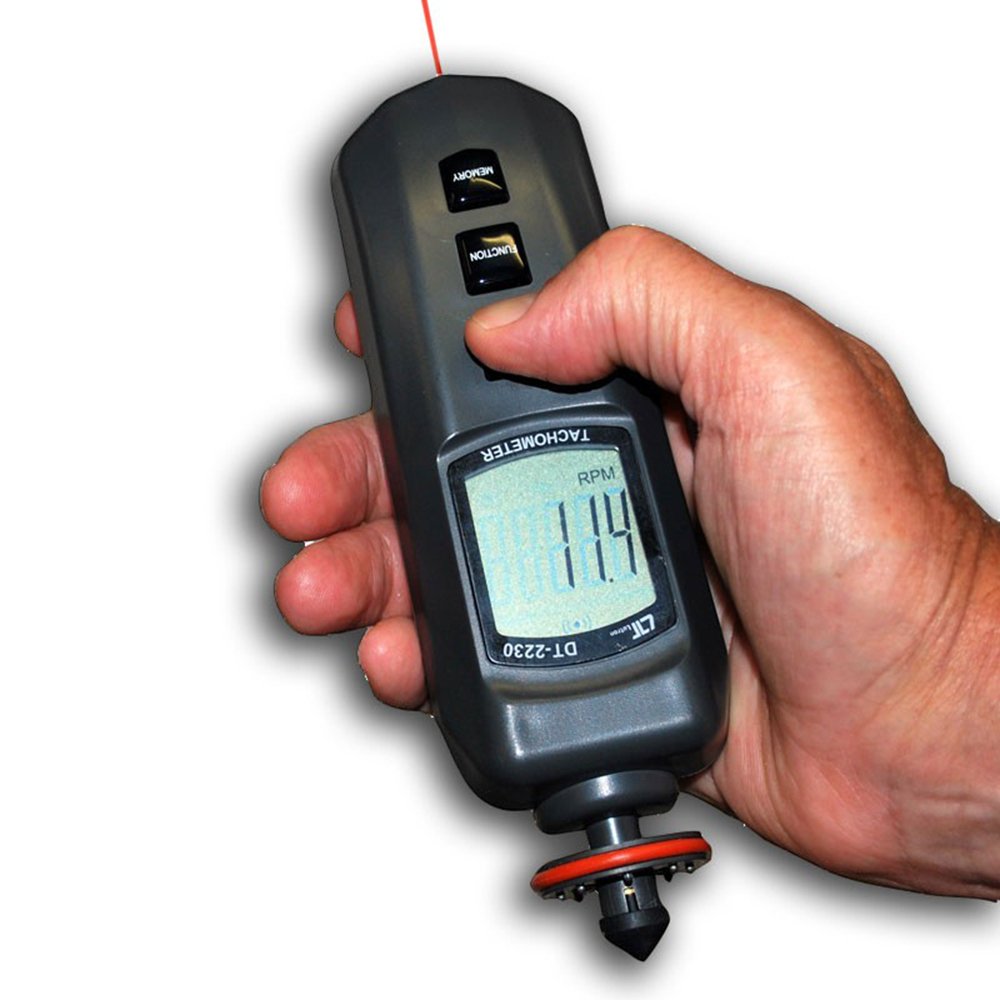

Lutron DT-2230 PHOTO | CONTACT TACHOMETER

Lutron DT-2230 PHOTO | CONTACT TACHOMETER
Lutron DT-2230 PHOTO | CONTACT TACHOMETER
Lutron DT-2230 PHOTO | CONTACT TACHOMETER
Lutron DT-2230 PHOTO | CONTACT TACHOMETER

Click To Zoom

Lutron DT-2230 PHOTO | CONTACT TACHOMETER

Lutron DT-2230 PHOTO | CONTACT TACHOMETER

(Based On 10 Reviews)

The DT-2230 Photo/Contact Tachometer provides accurate and reliable RPM measurements with dual operation modes, making it an essential tool for various industrial applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 7,944.00

(GST inclusive price) i
  • Base Value: ₹ 6732.2
  • GST: (18) % ₹ 1211.8
  • Total Value ₹ 7944

₹7,944.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key features



  •  Dual Measurement Modes: Combines photo tachometer and contact tachometer in one instrument, allowing flexible measurement options based on the application needs.
  •  Laser Light Source: Utilizes a Class 2 laser diode with a red wavelength of 645 nm, offering a long measuring range up to 1.5 meters, ensuring safe and easy RPM measurement from a distance.
  •  Wide Measurement Range: Measures from 0.5 to 100,000 RPM for photo tachometer and 0.5 to 19,999 RPM for contact tachometer, providing comprehensive coverage for various RPM monitoring tasks.
  •  High Accuracy and Resolution: Offers 0.1 RPM resolution for values < 1,000 RPM and 1 RPM for values ≥ 1,000 RPM with an accuracy of ± 0.1% + 1 digit, ensuring precise measurements.
  •  Memory Function: Stores the last, maximum, and minimum values automatically, allowing easy recall of important measurements for further analysis.





What's in the box?

  • Reflecting Tape Marks (600 mm): 1 PC
  •  Operation Manual: 1 PC
  •  Spare RPM Cone Rubber: 1 PC
  •  Spare RPM Funnel Rubber: 1 PC





















Optional Accessories:

  • Carrying Case (CA-52A)
  •  USB Cable (USB-01)
  •  RS232 Cable (UPCB-02)
  •  Data Acquisition Software (SW-U801-WIN)

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Technical Specifications:






 Display:

  •    Type: LCD
  •    Size: 32 mm x 28 mm
  •    Digits: 5 digits



 Measurement Ranges and Resolution:

  Photo Tachometer:

  •      Range: 5 to 99,999 RPM
  •      Resolution: 0.1 RPM (< 1,000 RPM), 1 RPM (≥ 1,000 RPM)


 Contact Tachometer:

  •      Range: 0.5 to 19,999 RPM
  •      Resolution: 0.1 RPM (< 1,000 RPM), 1 RPM (≥ 1,000 RPM)


 Surface Speed:

  •      m/min: 0.05 to 1,999.9 m/min (Resolution: 0.01 m/min < 100 m/min, 0.1 m/min ≥ 100 m/min)
  •      ft/min: 0.2 to 6,560 ft/min (Resolution: 0.1 ft/min < 1,000 ft/min, 1 ft/min ≥ 1,000 ft/min)
  •      in/min: 2.0 to 78,740 in/min (Resolution: 0.1 in/min < 1,000 in/min, 1 in/min ≥ 1,000 in/min)



 Accuracy:

  • ± (0.1% + 1 digit) @ reading



 Memory Function:

  • Last value, maximum value, minimum value with recall



 Time Base:

  • Quartz crystal



 Circuit:

  • Exclusive one-chip microcomputer LSI circuit



 Laser Light Source:

  • Less than 1 mW, Class 2 laser diode, 645 nm wavelength



 Power Supply:

  •    Battery: 4 x 1.5V AAA (UM4) batteries
  •    Power Consumption: Approx. DC 20 mA (Photo Tachometer), Approx. DC 9.5 mA (Contact Tachometer)



 Operating Environment:

  •    Temperature: 0 to 50℃ (32 to 122℉)
  •    Humidity: Less than 80% RH



 Dimensions:

  • 165 x 50 x 33 mm (6.5 x 2.0 x 1.3 inches)


  Weight:

  • 182 g (0.4 lb) including batteries



Photo Tachometer detecting distance:

  • 5 to 150 cm typically.
