Lutron DW-6093 3 PHASE POWER ANALYZER

Click To Zoom

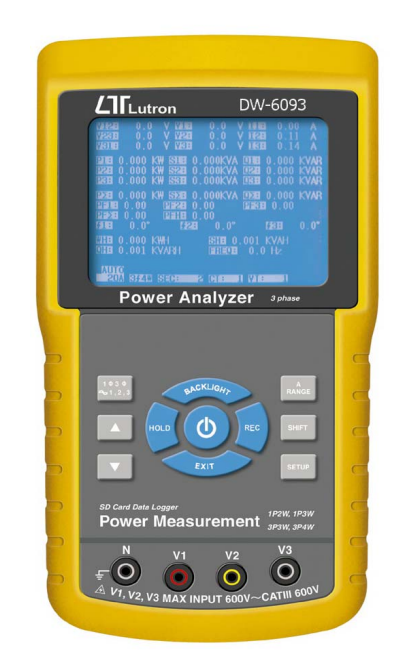

Lutron DW-6093 3 PHASE POWER ANALYZER

Lutron DW-6093 3 PHASE POWER ANALYZER

(Based On 10 Reviews)

The DW-6093 3-Phase Power Analyzer offers accurate and reliable measurements for multi-phase power systems, making it an essential tool for various applications in electrical testing, industrial environments, and maintenance.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments Details

SECURE Payments

₹ 73,750.00

(GST inclusive price) i
  • Base Value: ₹ 62500
  • GST: (18) % ₹ 11250
  • Total Value ₹ 73750

₹73,750.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features



  •  Comprehensive Power Analysis: Capable of analyzing 3-phase multi-power systems, including 1P/2W, 1P/3W, 3P/3W, and 3P/4W configurations.
  •  True RMS Measurements: Provides true RMS values for voltage and current measurements, ensuring high accuracy.
  •  Wide Measurement Range: Voltage measurement range from 10 to 600 ACV and current measurement range from 20 A to 3000 ACA with various probes.
  •  Real-Time Data Logging: Features a built-in clock and calendar for real-time data recording with an SD memory card.
  •  Versatile Measurement Functions: Measures true power (KW, MW, GW), apparent power (KVA, MVA, GVA), reactive power (KVAR, MVAR, GVAR), watt-hour (WH, SH, QH, PFH), power factor (PF), and phase angle (Φ).



What's in the box?

  • Instruction Manual (1 PC)
  •  Test Leads (1 Set, 4 PCs)
  •  Alligator Clips (1 Set, 4 PCs)
  •  Clamp Probes (3 PCs, CP-1201)
  •  AC to DC 9V Adapter (1 PC)
  •  SD Card (2 GB)
  •  Carrying Bag (1 PC)



















Optional Accessories:

  • USB Cable (USB-01)
  •  RS232 Cable (UPCB-02)
  •  Data Acquisition Software (SW-U811-WIN)
  •  Various Current Probes (e.g., CP-200, CP-3000)

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

Technical Specifications:





 Voltage Measurement:

  •    Range: 10.0V to 600.0V
  •    Resolution: 0.1V
  •    Accuracy: ± (0.5% + 0.5V)
  •    Input Impedance: 10 Mega ohms

 Current Measurement:

  •    Range: 20 A, 200 A, 1200 A, 3000 A (with appropriate probes)
  •    Resolution: 0.001A to 1A
  •    Accuracy: Varies with range and probe (e.g., ± (1% + 0.1A) for 20A range)

 Power Factor:

  •    Range: 0.00 to 1.00
  •    Resolution: 0.01
  •    Accuracy: ± 0.04

 Phase Angle (Φ):

  •    Range: -180° to 180°
  •    Resolution: 0.1°
  •    Accuracy: ± 1°

 Frequency:

  •    Range: 45 to 65 Hz
  •    Resolution: 0.1 Hz
  •    Accuracy: ± 0.1 Hz

 Power Measurements:

  •    True Power (KW, MW, GW)
  •    Apparent Power (KVA, MVA, GVA)
  •    Reactive Power (KVAR, MVAR, GVAR)
  •    Watt-Hour (WH, SH, QH, PFH)

 Data Logging and Output:

  •    Real-time data logger with SD memory card
  •    Sampling time: 2 to 7200 seconds
  •    RS232 and USB interfaces for data transfer

Over Indicator:

  • LCD display show " OL ".
  •  The data save into the SD card will show
  •  9999 " or " 999 " ( overleap the decimal point ).

Under Indicator: *

  • LCD display show " UR ".
  •  The data save into the SD card will show " 9999 " or " 999 " ( overleap the decimal point ).



 General Specifications:

  •    Display: 81.4 x 61 mm (3.2 x 2.4 inch), Dot Matrix LCD (320 x 240 pixels) with backlight

  •    Power Supply: DC 1.5V AA (UM-3) batteries x 8 or AC to DC 9V power adapter

  •    Power Consumption: Meter: 300 mA, Clamp: 20 mA

  •    Dimensions: Meter: 225 x 125 x 64 mm (8.86 x 4.92 x 2.52 inch), Clamp: 210 x 64 x 33 mm (8.3 x 2.5 x 1.3 inch)

  •    Weight: Meter: 1049 g (includes batteries), Clamp: 522 g

  •    Max Conductor Size: 86 mm (3.4 inches) diameter
