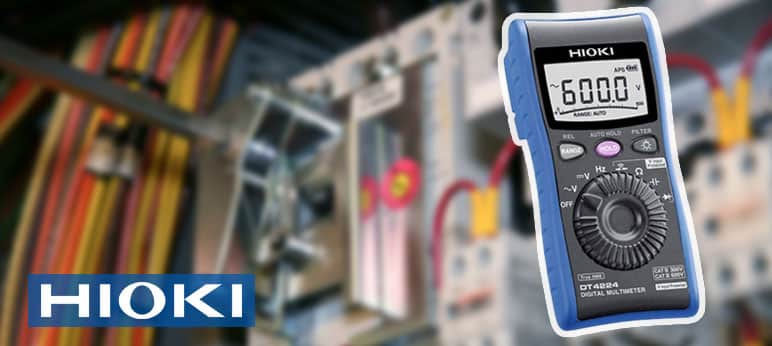

HIOKI DT4224 DMM Multimeter 6000 count

Click To Zoom

HIOKI DT4224 DMM Multimeter 6000 count

HIOKI DT4224 DMM Multimeter 6000 count

(Based On 10 Reviews)

The Hioki DT4224 is a pocket-sized digital multimeter featuring an innovative circuit-breaker false trip prevention function to enhance testing safety, capacitance and diode testing functions, ideal for all general electrical jobs.

Request Callback

Order In Bulk

Generate Quote

₹ 14,341.00

(GST inclusive price) i
  • Base Value: ₹ 12153.4
  • GST: (18) % ₹ 2187.6
  • Total Value ₹ 14341

₹14,341.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Achieving a high level of safety in a compact body and lightweight design
  • Circuit breaker false trip prevention function helps avoid accidents resulting from breakers that mistakenly trip due to incorrect input
  • More convenient function: Resistance, Capacitance measurement and diode testing (DT4224)
  • Robust design capable of withstanding a drop from a height of 1 m
  • ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
  • Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
  • Broad -10°C (14°F) to 65°C (149°F) operating temperature range



What's in the Box

  • Test lead DT4911 ×1
  • Holster ×1
  • Instruction manual ×1
  • LR03 alkaline battery ×1

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

SPECIFICATIONS
DC Voltage range600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage range6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3)
Resistance range600.0 Ω to 60.00 MΩ, 6 ranges Basic accuracy: ±0.9 % rdg. ±5 dgt.
Capacitance range1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency rangeAC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges Basic accuracy: ±0.1 % rdg. ±2 dgt.
Continuity checkContinuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more
Diode testOpen terminal voltage: 2.5 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V
Voltage detectionN/A
Other functionsCircuit-breaker false trip prevention function, filter function, display value hold, relative value display, auto-power save
DisplayMain and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates5 times|s (Capacitance measurement: 0.05 to 5 times|s, depending on measured value, Frequency: 1 to 2 time|s )
Power supplyLR03 alkaline batteries ×1, Continuous use: 35 hours (backlight OFF)
Dimensions and mass2 mm (2.83 in)W × 149 mm (5.87 in)H× 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster)
