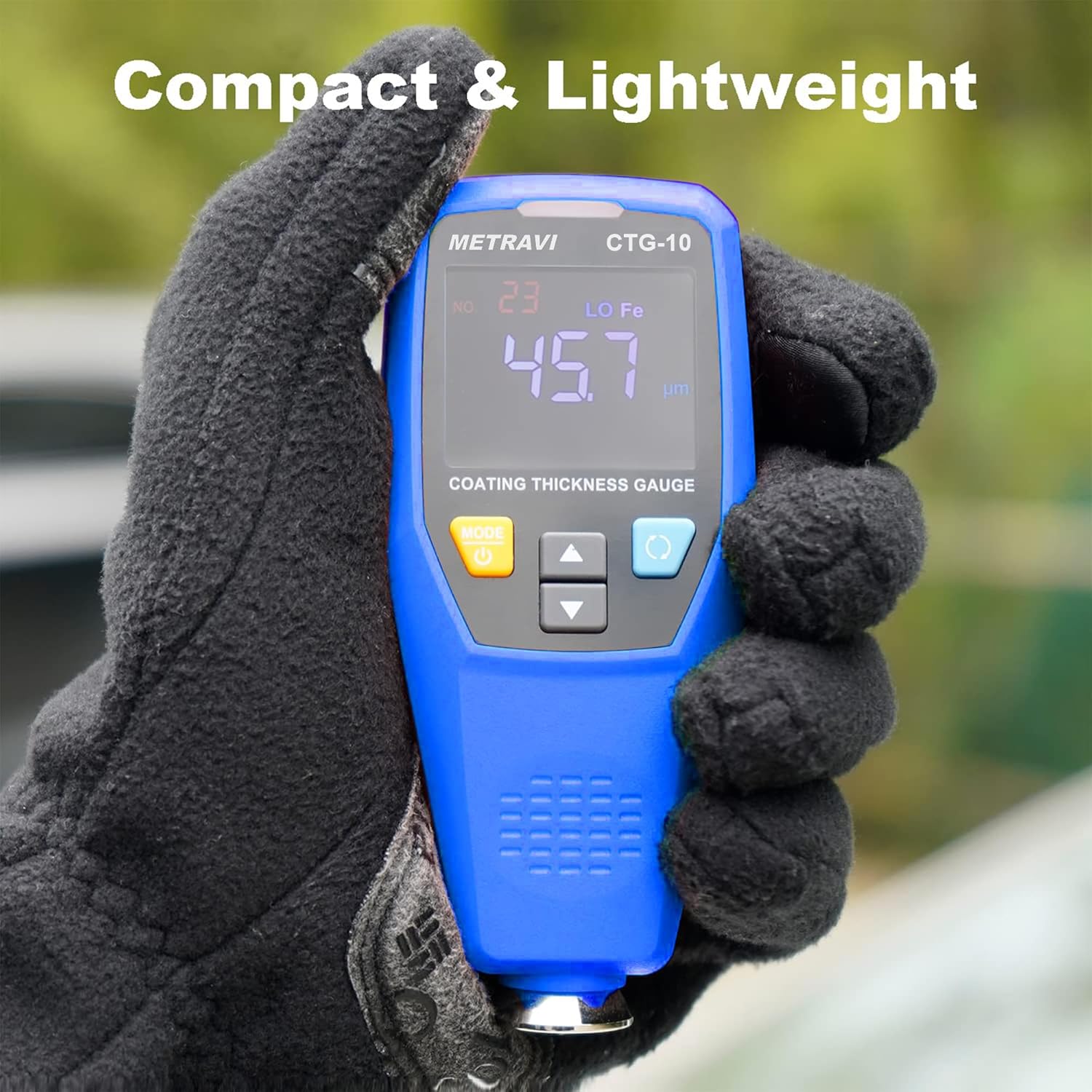

Metravi CTG-10 Coating Thickness Gauge
Click To Zoom
Metravi CTG-10 Coating Thickness Gauge
Metravi CTG-10 Coating Thickness Gauge
Coating Thickness Gauge with single probe for both ferrous and non-ferrous metal substrates. Colour light alarms and rotatable screen. Data Logging for 199 groups of data. Self calibratable. Measures upto 1750μm.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 8,500.00
(GST inclusive price) i₹11,475.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Substrates | Ferrous (Fe) & Non-ferrous (NFe) |
| Min. Substrate Thickness | 0.5mm |
| Measurement Method | Single / Continuous |
| Sensor Type Composite | Magnetic Induction & Eddy Current |
| Measuring Range | Upto 1750µm / 68.9mil |
| Resolution | 0.1µm / 0.01mil |
| Accuracy | ±(3%+1μm) / ±(3%+0.04mil) |
| Refresh Rate | 0.5s |
| Display | EBTN Colour LCD, Rotatable |
| Alarms | LED & Audio |
| Limit Setting | Available |
| MAX/MIN/AVG: | Available |
| Probe Modes | Auto/Fe/NFe |
| Data Logging | Up to 199 sets/groups |
| Calibration | User calibratable |
| Auto Power-off | After 5 mins. of non-operation |
| Low Battery indication | Flashing battery symbol |
| Power | 1.5V AAA*2=3V Alkaline Batteries |
| Impact Resistance | Can withstand 1m drop |
| Dimensions | 117×53×37mm |
| Weight | 111gms (including batteries) |
| Operating Environment | 0 to 40°C, ≤80%RH |
| Storage Environment | -20 to 60°C, ≤75%RH |
