Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger

Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger
Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger
Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger
Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger
Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger
Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger
Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger
Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger
Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger
Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger

Click To Zoom

Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger

Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger

(Based On 10 Reviews)

4-in-1 innovative experience which combines T-RMS Clamp Meter, Multimeter, Oscilloscope & Data Recorder functions. 20,000 Counts IPS LCD Colour Display with dual theme, 38mm narrow edge jaw, Bluetooth Interface, Rechargeable Battery. Clamp Meter 1000A AC/DC, 1000V AC/DC, Resistance 100.00MΩ, Capacitance 20.00mF, Frequency 20.000MHz, Duty Cycle, Diode & Continuity Test, Inrush Current, Non-contact Voltage detection. Single-channel Oscilloscope Bandwidth 1MHz for Voltage & 1kHz Current, 5.0 MSa/s. Data Logging. PC Interface & Smartphone App for data analysis..

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 10,532.00

(GST inclusive price) i
  • Base Value: ₹ 8925.4
  • GST: (18) % ₹ 1606.6
  • Total Value ₹ 10532

₹14,175.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  •  Multi-functional Usage: A 4-in-1 innovative experience which combines TRMS Clamp Meter, Multimeter, Oscilloscope, and Data Recorder functions to suit various measurement needs.
  •  High Accuracy: Ensures precise reading with high accuracy across voltage, current, resistance, and frequency measurements.
  •  Easy-to-Read Display: Features a large, clear screen for easy viewing of measurement results and waveforms.

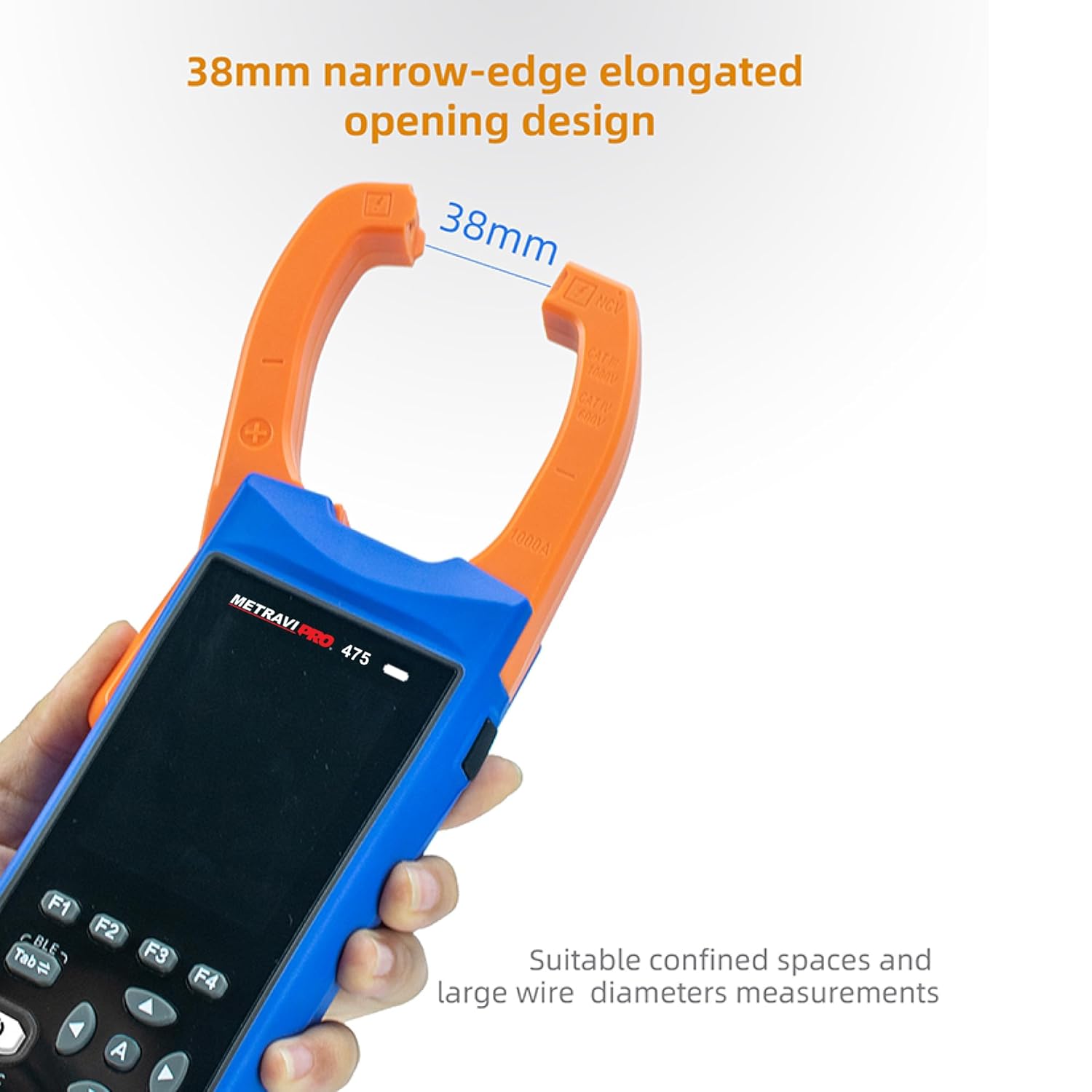

  •  Narrow-edge Jaw Opening: A 38mm elongated jaw opening design makes it suitable for confined spaces as well as large wire dimensions.
  •  Robust Input Protection: Equipped with comprehensive input protection to protect the device and the user.

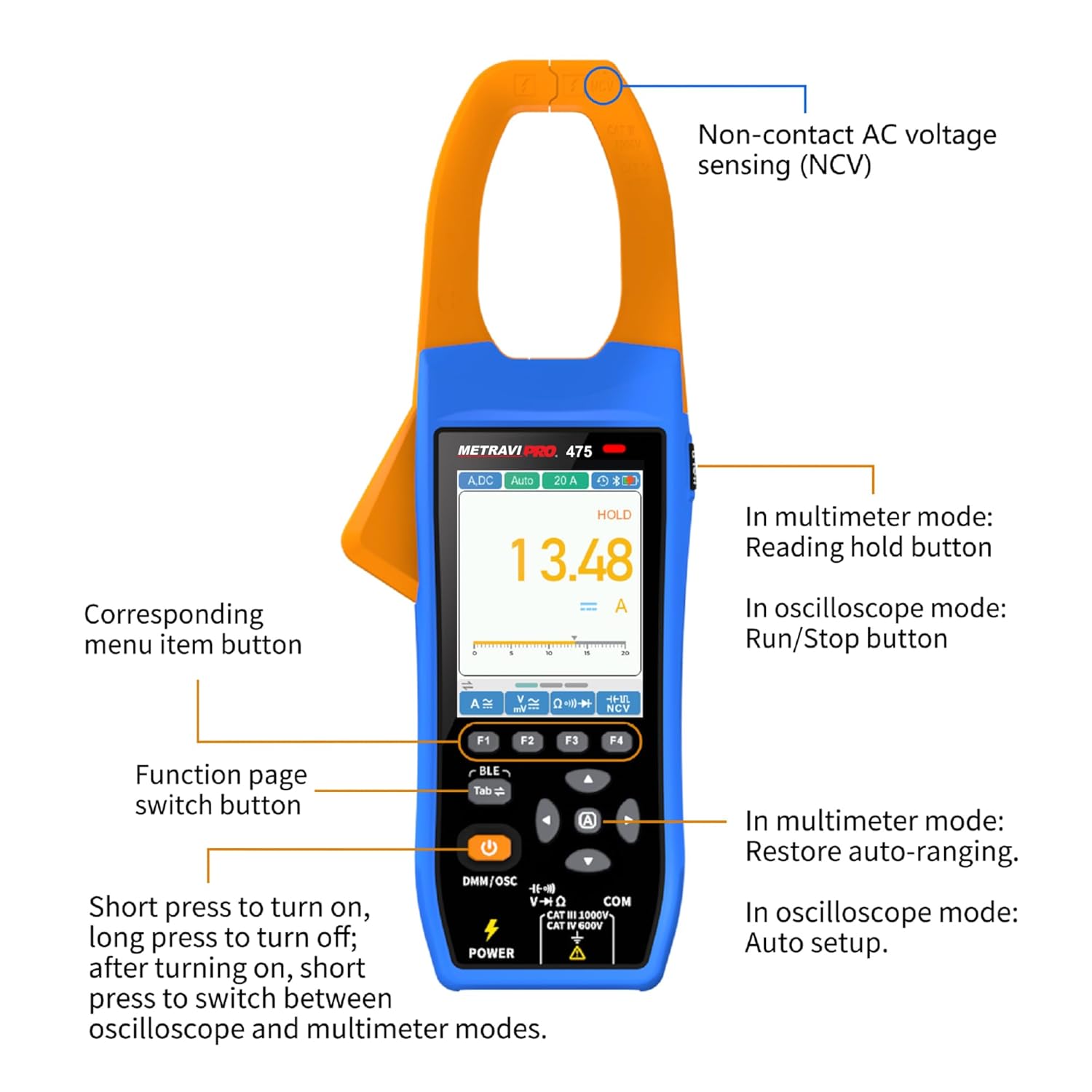

  •  User-Friendly Interface: Intuitive design with simple button layout for convenient operation and quick access to functions.

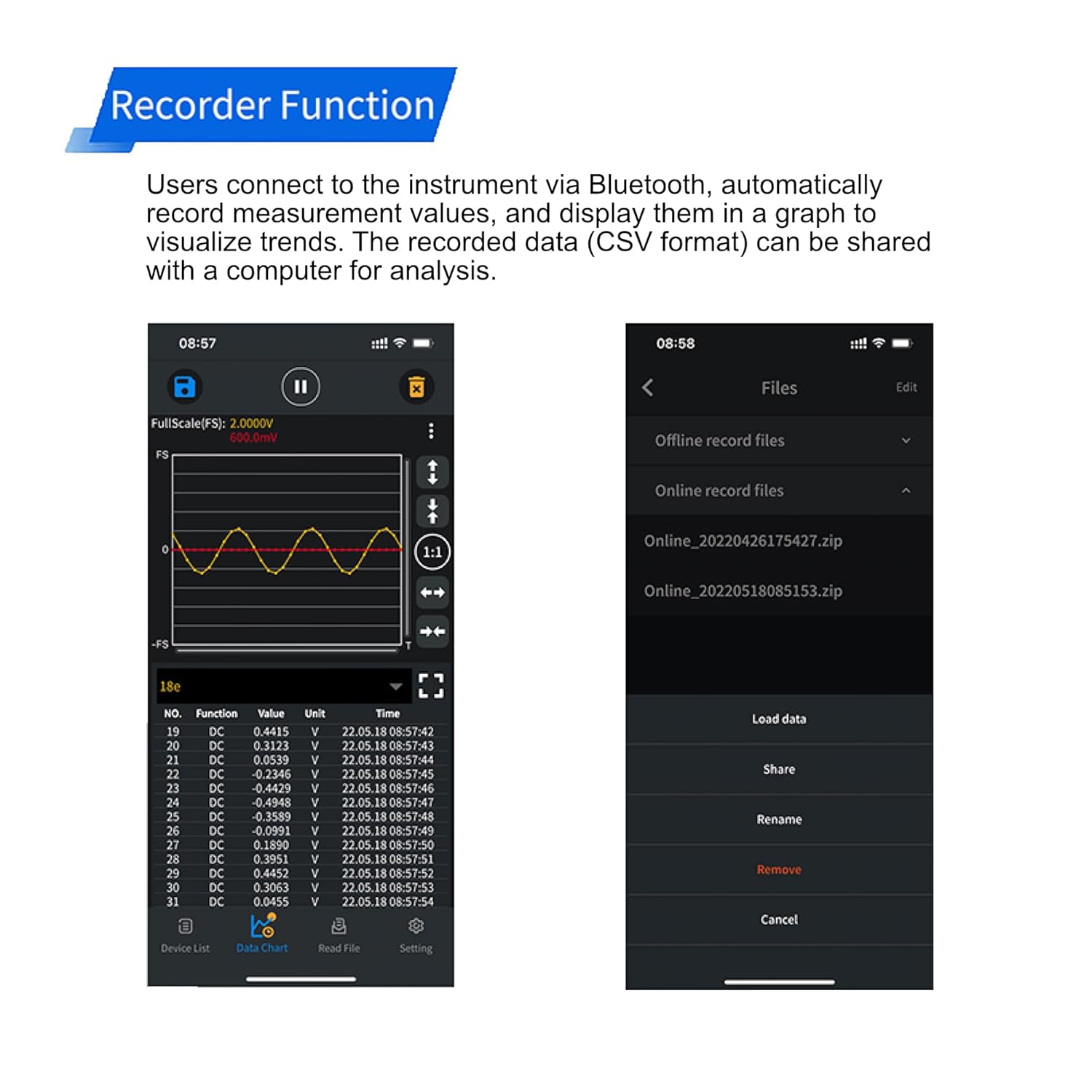

  •  Bluetooth& Smartphone App: Helps automatically record measurement values and display them in a graph to visualise trends. The recorded data can be shared in csv format.

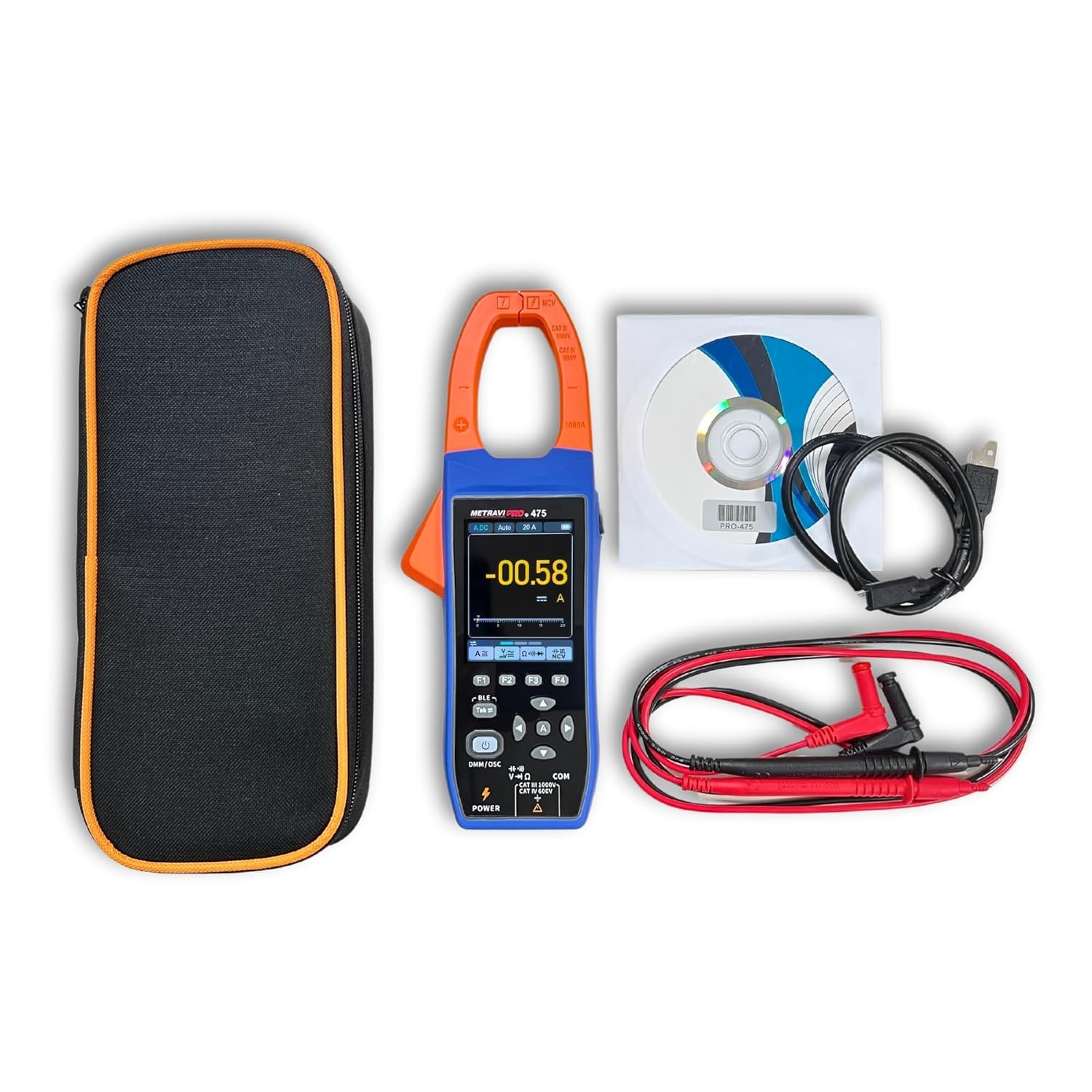

What's in the box?

  • Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger
  • Test Leads
  • User Manual
  • USB C-type Cable

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Counts2,000 / 20,000 (3 1/2 & 4 1/2 digits - depending on ranges)
SafetyInput Protection, ABS rubber coating housing
ComplianceCAT III 1000V, CAT IV 600V
Data LoggingYes - Data can be recorded, recalled and analysed
Jaw Opening38mm
Inrush ModeOnly in AC Mode
Automatic ShutdownWhen all functions are not used, the meter will automatically shut down in about 10 minutes.(the default is 10 minutes of automatic shutdown when starting, which can be canceled)
True Effective Value✔ True RMS
Display ModeDMM or OSC
Return Zero Measurement✔
Input Protection✔
Digital Hold✔
Bluetooth InterfaceA smart phone can be used to view the measurement data of the multimeter on the mobile phone side, perform remote control, display data charts, and store the measurement data in CSV format
NCVNon-contact Voltage detection
Power3.7V Rechargeable Lithium Battery, USB type-C Charging
Low Battery IndicationWhen the power is low, there will be a low power window, and wait for a period of time to shut down automatically.
Backlight Function✔
Display2.8 inch Colour IPS LCD with Dual Theme
WeightApprox. 0.35kg
Dimensions248mm（L） x 94.5mm（W） x 37.8mm（D)
DC Current (A)
Measurement Range  ResolutionFunction
20.00A 0.01A ± (2.0% + 10 dig)
200.0A 0.1A± (2.0% + 5 dig)
1000A 1A
AC Current (A)
Measurement Range  ResolutionFunction
20.00A0.01AVRMS Freq range: 40Hz1000Hz± (3.0% + 10 dig)
200.0A 0.1A± (2.5% + 5 dig)
1000A 1A
DC Voltage (mV)
Measurement Range  ResolutionFunction
20.000mV0.001mV± (0.1% + 20 dig)
200.00mV0.01mV± (0.1% + 6 dig)
DC Voltage (V)
Measurement Range  ResolutionFunction
2.0000V0.0001V± (0.1% + 5 dig)
20.000V0.001V± (0.15% + 5 dig)
200.00V0.01V
1000.0V0.1V
AC Voltage (mV)
Measurement Range  ResolutionFunction
200.00mV0.01mV

VRMS

Freq range: 40Hz-1000Hz

± (0.6% + 10 dig)
AC Voltage (V)
Measurement Range  ResolutionFunction
2.0000V0.0001V

VRMS

Freq range: 40Hz-1000Hz

± (0.6% + 10 dig)
20.000V 0.001V
200.00V0.01mV
1000.0V0.01V± (0.8% + 10 dig)
Inrush Current (A)
Measurement Range  ResolutionFunction
20.00A0.01A

VRMS

Freq range: 40Hz-1000Hz

± (10.0% + 10 dig)
200.0A0.1A
1000A1A
Resistance (Ω)
Measurement Range  ResolutionFunction
200.00Ω0.01Ω± (0.8% + 10 dig)
2.0000kΩ0.0001kΩ± (0.3% + 10 dig)
20.000kΩ0.001kΩ
200.00kΩ0.01kΩ
2.0000MΩ0.0001MΩ
20.000MΩ0.001MΩ± (0.5% + 5 dig)
100.00MΩ0.01MΩ± (5.0% + 10 dig)
Capacitance (F)
Measurement Range  ResolutionFunction
2.000nF 0.001nF ± (5.0% + 10 dig)
20.00nF0.01nF± (3.0% + 10 dig)
200.0nF0.1nF
2.000μF0.001μF
20.00μF0.01μF
200.0μF0.1μF
2.000mF0.001mF
20.00mF 0.001mF
Frequency (Hz)
Measurement Range  ResolutionFunction
200.00Hz0.01Hz  ± (0.1% + 5 dig)
2.0000kHz0.0001kHz
20.000kHz0.001kHz
200.00kHz 0.01kHz
2.0000MHz 0.0001MHz
20.000MHz0.001MHz
Duty Cycle (%)
Measurement Range  ResolutionFunction
0.1%-99.9% (Typical: Vrms=1 V, f=100Hz) 0.10%± (1.2% + 3 dig)
0.1%-99.9% (≥1 kHz)± (2.5% + 10 dig)
Diode
Measurement Range  ResolutionFunction
3.0000V 0.0001V Open circuit voltage 3.2V
On - Off
Measurement Range  ResolutionFunction
0~200.0Ω0.1ΩBuzzer limit 50Ω; the measurement value is displayed from 00 to 200.0Ω, and "OL" is displayed if the value exceeds.
OSCILLOSCOPE SPECIFICATIONS
Analogue BandwidthVoltage: 1MHz Current: 1KHz
Sample ModeReal-time sample
Real-time Sampling Rate5.0 MSa/s
Channel1
Input impedance≥10 MΩ
Maximum Input VoltageMaximum peak voltage 1000V
Maximum Sample CurrentMaximum peak current 1000A
Scan speed2.5 us/div - 10 s/div
Time Base Accuracy± (0.01 % + 0.1 div)
Sensitivity30 mV/div - 500 V/diV
Displacement Range±3 grid
Sensitivity Accuracy± (5% + 0.2 div)
Measurement ValuesRms, Freq, Max, Min, PK-PK, Avg
Trigger ModeAuto
Trigger TypeRise, Fall
