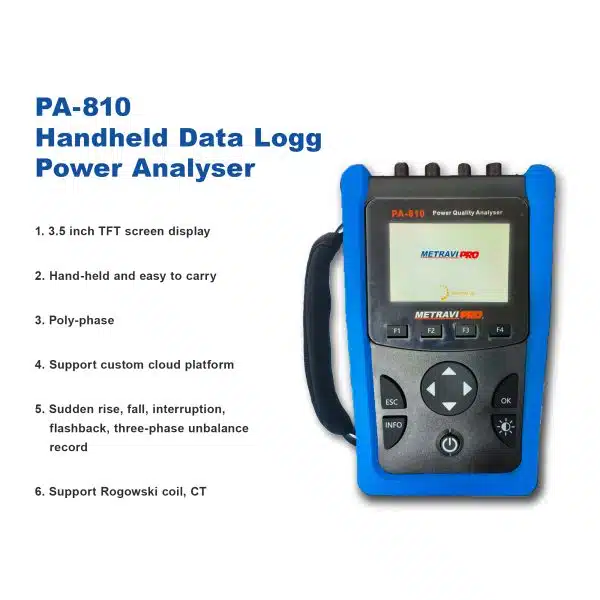

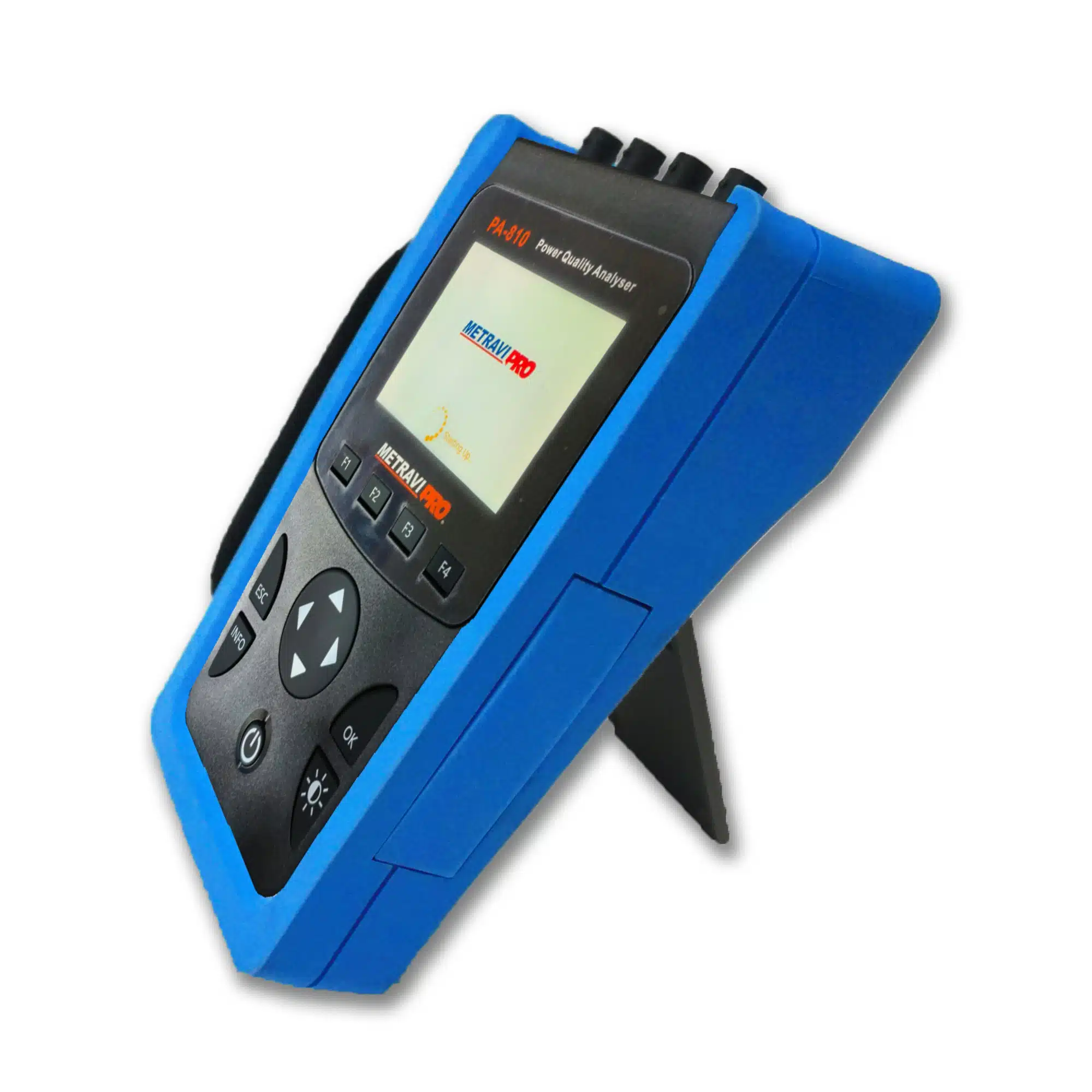

Metravi PRO PA-810 Portable Power Quality Analyser
Click To Zoom
Metravi PRO PA-810 Portable Power Quality Analyser
Metravi PRO PA-810 Portable Power Quality Analyser

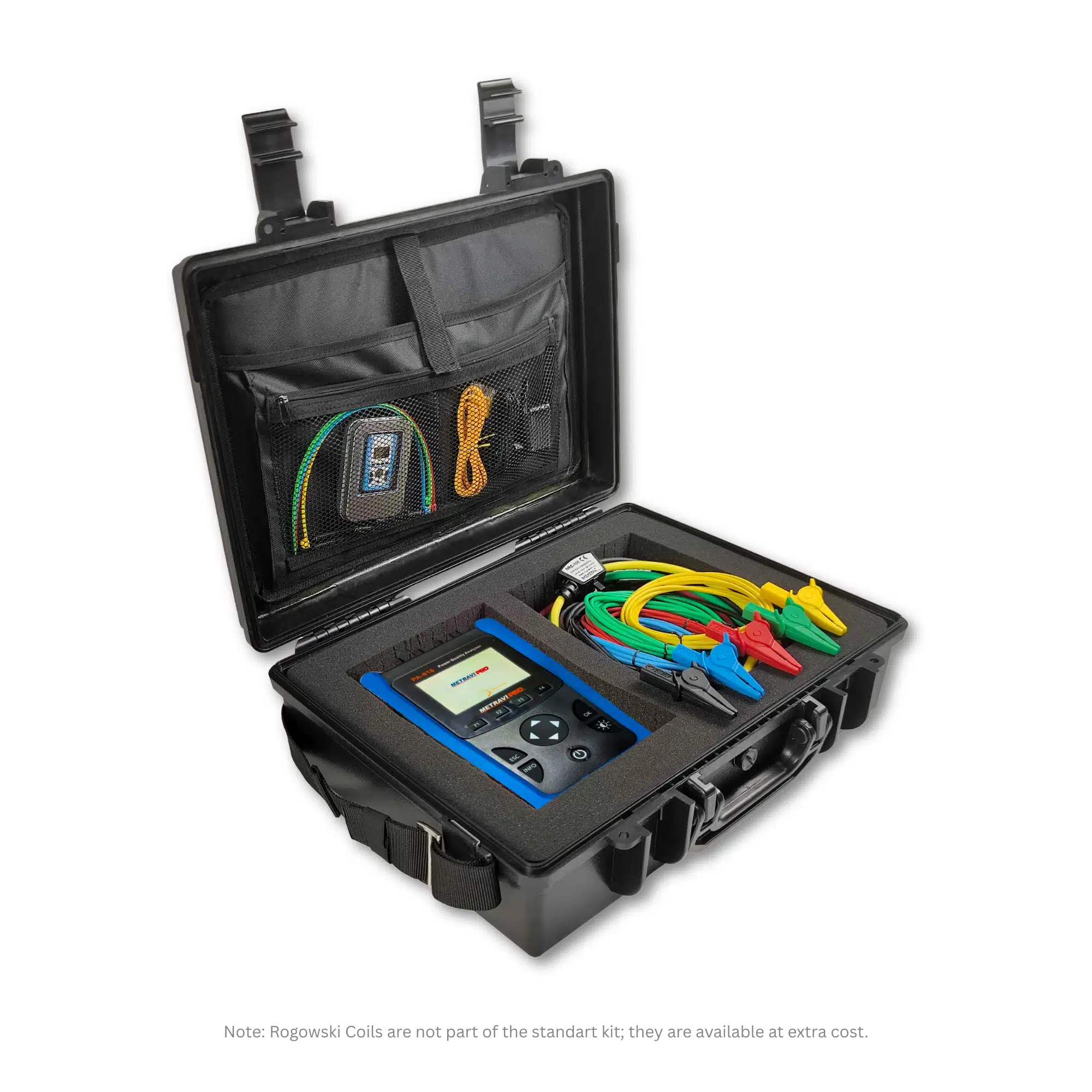

Compatible with flexible Rogowski coils CT and clamp On CTs. Measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. Measure/Calculate Current, Voltage, Frequency, Active Power, Reactive Power, Apparent Power, Power Factor, Voltage angle, Current angle, Current Unbalance, Voltage Unbalance, measures PE-N Voltage, Neutral Current. Data Logging, 3.5 inch Colour TFT Display, 51st Harmonic, Rechargeable Battery, External Rogowski Coil and BNC inputs. IEC/EN 61010-1, CAT III 300V, IP20. Comes in an IP65 rated Pelican Hard Carrying Case.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 85,249.00
(GST inclusive price) i₹1,14,750.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| GENERAL SPECIFICATIONS | |
| Display | 3.5 inch Colour TFT |
| Sampling Rate | 8k samples per second |
| Harmonic | 51st in the mean time |
| Poles | 3PH4W 3PH 3W; 1PH2W (L-N); 1PH2W(L-L); 1PH3W(L-L-N) |
| LED Indication | External Rogowski Coil, External CT (333mV only) |
| Operating Environment | -25° to 55°C, 5 to 95% RH at 50°C (non-condensing) |
| Storage Environment | -40° to 85°C, 5 to 95% RH at 50°C (non-condensing) |
| Power | 2*2900mAH Lithium battery (working time: approx 10h, charging time: approx. 8h); Or 5VDC power supply |
| Allowable Altitude | ≤ 3000 mts |
| Protection & Certifications | IEC/EN 61010-1, CATIII 300V, IEC/EN 61557-1, IEC/EN 61557-6, for distribution systems up to 277/480VAC, Pollution Degree 2, as per IEC61010-1, Doubled insulated front panel display |
| IP Protection | IP20 conforming to IEC 60629 |
| Dimensions & Weight | LxWxD : 21.5x13x6 cms, 850g (with accessories 2kgs) |
| TECHNICAL SPECIFATIONS | |

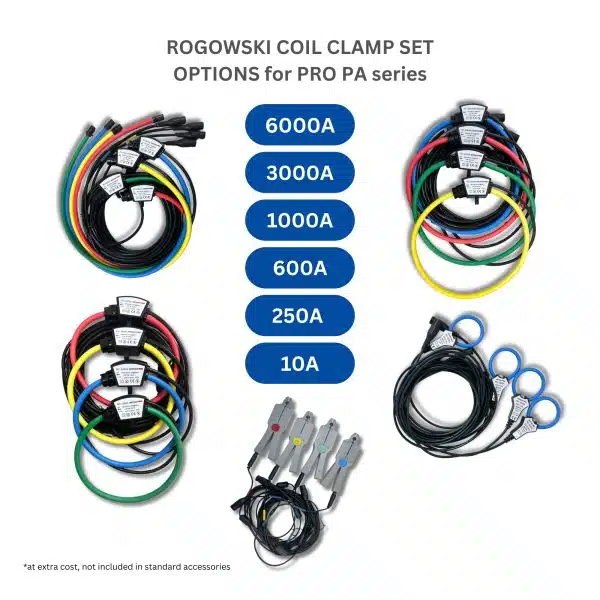

| Input Type | External Rogowski coil |
| External CT(333mV only) | |
| Poles | 3PH4W 3PH3W 1PH2W (L-N); 1PH2W(L-L);1PH3W(L-L-N) |
| Supports Extra Sensors | 4pcs BNC terminal 333mV CT |
| 4pcs BNC terminal 320mV current clamp | |
| 4pcs BNC terminal Rogowski coil | |
| Accuracy Rated current (3 level selectable) | 600A (0.5% from 6A to 720A) |
| 3000A (0.5% from 10A to 3600A) | |
| 6000A (0.5% from 20A to 7200A) | |
| Rogwoski Coil connect setting | 600A |
| 3000A | |
| 6000A | |
| Current Clamp | 5A : 0.5% (100mA～ 5A) 1%(10mA～ 100mA) |
| 10A : 0.5% (100mA～10A) 1%(10mA～100mA) | |
| CTs connect setting | Primary setting from 1A to 999999A |
| Secondary setting from 0.001mV to 707mV | |
| Voltage | 0.2% from 5 to 600V |
| Power Factor | ±0.005 |
| Actove / Apparent Power | IEC62053-22 Class 0.5 |
| Reactive Power | IEC62053-21 Class 2 |
| Frequency | 0.01% from 45 to 65Hz |
| Active Energy | IEC62053-22 Class 0.5s |
| Reactive Energy | IEC62053-21 Class 2 |
| Primary Current Range | 600A : 0.5A to 720A |
| 3kA : 0.5A to 3600A | |
| 6kA : 0.5A to 7200A | |
| Measurement Input Range | 1/225mV-707mV |
| Permissable Overload | 2V for 10s/hours |
| Current Input | BNC connector |
| Voltage Input | Banana plug |
| Transmission Mode | RJ45 port |
| Communication Protocol | MODBUS TCP |
| IP Address | Configurable (default 192.168.1.5) |
| Port No. | 502 |
| Min / Max Values | Minimum and Maximum values saved to nonvolatile memory with time stamping |
