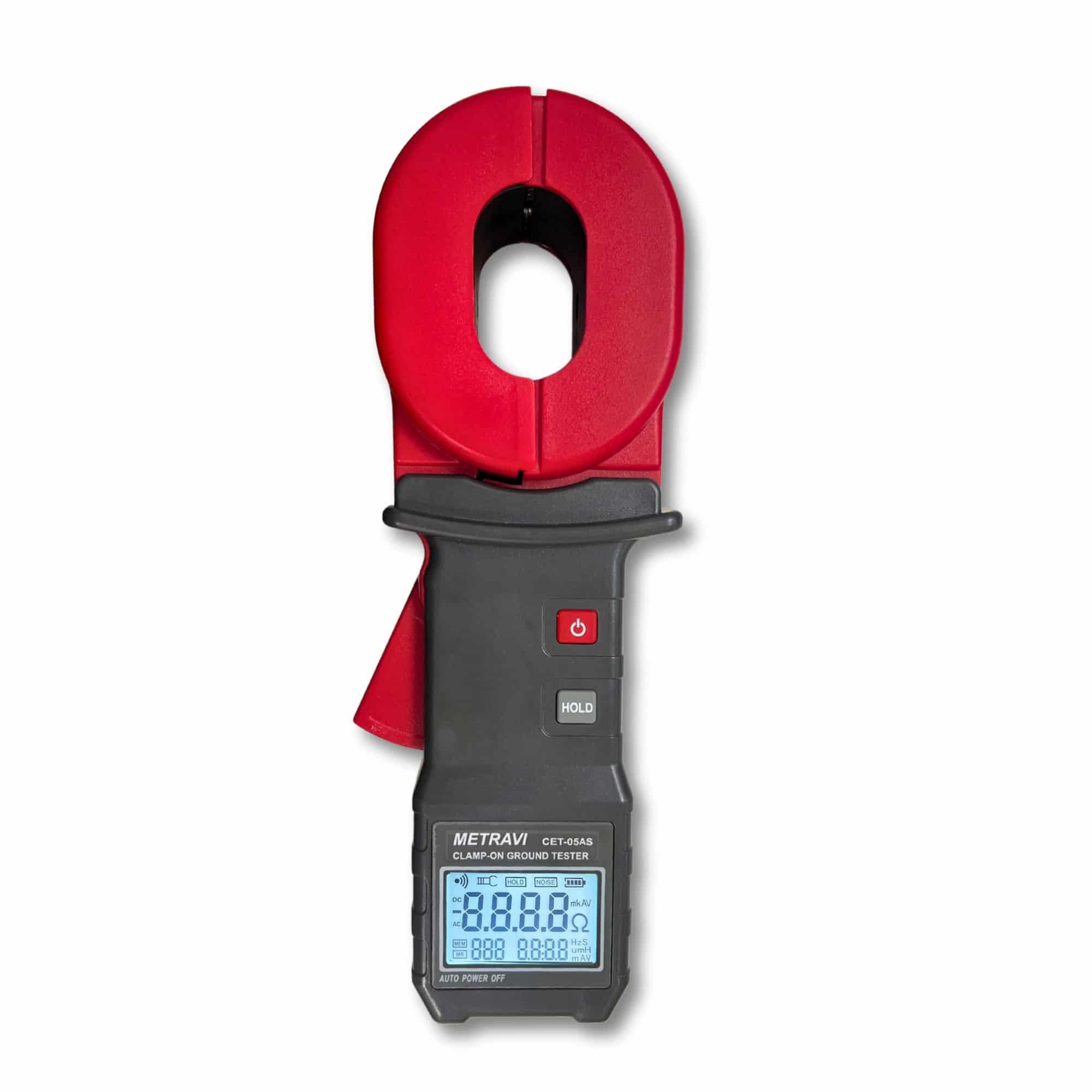

Metravi CET-05AS CLAMP-ON GROUND/EARTH RESISTANCE TESTER
Click To Zoom
Metravi CET-05AS CLAMP-ON GROUND/EARTH RESISTANCE TESTER
Metravi CET-05AS CLAMP-ON GROUND/EARTH RESISTANCE TESTER
The Metravi CET series Clamp-on Earth Resistance Testers are widely used in earth resistance measurement and loop resistance measurement in electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 20,599.00
(GST inclusive price) i₹27,675.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Clamp Jaw Size | Long clamp jaw 55mmX32mm |
| Open Clamp Jaw Size | Long clamp 55X32mm |
| Resistance Range | CET-05AS 0.01Ω-1000Ω |
| Resistance Resolution | 0.001Ω |
| Current Range* | 0.00mA-20A only for CET-05AS |
| Current Resolution* | 0.05mA |
| Alarm | "beep--beep--beep --" alarm sound. Press “AL” key to turn on/off |
| Alarm Critical Value Setting Range | Resistance:1-199Ω; * Current:1-499mA |
| Protection | Double insulation |
| Sampling Time | 0.5 s |
| Resistance Measurement Frequency | >1kHz |
| Measured Current Frequency* | 50/60Hz automatically |
| Power Supply | 6VDC (4 PCS alkaline dry battery) |
| Display | 4-bit LCD digital display, 47mm(L) × 28.5mm(W) |
| Weight | 995g |
| Tester Dimensions | Long clamp jaw type:279mm(L)x100mm(W)x56 mm(H) |
| Structure | Clamp and Jaw type |
| Shift | Automatic Shift |
| External Magnetic Electric field | <40A/m ; <1V/m |
| Working Temperature & Humidity | -10°C ~ 55°C ; 10 RH~90 RH |
| Earth / Ground Resistance | ||
| Range | Resolution | Accuracy |
| 0.010Ω - 0.099Ω | 0.001Ω | ±(1%+0.01Ω) |
| 0.10Ω - 0.99Ω | 0.01Ω | ±(1%+0.01Ω) |
| 1.0Ω-49.9Ω | 0.1Ω | ±(1%+0.1Ω) |
| 50.0Ω-99.5Ω | 0.5Ω | ±(1.5%+0.5Ω) |
| 100Ω-199Ω | 1Ω | ±(2%+1Ω) |
| 200Ω-395Ω | 5Ω | ±(5%+5Ω) |
| 400-590Ω | 10Ω | ±(10%+10Ω) |
| 600Ω-1000Ω | 20Ω | ±(20%+20Ω) |
| Leakage Current | ||
| Range | Resolution | Accuracy |
| 0.00mA -9.00mA | 0.05mA | ±(2.5%+2mA) |
| 10.0mA -99.0mA | 0.1mA | ±(2.5%+10mA) |
| 100mA -300mA | 1mA | ±(2.5%+20mA) |
| 0.30A-2.99A | 0.01A | ±(2.5%+0.1A) |
| 3.0A-9.9A | 0.1A | ±(2.5%+0.3A) |
| 10.0A-20A | 0.1 A | ±(2.5%+0.5A) |
| Jaw specification | Range of measurement | Storage | Alarm |
| 55mm×32mm | 0.01Ω - 1000Ω | 0.00mA - 20A | 99 Units |
