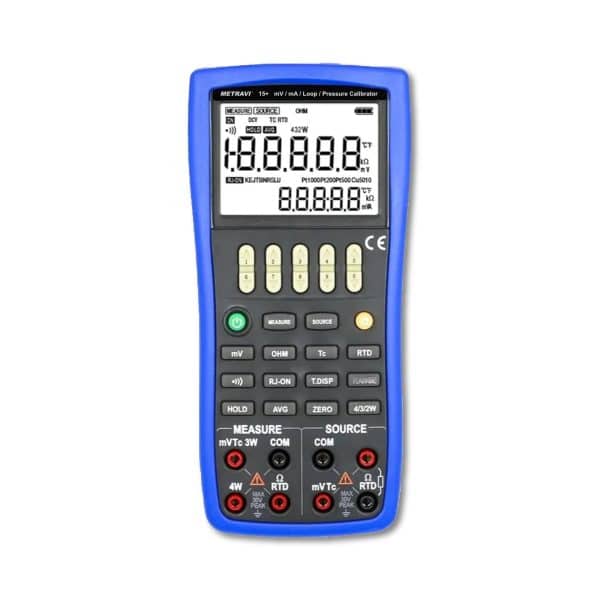

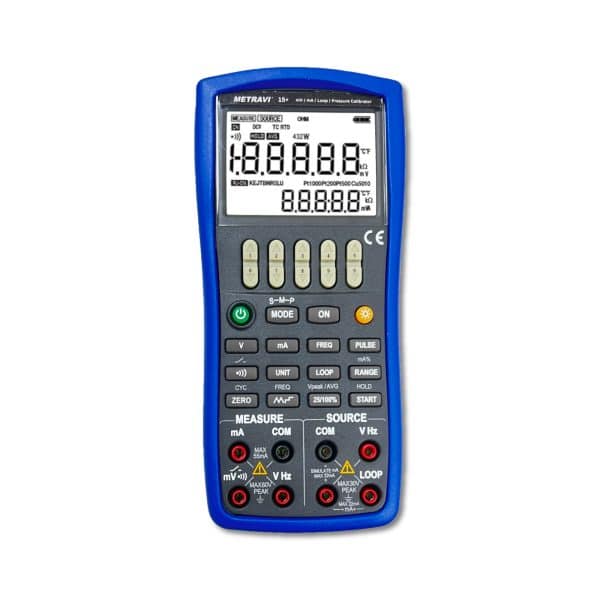

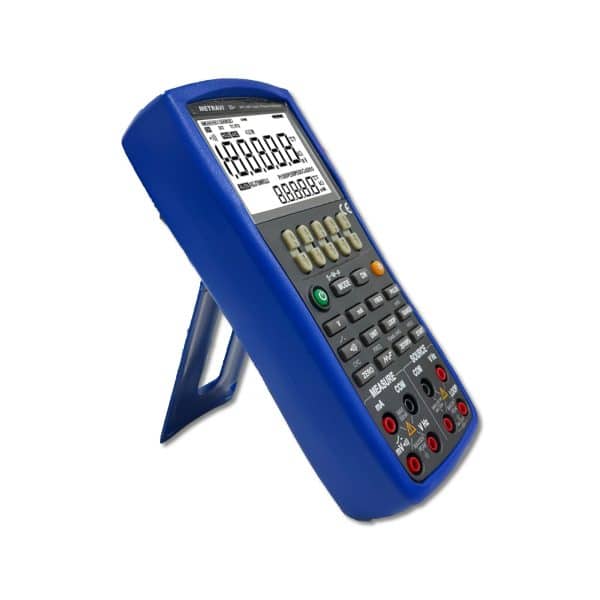

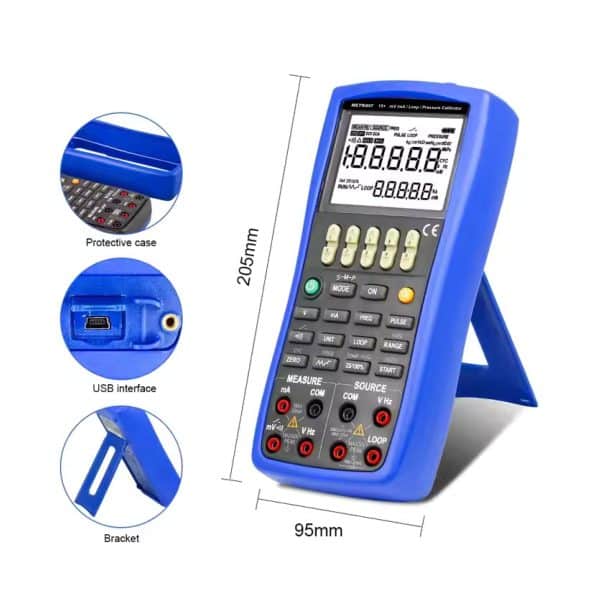

Metravi 15+ mV mA Pressure with Loop Calibrator
Click To Zoom
Metravi 15+ mV mA Pressure with Loop Calibrator
Metravi 15+ mV mA Pressure with Loop Calibrator
The voltage/current/pressure calibrator (the calibrator in the following) is a handheld, battery-operated instrument that measures and sources electrical and physical parameters.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 77,639.00
(GST inclusive price) i₹1,04,490.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Function | Reference | Range | Resolution | Accuracy | Remark |
DCV | 200mV | -20.00mV ~ 220.00mV | 10μV | 0.02+0.02 | Input Resistance : 100MΩ |
5V | -0.5000V ~ 5.5000V | 0.1mV | 0.02+0.01 |
Input Resistance : 1MΩ | |
50V | -5.000V ~ 55.000V | 1mV | 0.03+0.01 | ||
| DCmA | 50mA | -4.000mA ~ 55.000mA | 1μA | 0.02+0.01 | Input Resistance : 5Ω |
FREQ | 500Hz | 3Hz ~ 500.00Hz | 0.01Hz | ±2digit | Input Impedance : 100 kΩ at least; |
5KHz | 3Hz ~ 5.0000KHz | 0.1Hz |
| Sensitivity : 3Vp-pminimum; Duty Cycle : 50%. | |
50KHz | 3Hz ~ 50.000KHz | 1Hz | |||
| *CONT. | ≤250Ω sound | OPEN / CLOSE |
|
| Open voltage : 2.5V |
DCV | 1000mV | -100.000mV~1100.000mV | 10μV | 0.02+0.01 | Maximum output current : 2mA |
10V | -1.0000V ~ 11.0000V | 0.1mV | 0.02+0.01 | Maximum output current : 5mA | |
DCA |
20mA |
0.000mA ~ 22.000mA |
1μA |
0.02+0.02 | External supply forsimulate mA : 5V–28V Maximum load1KΩ at 20mA |
FREQ | 100Hz | 1.00Hz ~ 110.00Hz | 0.01Hz |
±2 count | Output voltage: 1~11 Vp-p (zero base waveform); Amplitude accuracy: ± (10% +0.5V); Maximum load: >100 KΩ; Duty Cycle:50%. |
1KHz | 0.100kHz ~ 1.100KHz | 1Hz | |||
10KHz | 1.0KHz ~ 11.0KHz | 0.1KHz | |||
| PULSE | 100Hz |
1 ~ 100000 cycles |
1cyc |
| Output voltage : 1 ~ 11 Vp-p (zero base waveform); Amplitude accuracy : ± (10%+0.5V); Maximum load : >100 KΩ; Duty Cycle: 50%. |
1KHz | |||||
10KHz | |||||
| LOOP | 24V |
|
| ±10% | Maximum current : 25 mA Short circuit protected |
