Kusam Meco-KM-OHM-8501E-Digital DC Micro Ohm Meter
Click To Zoom
Kusam Meco-KM-OHM-8501E-Digital DC Micro Ohm Meter
Kusam Meco-KM-OHM-8501E-Digital DC Micro Ohm Meter
The KM OHM 8501E from Kusam-Meco is a digital DC low resistance meter (micro-ohmmeter) designed for precise, four-wire measurements of resistance in cables, connectors, motor windings, and grounding systems. It features a $0.01\text {m\Omega$ to 30.00Kω range, ≥1A test current, 500-set data storage, and a large LCD, making it suitable for industrial electrical maintenance.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
B2B INVOICES
₹ 20,400.00
(GST inclusive price) i₹33,550.00
( - 23% OFF )
Description
What's in the box ?
|
Rating & Reviews
Rating

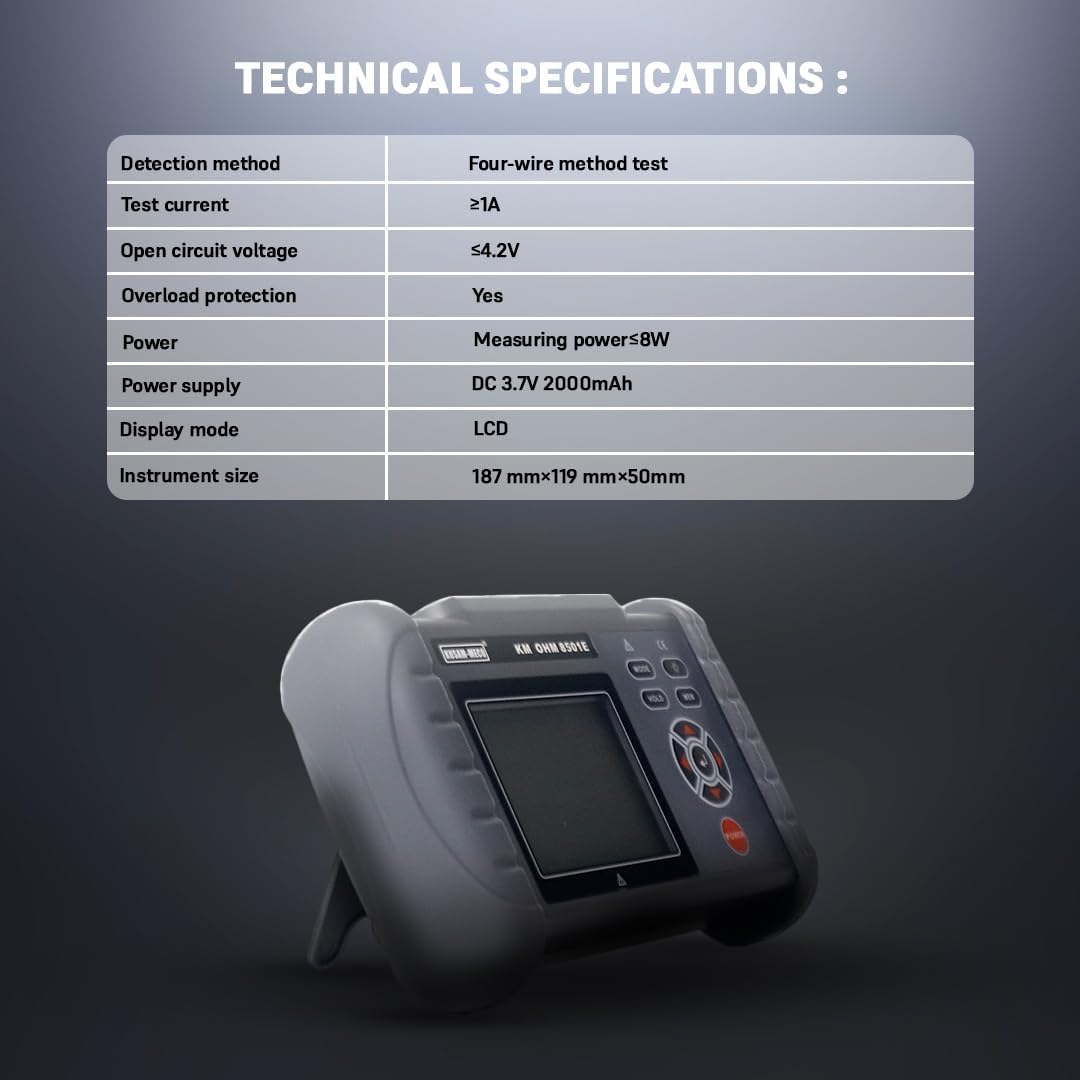

| General Specification | |
Function | Mainly used to measure the wire resistance of cables, the contact resistance of switches, connectors, relays, the resistance of coils, motors, transformer windings, and metal riveting resistance, the connection resistance test between metalcomponents, the low-value resistance test, and the ground grid and ground poles. Resistance test of connecting conductor, contact resistance test, etc. |
Detectionmethod | Four-wiremethod test |
Test current | ≥ 1A |
Open circuit voltage | ≤ 4.2V |
Overload protection | Yes |
Power | Measuringpower ≤ 8W |
Power supply | DC 3.7V 2000mAh |
Back light | Controllable gray and whitescreen backlight, suitable for dim places |
Display mode | LCD |
LCD size | 72 mm × 55mm |
Dimension | 187 mm × 119 mm × 50mm |
Test lead length | About 60cm, red, black 1pcs |
Measure time | About 2 times / sec |
Charging Function | Yes |
Data storage | 500 groups, "MEM" storage indication, display "FULL" symbol to indicate storage is full |
Data review | Data review function : "MR" symbol display |
Overflow display | Over-range overflow function : "OL" symbol display |
Battery voltage | Real-time display of battery power, reminding timely charging when battery voltage is low |
Automatic shut-down | “APO” indicates, automatic shutsdown after 15 minutes |
Power consumption | Standby : about 100mA (backlight off) Turn on backlight : about 105mA |
Weight | Instrument : 480g (including battery)(Excluding test leads). |
Working temperature and humidity | -10℃～50℃; below 80%rh |
Storage temperature and humidity | -20℃～60℃; below 70%rh |
Overload protection | AC 220V / 0.100ms second between C1-C2 P1-P2 ports, after overload protection, you need to restart the meter to test normally |
Insulation resistance | More than 10MΩ (Between circuit and case 500V) |
Pressure resistance | AC 3700V / rms (between circuit and case) |
Electromagnetic properties | IEC61010-4-3, Wireless frequency electromagnetic field ≤ 1V / m |
Suitable for Safety Regulations | IEC61010-1, CAT Ⅲ 600V, pollution level 2. |
