Metravi DT-425T Digital TRMS AC|DC Clamp Meter
Click To Zoom
Metravi DT-425T Digital TRMS AC|DC Clamp Meter
Metravi DT-425T Digital TRMS AC|DC Clamp Meter
Metravi DT-425T is a handheld auto-ranging clamp meter having 4,000 counts 3 3/4 digit backlit LCD display. The circuit design of the instrument uses the large scale integrated circuit S/D analog digital converter as core, with the full-range over-load protection circuit and a unique appearance design, makes it a dedicated ‘Must-Have’ instrument.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 5,935.00
(GST inclusive price) i₹7,985.00
( - 26% OFF )
Description

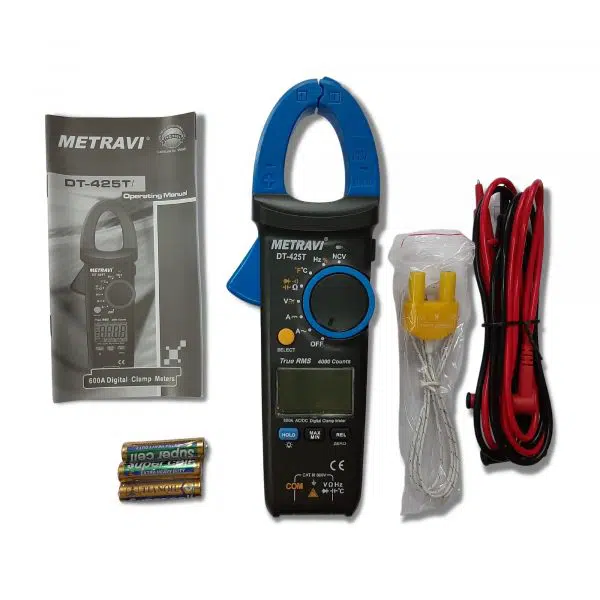

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Liquid crystal display | 4000 Counts, 3-3/4 Digits Backlit LCD |
| Polarity display | Automatic positive and negative polarity display |
| Over-load display | Display in “OL” or “-OL” |
| Battery voltage display | When the battery voltage is lower than the working voltage, a symbol will be displayed |
| Sampling rate | Approximately 3 times/second |
| Sensor type | Hall effect sensor |
| Measured position error | When measuring the current, ±1.0% additional error may occur if it fails to put the source to be measured on the central position of the clamp |
| Impact-resistant strength | 1 m height impact can be borne |
| dimension of clamp head | Diameter of 30mm |
| Electromagnetic field effect | When the electromagnetic field interference exists, it probably displays unstable or incorrect readings |
| Power requirements | Three AAA 1.5V batteries |
| Auto OFF function | 15m for automatic switch off; with disable function |
| Dimension | 228mmx77mmx41 mm |
| Weight | Approximately 265g (battery included) |
| Environmental Specifications | |
| Working environment | Indoor use |
| Maximum altitude | 2,000m |
| Safety regulations | IEC/EN 61010-1; IEC/EN 61010-2-032; IEC/EN 61010-2-033 |
| CAT Ill 600V; Pollution grade | 2 |
| Operating temperature and humidity | 0°C - 30°C (not larger than 80% RH), 30°C - 40°C (not larger than 75% RH), 40°C - 50°C (not larger than 45% RH) |
| Storage temperature and humidity | -20°C -+ 60°C (not larger than 80% RH) |
| Technical Specification | ||||
| Function | Measurement Range | Resolution Ratio | Accuracy | Overload Protection |
| AC Current T-RMS | 40.00A | 0.01A | ±(2.5%+5) | 600A |
| 600.0A | 0.1A | |||
| DC Current | 40.00A | 0.01A | ±(2.0%+3) | 600A |
| 600.0A | 0.1A | |||
| AC Voltage T-RMS | 4.000V | 0.001V | ±(1.2%+5) | 600V DC/AC |
| 40.00V | 0.01V | |||
| 400.0V | 0.1V | |||
| 600V | 1V | ±(1.5%+5) | ||
| DC Voltage | 400.0mV | 0.1mV | ±(1.0%+8) | 600V DC/AC |
| 4.000V | 0.001V | ±(0.8%+1) | ||
| 40.00V | 0.01V | ±(0.8%+3) | ||
| 400.0V | 0.1V | |||
| 600V | 1V | ±(1.0%+3) | ||
| Resistance (Ω) | 400.0 Ω | 0.1 Ω | ±(1.2%+2) | 600V DC/AC |
| 4.000k Ω | 0.001k Ω | ±(1.0%+2) | ||
| 40.00k Ω | 0.01k Ω | |||
| 400.0k Ω | 0.1k Ω | |||
| 4.000M Ω | 0.001M Ω | ±(1.2%+3) | ||
| 40.00M Ω | 0.01M Ω | ±(2%+5) | ||
| Conductivity test | 400. 0 Ω | 0.1 Ω | ≤ 30Ω the buzzer will ring /(OFF) ≥ 70Ω, the buzzer will not ring | 600V DC/AC |
| Open-circuit voltage is about 1.2V | ||||
| Diode test | 4.000V | 0.001V | open-circuit voltage is about 3.3V, and measurable PN junction ≤ forward voltage drop value of 3V. Normal voltage value of silicon PN junction is about 0.5-0.8V. | 600V DC/AC |
| Capacitance | 40.00nF | 0.01nF | ±(4.0%+25) | 600V DC/AC |
| 400.0nF | 0.1nF | ±(4.0%+5) | ||
| 4.000uF | 0.001uF | |||
| 40.00uF | 0.01uF | |||
| 400.0uF | 0.1uF | |||
| 4.000mF | 0.001mF | ±(10%) | ||
| 40.00mF | 0.01mF | For reference only | ||
| Temperature (°C) | -40°C ~ 40°C | 1°C | ±(3.0%+5) | 600V DC/AC |
| 40°C ~ 400°C | ||||
| 400°C ~ 1000°C | ±(1.0%+3) | |||
| -40°F ~ 104°F | 1°F | ±(3.0%+10) | ||
| 104°F ~ 752°F | ||||
| 752°F ~ 1832°F | ±(1.0%+6) | |||
| Frequency Hz | 10Hz ~ 1MHz | 0.01 Hz ~ 1KHz | ±(0.1%+4) | 600V DC/AC |
| NCV | ≥100Vrms, < 10mm audio and visual alarm | |||
