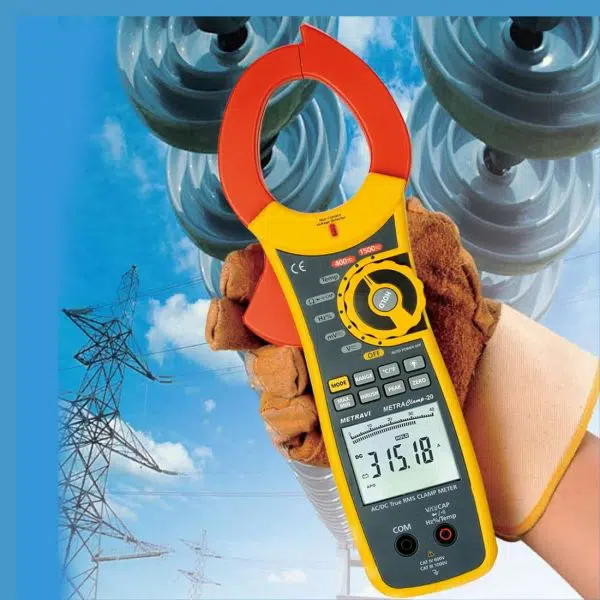

Metravi METRACLAMP-20 Digital TRMS AC|DC Clamp Meter
Click To Zoom
Metravi METRACLAMP-20 Digital TRMS AC|DC Clamp Meter
Metravi METRACLAMP-20 Digital TRMS AC|DC Clamp Meter
4-3/4 Digits, 40,000 Counts, Backlit, T-RMS, Auto-ranging, 52mm Jaw Dia, Non-Contact Voltage Detector, Fully Protected, AC/DC Voltage, AC/DC Current up to 1500A, Resistance, Capacitance, Frequency, Duty Cycle, Temperature, Diode and Continuity Test.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 12,950.00
(GST inclusive price) i₹17,415.00
( - 26% OFF )
Description

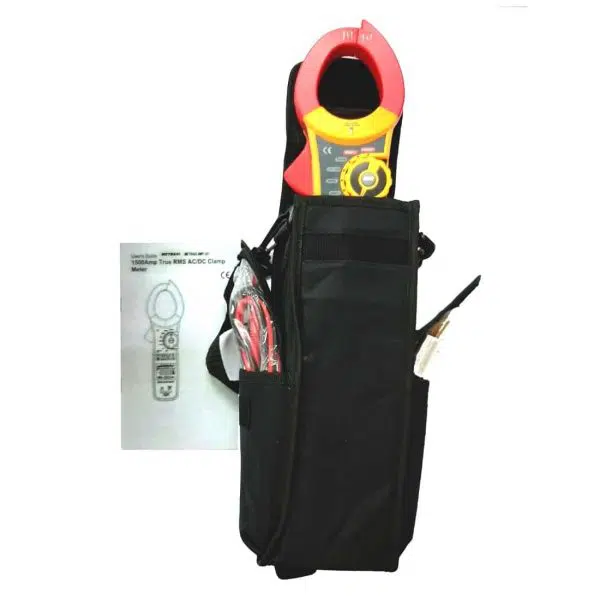

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Clamp jaw opening | 2.0" (52mm) approx. |
| Display | Dual 4-3/4 Digits |
| Continuity check | Threshold 502; Test current < 0.5mA |
| Diode test | Test current of 0.3mA typical; Open circuit voltage [2.8VDC typical] |
| Low Battery indication | Battery symbol is displayed |
| Over-range indication | 'OL' display |
| Measurement rate | 2 readings per second, nominal |
| Peak detector | >1ms |
| Max Min | Records Max / Min Values |
| Inrush Current | For Motor Current Measurement |
| Data Hold | To Freeze the displayed data |
| Non Contact Voltage Detector | Displays when near LIVE wire |
| Thermocouple sensor | Type K thermocouple required |
| Input Impedance | 10ΜΩ (VDC and VAC) |
| AC bandwidth | 50 to 400Hz (AAC and VAC) |
| AC response | True rms (AAC and VAC) |
| Crest Factor | 3.0 in 40A and 400A ranges, 1.4 in 1000A range (50/60Hz and 5% to 100% of range) |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F) |
| Storage Humidity | <80% |
| Operating Altitude | 7000ft. (2000meters) maximum. |
| Battery | One (1) 9V Battery (NEDA 1604) |
| Auto power OFF | After approx. 30 minutes |
| Dimensions & Weight | 11.57x4.13x1.85" (294x105x47mm); 18.9 oz. (536g) |
| Safety | For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Over Voltage Category IV 600V and Category III 1000V, Pollution Degree 2. |
| Approvals | CE |
| Technical Specification | ||
| Function | Range & Resolution | Accuracy (% of reading) |
| DC Current | 400.00 ADC | ± (2.5% +30digits |
| 1500.0 ADC | ± (2.5% +30digits) | |
| AC Current True RMS (50Hz to 60 Hz) | 400.00 AAC | ± (3% +50digits |
| 1500.0 AAC | ± (3% +50digits | |
| DC Voltage | 400.00 mVDC | ± (0.1% + 5 digits) |
| 4.0000VDC | ± (0.1% + 5 digits) | |
| 40.000 VDC | ||
| 1000.0 VDC | ± (0.5% + 4 digits | |
| AC Voltage True RMS (50 Hz to 1000 Hz) | 400.0 mVAC | ± (0.8% + 40 digits)(50/60Hz) |
| 4.000 VAC | ||
| 40.00 VAC | ± (1.0% + 30 digits) | |
| 750 VAC | ||
| Resistance | 400.00 Ω | ± (0.5% + 9 digits) |
| 4.0000ΚΩ | ± (1.0% + 4 digits) | |
| 40.000ΚΩ | ||
| 400.00ΚΩ | ||
| 4.0000ΜΩ | ± (2.0% + 30digits | |
| 40.000ΜΩ | ± (3.0% + 50 digits) | |
| Capacitance | 400.0nF | ±( 3.5% reading+40digits) |
| 4000nF | pm( 3.5% reading+10digits) | |
| 40.00µF | ||
| 400.0µF | ||
| 4.000mF | ±(3,5% reading + 20 digits) | |
| 40.00mF | ±(5% reading + 30 digits) | |
| Frequency | 40.000 Hz | ±(0.3% reading + 2 digits) Sensitivity: 10Vrms min. 5kHz~15kHz:40Vrms min. @20% to 80% duty cycle |
| 400.00 Hz | ||
| 4.0000KHz | ||
| 40.000KHz | ||
| 400.00KHz | ||
| 4.0000MHz | ||
| 40.000MHz | ||
| Duty Cycle | 10.0 to 95.0% | ±(0.5% reading + 2 digits) |
| Temp(type-K) (probe accuracy not included) | -100.0 to 1000.0°C | ±(1.0\%reading+ 2.5 deg * C ) |
| -148.0 to 1832.0°F | ±( 1% reading + 4.5 deg * F ) | |
