Metravi 451 Digital LCR Meter with Multimeter
Click To Zoom
Metravi 451 Digital LCR Meter with Multimeter
Metravi 451 Digital LCR Meter with Multimeter
3-1/2 Digits, Backlit LCD, Peak Hold, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Inductance, Frequency, Temperature, Diode, Transistor and Continuity Test. With Overload Protection.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 4,162.00
(GST inclusive price) i₹5,603.00
( - 26% OFF )
Description

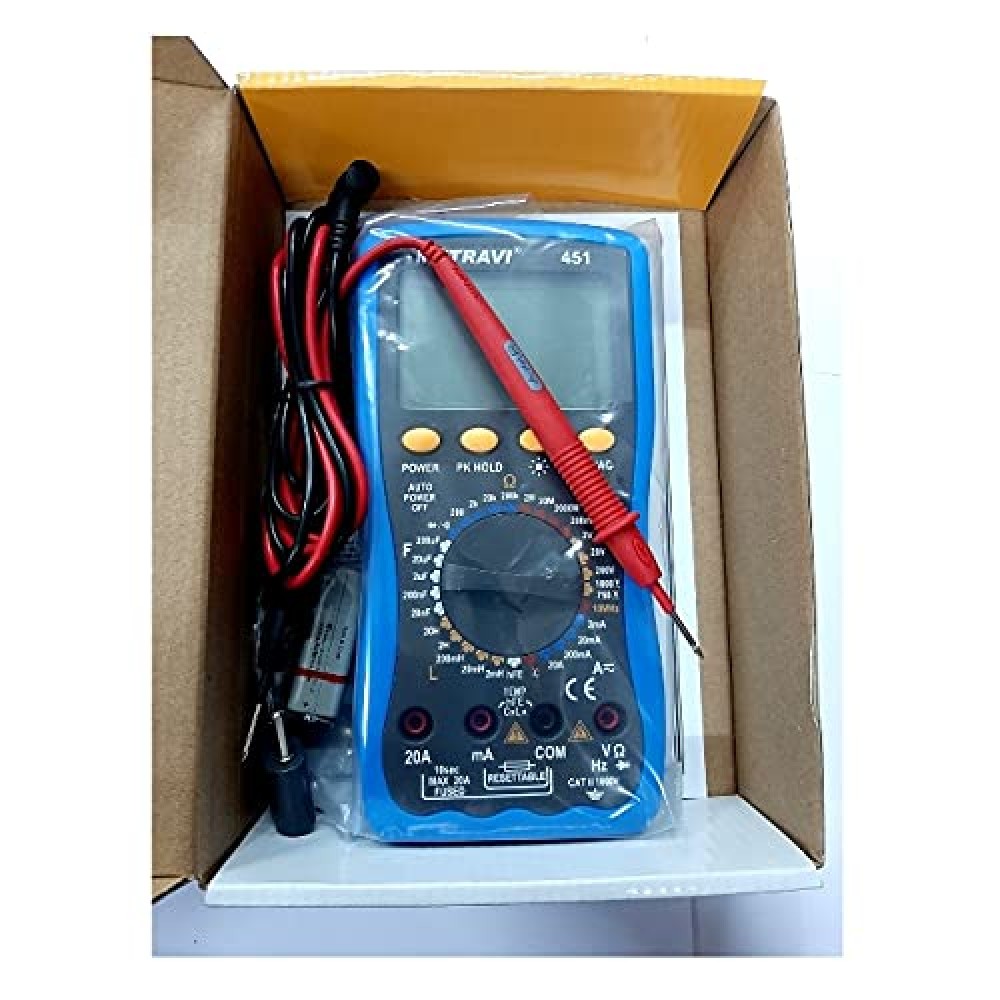

What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Displaying | LCD |
| Max. displaying | 1999 (312) digits automatic polarity display |
| Measuring method | Dual integral A/D conversion |
| Sampling rate | Approx. 3 times/second |
| Over range display | The highest digit displays "OL" or "-OL" |
| Working environment | (0~40)°C, Relative humidity: <80%. |
| Power supply | One 9V battery (6F22 or equivalent model). |
| Dimension | 190 mm x 94.5 mm x 39.5 mm (length X width X height) |
| Weight | About 450g (including 9V battery). |
| Technical Specification | |||
| Range | Resolution | Accuracy | Overload Protection |
| 200mV | 100uV | ±(0.5%rdg+3dgt | 1000V DC/750V AC RMS |
| 2V | 1mV | ||
| 20V | 10mV | ||
| 200V | 100mV | ||
| 1000V | 1V | ±(1.0%rdg+10dgt) | |
| DCA | |||
| Range | Resolution | Accuracy | Overload Protection |
| 2mA | 1uA | ±(0.8%rdg+10dgt | 200mA/250V |
| 20mA | 10uA | ||
| 200mA | 100uA | ±(1.2%rdg+10dgt | |
| 20A | 1mA | ±(2.0%rdg+10dgt | 12A/250V |
| ACV | |||
| Range | Resolution | Accuracy | Overload Protection |
| 200mV | 100uV | ±(0.8%rdg+5dgt | 1000V DC/750V AC RMS |
| 2V | 1mV | ||
| 20V | 10mV | ||
| 200V | 100mV | ||
| 750V | 1V | ±(1.2%rdg+10dgt) | |
| ACA | |||
| Range | Resolution | Accuracy | Overload Protection |
| 2mA | 1uA | ±(1.0%rdg+15dgt | 200mA/250V |
| 20mA | 10uA | ||
| 200mA | 100uA | ±(2.0%rdg+15dgt | |
| 20A | 1mA | ±(3.0%rdg+20dgt | 12A/250V |
| Resistance | |||
| Range | Resolution | Accuracy | Overload Protection |
| 200Ω | 0.1Ω | ±(0.8%rdg+5dgt | 250V DC/AC effective value |
| 2ΚΩ | 1Ω | ±(0.8%rdg+3dgt | |
| 20ΚΩ | 10Ω | ||
| 200ΚΩ | 1000 | ||
| 2ΜΩ | 1ΚΩ | ||
| 20ΜΩ | 10ΚΩ | ±(1.0%rdg+25dgt) | |
| 2000ΜΩ | 1ΜΩ | +[5.0%(reading-10)+20] | |
| Frequency (F) | |||
| Range | Resolution | Accuracy | Overload Protection |
| 2kHZ | 1Hz | ±(1.0%rdg+10dgt | 250V DC/AC effective value |
| 20kHz | 10Hz | ||
| 200kHz | 100Hz | ||
| 2000kHz | 1KHz | ||
| 10MHz | 10kHz | ||
| Inductance (C) | |||
| Range | Resolution | Accuracy | Overload Protection |
| 2mH | 1uH | ±(2.5%rdg+30dgt | 36V DC/AC effective value |
| 20mH | 10uH | ||
| 200mH | 100uH | ||
| 2H | 1mH | ||
| 20H | 10mH | ||
| Temperature (°C) | ||
| Range | Displaying | Test Condition |
| hFE NPN or PNP | 0-1000 | Basic current is approx. 10uA, Vce is about 3V |
| (-20~1000)°C | 1°C | ± (1.0rdg+4dgt) < 400°C ± (1.5%rdg+15dgt) ≥ 400°C |
