Metravi XB-33A Auto-ranging TRMS Digital Multimeter

Click To Zoom

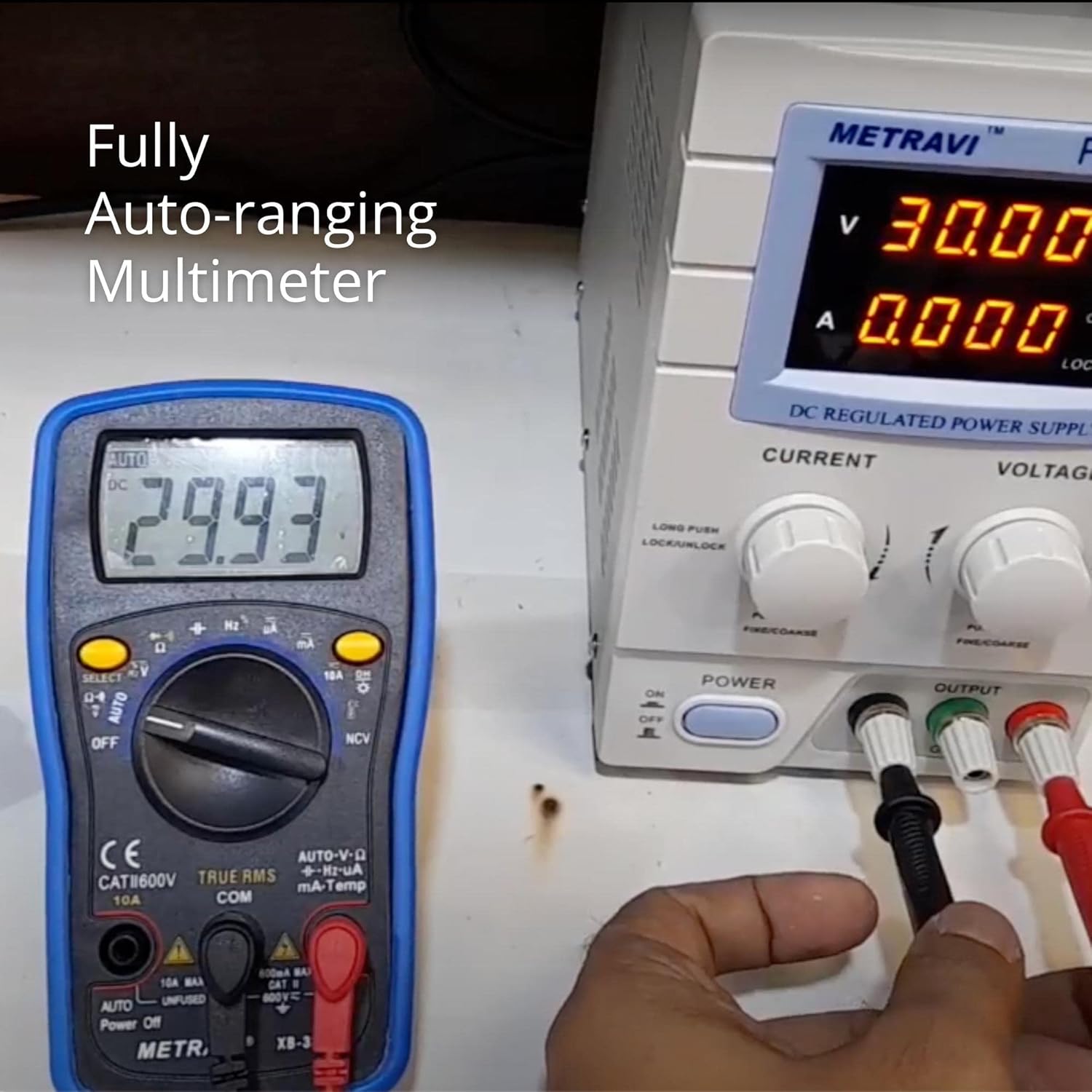

Metravi XB-33A Auto-ranging TRMS Digital Multimeter

Metravi XB-33A Auto-ranging TRMS Digital Multimeter

(Based On 10 Reviews)

The Metravi XB-33A is a 6000 Counts, Auto-ranging TRMS Digital Multimeter, with a backlit LCD display. In case if you don’t know whether two points are short, or have voltage or linear resistance, no need to worry. Just connect this multimeter and the instrument will detect automatically.

Request Callback

Order In Bulk

Generate Quote

₹ 2,228.00

(GST inclusive price) i
  • Base Value: ₹ 1888.1
  • GST: (18) % ₹ 339.9
  • Total Value ₹ 2228

₹2,228.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Display: 5999 counts backlit LCD
  • Over-range Alert
  • Polarity: Automatic
  • Data Hold
  • Low Battery indication
  • Non-contact Voltage Detection (NCV)
  • Fuses: mA range; 630mA/250V fast blow fuse, 10A range no fuse
  • CATII 600V protection
  • DC Voltage: 600.0mV/6.000V/60.00V/600.0V
  • Accuracy: ±(0.5% reading + 2 digits)\
  • AC Voltage (40~400Hz): 6.000/60.00/600.0V
  • Accuracy: ±(0.8% reading + 3 digits)
  • DC Current: 600.0µA/6000µA/60.00mA/600.00mA/6A/10A
  • Accuracy: ±(1.0% reading + 4 digits)
  • AC Current (40 to 400Hz): 600.0µA/6000µA/60.00mA/600.00mA/6A/10A
  • Accuracy: ±(1.2% reading + 5 digits)
  • Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF
  • Accuracy: ±(3.0% reading+ 10 digits)
  • Resistance: 600.0Ω/60.00kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ
  • Accuracy: ±(1.2% reading + 4 digits)
  • Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kZ/9.999MHz
  • Accuracy: ± (0.3% reading + 4 digits), Sensitivity : 3.0V RMS
  • Temperature (Requires type K thermocouple) : 20° to 1000°C
  • Accuracy: -20° to 1000°C; ±(1% rdg + 5 digits) (probe accuracy not included)
  • Diode Test: Test current of 1mA maximum, open circuit voltage 3.2V DC typical
  • Continuity Check: Audible signal will sound if the resistance is less than approximately <40±5Ω
  • Input Impedance: 10MΩ (V AC/DC)



What's in the box?

  • Auto-ranging TRMS Digital Multimeter

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

General Specification
AccuracyStated at 23°C ±5°C (73°F ±10°F) and less than 70% RH
Diode TestTest current of 1mA maximum, open circuit voltage 3.2V DC typical
Continuity CheckAudible signal will sound if the resistance is less than approximately <40±5W
Temperature SensorRequires type K thermocouple
Input Impedance10MW (V AC/DC)
Display5999 counts backlit LCD
Over-rangeOL” is displayed
PolarityAutomatic (no indication for positive polarity): Minus(-) sign for negative polarity
Measurement Rate3 times per second, nominal
Low Battery“ ” is displayed if battery voltage drops below operating voltage
BatteriesRequires (2) AAA batteries
FusesmA range; 630mA/250V fast blow fuse, 10A range no fuse
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature4°F to 140°F (-20°C to 60°C)
Relative HumidityMaximum relative humidity 80% for temperatures up to 31°C decreasing
Weight200g
Size141mm x 77mm x 35mm
Data HoldTo freeze the displayed data
