Metravi 19-Super Digital TRMS Multimeter
Click To Zoom
Metravi 19-Super Digital TRMS Multimeter
Metravi 19-Super Digital TRMS Multimeter

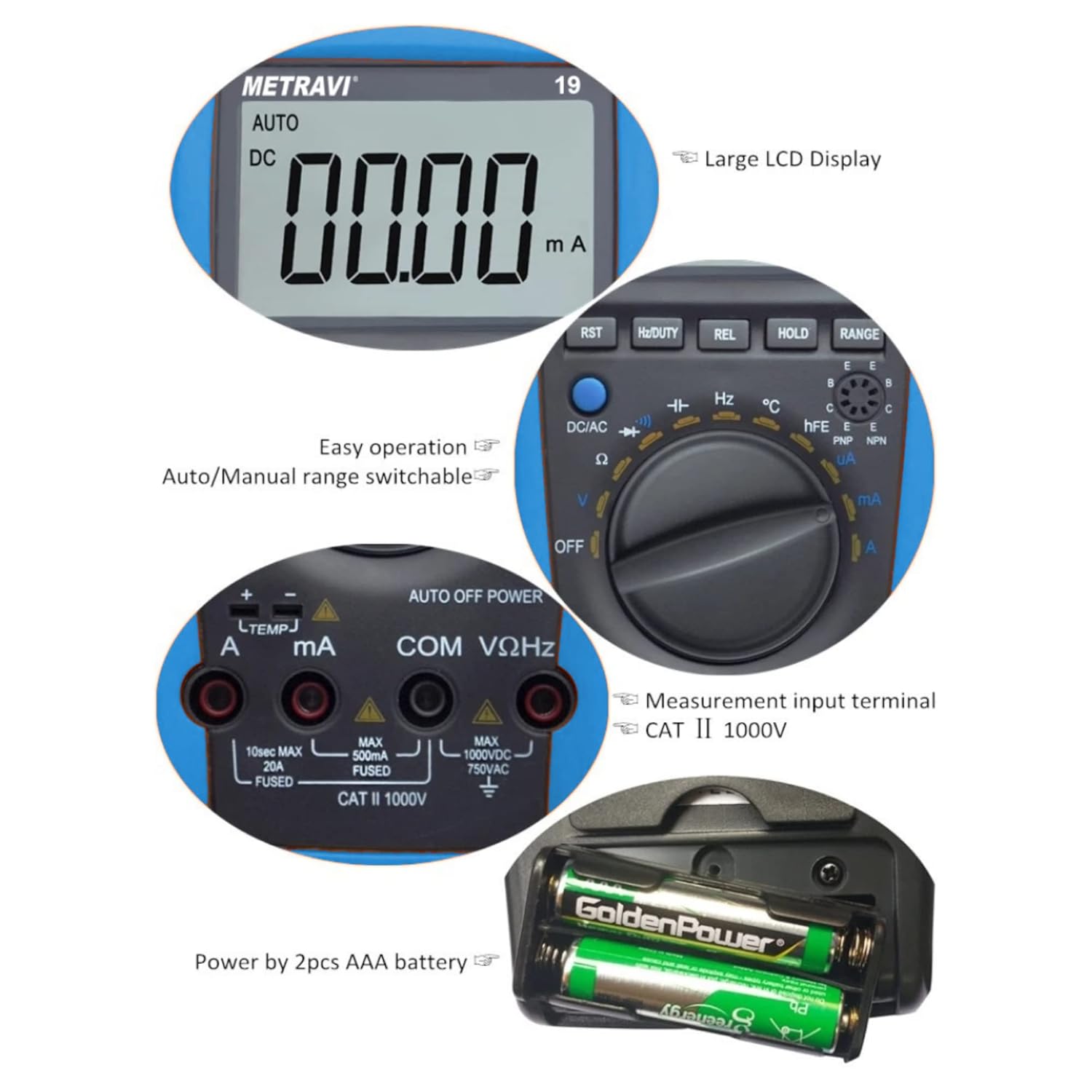

Metravi 19 Super is a 3 5/6 digit True-RMS, small-sized, handheld, digital multimeter with complete functions, modern structure, high reliability and safety.
It features a large screen, and auto-range. It can measure AC/DC voltage/current, resistance, diode, transistor, continuity, capacitance, frequency, duty ratio and temperature. Has non-contact voltage detection. It is an ideal tool for convenient repair and maintenance.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 2,510.00
(GST inclusive price) i₹3,375.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Over-range Indication | ‘OL’ |
| Display for Capacitance range | 6200 counts |
| Display for Frequency range | 9999 counts |
| Operating Temperature | 0˚C to 40˚C (32˚F to 104˚F ) |
| Storage Temperature | -10˚C to 50˚C (14˚F to 122˚F ) |
| Relative Humidity | 0˚C to 30˚C, RH <= 75%, 30˚C to 40˚C, RH <= 50% |
| Operating Altitude | 0~2000m |
| Battery | 6F22 9V |
| Low Battery | LCD displays the symbol |

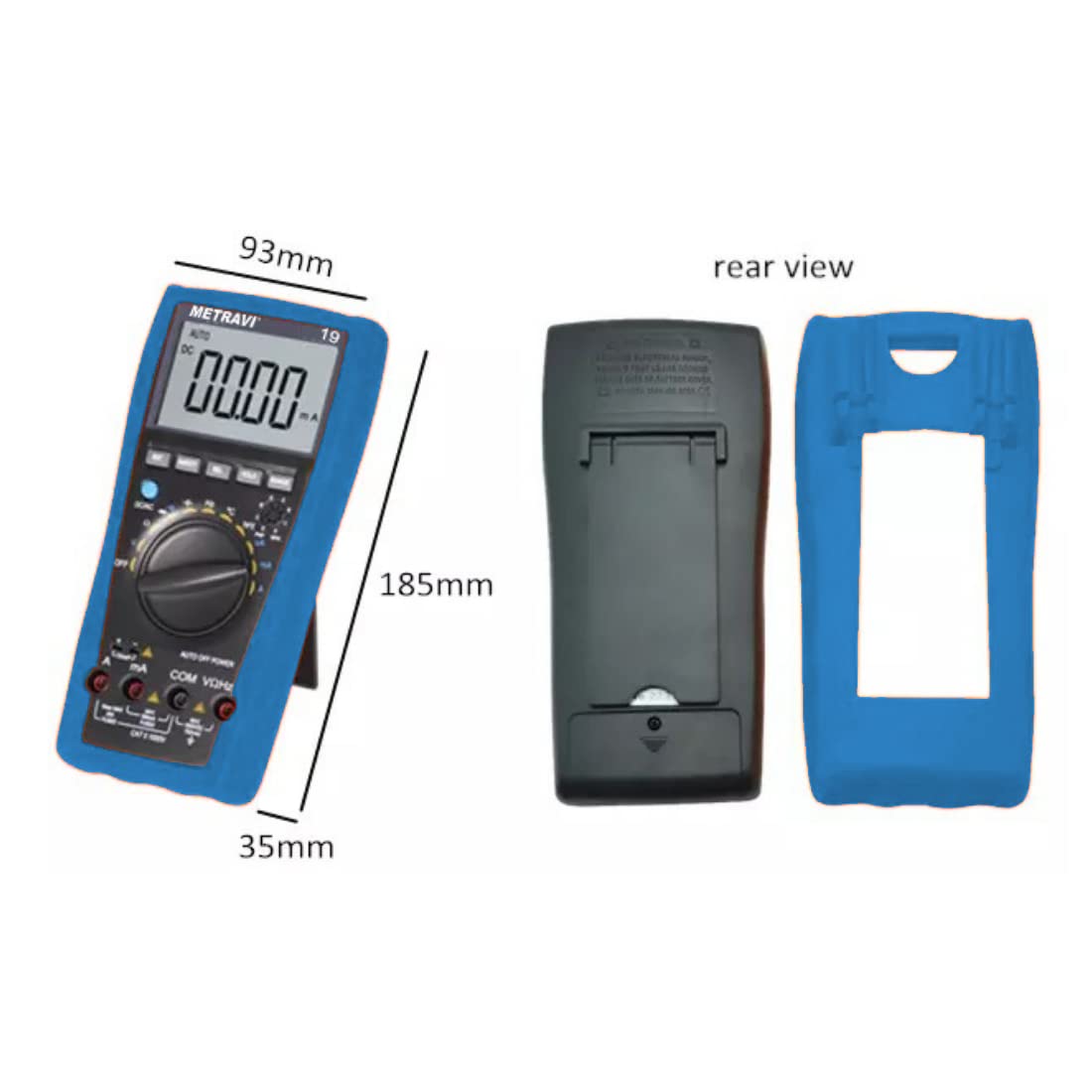

| Size | 186mm * 91mm * 39mm |
| Weight | around 305g (including batteries) |
| Technical Specification | |||
| Function | Range | Resolution | Accuracy |
| DC VOLTAGE | 600.0mV | 0.1mV | ±(0.8%+3) |
| 6.000V | 0.001V | ±(0.5%+3) | |
| 60.00V | 0.01V | ||
| 600.0V | 0.1V | ±(0.7%+3) | |
| 1000V | 1V | ||
| AC VOLTAGE (T-RMS) | 600.0mV | 0.1mV | ±(1.0%+4) |
| 6.000V | 0.001V | ±(0.8%+3) | |
| 60.00V | 0.01V | ||
| 600.0V | 0.1V | ±(1.2%+3) | |
| 1000V | 1V | ||
| RESISTANCE | 600.0Ω | 0.1Ω | ±(1.0%+2) |
| 6.000kΩ | 0.001kΩ | ±(0.8%+2) | |
| 60.00kΩ | 0.01kΩ | ||
| 600.0kΩ | 0.1kΩ | ||
| 6.000MΩ | 0.001MΩ | ±(1.2%+3) | |
| 60.00MΩ | 0.01MΩ | ±(2.5%+5) | |
| CAPACITANCE | 6.000nF | 1pF | In relative mode: ±(4%+10) |
| 60.00nF ~ 600.0μF | 10pF ~ 0.1μF | ±(4%+5) | |
| 6.000mF ~ 60.00mF | 1μF ~ 10μF | ±10% | |
| FREQUENCY / DUTY RATIO | 9.999Hz ~ 9.999MHz | 0.001Hz ~ 0.001MHz | ±(0.1%+5) |
| 0.1%~99.9% | 0.1% | Unspecified | |
| TEMPERATURE | -40~40˚C | 1˚C | ±4˚C |
| >40~500˚C | ±(1.0%+4) | ||
| >500~1000˚C | ±(2.0%+4) | ||
| -40~104˚F | 1˚F | ±5˚F | |
| >104~932˚F | ±(1.5%+5) | ||
| >932~1832˚F | ±(2.5%+5) | ||
| DC CURRENT | 600.0μA | 0.1μA | ±(1.0%+3) |
| 6000μA | 1μA | ||
| 60.00mA | 10μA | ||
| 600.0mA | 0.1mA | ||
| 6.000A | 1mA | ±(1.2%+5) | |
| 20.00A | 10mA | ||
| AC CURRENT (T-RMS) | 600.0μA | 0.1μA | ±(1.2+3) |
| 6000μA | 1μA | ||
| 60.00mA | 0.01mA | ||
| 600.0mA | 0.1mA | ||
| 6.000A | 0.001A | ±(1.5%+5) | |
| 20.00A | 0.1A | ||
