Metravi DIT-910 Digital Insulation Tester

Click To Zoom

Metravi DIT-910 Digital Insulation Tester

Metravi DIT-910 Digital Insulation Tester

(Based On 10 Reviews)

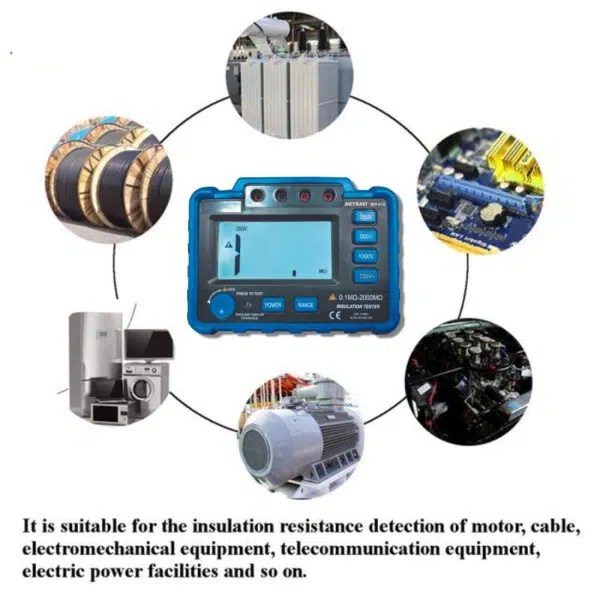

The Metravi DIT-910 digital insulation tester adopts low-loss high ratio of inductance energy storage. In-built DC voltage converter can change 12V voltage into 250V / 500V / 1000V DC voltage.

Request Callback

Order In Bulk

Generate Quote

₹ 6,386.00

(GST inclusive price) i
  • Base Value: ₹ 5411.9
  • GST: (18) % ₹ 974.1
  • Total Value ₹ 6386

₹6,386.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Median Resistance: 250V/500V : 2 MΩ  / 1000V : 5MΩ
  • Voltage Measurement: AC750V
  • Power: 8 x LR6 batteries (included) or 12V DC Power Adaptor (at extra cost)
  • Alarm Function
  • Test Current: 250V (R=250kΩ) / 500V (R=500kΩ) / 1000V (R=1MΩ)
  • Accuracy: ±10%
  • Insulation Resistance Measuring Range:
  • 250V : 0.1MΩ – 20MΩ / 20MΩ – 500MΩ
  • 500V : 0.1MΩ – 50MΩ / 50MΩ – 1000MΩ
  • 1000V : 0.1MΩ – 100MΩ / 100MΩ – 2000MΩ
  • Accuracy: ±(4% readings ±2 unit)



What's in the box?

  • User Manual
  •  Insulation Tester
  • Test Certificate
  • 1 pair of 10A Testing Leads
  •  8 x LR6 Batteries
  •  1 pair of Crocodile Clips
  • 1 set of Silicon Test Leads


Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

General Specification
Display90 × 48mm LCD display, the maximum display is “1999”.
Over range IndicationOnly the highest digit shows “1” when the upper limit is exceeded.
Measurement MethodDouble integral type A / D conversion.
Sampling RateAbout 3 times /second.
Power SupplyBattery LR6 (1.5V) × 8 or DC 12V Power Adapter (NOT Included). Low Power Indication
when the battery voltage is not enough. Automatic Shutdown function
(only for MAX DC1000V OUT) about 15 minutes after machine start.
Power ConsumptionPower consumption of empty load test <300mw
Using EnvironmentTemperature 0°C -40°C, Humidity 30% RH-85% RH.
Alarm FunctionThe meter will sound an alarm automatically when the measured resistance is lower than the
lower limit of measuring range, and the reading is invalid (for only for MAX DC 2500V OUT function).
Dimensions175(L) x 110(W) x 70(D)mm.
Weight750g (Battery included).
AC750V Input Resistance1MΩ. AC750V
Frequency Response(50~200) Hz



Technical Specification
Basic functionsMeasuring RangeBasic Accuracy
Output Voltage250V / 500V / 1000V±10%
Short Circuit Current<1.6mA
Test Current250V (R=250kΩ) 1mA
500V (R=500kΩ) 1mA
1000V (R=1MΩ) 1mA		±10%
Range
Insulation
Resistance		250V : 0.1MΩ - 20MΩ
500V : 0.1MΩ - 50MΩ
1000V : 0.1MΩ - 100MΩ		±(4% readings ±2 unit)
250V : 20MΩ - 500MΩ
500V : 50MΩ - 1000MΩ
1000V : 100MΩ - 2000MΩ		 ±(4% readings ±2 unit)
Short Circuit Current<1.6mA
Median Resistance250V/500V : 2 MΩ 1000V : 5MΩ
Voltage MeasurementAC750V±(1% readings + 6 unit)

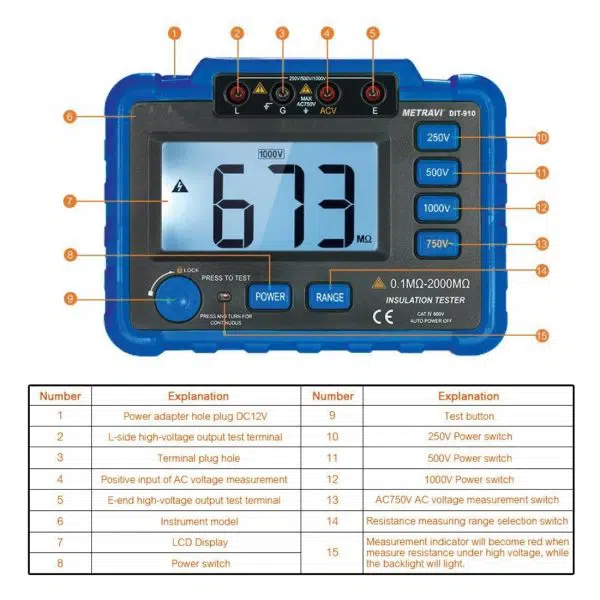

Hole Plug PositionInsulation Resistance:
L.E AC750V : ACV G
