Metravi PM-10 High-precision Bench-top Power Meter
Click To Zoom
Metravi PM-10 High-precision Bench-top Power Meter
Metravi PM-10 High-precision Bench-top Power Meter

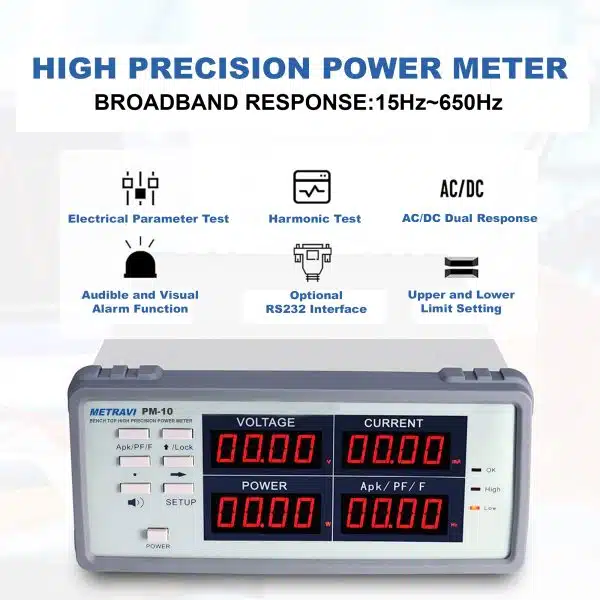

The Metravi PM-10/10B Digital Power Meter is a multi-functional measurement instrument integrating Voltage test, Current test, Power test, and Power Factor test.
Request Callback
Order In Bulk
Generate Quote
₹ 23,895.00
(GST inclusive price) i₹23,895.00
( - 0% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Power supply requirements of Instrument | |
| Voltage of Power Supply | 220V±10% |
| Power Frequency | 45Hz~65Hz |
| Maximum Power | 15VA |
| External dimensions | W × H × D(220mm×100mm×365mm (10B: W × H × D =220mm×100mm×300mm) |
| Instrument Weight | about 2.5kg |
| Measuring range and Intrinsic Error | ||
| Measurement Item | Measurement Range | Intrinsic Error |
| True-value of Voltage | 1.00V - 300.0V (automatic range) | ± (0.4% reading+0.1% range+3 words) |
| True-value of Current | 0.1mA - 3000 mA (automatic range) | ± (0.4% reading+0.1% range+3 words) |
| Peak Current | 1mA - 3500 mA (automatic range) | ± (0.491 reading+0.1% range+3 words) |
| Power | 0.01W - 900W | ± (0.4% reading+0.1% range+3 words) |
| Power Factor | 0.000 - 1.000 | ± (0.004 +0.001/reading+3 words) |
| Frequency | 16Hz - 650Hz | ± 0.5Hz |
