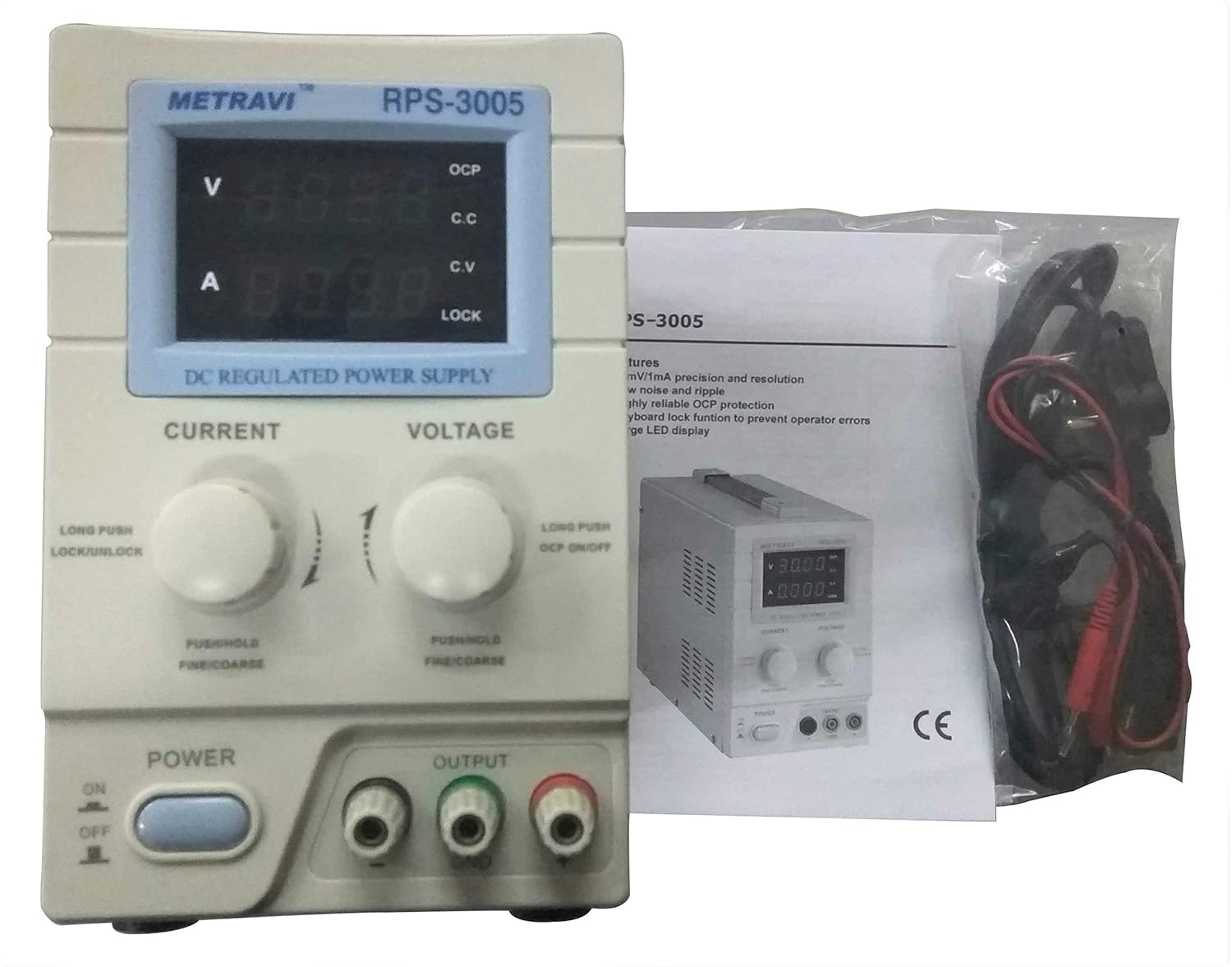

Metravi RPS-3005 DC Regulated Power Supply

Click To Zoom

Metravi RPS-3005 DC Regulated Power Supply

Metravi RPS-3005 DC Regulated Power Supply

(Based On 10 Reviews)

The Metravi RPS Series DC Regulated Power Supplies with Single, Double & Triple Output options, feature back-lit LCDs and utilize SMT technology.
These are reliable, heavy-duty DC power supplies, suitable for lab work, research, R&D, and industrial use. The linear design makes for quiet, stable operation with virtually no ripple and minimal delay during conversion, transformation, and adjustment.

Request Callback

Order In Bulk

Generate Quote

₹ 11,536.00

(GST inclusive price) i
  • Base Value: ₹ 9776.3
  • GST: (18) % ₹ 1759.7
  • Total Value ₹ 11536

₹11,536.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Utilizes SMT Technology
  • Green LED Display
  • Voltage and Current are displayed together
  • Multi-turn variable device to provide high precision voltage setting.
  • Auto-tracking on PARALLEL and SERIAL working condition resetting the voltage and current
  • DC Output Switch
  • Extended output terminals
  • Continuous working under full load condition
  • Constant Current and Constant Voltage Protection
  • Short Circuit protection
  • Input : 220 / 110V ±10% 50~60Hz
  • Variable Output Voltage : 0 – 30V DC
  • Variable Output Current : 0 – 2
  • Two operational modes: Constant Voltage Mode and Constant Current Mode
  • Built-in High Current Limiting for protection
  • Built-in thermo-sensor-activated cooling fan
  • Low noise and ripple
  • Highly reliable OCP protection
  • Keyboard lock function to prevent operator errors
  • Large Dual-digit LED display for voltage and current
  • Coarse and fine adjustments of voltage and current
  • Protection mode: voltage or current limitation
  • Output connectors: insulated safety plugs
  • Organic glass front panel / other panels made of steel
  • Low noise temperature-controlled fan
  • Button lock function
  • Constant voltage / constant current
  • Fuse-protected



What's in the box?

  •  DC Regulated Power Supply



Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

Technical  Specification
ModelsRPS-3005
Input Voltage220V/110V±10% 5-60Hz
Output Voltage0-5A
Current Stepwise0-2A
Output Current
Line RegulationCV = 0.02% + 2mV
Load RegulationCV = 0.02% + 2mV
Ripple and NoiseCV = 0.5mV
Operating Temperature0-40°C
Operating Humidity<90%
