Metravi NCTM-1000 Non-contact Tachometer
Click To Zoom

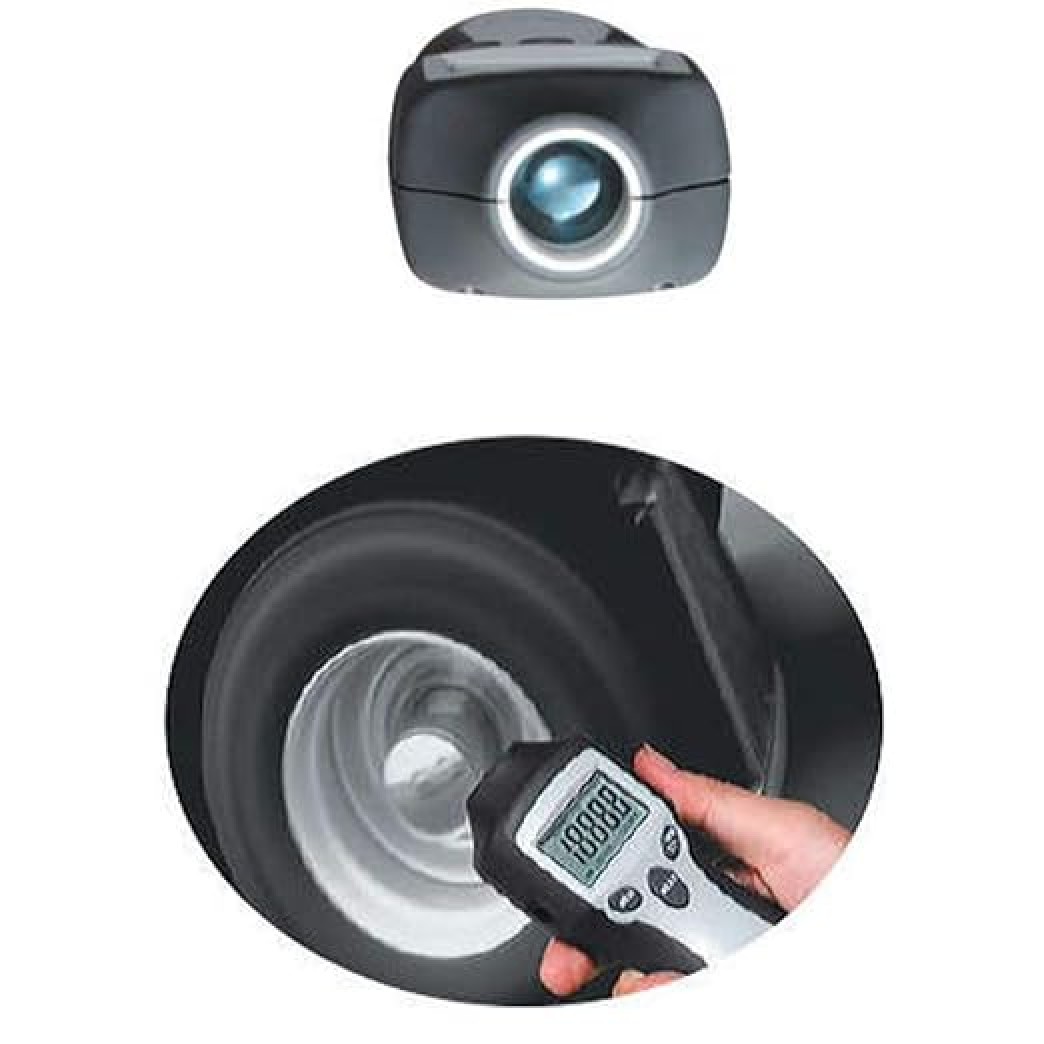

Metravi NCTM-1000 Non-contact Tachometer
Metravi NCTM-1000 Non-contact Tachometer
Non-contact type Tachometer Cum Counter with Max / Min . Last Data Record. Measures 2 to 99,999 RPM and 1 to 99,999 Counts
Request Callback
Order In Bulk
Generate Quote
₹ 5,063.00
(GST inclusive price) i₹5,063.00
( - 0% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Display | 5 digits LCD display. |
| Accuracy | ± (0.05%+1 digits). |
| RPM test range | 2 to 99,999RPM |
| Count range | 1 to 99,999 (Counter) |
| Resolution | 0.1 RPM (2 to 999.9 RPM). 1 RPM. (Over 1000 RPM) |
| Sampling time | 0.5 sec. (over 120 RPM) |
| Detecting distance | 50mm to 500 mm. |
| Time base | Quartz crystal |
| Power consumption | Approx. 45mA |
| Power Supply | 9V Battery or 6V Exterior DC. |
| Operation temp | 0 °C to 50 °C. |
| Dimension | 160 x 58 x 39mm. |
| Weight | 151g. |
| Technical Specification | |
| DC Voltage (DCV) | |
| Range | Accuracy |
| 60V | ± 3% full scale |
| 300V | ± 3% full scale |
| AC Voltage (ACV) | |
| Range | Accuracy |
| 150V | ± 3% full scale |
| 600V | ± 3% full scale |
| AC Current (ACA) | |
| Range | Accuracy |
| 50A | ± 4% full scale |
| 250A | |
| 500A | |
| 1000A | |
| DC Resistance | |
| 2kW (x1 ) | 2000kW (x100) |
| 2000kW (x100) | |
| ± 10W buzzing | |
| Temperature (TEMP) | |
| Range | Accuracy |
| 20°C ~ 150°C | ±5% of full arc (28.5mm) |
