Metravi VT-151W Wireless Vibration Tester with Bearing Analyser

Click To Zoom

Metravi VT-151W Wireless Vibration Tester with Bearing Analyser

Metravi VT-151W Wireless Vibration Tester with Bearing Analyser

(Based On 10 Reviews)

The Metravi VT-151W Wireless Vibration Tester is a portable Single Axis Piezo-electric Wireless Accelerometer which operates on Android Mobile / Tab. A Revolutionary Tool for Industrial Maintenance and Engineering Applications. It is a wireless, ultra-low noise accelerometer with 10 kHz bandwidth that exceeds the characteristics above all of most conventional accelerometers.

Request Callback

Order In Bulk

Generate Quote

₹ 3,41,550.00

(GST inclusive price) i
  • Base Value: ₹ 289449.2
  • GST: (18) % ₹ 52100.8
  • Total Value ₹ 341550

₹3,41,550.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Wireless Technology for Remote Control and Monitoring: Allows the user to remotely control and monitor the vibration levels of their machinery. This gives maintenance teams and engineers greater flexibility and convenience, as they do not need to be physically near the machinery while taking readings.
  • Can be connected to a computer, tablet, or smartphone, using Wi-Fi or Bluetooth: enables real-time monitoring and data analysis. Allows the user to track and record the vibration levels of different machines over time, detect early signs of wear and tear, and prevent breakdowns or failures.
  •  Technology for Precision and Safety: Ensures high accuracy and precision, as it detects the slightest movements or deviations in the rotating parts of the machine. The laser technology is non-contact, meaning that the device does not need to be in direct contact with the machinery. This feature increases the safety of the user, as it eliminates the risk of physical contact with rotating machinery, which can be hazardous.
  • Easy to Use: Features a user-friendly interface, and the user can choose between different measurement modes, such as time waveform, spectrum, and envelope, depending on their needs; easy even for non-specialist personnel.
  • Built-in Analysis for All Bearings of Leading Brands*: Measurements can be analysed against given standards for most Bearings models available in the built-in Bearing Database.
  • Lightweight, Compact, and Portable: Making it easy to transport and use in different locations. The device comes with its own carrying case, which protects it from damage during transportation and storage.

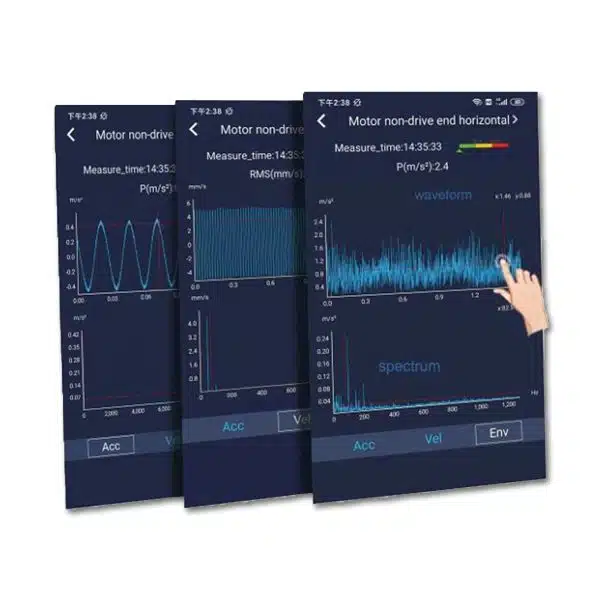

  • Multiple parameter collection: Support for multiple signal types: ACC, Vel, Disp, Env, BC, FFT, Time waveform.
  • Wireless Signal acquisition: Range up to 50 meters (depending on field condition).
  • Ultra-low power consumption.
  • Easy charging and up to 10 hours of operation on a single charge.
  • Quick installation.
  • Built-in magnetic suction base.
  • Premium protection: IP67 industrial-grade dust-proof & splash-proof protection with Explosion proof certification, makes it durable even in harsh
  • conditions.
  • A Standard USB connector helps you charge at any time.
  • Sampling Frequency: Max 25.6 Khz
  • Sensing Element: Piezoelectric / Annual shear mode
  • Signal to Noise Ratio: > 80 d
  • Frequency Response: ± 3dB 0.4 Hz – 10 KHz
  • Accuracy: ±5% @150 Hz, 1g
  • Waveform Types: Acceleration, Velocity, Displacement, Envelope
  • Protection: IP67, Exib IIC T4 Ga
  • Compliance: ISO 10816-3
  • Power: Li-ion Rechargeable Battery
  • Connectivity: Wifi point to point upto 50 meters depending on the environment

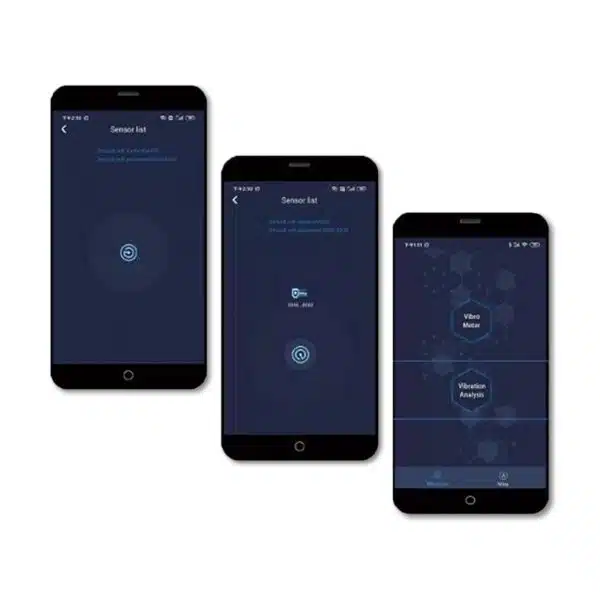

  • Display & Analysis: Smartphone Android App



What's in the box?

  • Wireless Vibration Tester with Bearing Analyses

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0

Product Specifications

Technical Specification
Sampling frequencyMax 25.6 Khz
Sensing elementPiezoelectric / Annual shear mode
Full scale50g
Signal-to-Noise ratio> 80 d
Frequency response± 3dB 0.4 Hz - 10 KHz
Accuracy±5% @150 Hz, 1g
Signal RMS, Peak, peak to peak, Bearing status value
FFT resolution6400 lines
Waveform typeAcceleration, Velocity, Displacement, Envelope
Bearings conditionBC<1, Well; 1<BC<2, Lubrication; 2<BC, failure
Measurement duration3s typical (affected by distance & communication)
Frequency range Velocity & Displacement (10 ~ 1000 Hz); Accelaration (2 ~ 5000Hz)
Vibration setupAutomatic definition of the measurements based on the machine class
Dimensions41.8 x 69.4 mm
Weight228 g
MountingM6 threaded hole
LED indicatorRed, Green, Blue
Operating temperature-30°C to 70°C
Protection IP67
Explosion proofExib IIC T4 Ga
ISO standardCompliance ISO 10816-3
Humidity0% to 95% RH
Battery Li-ion Rechargeable
Battery LifeMore than 10 hours (continuously)
Battery Charging 1 - 2 hours
Capacity 750mAh
Wireless protocol Wifi point to point
Wireless range Upto 50 meters depending on the environment
Standard mobile system compatibilityAndroid
