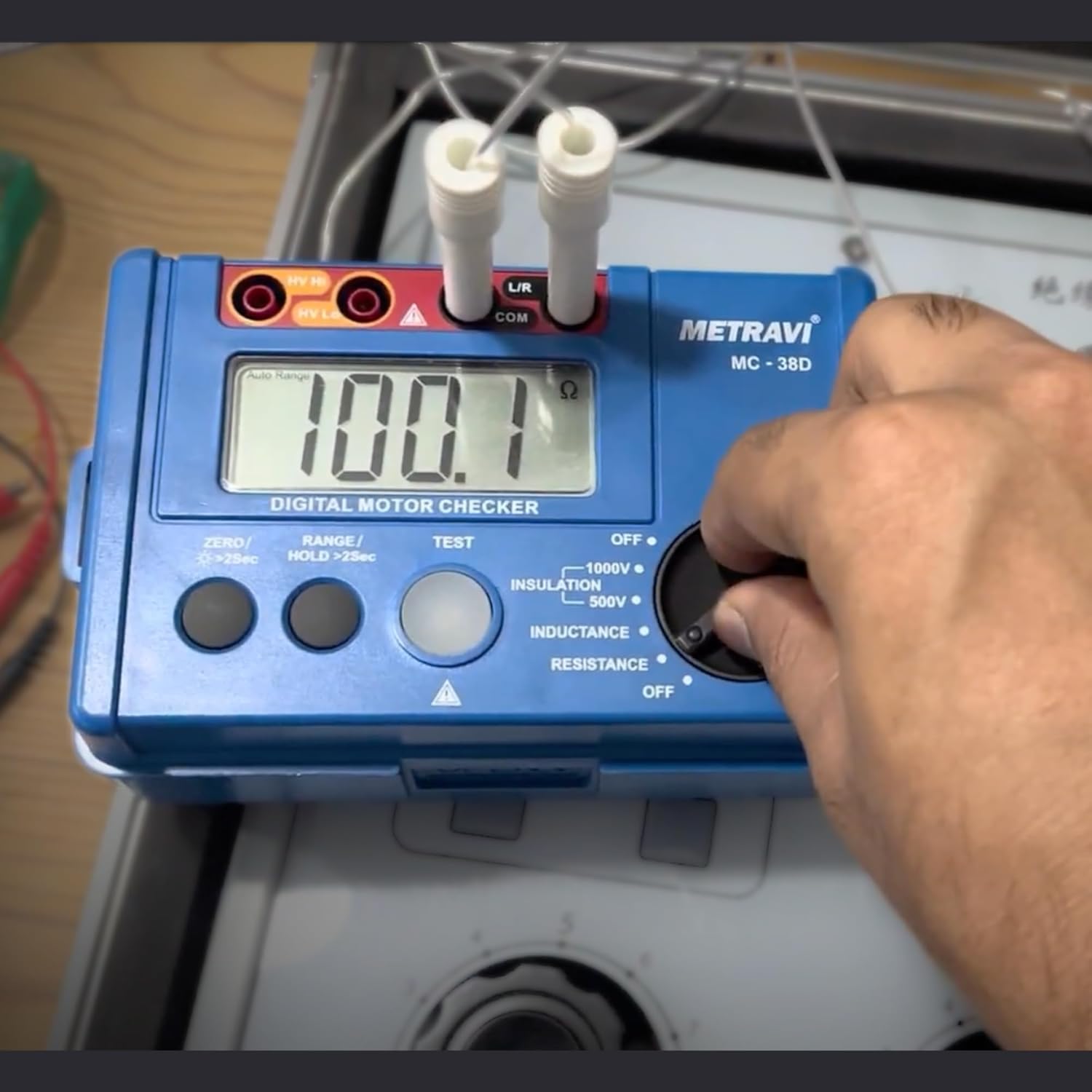

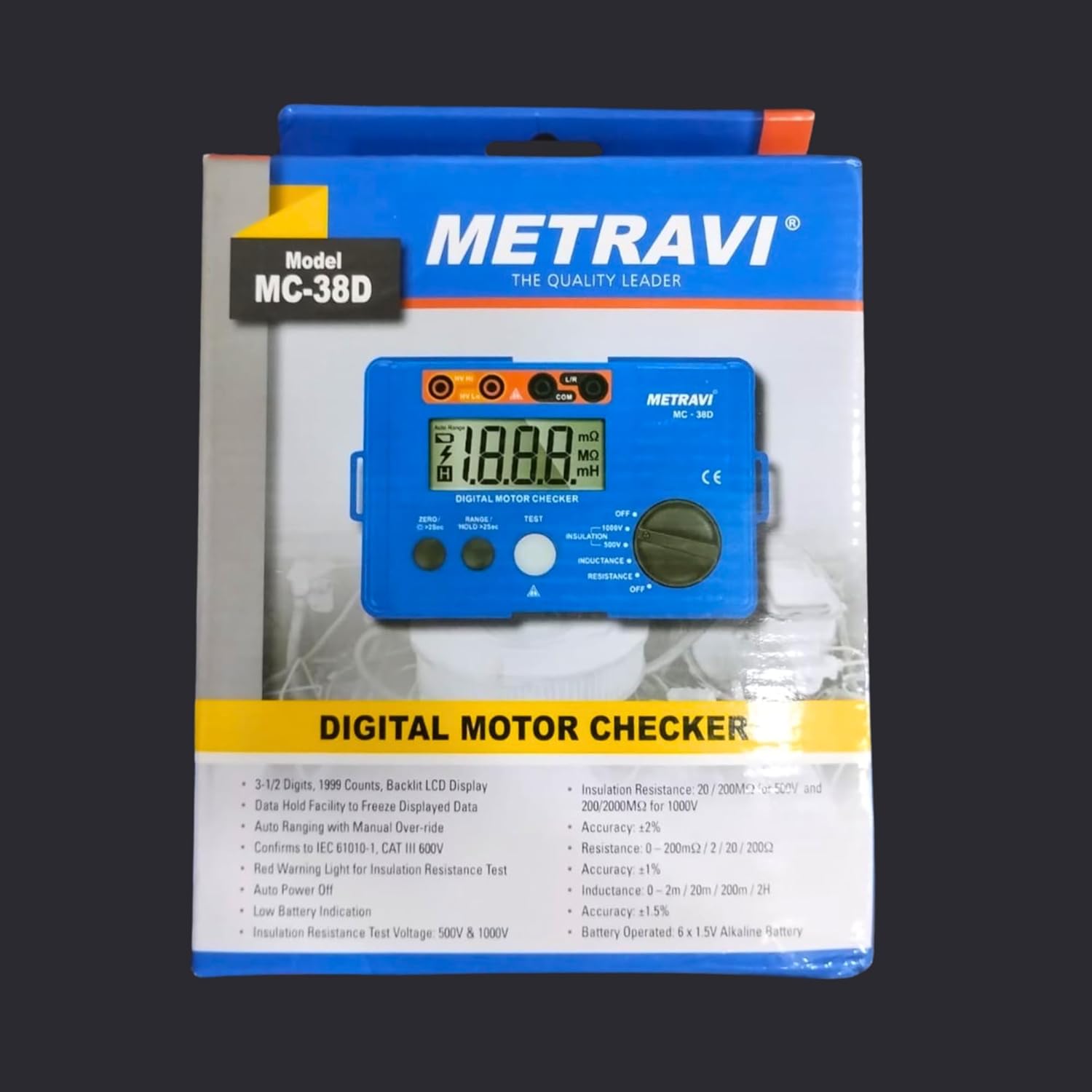

Metravi MC-38D Digital Motor Checker
Metravi MC-38D Digital Motor Checker
MC38D is an integrated motor checking instrument. It is newly designed with a combination of large scale integrated and digital circuits. This instrument can measure the parameters of Insulation Resistance, DC Resistance, Inductance, etc. And it has other features such as high accuracy, stable performance as well as
more convenient and reliable operations
Request Callback
Order In Bulk
Generate Quote
₹ 25,380.00
(GST inclusive price) i₹25,380.00
( - 0% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| General Specification | |
| Display | 3-1/2 Digits Backlit LCD, the max reading is 1999. |
| Low Battery Warning | Battery figure |
| Working Condition | 0° ~ 35°, relative humidity is 75% or less than it, altitude is 2000 meters. |
| Storage Condition | 20° ~ 60°, relative humidity is 80% or less than it. |
| Outer Size | 150mm(L) X 100mm(W) X 71mm(D) |
| Power Supply | alkaline battery of 1.5V (No.5) x 6 |
| Weight | 0.5 kg (including batteries) |
| Technical Specification | |
| Error Limit | ±(a% reading+ number value), warranty period of one year |
| Environmental Temperature | (23±5)°C |
| Environmental Humidity | 45% ~ 75% |
| Insulated Resistance Measurement | |||||
| Insulation Resistance Stall MΩ | 500V | 20MΩ | 0.01MΩ | ± (2%+15) | Output Voltage is 500V (measurement range is from 1M to 199.9M) |
| 200MΩ | 0.1MΩ | Output Voltage is 1000V (measurement range is from 1M to 1999M) | |||
| 1000V | 20MΩ | 0.01MΩ | |||
| 200MΩ | 0.1MΩ | ||||
| 2000MΩ | 1MΩ | ||||
| Output Voltage | 500V | ±10% | Output Voltage is 500V (measurement range is from 1M to 199.9M) | ||
| 1000V | ±10% | ||||
| DC Resistance Measurement | ||||
| Resistance Ω | 200mΩ | 0.1mΩ | For Reference Only | Open Circuit Voltage is about 5.0V |
| 2Ω | 0.001Ω | ± (2%+20) | ||
| 20Ω | 0.01Ω | ± (1%+10) | ||
| 200Ω | 0.1Ω | |||
| Inductance Measurement | ||||
| Inductance Lx | 2.000mH | 0.001mH | ± (1.5%+20) | Open Circuit Voltage is about 5.0V |
| 20.00mH | 0.01mH | |||
| 200.0mH | 0.1mH | |||
| 2.000H | 0.001H | ± (3%+20) | ||
